Veterinary Handheld Ultrasound Scanner NEUVU22
- Handheld veterinary ultrasound scanner for various animals including bovine, equine, canine, and more.
- 5" FTT-LED display with high brightness and contrast for clear imaging.
- Portable and lightweight design for easy transportation and field use.
- Supports OB measurements, including EDD and GA calculations for multiple species.
- Automatically calculates back-fat and lean percentage of swine.
- 128 frames permanent storage with 256 frames cine loop for image playback.
- Outputs via USB2.0 and video formats (PAL-D, NTSC).
- Includes a rechargeable 2600mAh lithium battery for 180+ minutes of operation.
- Additional features: adjustable focus positions and various measurement functions.
- Comes with standard accessories including probes, charger, and transportation case.
- SKU
- NEUVU22
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping

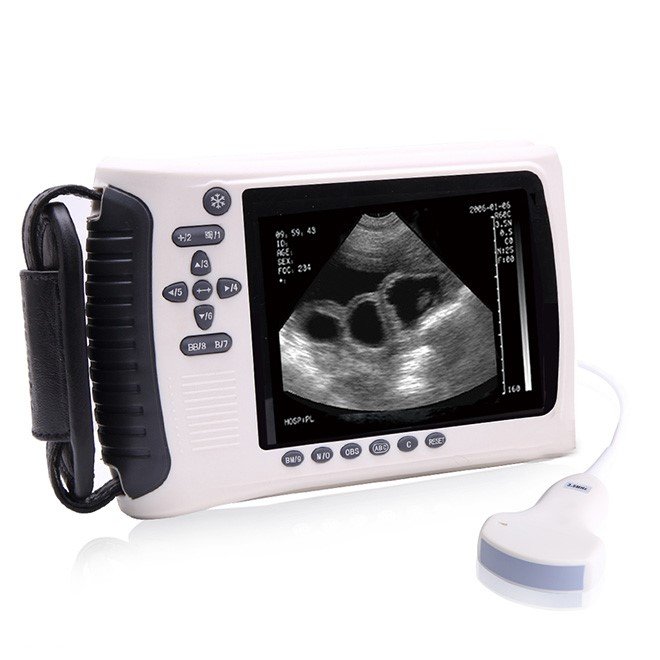

NEUVU22 Handheld Veterinary Ultrasound Scanner
Portable, field-ready ultrasound imaging for multi-species veterinary applications. The NEUVU22 delivers high-resolution B-mode imaging with integrated OB measurements, automated swine body composition analysis, and extended battery operation for remote and farm-based diagnostics.
Clinical overview
The NEUVU22 is a compact, handheld ultrasound scanner engineered for field-based veterinary diagnostics across multiple species. Its 5-inch FTT-LED display provides high-brightness, high-contrast imaging suitable for outdoor and variable-lighting environments. The device supports B, B+B, B+M, M, and 4B display modes, enabling comprehensive real-time assessment of soft tissue, reproductive status, and body composition.
Integrated obstetric (OB) measurement functions automatically calculate expected delivery date (EDD) and gestational age (GA) for bovine, equine, swine, alpaca, ovine, goat, canine, feline, and rabbit species. For swine production, the NEUVU22 automatically computes back-fat and lean percentage—critical metrics for herd management and carcass quality prediction. With 128 frames of permanent storage and a 256-frame cine loop, clinicians can capture, review, and archive diagnostic sequences for documentation and follow-up consultation.
Key features & surgeon benefits
Lightweight Field Design
- 230 × 120 × 38 mm footprint; 700 g net weight
- Handheld ergonomic form factor for single-operator use
- Supplied transportation case for secure field transport
High-Resolution Display & Processing
- 5" FTT-LED with 256 gray-scale levels for fine tissue differentiation
- Adjustable focus position and probe frequency (3-point per probe)
- Image processing: histogram, color encode, gamma, smoothing
Species-Specific Measurement & Analysis
- Automatic OB calculations (EDD, GA) for 9 species
- Swine back-fat and lean percentage computation
- 15 posture marks and full-screen notation (date, time, name, sex, age)
Extended Runtime & Output Options
- 2600 mAh lithium battery: 180+ minutes continuous operation
- USB 2.0 and video output (PAL-D, NTSC) for workstation integration
- AC/DC dual power supply; optional car charger for mobile clinics
Technical specifications
| Indications | Bovine, equine, swine, ovine, goat, canine, feline, alpaca, rabbit, fish, snake, and other species |
|---|---|
| Detection depth | ≥140 mm |
| Blind zone | ≤3 mm |
| Scan depth range | 120–220 mm (adjustable) |
| Display size | 5 inch FTT-LED |
| Display modes | B, B+B, B+M, M, 4B |
| Gray scale | 256 levels |
| Image storage | 128 frames permanent; 256 frames cine loop (≥400 frame capability) |
| Probe frequency | Adjustable (3 points per probe); standard 3.5 MHz convex |
| Measurement functions | Distance, circumference, heart rate, EDD, area, volume, GA, back-fat, lean percentage |
| Image processing | Histogram, color encode, gamma, image smoothing, frame correction |
| Output | USB 2.0, video (PAL-D, NTSC) |
| Battery | 2600 mAh lithium-ion; ≥3 hours continuous operation; 180+ minutes typical |
| Power adapter | 100–110V/240V~, 50–60 Hz, 70 VA |
| Dimensions | 230 mm (L) × 120 mm (W) × 38 mm (H) |
| Net weight | 700 g |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Scanner body | NEUVU22 handheld ultrasound unit | 1 |
| Li-ion battery | 2600 mAh rechargeable battery | 1 |
| 3.5 MHz convex probe | Standard transducer for general imaging | 1 |
| Charger with wires | AC adapter and power cable set | 1 |
| Wrap bag | Protective carrying bag | 1 |
| CD | Software and documentation disc | 1 |
| USG gel | Ultrasound coupling gel bottle | 1 |

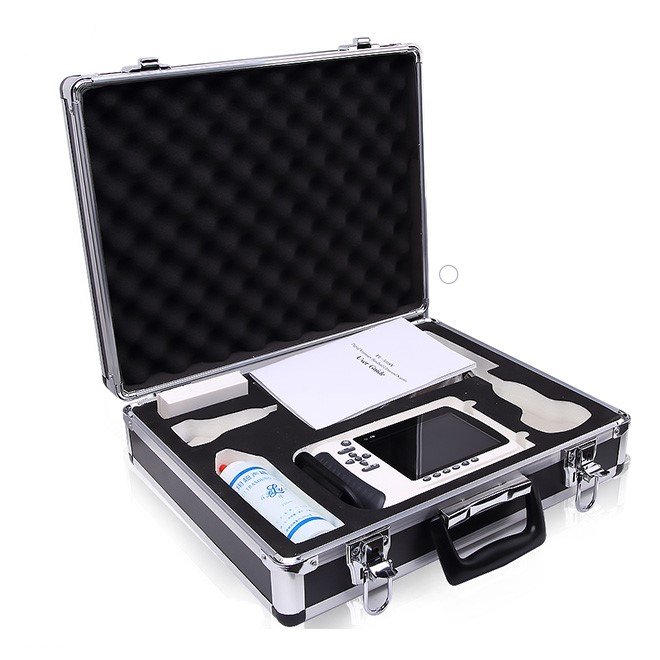

| Transportation case | Hard-shell protective case with foam insert | 1 |
| User manual | Printed instruction and reference guide | 1 |
Optional accessories & probes
| Accessory | Description |
|---|---|
| 5.0 MHz micro-convex probe | Higher-frequency imaging for small animal and detailed soft-tissue assessment |
| 6.5 MHz rectal probe | Specialized transducer for equine and bovine reproductive ultrasound |
| 6.5 MHz rectal probe with rod | Extended-reach rectal probe with rigid guide rod |
| 7.5 MHz linear probe | High-frequency linear array for superficial structures and small animals |
| Video printer | Thermal or inkjet printer for direct image output |
| Additional Li-ion battery | Spare 2600 mAh battery for extended field operations |
| Rod of rectal probe | Replacement guide rod for rectal probe assembly |
| Car charger | 12 V DC automotive charging adapter |
| Charging adaptation wire | Replacement power cable and connector set |
