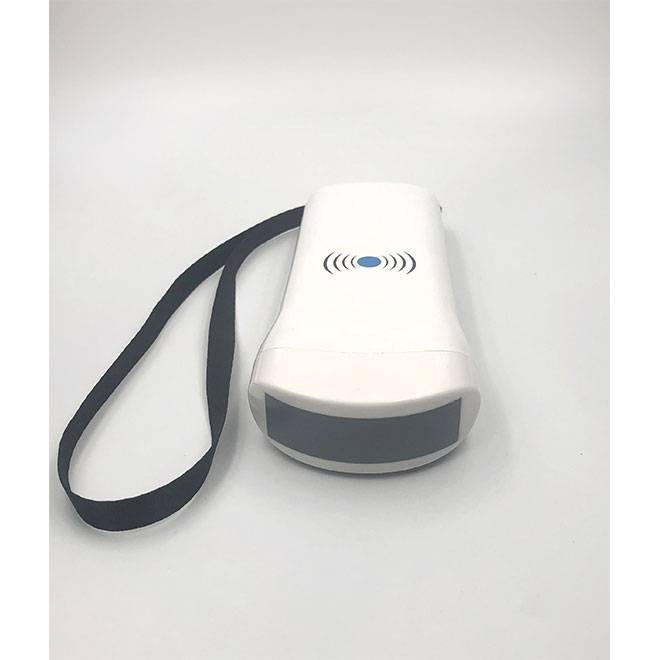

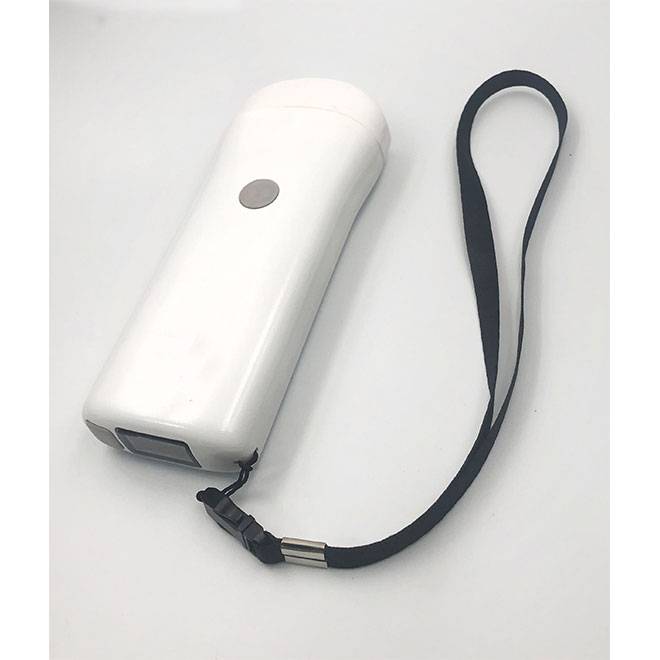

Wifi Portable Ultrasound Scanner Machine NEUVU49
- Portable Wifi ultrasound scanner for convenient use
- Scanning mode: Electronic array for detailed imaging
- Multiple display modes: B, B/M for versatile diagnostics
- Probe frequency: 3.5MHz with a scan depth of 60mm
- Adjustable image settings: BGain and Depth for optimal clarity
- Cineplay feature allows auto/manual playback with customizable frames
- Long battery life: 3 to 5 hours with a quick USB charge of 2 hours
- Lightweight design: Weighs only 300g for easy handling
- Compatible with Android operating systems for user-friendly operation
- High-speed Wifi connectivity (802.11g/20MHz/5G/450Mbps) for fast data transfer
- SKU
- NEUVU49
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
WiFi Portable Ultrasound Scanner NEUVU49
Professional-grade portable ultrasound imaging system with high-speed WiFi connectivity. Lightweight, Android-compatible design for point-of-care diagnostics and clinical applications across emergency medicine, obstetrics, cardiology, and musculoskeletal imaging.
Clinical overview
The NEUVU49 is a revolutionary portable ultrasound scanner designed for clinicians who require diagnostic imaging at the point of care. Weighing just 300 grams with dimensions of 165×68×26 mm, this device delivers professional-grade B-mode and B/M imaging through an 80-element electronic array probe operating at 3.5 MHz. The scanner connects wirelessly via high-speed 802.11g WiFi (450 Mbps, 5G capable) to any Android smartphone or tablet, transforming standard mobile devices into full ultrasound workstations without the need for expensive dedicated monitors or cart-based systems.
Engineered for versatility across multiple clinical specialties, the NEUVU49 excels in emergency medicine rapid assessment, obstetric and gynecological screening, point-of-care cardiac imaging, musculoskeletal evaluation, abdominal organ examination, and veterinary diagnostics. The 4500 mAh lithium-ion battery provides 3–5 hours of continuous scanning with a rapid 2-hour USB recharge cycle, enabling all-day clinical operation in hospital wards, emergency departments, primary care clinics, mobile health services, and remote field settings. Advanced imaging controls including BGain and depth adjustment, combined with cineplay functionality supporting 100–1000 frame loops in auto/manual modes, provide clinicians with the diagnostic flexibility required for confident clinical decision-making.
Key features & surgeon benefits
Ultra-Lightweight Design
- 300 gram weight for single-hand operation
- Pocket-sized form factor (165×68×26 mm)
- Ideal for mobile diagnostics and field medicine
- Perfect for EMS, home healthcare, and remote clinics
High-Speed WiFi Integration
- 802.11g/5G wireless at 450 Mbps transfer speed
- Real-time image streaming to Android devices
- Multi-device connectivity for team consultations
- Cloud integration for instant specialist sharing
Cost-Effective Solution
- Eliminates expensive cart-based ultrasound systems
- No dedicated monitor or infrastructure required
- Minimal maintenance and operating costs
- Rapid ROI for high-volume practices
Advanced Imaging Capability
- 80-element electronic array for superior clarity
- B-mode, B/B, and B/M display modes
- Adjustable BGain and depth control to 60 mm
- Cineplay with up to 1000-frame loops
Technical specifications
| Indications | Emergency medicine, obstetrics & gynecology, cardiology, musculoskeletal assessment, abdominal imaging, veterinary diagnostics |
|---|---|
| Sizes / range | 3.5 MHz probe frequency; 60 mm scan depth @ 60° angle; 80-element electronic array; 60 mm scan head radius |
| Material | Polymer housing; Lithium-Ion battery (4500 mAh) |
| Sterilisation | Non-sterile device; probe surface cleanable with standard medical disinfectants |
| Packaging | Protective carrying case; USB charging cable; user manual; quick-start guide |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| NEUVU49 Scanner Unit | Portable WiFi ultrasound scanner with 80-element 3.5 MHz probe, 4500 mAh battery, Android connectivity | 1 |
| USB Charging Cable | Standard USB-A to micro-USB charging cable for 2-hour rapid recharge | 1 |
| Protective Carrying Case | Padded travel case with compartments for scanner and accessories | 1 |
| User Manual | Comprehensive operating guide with clinical applications and troubleshooting | 1 |
| Quick-Start Guide | Setup instructions for Android device pairing and WiFi connection | 1 |
| Companion Mobile App | Free download from Google Play Store; includes imaging controls, cineplay, and image capture | License |
