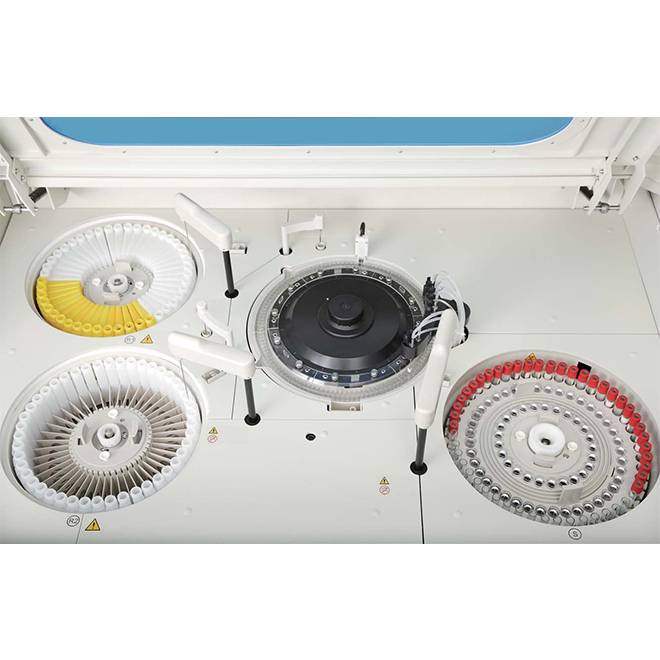

Automatic Chemistry Analyzer Biossays 240plus
- High throughput of 240 tests/hour with optional ISE for 200 tests/hour.
- Continuous loading capability with up to 90 sample and reagent positions.
- Advanced washing station for cuvettes, unique to the Biossays 240 Plus.
- Real-time monitoring of reagent levels with display alerts.
- Multiple calibration options, including linear and non-linear settings.
- Automatic dilution and mixing with a TEFLON-coated stirring needle.
- Efficient refrigeration system for reagents, operable 24 hours.
- Supports various sample types: serum, plasma, urine, and CSF.
- Robust measuring principles including Endpoint and ISE technology.
- Compact design with dimensions of 730mm x 500mm x 620mm and weight of 68kg.
- SKU
- BIOSSAYS 240PLUS
- Brand
- Neuvar
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Automatic Chemistry Analyzer Biossays 240plus
High-throughput biochemistry analysis system delivering 240 tests per hour with continuous loading, advanced optical detection, and optional ISE capability for comprehensive clinical laboratory testing.
Clinical overview
The Automatic Chemistry Analyzer Biossays 240plus represents a significant advancement in clinical biochemistry analysis technology. This sophisticated instrument combines high-throughput testing capabilities with exceptional accuracy and reliability, making it an ideal solution for busy clinical laboratories, hospitals, and diagnostic centers. With its ability to process 240 tests per hour and optional ISE capability for 200 tests per hour, the Biossays 240plus ensures rapid turnaround times without compromising analytical quality. Engineered with continuous random access functionality and unlimited STAT priority positions, this analyzer provides unparalleled flexibility in managing urgent samples alongside routine workloads.
The high-efficiency washing station for cuvettes, exclusive to the 240plus model, combined with advanced liquid level sensing, volume tracking, collision detection, and clot detection capabilities, ensures consistent performance and minimizes errors. The comprehensive 24-hour refrigeration system with independent control maintains reagent stability, while real-time monitoring and alerting functions keep operators informed of system status at all times. Supporting multiple sample types including serum, plasma, urine, and cerebrospinal fluid, the Biossays 240plus delivers versatile clinical chemistry analysis with robust measuring principles including Endpoint and ISE technology.
Key features & surgeon benefits
High-Speed Analysis
- 240 tests per hour for biochemistry; 200 tests/hour with optional ISE
- Continuous loading with up to 90 sample and 90 reagent positions
- Unlimited STAT priority for urgent specimens without workflow interruption
Advanced Photometry
- Diffraction grating filter system with 16 wavelengths (340–800 nm)
- Absorbance range 0–3.5 ABS for diverse assay requirements
- Integrated liquid level, volume tracking, collision, and clot detection
Reliability & Efficiency
- High-efficiency washing station for reusable optical cuvettes (240plus exclusive)
- 24-hour refrigeration system with independent control for reagent stability
- Real-time reagent level monitoring with display alerts and automatic quality control
Versatile Testing
- Multiple calibration options: 1-Point, 2-Point, Multi-Point Linear, Non-Linear, K Factor
- Automatic dilution and mixing with TEFLON-coated stirring needle
- Barcode support (Code 128, 39, 93, Codabar, 2/5 Interleaved) for LIS integration
Technical specifications
| Indications | Clinical biochemistry analysis: cardiac markers, liver function, renal function, glucose metabolism, lipid profiles, protein analysis, therapeutic drug monitoring, bone metabolism markers |
|---|---|
| Sizes / range | Sample volume 2.0–35.0 µL (biochemistry), 90.0 µL (ISE); reagent volume 20–350 µL; reaction volume 100–380 µL |
| Material | Optical plastic cuvettes (reusable, 5 mm optical diameter); TEFLON-coated stirring needle; halogen lamp light source |
| Sterilisation | N/A — laboratory analyzer; cuvettes cleaned via integrated high-efficiency washing station |
| Packaging | 80 reusable optical plastic cuvettes included; reagent bottles 10 mL + 30 mL, 50 mL |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Main Analyzer Unit | Automatic Chemistry Analyzer with integrated washing station, refrigeration, and optical detection system | 1 |
| Optical Cuvettes | Reusable optical plastic cuvettes, 5 mm optical diameter | 80 |
| Sample Probe | High-precision sample probe with liquid level detection and clot detection | 1 |
| Reagent Probe | High-precision reagent probe with volume tracking | 1 |
| Stirring Needle | TEFLON-coated stirring needle for automatic mixing | 1 |
| Washing Station | High-efficiency cuvette washing system (240plus exclusive feature) | 1 |
| Refrigeration System | 24-hour refrigeration unit with independent control switch | 1 |
| Power Supply | AC 100V–110V/240V, 50/60 Hz universal power adapter | 1 |
| Halogen Lamp | 20 W/12 V halogen light source (2000 hours lifespan) | 1 |
| Diffraction Grating Filter | 16-wavelength optical filter system (340–800 nm) | 1 |
Get in touch for pricing & availability
Contact our clinical chemistry specialists to discuss the Biossays 240plus configuration, reagent integration, and delivery timelines for your laboratory. We provide comprehensive technical support and customisation options to meet your specific testing requirements.
