Automatic Chemistry Analyzer Machine NEUES200
- Automatic Chemistry Analyzer Machine NEUES200 for efficient laboratory testing
- Random access design with open reagent and optional locked reagent
- High test speed of 200 tests per hour (single or double reagent)
- Utilizes colorimetric and turbidimetry methods for accurate results
- 40 sample positions and 80 reagent positions for versatile operation
- Adjustable sample volume from 2 to 30 μl and reagent volume from 2 to 300 μl
- Advanced incubation system maintaining optimal reaction temperature at 37℃± 0.1℃
- Features automatic cuvette washing with 3*4 steps for consistent performance
- Equipped with optional sample and reagent barcode reader for enhanced tracking
- Compact design suitable for various laboratory environments
- SKU
- NEUES200
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Automatic Chemistry Analyzer Machine NEUES200
High-throughput automated chemistry analyzer delivering 200 tests per hour with random access capability. Features advanced incubation control, dual reagent options, and flexible sample/reagent positioning for efficient laboratory workflows.
Clinical overview
The NEUES200 is a fully automated chemistry analyzer engineered for high-volume clinical laboratories and diagnostic centers. With a constant throughput of 200 tests per hour, the system supports both single and double reagent protocols, enabling comprehensive testing panels without workflow interruption. The random access design allows simultaneous processing of multiple samples with different test profiles, optimizing turnaround time and laboratory efficiency.
Advanced temperature control via Peltier pad incubation maintains reaction conditions at 37°C ± 0.1°C, ensuring precise and reproducible results. The integrated automatic cuvette washing system with 3×4 step cycles guarantees consistent optical performance across all measurements. Optional barcode reader integration provides full sample and reagent tracking, supporting laboratory information system (LIS) connectivity and compliance with quality assurance protocols.
Key features & surgeon benefits
High-Speed Testing
- Constant 200 tests per hour capacity
- Random access for flexible sample sequencing
- Dual reagent support for protocol flexibility
Accurate Results
- Colorimetric and turbidimetry measurement methods
- Precise temperature control at 37°C ± 0.1°C
- Automatic cuvette washing for optical consistency
Adaptable Configuration
- 40 sample positions with micro cup and test tube support
- 80 reagent positions for diverse test menus
- Adjustable sample volume 2–30 μl, reagent volume 2–300 μl
Smart Tracking
- Optional sample and reagent barcode reader
- LIS connectivity support
- Compact design for various laboratory environments

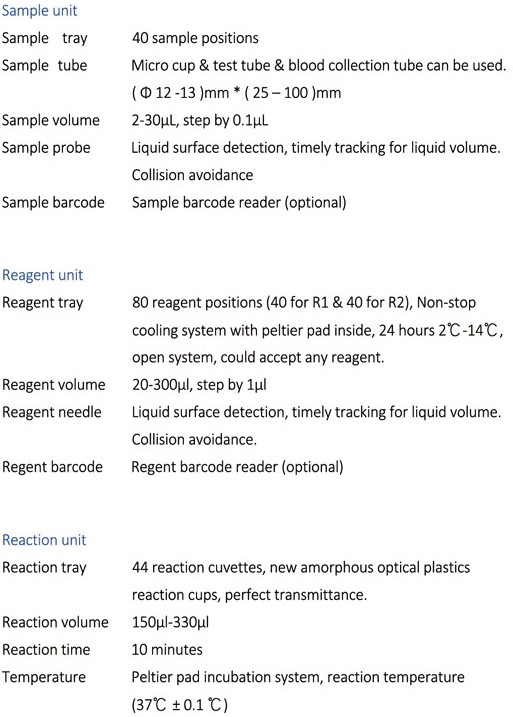

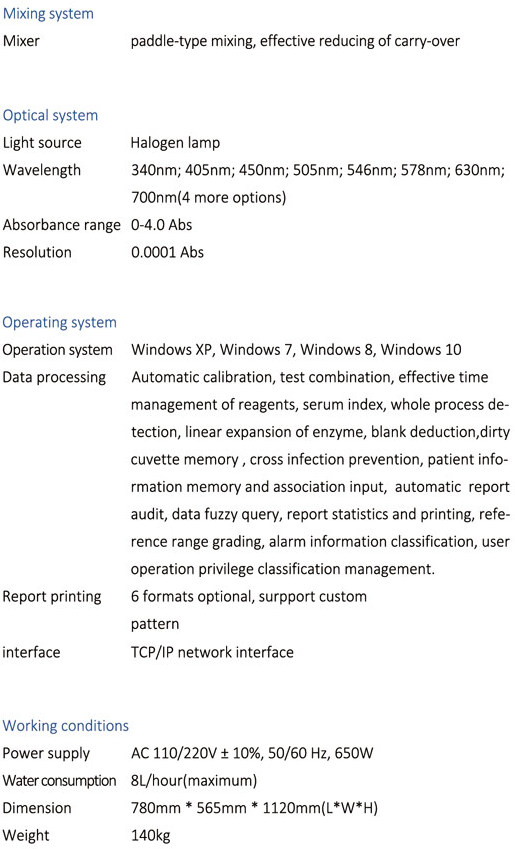

Technical specifications
| Machine Type | Random access, open reagent & locked reagent (optional) |
|---|---|
| Test Speed | Constant 200 tests/hour (single or double reagent) |
| Test Principle | Colorimetric method, turbidimetry |
| Test Methods | 1-point end, 2-point end, fixed-time, kinetics |

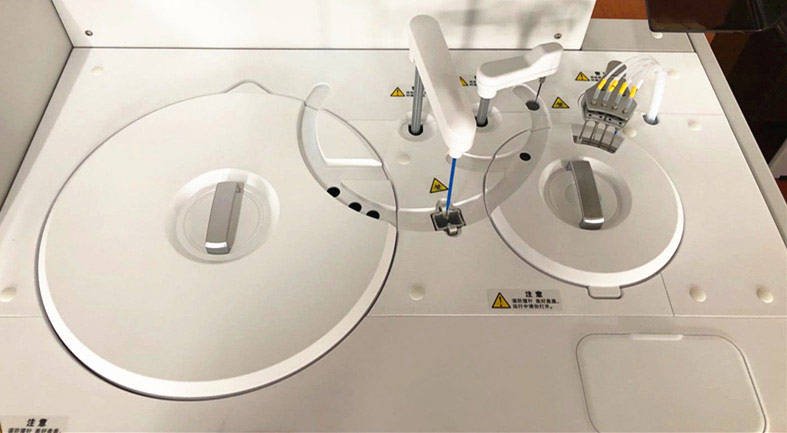

| Sample Tray | 40 sample positions |
| Sample Cup Type | Micro cup & test tube |
| Reagent Tray | 80 reagent positions |
| Sample Volume | 2–30 μl (step by 0.1 μl) |
| Reagent Volume | 2–300 μl (step by 1 μl) |
| Reaction Tray | 44 high-quality plastic cuvettes |
| Reagent Capacity | 150–350 μl per cuvette |
| Reaction Time | 10 minutes |
| Incubation System | Peltier pad incubation |
| Reaction Temperature | 37°C ± 0.1°C |
| Cuvette Washing | 3×4 steps automatic washing |
| Optional Features | Sample & reagent barcode reader |
| Warranty | 2 Year Manufacturer Warranty |

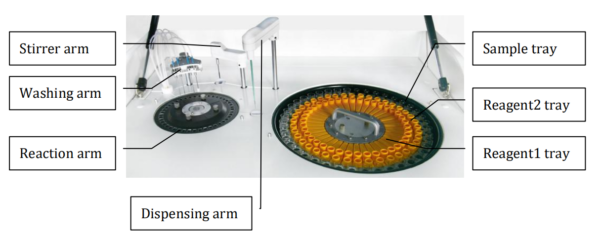

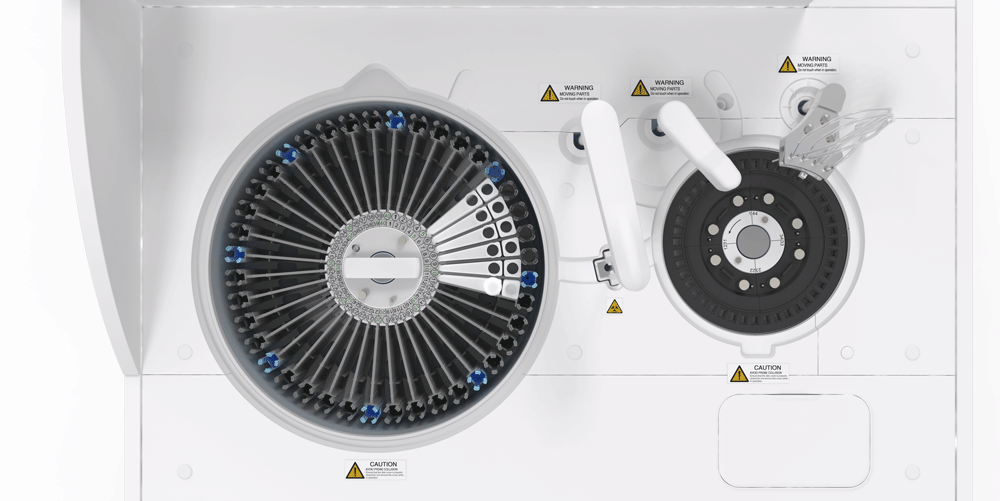

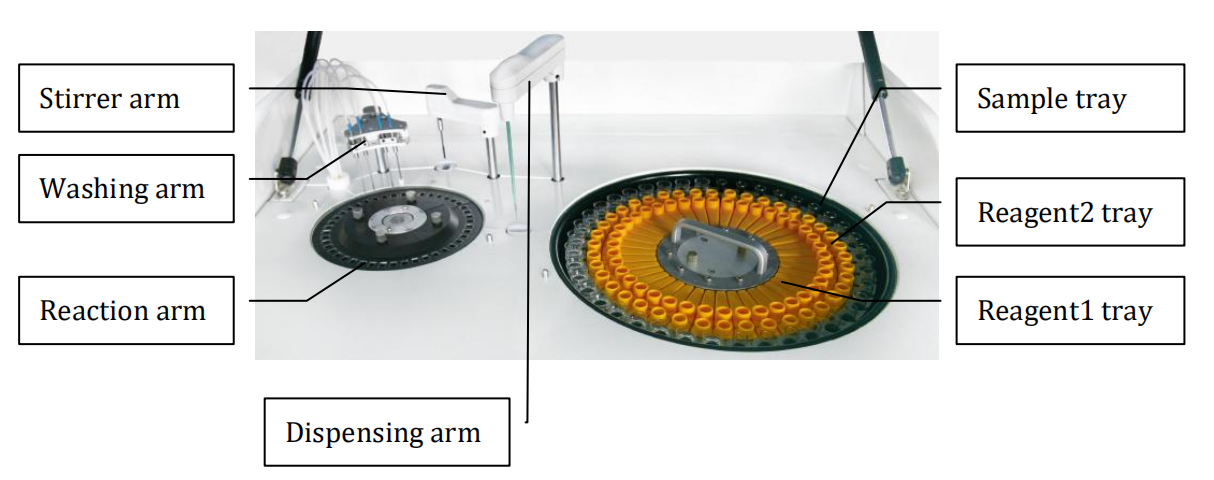

Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Main Analyzer Unit | NEUES200 automatic chemistry analyzer with integrated controls | 1 |
| Sample Tray | 40-position sample carousel with micro cup and test tube support | 1 |
| Reagent Tray | 80-position reagent carousel | 1 |
| Reaction Tray | 44 high-quality plastic cuvettes | 1 |
| Incubation System | Peltier pad temperature control module | 1 |
| Cuvette Washing Module | Automatic 3×4 step washing system | 1 |
| Control Software | Integrated laboratory management interface | 1 |
| Power Supply | Regulated power unit with safety certification | 1 |
| Barcode Reader (Optional) | Sample and reagent tracking module | Optional |
Get in touch for pricing & availability
Contact our sales team to discuss system configuration, pricing, and delivery timelines. We provide comprehensive support, training, and maintenance packages tailored to your laboratory's needs.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
Customer reviews
No reviews yet — be the first to share your experience.
