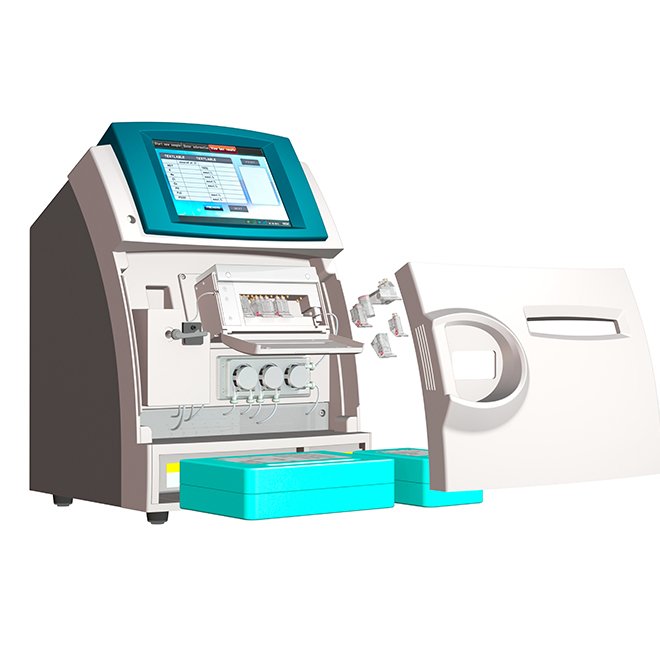

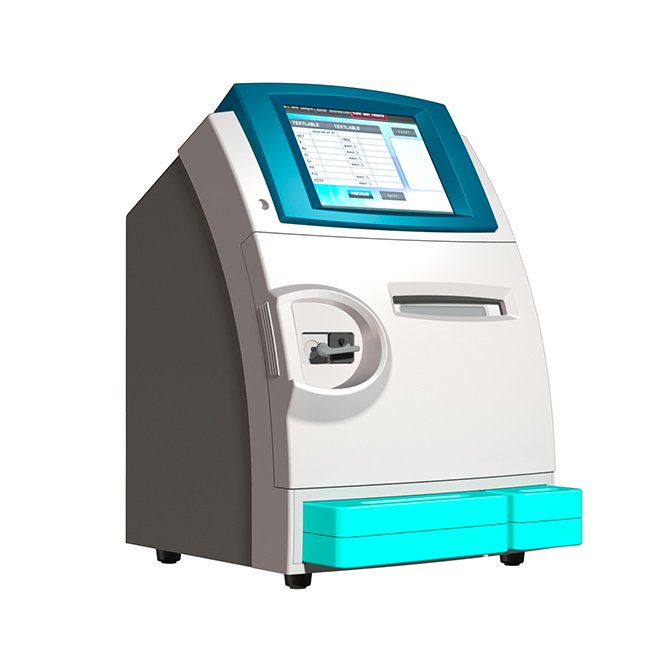

Blood Gas Analyzers NEUAB36
- Intuitive touch screen for easy operation
- Infrared human-detector for enhanced accuracy
- Flexible calibrants cartridge for quick adjustments
- Automatic QC cartridge ensures reliable results
- Comprehensive data management capabilities
- Fast data input for efficient workflow
- Reliable measurement units for various parameters
- Compatible with whole blood, serum, plasma, and more
- Supports a wide range of measured parameters
- Compact design with a robust 10.4" TFT touch display
- SKU
- NEUAB36
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Blood Gas Analyzers NEUAB36
Advanced point-of-care blood gas and chemistry analysis with intuitive touch-screen interface, infrared human detection, and comprehensive data management. Delivers rapid, reliable results for critical care, emergency, and laboratory settings.
Clinical overview
The NEUAB36 is a compact, fully automated blood gas and chemistry analyzer designed for rapid, accurate measurement of critical parameters in whole blood, serum, plasma, dialysate, and cerebrospinal fluid. With a 90-second analysis time and intuitive 10.4" touch-screen interface, it delivers clinically reliable results for emergency departments, intensive care units, and central laboratory environments.
The analyzer combines advanced infrared human detection with flexible calibration cartridges and automatic quality control to ensure consistent accuracy. Comprehensive data management capabilities, integrated bar-code reader, and multiple interface options (RS-232, TCP/IP, USB) enable seamless workflow integration and secure patient record management across healthcare networks.
Key features & surgeon benefits
Comprehensive Parameter Coverage
- pH, pCO₂, pO₂ with extended measurement ranges
- Electrolytes: K⁺, Na⁺, Cl⁻, Ca²⁺
- Metabolites: glucose, lactate, hematocrit, blood pressure
Rapid, Intuitive Operation
- 90-second analysis time for critical decision-making
- Fast data input with touch-screen interface
- Integrated bar-code reader for sample tracking
Reliable & Accurate Results
- Infrared human detection for enhanced accuracy
- Automatic QC cartridge ensures consistent performance
- Programmable 1-point and 2-point calibration
Connectivity & Integration
- Storage capacity for >10,000 patient records
- RS-232, TCP/IP, and USB interfaces
- Flexible calibrants cartridge for quick adjustments
Technical specifications
| Indications | Blood gas analysis, electrolyte measurement, glucose and lactate monitoring in whole blood, serum, plasma, dialysate, cerebrospinal fluid |
|---|---|
| Measured Parameters | pH (6.0–9.0), pCO₂ (0.667–26.67 kPa / 5.0–200.0 mmHg), pO₂ (0–106.7 kPa / 0–800.0 mmHg), K⁺ (0.50–10.00 mmol/L), Na⁺ (50.0–200.0 mmol/L), Cl⁻ (20.0–200.0 mmol/L), Ca²⁺ (0.10–5.00 mmol/L), Hct (12.0–65.0%), glucose (1.1–66.7 mmol/L), lactate (0.4–30.0 mmol/L) |
| Input Parameters | Patient temperature, hemoglobin, FiO₂, blood pressure |
| Sample Volume | 95 µL whole blood (120 µL with glucose and lactate); 50 µL capillary blood |
| Analysis Time | 90 seconds |
| Display | 10.4" TFT touch screen |
| Calibration | Automatic, programmable; 1-point and 2-point calibration |
| Data Storage | >10,000 patient records |
| Interfaces | RS-232 serial line, TCP/IP, USB port, integrated bar-code reader |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Main Unit | NEUAB36 Blood Gas and Chemistry Analyzer with 10.4" TFT touch display | 1 |
| Calibrants Cartridge | Flexible calibrants cartridge for quick adjustments | 1 |
| QC Cartridge | Automatic quality control cartridge | 1 |
| Power Supply | Medical-grade power adapter | 1 |
| Interface Cables | RS-232, USB connectivity cables | 1 set |
| Documentation | User manual, technical specifications, warranty certificate | 1 set |
Get in touch for pricing & availability
Contact our sales team to discuss pricing, delivery timelines, and customisation options for the NEUAB36 blood gas analyzer. We provide comprehensive support and training for all laboratory and clinical installations.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
