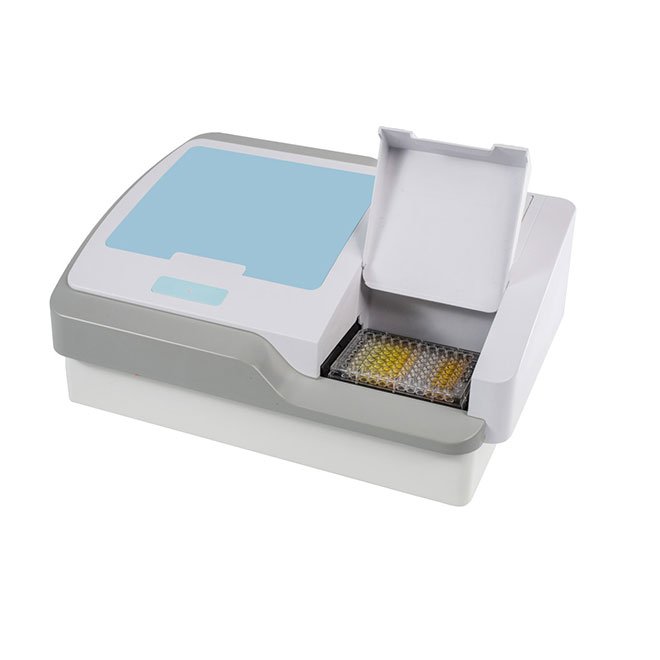

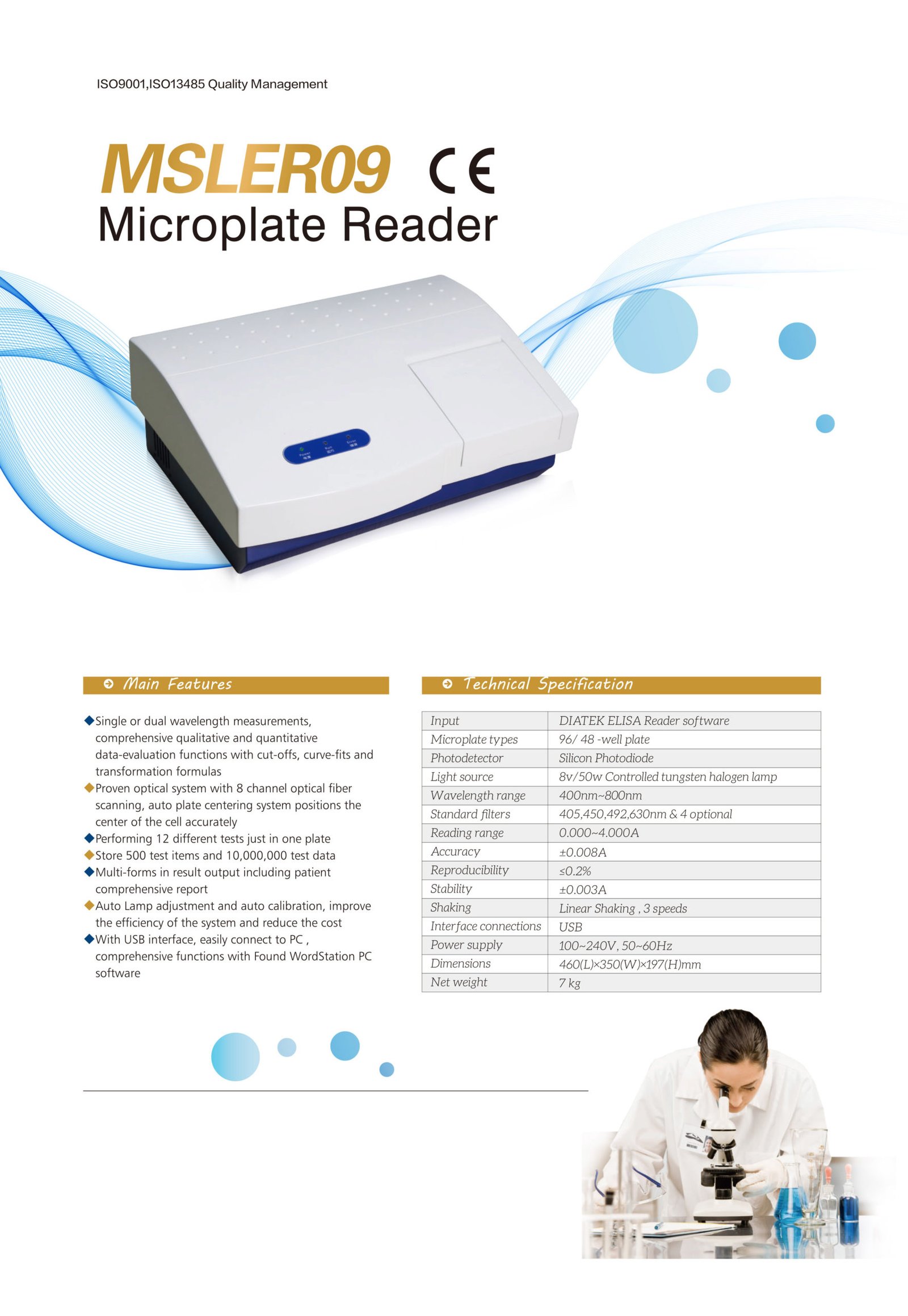

Chemistry Analyzer Microplate Reader Machine NEUER09
- Single or dual wavelength measurements
- Proven optical system with 8 channel optical fiber scanning
- Auto plate centering for precise cell positioning
- Capable of performing 12 different tests on one plate
- Stores up to 500 test items and 10,000,000 test data
- Multi-format output including comprehensive patient reports
- Auto lamp adjustment and calibration for efficiency
- USB interface for easy PC connectivity
- Compatible with 96/48-well microplates
- Compact design with dimensions 460x350x197 mm and weighs 7 kg
- SKU
- NEUER09
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Chemistry Analyzer Microplate Reader Machine NEUER09
Advanced microplate reader with dual wavelength capability, 8-channel optical fiber scanning, and auto plate centering for precise cell positioning. Perform up to 12 different tests on a single plate with comprehensive data storage and multi-format reporting.
Clinical overview
The NEUER09 Chemistry Analyzer Microplate Reader is a compact, high-performance laboratory instrument designed for clinical chemistry, immunoassay, and enzyme-linked assays. With proven optical technology featuring 8-channel optical fiber scanning and auto plate centering, the system delivers precise, reproducible results across a wide range of analytes. The dual wavelength measurement capability enables simultaneous detection of multiple parameters, improving workflow efficiency and reducing per-test turnaround time.
The instrument supports comprehensive qualitative and quantitative data evaluation with built-in cut-offs, curve-fitting algorithms, and transformation formulas. Auto lamp adjustment and calibration minimize maintenance requirements and operational costs, while the integrated USB interface enables seamless connectivity to laboratory information systems and PC-based data management platforms.
Key features & surgeon benefits
Precision Scanning & Positioning
- 8-channel optical fiber scanning for uniform light distribution
- Auto plate centering system ensures accurate cell positioning
- Wavelength range 400–850 nm with standard filters at 405, 450, 492, 630 nm
Multiplexing & Data Management
- Perform 12 different tests on a single microplate
- Store up to 500 test items and 10,000,000 test data records
- Multi-format output including comprehensive patient reports
Efficiency & Cost Reduction
- Auto lamp adjustment and calibration reduce operational costs
- Compact footprint (460×350×197 mm, 7 kg) saves bench space
- Linear shaking with 3 speeds optimizes reagent mixing
Integration & Customisation
- USB interface for easy PC connectivity and data transfer
- Compatible with 96-well and 48-well microplate formats
- OEM customisation available for bespoke applications
Technical specifications
| Indications | Clinical chemistry, immunoassay, enzyme-linked assays, qualitative and quantitative analysis |
|---|---|
| Microplate types | 96-well and 48-well plates |
| Photodetector | Silicon Photodiode |
| Light source | 8V/50W controlled tungsten halogen lamp |
| Wavelength range | 400–850 nm |
| Standard filters | 405, 450, 492, 630 nm (4 optional filters available) |
| Reading range | 0.000–4.000 A |
| Resolution | 0.001 A |
| Accuracy | ±0.008 A |
| Reproducibility | ≤0.2% |
| Stability | ±0.003 A |
| Shaking function | Linear shaking, 3 speeds |
| Interface | USB |
| Power supply | 100–110V/240V, 50–60 Hz |
| Dimensions | 460 (L) × 350 (W) × 197 (H) mm |
| Net weight | 7 kg |
| Data storage | 500 test items, 10,000,000 test data records |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Main unit | Chemistry Analyzer Microplate Reader NEUER09 | 1 |
| Power cable | 100–110V/240V, 50–60 Hz compatible | 1 |
| USB cable | PC connectivity interface | 1 |
| Standard filters | 405, 450, 492, 630 nm | 1 set |
| User manual | Operation and maintenance guide | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss pricing, delivery timelines, and customisation options for the NEUER09 Chemistry Analyzer. We offer flexible configurations and volume discounts for laboratory networks and healthcare facilities.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
