Dependable decontamination
Cycle times are reasonable for the chamber size and the drying phase leaves packs suitably dry. A robust unit for a busy department.
Dr. Lucia Fontaine, MDVerified buyerJan 24, 2026
MedGroup

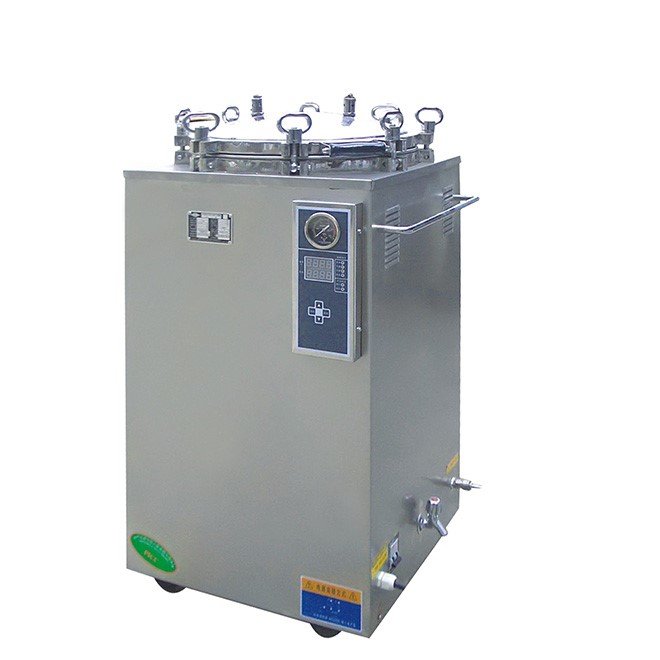

Microwave Steam Sterilizer | Autoclave Vertical NEUPS11 100L
4.3(3 reviews)- Model: NEUPS11 (automatic)
- Chamber volume options: 35L, 50L, 75L, 100L
- Working pressure: 0.1-0.22MPa
- Operating temperature range: 120-134℃
- Maximum working pressure: 0.23 MPa
- Timer setting: 0-99 minutes or 0-99 hours 59 minutes
- Adjustable temperature: 105-134℃
- Power consumption: Options of 2.5Kw, 3Kw, and 4.5Kw at AC220V, 50Hz
- Overall dimensions for 100L: 590×590×1080(mm)
- Gross/Net weight for 100L: 105Kg/85Kg
- SKU
- NEUPS11
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Autoclaves & Sterilization
Microwave Steam Sterilizer | Autoclave Vertical NEUPS11 100L
Fully automatic vertical steam autoclave with chamber volumes from 35L to 100L. Precision temperature control (105–134°C), adjustable pressure (0.1–0.22 MPa), and flexible timer settings deliver reliable sterilization for surgical instruments, laboratory equipment, and medical devices in clinical and industrial settings.
Ordering Ref.
NEUPS11
ConfigurationAutomatic, Vertical
MaterialStainless Steel
ApplicationClinical & Industrial Sterilization
Available in 35L, 50L, 75L, and 100L configurations. Power options: 2.5 kW, 3 kW, or 4.5 kW at AC 110V/220V, 50/60Hz. Custom configurations available upon request.
Clinical overview
The NEUPS11 is a fully automatic vertical steam autoclave engineered for reliable, consistent sterilization across clinical, surgical, and laboratory environments. With chamber volumes ranging from 35L to 100L, it accommodates diverse instrument loads while maintaining precise temperature and pressure control. The automatic operation minimizes user intervention, reducing cycle time and operator fatigue while ensuring reproducible sterilization outcomes.
Equipped with adjustable temperature settings (105–134°C), flexible timer modes (0–99 minutes or 0–99 hours 59 minutes), and stable working pressure (0.1–0.22 MPa), the NEUPS11 delivers professional-grade sterilization performance. Its robust stainless-steel construction and thermal stability (±1°C heat average) make it suitable for high-volume facilities, surgical centers, and research laboratories requiring dependable, code-compliant sterilization.
Key features & surgeon benefits
Capacity
Flexible Chamber Volumes
- Four size options: 35L, 50L, 75L, 100L
- Scalable for small clinics to large surgical centers
- Optimized chamber geometry for even steam distribution
Workflow
Fully Automatic Operation
- Minimal operator intervention required
- Programmable timer: 0–99 min or 0–99 h 59 min
- Consistent cycle repeatability for compliance documentation
Precision
Precise Temperature & Pressure Control
- Adjustable temperature range: 105–134°C
- Working pressure: 0.1–0.22 MPa (max 0.23 MPa)
- Thermal stability: ±1°C heat average
Customisation
Power & Configuration Options
- Power ratings: 2.5 kW, 3 kW, or 4.5 kW
- AC 110V/220V, 50/60Hz standard
- OEM customization available for specialized applications
Technical specifications
| Model | NEUPS11 (Automatic) |
|---|---|
| Chamber volumes | 35L (φ318×450 mm), 50L (φ340×550 mm), 75L (φ400×600 mm), 100L (φ440×650 mm) |
| Working pressure | 0.1–0.22 MPa |
| Maximum working pressure | 0.23 MPa |
| Operating temperature | 120–134°C |
| Adjustable temperature range | 105–134°C |
| Heat uniformity | ±1°C average |
| Timer settings | 0–99 minutes or 0–99 hours 59 minutes |
| Power consumption | 2.5 kW, 3 kW, or 4.5 kW at AC 110V/220V, 50/60Hz |
| Overall dimensions (100L) | 590×590×1080 mm |
| Transport dimensions (100L) | 680×650×1220 mm |
| Gross weight / Net weight (100L) | 105 kg / 85 kg |
| Sterilisation method | Steam sterilization |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Autoclave unit | Vertical steam sterilizer with automatic control system | 1 |
| Chamber | Stainless steel pressure vessel (size per configuration) | 1 |
| Control panel | Automatic timer and temperature adjustment interface | 1 |
| Safety valve | Pressure relief and safety mechanism | 1 |
| Drain valve | Condensate and waste water drainage | 1 |
| Power cord | AC 110V/220V, 50/60Hz connection cable | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss chamber size selection, power requirements, and delivery timelines. We offer flexible configurations and comprehensive support for clinical and industrial sterilization applications.
Phone: (424) 270-9077
Email: [email protected]
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
Customer reviews
4.3· 3 reviewsReliable sterilisation cycles
The chamber reaches temperature evenly and the cycle completes with consistent results on our biological indicators. The generous capacity handles our instrument load well.
Dr. Dorothy Fairbanks, MDVerified buyerDec 3, 2025
Sturdy vertical autoclave
The seal holds pressure firmly and the safety interlocks work as intended. Loading is a little awkward at the top but the throughput is good.
Krzysztof Baranski, BMETMay 8, 2025
