- On-site blood chemistry analyzer designed for rapid testing
- Provides results in approximately 10 minutes
- Analyzes whole blood, plasma, and serum samples (100μl)
- Tests up to 17 parameters in one test with 32 parameters in 9 profiles
- Features a full-color touch screen user interface
- Automatic self-calibration using QR code technology
- Built-in real-time quality control (RQC) system
- Connectivity options: WLAN, USB port, and Ethernet interface
- Compatible with HIS and MNCHIP Medical Data Management Platform
- Compact design: Dimensions - 21(L) x 12.5(W) x 17.5(H) cm; Weight - 2.3 kg
Rapid point-of-care blood chemistry testing with results in approximately 10 minutes. The NEUDA02 analyzes whole blood, plasma, and serum samples with up to 17 parameters per test across 9 configurable profiles. Featuring automatic QR-code calibration, real-time quality control, and full-color touchscreen interface for seamless clinical workflow integration.

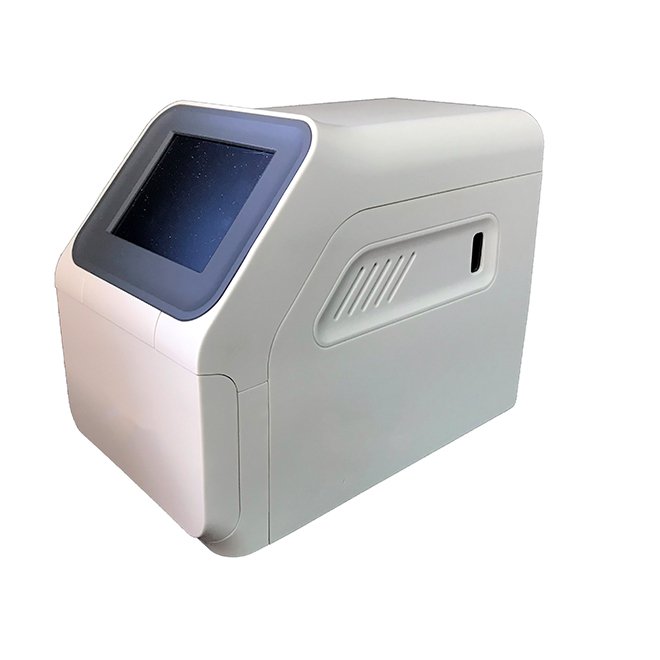

The NEUDA02 is a compact, on-site dry biochemical blood chemistry analyzer engineered for rapid point-of-care testing in clinical laboratories, emergency departments, and primary care settings. Processing whole blood, plasma, and serum samples of just 100 μl, the analyzer delivers comprehensive chemistry results in approximately 10 minutes—enabling faster clinical decision-making and improved patient outcomes.
With automatic self-calibration via QR code scanning and a built-in real-time quality control system, the NEUDA02 ensures consistent accuracy and compliance with clinical standards. The full-color touchscreen interface simplifies operation, while WLAN, USB, and Ethernet connectivity facilitate seamless integration with hospital information systems (HIS) and the MNCHIP Medical Data Management Platform for centralized data management and reporting.
| Indications | Clinical chemistry, emergency diagnostics, liver and renal function assessment, electrolyte panels, myocardial enzyme profiling, glucose and lipid analysis |
|---|---|
| Sample Type | Whole blood (lithium-heparinized), plasma (lithium-heparinized), serum |
| Sample Volume | 100 μl |
| Parameters | Up to 17 parameters per test; 32 parameters across 9 profiles |
| Time to Results | Approximately 10 minutes |
| Reagent Format | Disposable, prepackaged reagent discs with self-contained lyophilized reagents |
| Calibration | Automatic self-calibration via QR code scanning |
| Quality Control | Built-in real-time quality control (RQC) system |
| Reaction Temperature | 37°C ± 0.1°C |
| Data Capacity | More than 50,000 patient and quality control records |
| User Interface | Full-color touchscreen display |
| Connectivity | WLAN, USB port, Ethernet interface; compatible with HIS and MNCHIP Medical Data Management Platform |
| Print Mode | Optional external thermal printer |
| Operating Environment | Temperature 10–30°C; Humidity 40–85% |
| Power Requirement | AC 100V–110V/240V, 50–60 Hz |
| Dimensions | 21 (L) × 12.5 (W) × 17.5 (H) cm |
| Weight | 2.3 kg |
| Warranty | 2 Year Manufacturer Warranty |
| Item | Description | Qty |
|---|---|---|
| NEUDA02 Analyzer | On-site dry biochemical blood chemistry analyzer with touchscreen interface | 1 |
| Reagent Discs | Disposable, prepackaged with self-contained lyophilized reagents (profile-specific) | As applicable |
| Sample Cups | Disposable sample collection cups | As applicable |
| Quality Control Material | RQC calibration and control solutions | As applicable |
| Power Cable | AC power supply cable (100V–110V/240V, 50–60 Hz) | 1 |
| USB Cable | For data transfer and system connectivity | 1 |
| User Manual | Comprehensive operating and maintenance documentation | 1 |
