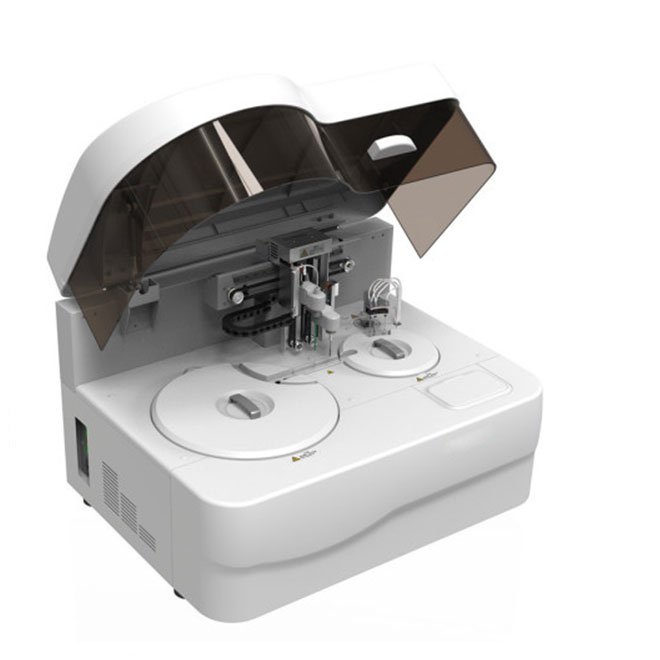

Open Type Blood Test Chemistry Analyzer Machine NEUES160
- Open Type Blood Test Chemistry Analyzer Machine NEUES160
- Test speed of 150 tests/hour with single or double reagent capability
- High precision ceramic syringe for accurate sample dispensing
- Capable of dispensing as low as 0.1ul with 44 reaction cuvettes
- Stable temperature control at 37±0.1 ℃ for optimal reactions
- Advanced 4 needles wash-station with triple washing for reliable results
- Intelligent sampling probe with anti-interference technology
- Supports 80 reagent positions and 40 sample positions (micro cup & test tube compatible)
- Non-stop cooling system for continuous operation
- Optional bar code reader for enhanced functionality
- SKU
- NEUES160
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Open Type Blood Test Chemistry Analyzer Machine NEUES160
High-throughput automated chemistry analyzer delivering 150 tests per hour with precision ceramic syringe technology. Engineered for clinical laboratories requiring reliable, accurate diagnostic results with minimal reagent consumption and extended operational uptime.
Clinical overview
The NEUES160 is a fully automated, open-type blood chemistry analyzer designed for high-volume clinical laboratories. With a constant throughput of 150 tests per hour, it supports both single and double reagent protocols, making it adaptable to diverse testing panels. The system features advanced precision ceramic syringe technology with frequency-converting design for accurate sample dispensing as low as 0.1 µL, ensuring minimal sample waste and maximum diagnostic accuracy.
Built for continuous operation, the NEUES160 incorporates a non-stop cooling system, intelligent sampling probe with anti-interference technology, and a comprehensive 4-needle wash station with triple-wash capability. These features combine to deliver reliable, reproducible results while maintaining strict temperature control at 37±0.1 °C. The analyzer supports flexible sample and reagent positioning—40 sample positions (compatible with both micro cups and test tubes) and 80 reagent positions—enabling laboratories to optimize workflow and reduce turnaround times.
Key features & surgeon benefits
High-Speed Testing
- Constant 150 tests per hour
- Single or double reagent capability
- Minimal sample-to-result time
Accurate Dispensing
- High-precision ceramic syringe with permanent piston
- Dispensing accuracy as low as 0.1 µL
- Reaction volume as low as 150 µL
Advanced Wash & Temperature Control
- 4-needle wash station with triple washing
- Stable temperature control at 37±0.1 °C
- Intelligent sampling probe with anti-interference
Scalable Configuration
- 80 reagent positions, 40 sample positions
- Compatible with micro cups and test tubes
- Optional bar code reader for enhanced tracking

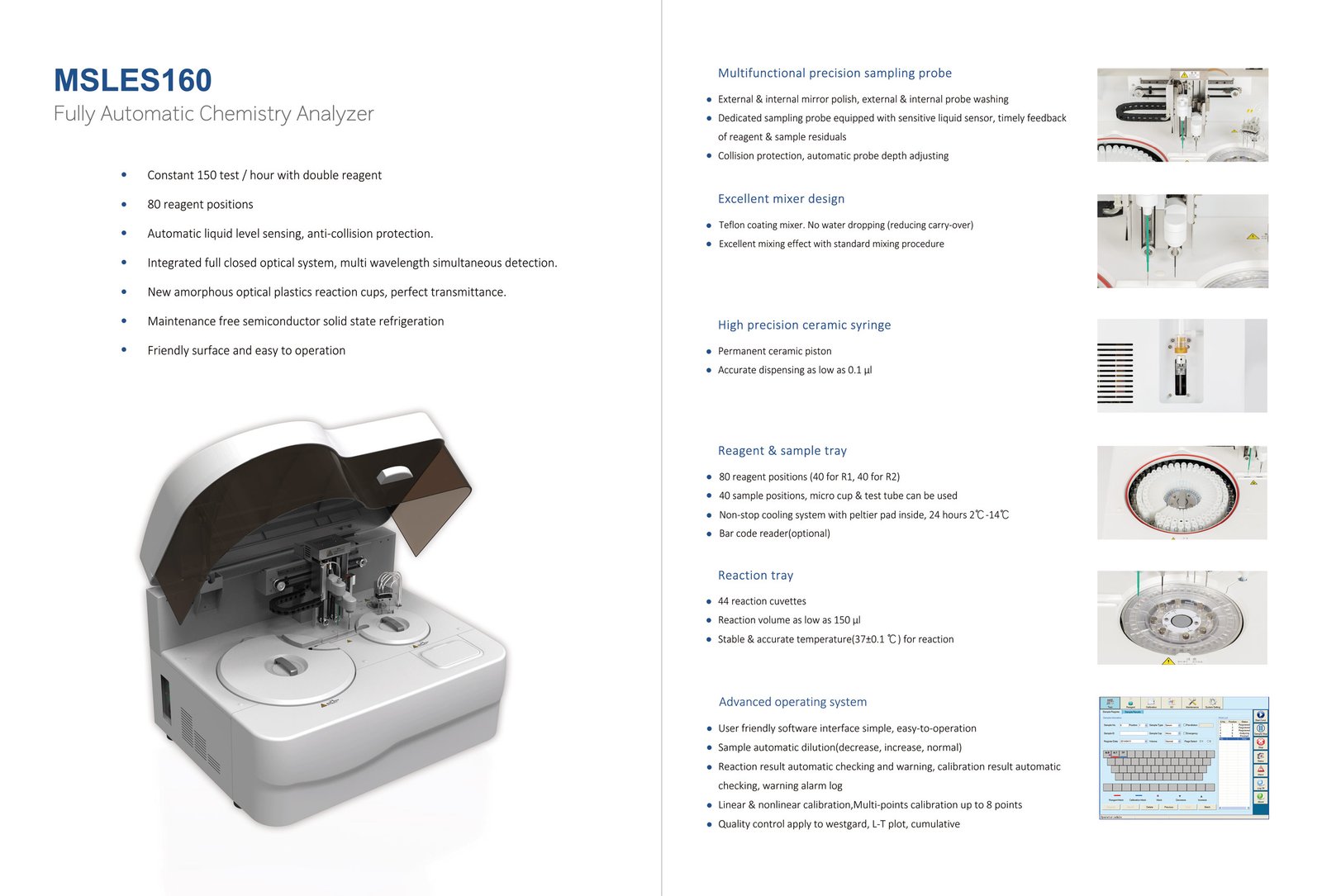

Technical specifications
| Test Speed | Constant 150 tests/hour (single or double reagent) |
|---|---|
| Sample Dispensing | Frequency-converting design, as low as 0.1 µL |
| Syringe Type | High-precision ceramic with permanent ceramic piston |
| Reaction Cuvettes | 44 cuvettes, minimum reaction volume 150 µL |
| Temperature Control | Stable & accurate at 37±0.1 °C |
| Wash Station | 4 needles, triple washing with effective filtering |
| Sampling Probe | Intelligent with anti-interference & high-sensitivity liquid level detection |
| Reagent Positions | 80 positions |
| Sample Positions | 40 positions (micro cup & test tube compatible) |
| Cooling System | Non-stop cooling for continuous operation |
| Optional Features | Bar code reader |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Main Analyzer Unit | NEUES160 Open Type Chemistry Analyzer with integrated cooling system | 1 |
| Ceramic Syringe Assembly | High-precision syringe with permanent ceramic piston | 1 |
| Reaction Cuvette Rotor | 44-position cuvette carousel | 1 |
| Wash Station | 4-needle wash station with triple-wash capability | 1 |
| Sampling Probe | Intelligent probe with anti-interference technology | 1 |
| Reagent Carousel | 80-position reagent positioning system | 1 |
| Sample Carousel | 40-position sample positioning system (micro cup & test tube compatible) | 1 |
| Control Software | Integrated analyzer control & result management system | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss your laboratory's chemistry analyzer requirements, pricing, delivery timelines, and customisation options. We provide comprehensive support and training for all NEUES160 installations.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
