Portable Autoclave NEUPS22
- Portable autoclave for efficient sterilization
- Available in two models: XA20D (20L) and XA24D (24L)
- Maximum working pressure of 0.22Mpa for optimal sterilization
- Operates at a maximum temperature of 134°C
- Adjustable temperature range from 105°C to 134°C
- Timer setting from 0 to 99 minutes for precise sterilization cycles
- Chamber temperature uniformity within ±1°C for reliable results
- 1.5KW power consumption with AC220V 50Hz source
- Compact design with dimensions of 480×480×384 mm (XA20D)
- Includes three sterilizing plates for versatile use
- SKU
- NEUPS22
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping

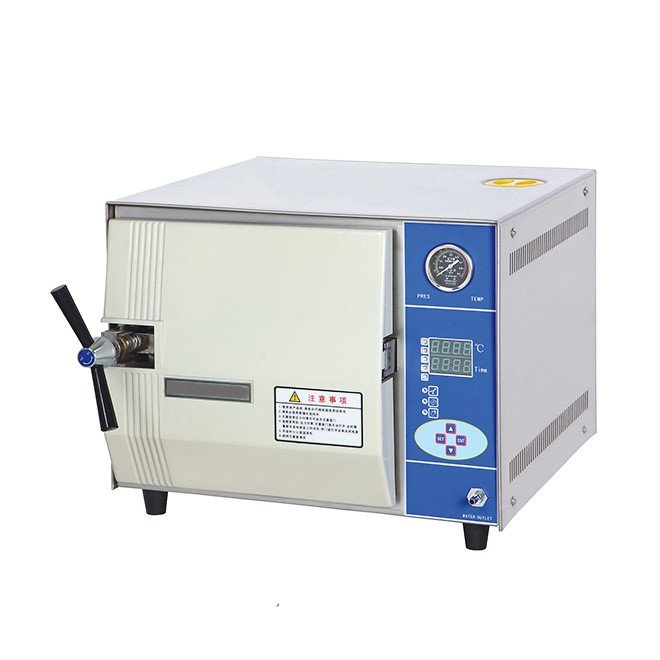

Portable Autoclave NEUPS22
Compact, efficient sterilization solution for clinical and laboratory environments. Available in two models (20L and 24L) with precise temperature control, uniform chamber heating, and rapid cycle times for reliable instrument sterilization.
Clinical overview
The Portable Autoclave NEUPS22 delivers reliable steam sterilization for surgical instruments, laboratory equipment, and medical devices in clinical and facility-based settings. With dual chamber options (20L and 24L), the system accommodates varying workload demands while maintaining compact footprint and ease of operation. Precise temperature control (105–134°C) and uniform chamber heating (±1°C) ensure consistent sterilization outcomes across all load types.
Designed for efficiency and reliability, the NEUPS22 features adjustable timer settings (0–99 minutes), low power consumption (1.5 kW), and three sterilizing plates per model for versatile instrument arrangement. The robust construction and straightforward interface make it suitable for high-volume sterilization cycles in operating rooms, dental practices, and laboratory environments.
Key features & surgeon benefits
Dual-chamber design
- 20L (XA20D) and 24L (XA24D) options for flexible workload management
- Three sterilizing plates per model for optimal load arrangement
- Uniform chamber temperature within ±1°C for consistent results
Rapid, programmable cycles
- Adjustable temperature range 105–134°C for diverse sterilization protocols
- Flexible timer: 0–99 minutes for custom cycle times
- Compact dimensions (480×480×384 mm XA20D; 580×480×384 mm XA24D) for space-constrained facilities
Low operating cost
- 1.5 kW power consumption with standard AC110V/220V 50/60Hz supply
- Durable stainless steel construction for long service life
- 2-year manufacturer warranty and lifetime technical support
Flexible configuration
- Choice of 20L or 24L chamber volume
- OEM and custom integration available
- Sterilizing plates sized to match chamber (340×200×30 mm or 400×200×30 mm)
Technical specifications
| Indications | Sterilization of surgical instruments, laboratory equipment, and medical devices |
|---|---|
| Chamber volume | XA20D: 20L (φ250×420 mm); XA24D: 24L (φ250×520 mm) |
| Maximum working pressure | 0.22 MPa |
| Maximum working temperature | 134°C |
| Temperature adjustment range | 105–134°C |
| Timer range | 0–99 minutes |
| Chamber temperature uniformity | ±1°C |
| Power consumption | 1.5 kW / AC110V/220V 50/60Hz |
| Sterilizing plates | XA20D: 340×200×30 mm (3 pieces); XA24D: 400×200×30 mm (3 pieces) |
| Dimensions | XA20D: 480×480×384 mm; XA24D: 580×480×384 mm |
| Package dimensions | XA20D: 700×580×500 mm; XA24D: 800×580×500 mm |
| Weight (gross / net) | XA20D: 43 kg / 40 kg; XA24D: 50 kg / 45 kg |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Autoclave unit | Portable steam sterilizer with control panel | 1 |
| Sterilizing plates | Stainless steel perforated plates for load support | 3 |
| Power cord | AC110V/220V 50/60Hz supply cable | 1 |
| User manual | Operating and maintenance instructions | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss model selection, pricing, delivery timelines, and custom configuration options for your facility.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
