Steam Autoclave Sterilization : Vertical Autoclave NEUPS12 50L
- Vertical autoclave model NEUPS12 with 50L chamber volume
- Chamber dimensions: φ340×550 mm
- Operating pressure of 0.22 MPa for effective sterilization
- High working temperature of 134℃ for optimal sterilization
- Adjustable timer range of 0 to 60 minutes
- Temperature range from 105℃ to 134℃
- Power options: 2.5KW, 3KW, or 4.5KW at AC220V, 50Hz
- Compact overall dimensions of 520×520×980 mm
- Weighs 68 Kg (G.W) and 50 Kg (N.W)
- Reliable heat average within ±1℃ for consistent results
- SKU
- NEUPS12
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping

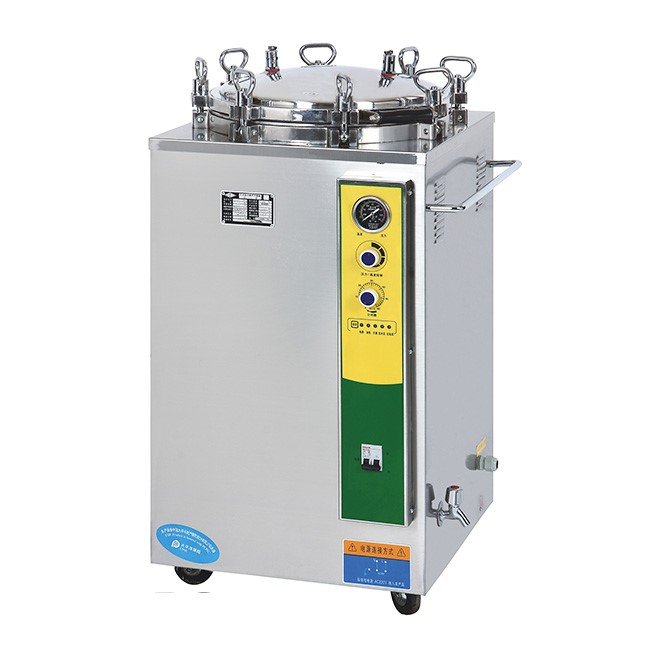

Vertical Autoclave NEUPS12 50L
Professional-grade steam autoclave with 50-liter chamber capacity, designed for reliable high-temperature sterilization in clinical and laboratory settings. Delivers consistent 134°C sterilization with precision temperature control and adjustable cycle timing for optimal instrument processing.
Clinical overview
The NEUPS12 vertical autoclave is engineered for dependable steam sterilization in hospitals, surgical centers, and diagnostic laboratories. With a 50-liter chamber capacity and operating at 134°C, it delivers rapid, thorough sterilization of wrapped instruments, surgical trays, and laboratory equipment. The compact vertical design optimizes floor space while maintaining full sterilization efficacy, making it ideal for facilities requiring efficient instrument turnover without compromising safety or quality.
Precision temperature control (±1°C heat average) and adjustable cycle timing (0–60 minutes) ensure consistent results across varying load types. The robust stainless-steel construction and reliable pressure management system (0.22 MPa operating, 0.23 MPa maximum) provide years of dependable service in demanding clinical environments.
Key features & surgeon benefits
Optimal Chamber Volume
- 50-liter chamber accommodates large instrument sets and surgical trays
- Compact footprint (520×520×980 mm) fits standard clinical spaces
- Available in 35L, 75L, and 100L for flexible facility requirements
Rapid Cycle Processing
- Adjustable timer range 0–60 minutes for varied sterilization protocols
- Temperature range 105–134°C supports multiple sterilization standards
- Reliable heat distribution (±1°C) ensures uniform sterilization across loads
Precision Engineering
- Operating pressure 0.22 MPa with maximum safety margin at 0.23 MPa
- Consistent 134°C working temperature for validated sterilization
- Durable stainless-steel construction resists corrosion and extends service life
Multiple Configuration Options
- Power options: 2.5 kW, 3 kW, or 4.5 kW at AC 110V/220V, 50/60Hz
- Scalable chamber sizes (35L–100L) for growth and specialization
- OEM customization available for integrated facility workflows
Technical specifications
| Indications | Sterilization of surgical instruments, laboratory equipment, and medical devices |
|---|---|
| Chamber Volume (50L) | φ340×550 mm |
| Operating Pressure | 0.22 MPa |
| Maximum Pressure | 0.23 MPa |
| Working Temperature | 134°C |
| Temperature Range | 105–134°C |
| Heat Average Tolerance | ±1°C |
| Timer Range | 0–60 minutes |
| Power Options | 2.5 kW, 3 kW, or 4.5 kW at AC 110V/220V, 50/60Hz |
| Overall Dimensions | 520×520×980 mm |
| Transport Dimensions | 590×590×1110 mm |
| Gross Weight (G.W) | 68 kg |
| Net Weight (N.W) | 50 kg |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Vertical Autoclave Unit | Complete 50L steam autoclave with control panel and safety features | 1 |
| Stainless Steel Chamber | φ340×550 mm chamber with drain valve and pressure gauge | 1 |
| Temperature Control System | Digital thermostat with ±1°C precision and adjustable timer | 1 |
| Safety Valve Assembly | Pressure relief and safety valve rated to 0.23 MPa | 1 |
| Power Cord & Plug | AC 110V/220V, 50/60Hz connection (length and connector per specification) | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss chamber size options, power specifications, and delivery timelines. We offer flexible configurations and OEM customization to meet your facility's sterilization requirements.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
