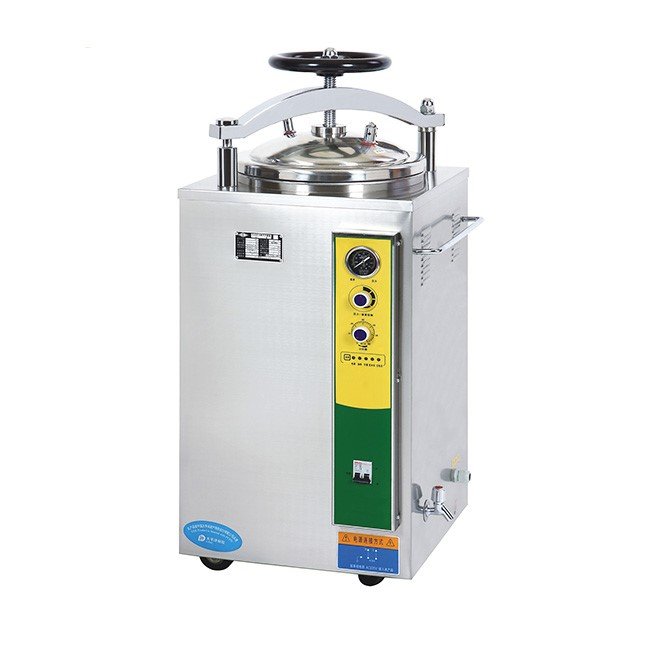

- Steam Sterilizer Autoclave model NEUPS10 with a 35L chamber volume
- Vertical design for efficient use of space in medical environments
- Operating pressure of 0.22MPa and maximum pressure of 0.23MPa
- Adjustable working temperature range of 105℃ to 134℃
- Timer settings from 0 to 60 minutes for precise sterilization control
- Heat accuracy of ≤±1℃ for reliable sterilization results
- Compact overall dimensions: 450×450×1010(mm)
- Power consumption of 2.5Kw at AC220V and 50Hz
- Suitable for various medical and laboratory sterilization needs
- Lightweight design with a net weight of 56Kg for easy transport and installation
Compact vertical steam sterilizer with 35L chamber capacity, designed for efficient space utilization in medical and laboratory environments. Delivers precise temperature control from 105°C to 134°C with heat accuracy of ±1°C and adjustable timer settings up to 60 minutes for reliable sterilization outcomes.
The NEUPS10 vertical steam sterilizer is engineered for medical facilities and laboratories requiring dependable, space-efficient sterilization. Its compact footprint (450×450×1010mm) and lightweight design (56kg net weight) facilitate easy installation and relocation without compromising chamber capacity or performance. The device operates at 0.22MPa working pressure with a maximum of 0.23MPa, delivering consistent steam penetration across diverse instrument loads.
Precision temperature control spanning 105°C to 134°C, combined with heat accuracy of ±1°C and programmable timer intervals from 0 to 60 minutes, ensures reproducible sterilization cycles tailored to specific material requirements. The 2.5kW power consumption at AC110V/220V, 50/60Hz makes it suitable for standard medical facility electrical infrastructure, while the robust construction supports continuous clinical and laboratory workflows.
| Indications | Medical instruments, laboratory equipment, general sterilization |
|---|---|
| Chamber Volume | 35L (φ318×450mm); expandable to 50L, 75L, 100L |
| Working Pressure | 0.22MPa (35L–75L); 0.14MPa (100L) |
| Maximum Pressure | 0.23MPa (35L–75L); 0.165MPa (100L) |
| Working Temperature | 134°C (35L–75L); 126°C (100L) |
| Temperature Adjustment Range | 105°C to 134°C (35L–75L); 105°C to 126°C (100L) |
| Heat Accuracy | ±1°C |
| Timer Range | 0–60 minutes |
| Power Consumption | 2.5kW at AC110V/220V, 50/60Hz (35L); 3kW (50L); 4.5kW (75L–100L) |
| Overall Dimensions | 450×450×1010mm (35L); 510×470×1130mm (50L); 560×560×1120mm (75L); 540×560×1250mm (100L) |
| Net Weight | 56kg (35L); 68kg (50L); 80kg (75L); 85kg (100L) |
| Sterilisation Method | Steam sterilization |
| Warranty | 2 Year Manufacturer Warranty |
| Item | Description | Qty |
|---|---|---|
| NEUPS10 Autoclave Unit | Complete vertical steam sterilizer with control panel and safety features | 1 |
| Power Cable | AC110V/220V, 50/60Hz connection cable | 1 |
| Water Supply Hose | For steam generation and chamber operation | 1 |
| Drain Hose | For condensate and waste water removal | 1 |
| User Manual | Operation, maintenance, and safety documentation | 1 |
Contact our sales team to discuss your sterilization requirements, explore multi-capacity configurations, and arrange delivery. We provide comprehensive support, technical guidance, and OEM customization options.
Available on request
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
