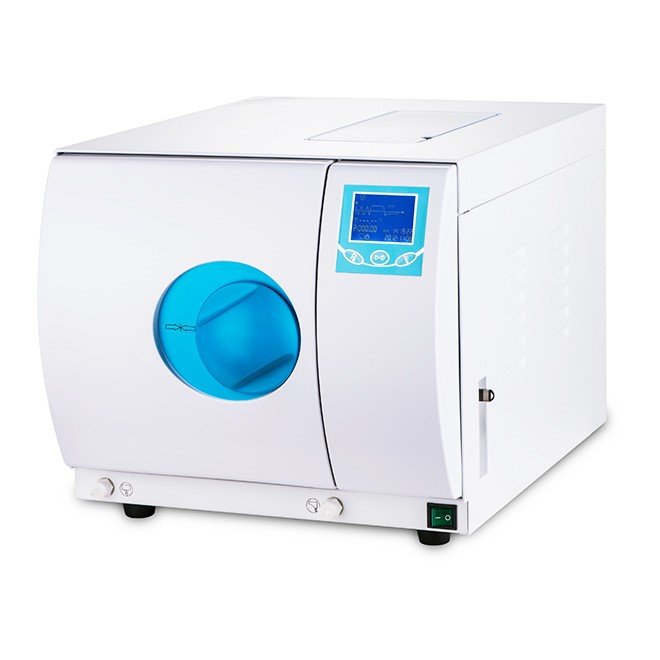

Sterilizer Autoclave NEUTA02
- Efficient Sterilization with the Sterilizer Autoclave NEUTA02
- Chamber Dimensions: Ø230x360 mm
- 16-liter Chamber Volume for optimal usage
- Comes with 3 trays for versatile loading options
- Dual Voltage Support: 220/110V at 50/60Hz
- High Power: 2000 Watts for quick cycles
- Compact Overall Dimensions: 445x400x690 mm
- Weighs 45 Kgs for stable operation
- Various Sterilization Programs available (solid, liquid, wrapped, textile, prion)
- Reliable performance with comprehensive test options (B&D, Helix, Vacuum)
- SKU
- NEUTA02
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Sterilizer Autoclave NEUTA02
Efficient steam sterilization with a 16-liter chamber capacity and versatile program options. The NEUTA02 delivers rapid cycle times, dual voltage support, and reliable performance for clinical and laboratory environments.
Clinical overview
The NEUTA02 is a compact benchtop steam autoclave engineered for high-throughput sterilization in hospitals, surgical centers, and diagnostic laboratories. With a 16-liter chamber and 2000-watt heating element, it delivers consistent sterilization cycles across a broad range of load types—from solid surgical instruments to wrapped trays and textile bundles. The device supports nine distinct sterilization programs, including specialized protocols for prion decontamination and validation testing (B&D, Helix, Vacuum tests), ensuring compliance with international standards and regulatory requirements.
Dual voltage capability (220V/110V, 50/60Hz) and compact footprint (445×400×690 mm) make the NEUTA02 ideal for space-constrained environments without compromising performance. The three included loading trays optimize chamber utilization, while comprehensive cycle monitoring and drying functions reduce turnaround time and improve workflow efficiency.
Key features & surgeon benefits
Optimized Chamber Design
- 16-liter chamber volume with Ø230×360 mm dimensions
- Three stainless steel trays for flexible load configurations
- Rapid cycle times: 15–50 minutes depending on program and load type
Versatile Sterilization Programs
- Nine program options: Solid, Liquid, Wrapped, Textile, Prion, Drying, B&D Test, Helix Test, Vacuum Test
- Temperature range: 121–134°C with adjustable pressure (110–210 kPa)
- Automated drying cycle (1–20 minutes) reduces moisture and handling time
Cost-Effective Operation
- 2000-watt power consumption for efficient energy use
- Compact benchtop design reduces facility footprint and installation costs
- Dual voltage support eliminates regional power supply constraints
Validation & Compliance
- Built-in test programs (B&D, Helix, Vacuum) for routine performance verification
- Comprehensive cycle documentation for regulatory audit trails
- Stable 45 kg construction ensures consistent operation and minimal vibration
Technical specifications
| Chamber Dimension | Ø230×360 mm |
|---|---|
| Chamber Volume | 16 liters |
| Number of Trays | 3 (stainless steel) |
| Voltage & Frequency | 220V/110V, 50/60Hz |
| Power Rating | 2000 watts |
| Overall Dimensions (W×H×D) | 445×400×690 mm |
| Weight | 45 kg |
| Sterilization Programs | Solid, Liquid, Wrapped, Textile, Prion, Drying, B&D Test, Helix Test, Vacuum Test |
| Temperature Range | 121–134°C |
| Pressure Range | 110–210 kPa |
| Warranty | 2 Year Manufacturer Warranty |
Sterilization program cycles
| Program | Temperature (°C) | Pressure (kPa) | Sterilization Time (min) | Total Cycle Time (min) |
|---|---|---|---|---|
| SOLID | 134 | 210 | 4 | 15–25 |
| SOLID | 121 | 110 | 20 | 25–40 |
| LIQUID | 134 | 210 | 10 | 25–50 |
| LIQUID | 121 | 110 | 30 | 30–55 |
| WRAPPED | 134 | 210 | 10 | 20–45 |
| WRAPPED | 121 | 110 | 30 | 30–50 |
| TEXTILE | 134 | 210 | 10 | 20–45 |
| TEXTILE | 121 | 110 | 30 | 30–50 |
| PRION | 134 | 210 | 18 | 30–50 |
| DRYING | — | — | — | 1–20 |
| B&D TEST | 134 | 210 | 3.5 | 22–35 |
| HELIX TEST | 134 | 210 | 3.5 | 22–35 |
| VACUUM TEST | — | — | — | 15–20 |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Autoclave Unit | Benchtop steam sterilizer with stainless steel chamber | 1 |
| Loading Tray | Stainless steel perforated tray for instrument placement | 3 |
| Power Cable | Dual voltage compatible (220V/110V) | 1 |
| User Manual | Operating instructions and maintenance guide | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss the NEUTA02 autoclave specifications, pricing, delivery timelines, and custom configuration options for your facility.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
