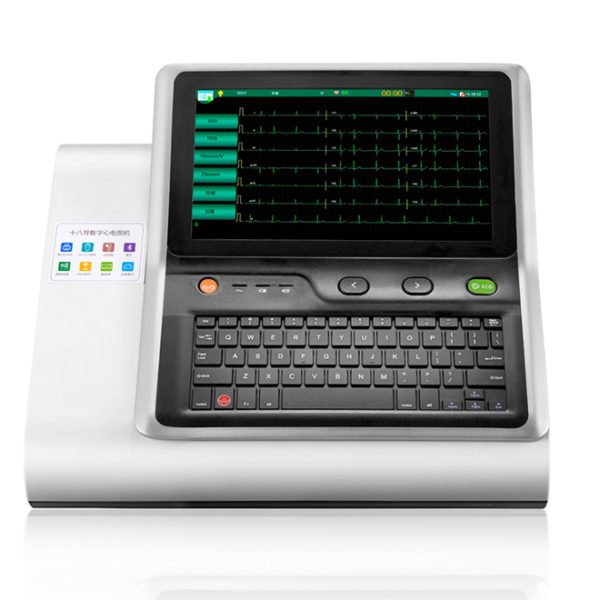

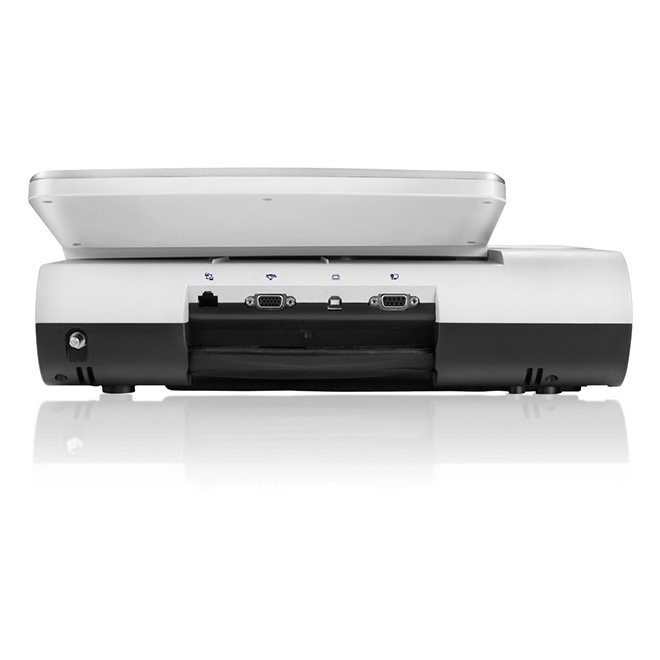

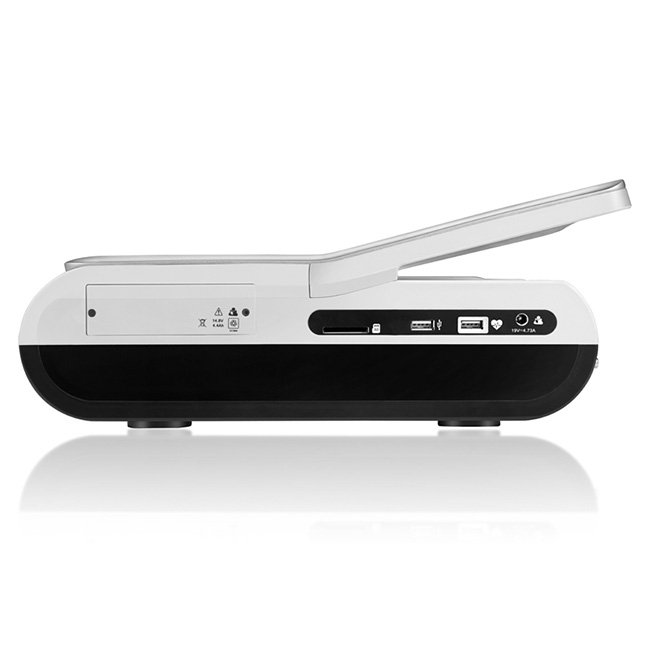

18 Channels Portable ECG Machine NEUEC45
- 18-channel portable ECG machine for comprehensive cardiac monitoring
- Continuous operation with a thermal dot-matrix recorder for clear printouts
- Supports multiple lead configurations: 9, 12, 15, or 18 leads
- High printing density up to 200 dots per inch for accurate results
- Defibrillation-proof design with an anti-electric shock classification of CF type
- HR range from 30 to 300 BPM with an accuracy of 1 BPM
- Advanced sampling frequency of 16kHz and 24-bit A/D resolution
- Wide frequency response from 0.01 to 300 Hz for precise analysis
- User-friendly interface for easy operation and configuration
- Compact and lightweight design for portability in various healthcare settings
- SKU
- NEUEC45
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
18 Channels Portable ECG Machine NEUEC45
Advanced multi-lead electrocardiography system engineered for comprehensive cardiac diagnostics in clinical, emergency, and ambulatory settings. Delivers high-resolution 24-bit signal acquisition across 9, 12, 15, or 18 lead configurations with defibrillation-proof protection and continuous thermal dot-matrix recording. Combines precision measurement (HR accuracy ±1 BPM, 30–300 BPM range) with user-friendly operation and portable form factor for versatile deployment across cardiology departments, ICUs, and mobile care units.
Clinical overview
The NEUEC45 represents a significant advancement in portable electrocardiography, offering clinicians the flexibility to perform comprehensive 18-lead cardiac assessments without compromising on diagnostic accuracy or patient safety. Built on a robust Class I platform with CF type defibrillation-proof protection, this system is engineered for continuous operation in demanding clinical environments including emergency departments, cardiac catheterisation laboratories, intensive care units, and mobile diagnostic services.
The device's 24-bit A/D resolution and 16 kHz sampling frequency deliver exceptional signal fidelity across a wide frequency response range (0.01–300 Hz), enabling precise detection of subtle waveform morphologies critical for ischemia identification, arrhythmia classification, and pacemaker function assessment. The integrated thermal dot-matrix recorder produces high-density printouts (200 dpi amplitude, 1000 dpi time axis) on standard folded thermal paper, ensuring permanent documentation that meets regulatory and medico-legal requirements. Configurable gain settings (2.5–20 mm/mV), variable paper speeds (5–50 mm/s), and comprehensive filtering options (AC, DFT, EMG/lowpass) provide clinicians with the diagnostic flexibility required for diverse patient populations and clinical scenarios.
Key features & surgeon benefits
Multi-Lead Flexibility & High-Resolution Acquisition
- Configurable 9, 12, 15, or 18 lead operation for comprehensive cardiac mapping
- 24-bit A/D resolution with 16 kHz sampling frequency for exceptional signal fidelity
- Wide frequency response (0.01–300 Hz) captures subtle waveform morphologies
- HR range 30–300 BPM with ±1 BPM accuracy for reliable rhythm analysis
- Pacemaker detection across amplitude (±750 µV to ±700 mV) and width (50 µs to 2.0 ms) ranges
Continuous Operation & User-Friendly Interface
- Continuous operation mode eliminates warm-up delays in emergency situations
- Thermal dot-matrix recorder with 200 dpi amplitude / 1000 dpi time axis resolution
- Folded thermal paper (210×295 mm or 215×280 mm, 100 pages) for convenient documentation
- Variable paper speeds (5, 6.25, 10, 12.5, 25, 50 mm/s ±3%) and gain settings (2.5–20 mm/mV)
- Configurable filters: AC (50/60 Hz), DFT (0.01–0.67 Hz), EMG/lowpass (25–300 Hz)
Defibrillation-Proof Design & CF Type Protection
- CF type anti-electric shock classification with defibrillation-proof protection
- Defibrillation recovery time ≤5 seconds for uninterrupted monitoring
- Patient leakage current ≤10 µA (AC/DC) in normal condition and ≤50 µA in single fault condition
- High input impedance ≥50 MΩ (10 Hz) and CMRR ≥120 dB minimise interference
- DC offset voltage tolerance ±600 mV accommodates diverse electrode conditions
Compact Design for Multi-Setting Deployment
- Lightweight portable form factor suitable for bedside, emergency, and mobile applications
- Class I equipment suitable for continuous operation in hospital and ambulatory settings
- Low noise performance (≤12.5 µV P-P) ensures diagnostic-quality traces in challenging environments
- Time constant ≥3.2 s and input circuit current ≤0.01 µA for stable baseline performance
- Calibration voltage 1 mV ±2% ensures consistent measurement accuracy across all leads
Technical specifications
| Indications | Cardiac rhythm analysis, ischemia detection, arrhythmia monitoring, pre-operative screening, emergency cardiac assessment |
|---|---|
| Lead Configurations | 9, 12, 15, or 18 leads |
| Anti-Electric Shock Type | Class I equipment, CF type with defibrillation-proof protection |
| Mode of Operation | Continuous |
| Recorder | Thermal dot-matrix recorder |
| Printing Density | 8 dots/mm (200 dpi) amplitude axis; 40 dots/mm (1000 dpi) time axis @ 25 mm/s |
| Recorder Paper | Folded thermal paper: 210×295 mm×100 pages, 215×280 mm×100 pages (optional) |
| Gain | 2.5, 5, 10, 20 mm/mV, 10/5 mm/mV, AGC ±5% |
| Paper Speed | 5, 6.25, 10, 12.5, 25, 50 mm/s (±3%) |
| Sampling Frequency | 16 kHz |
| A/D Resolution | 24 bits |
| HR Range | 30–300 BPM |
| HR Accuracy | ±1 BPM |
| Time Constant | ≥3.2 s |
| Input Circuit Current | ≤0.01 µA |
| Input Voltage Range | ≤±5 mVp-p |
| Calibration Voltage | 1 mV ±2% |
| DC Offset Voltage | ±600 mV |
| Input Impedance | ≥50 MΩ (10 Hz) |
| CMRR | ≥120 dB |
| Frequency Response | 0.01–300 Hz |
| Noise | ≤12.5 µV (P-P) |
| AC Filter | 50 Hz / 60 Hz / Off |
| DFT Filter | 0.01 Hz / 0.05 Hz / 0.32 Hz / 0.67 Hz |
| Defibrillation Recovery Time | ≤5 s |
| EMG Filter / Lowpass | 25, 35, 45, 75, 100, 150, 270, 300 Hz |
| Pacemaker Detection Amplitude | ±750 µV to ±700 mV |
| Pacemaker Detection Width | 50 µs to 2.0 ms |
| Pacemaker Sampling Frequency | 16,000 Hz |
| Patient Leakage Current (NC) | ≤10 µA (AC) / ≤10 µA (DC) |
| Patient Leakage Current (SFC) | ≤50 µA (AC) / ≤50 µA (DC) |
| Patient Auxiliary Current (NC) | ≤10 µA (AC) / ≤10 µA (DC) |
| Patient Auxiliary Current (SFC) | ≤50 µA (AC) / ≤50 µA (DC) |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| ECG Main Unit | 18-channel portable ECG machine with integrated thermal recorder | 1 |
| Lead Cable Set | Multi-lead cable assembly (9/12/15/18 lead configuration) | 1 |
| Thermal Paper | Folded thermal paper (210×295 mm or 215×280 mm, 100 pages) | 1 pack |
| Power Cable | AC power cable for continuous operation | 1 |
| User Manual | Comprehensive operation and maintenance guide | 1 |
| Calibration Certificate | Factory calibration documentation | 1 |
