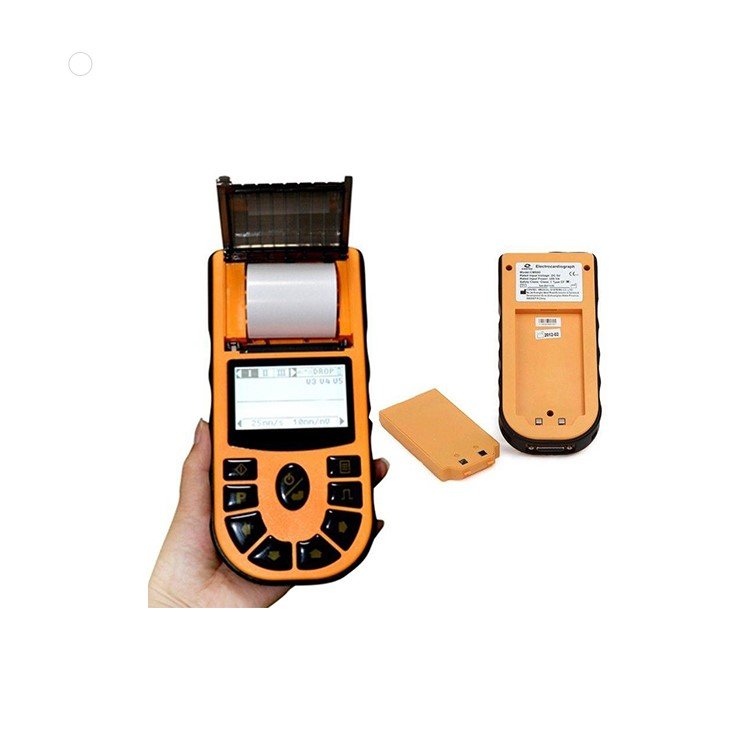

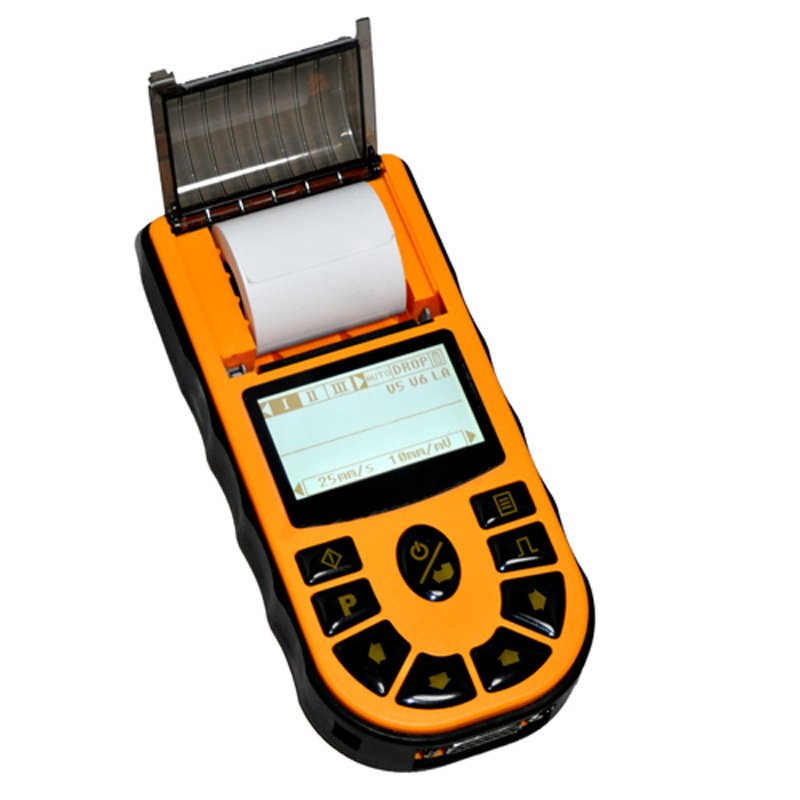

ECG80A Digital one-Channel 12-lead ECG/EKG Machine Electrocardiograph USB
- Compact ECG/EKG machine for 12-lead signal collection and thermal printing
- Easy recording in AUTO/Manual mode with intuitive button operation
- High-resolution thermal printer (8 dot/mm) with 150Hz recording frequency
- Real-time display of ECG waveform on a 2.7" LCD with multi-language support
- Detachable lithium battery for convenience and up to 8-hour standby time
- Advanced digital signal processing with multiple filters for clear signal quality
- Lightweight and portable design for use in clinics, emergency treatments, and wards
- Continuous print capability for up to 4 hours, recording multiple ECG waveforms
- Safety classified as class I, type CF with defibrillation protection
- User-friendly interface available in 7 languages: Chinese, English, French, Italian, German, Spanish, and Turkish
- SKU
- ECG80A
- Brand
- Contec
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
ECG80A Digital One-Channel 12-Lead ECG/EKG Machine Electrocardiograph
Compact, portable 12-lead electrocardiograph with high-resolution thermal printing, real-time LCD display, and advanced digital signal processing. Ideal for clinics, emergency departments, and ward environments requiring reliable cardiac signal acquisition and recording.
Clinical overview
The ECG80A is a compact, portable electrocardiograph designed for rapid 12-lead ECG signal acquisition and thermal printing in diverse clinical settings. It combines advanced digital signal processing with intuitive operation, enabling clinicians to obtain high-quality cardiac waveforms in examination rooms, emergency departments, and ward environments. The device features real-time waveform display on a 2.7-inch LCD screen with multi-language support (Chinese, English, French, Italian, German, Spanish, Turkish), reducing training time and improving workflow efficiency across international healthcare facilities.
With a detachable lithium battery offering up to 8 hours of standby time and continuous printing capability for 4 hours, the ECG80A provides reliable performance in resource-limited or mobile clinical scenarios. The high-resolution thermal printer (8 dot/mm) with 150 Hz recording frequency ensures diagnostic-quality output without requiring paper adjustments or calibration, while advanced filtering (power frequency, baseline, and EMG) delivers clean, artifact-free signals suitable for clinical interpretation.
Key features & surgeon benefits
Advanced Digital Processing
- Power frequency filter (AC 50/60 Hz, -20 dB)
- Baseline drift correction and EMG interference suppression (35 Hz, -3 dB)
- 12-bit sampling accuracy at 800 Hz for precise waveform capture
- Noise level ≤15 µVp-p ensures diagnostic clarity
Intuitive Operation & Speed
- AUTO mode: single-button recording for rapid patient throughput
- Manual mode for operator control and selective lead recording
- Real-time LCD display with lead annotations and filter status
- Multi-language interface reduces training and supports global deployment
Field-Ready Design
- Lightweight, compact form factor for clinic and ward mobility
- Detachable 7.4V/2000 mAh lithium battery with 8-hour standby
- Continuous thermal printing up to 4 hours; records up to 150 ECG waveforms
- USB connectivity for data export and integration with EMR systems
Clinical-Grade Protection
- Class I, Type CF defibrillation-proof applied part
- Patient leak current <10 µA; input impedance ≥50 MΩ
- CMRR >60 dB (≥100 dB with filter) for EMI rejection
- Floating input mode with comprehensive safety classification
Technical specifications
| Indications | Cardiac examination, clinic assessment, emergency treatment, ward monitoring |
|---|---|
| Configuration | Single-channel 12-lead electrocardiograph |
| Frequency response | 0.05 Hz – 150 Hz (−3 dB ~ +0.4 dB) |
| Sampling frequency | 800 Hz |
| Sampling accuracy | 12-bit |
| Recording frequency | Up to 150 Hz |
| Sensitivity | 5, 10, 20 mm/mV ±5%; standard 10 mm/mV ±2% |
| Paper speed | 25, 50 mm/s ±5% |
| Paper size | 50 mm (W) × 20 m (L) |
| Thermal printer resolution | 8 dot/mm (high-resolution) |
| Display | 2.7-inch LCD, real-time waveform & annotations |
| CMRR | >60 dB; >100 dB (with filter) |
| Time constant | ≥3.2 s |
| Noise level | ≤15 µVp-p |
| Input impedance | ≥50 MΩ |
| Patient leak current | <10 µA |
| Input circuit current | ≤50 nA |
| Calibration voltage | 1 mV |
| Power frequency filter | AC 50/60 Hz (−20 dB) |
| EMG filter | 35 Hz (−3 dB) |
| Power supply | DC 9V adapter; 7.4V/2000 mAh rechargeable lithium battery |
| Battery standby time | Up to 8 hours |
| Continuous printing | Up to 4 hours |
| Recording capacity | Up to 150 ECG waveforms |
| Waterproof degree | IPX0 |
| Working mode | Continuous working |
| Safety classification | Class I, Type CF; defibrillation-proof applied part |
| Interface languages | Chinese, English, French, Italian, German, Spanish, Turkish |
| Connectivity | USB data export |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| ECG80A Main Unit | Single-channel 12-lead electrocardiograph with integrated thermal printer and 2.7" LCD display | 1 |
| Lithium Battery Pack | 7.4V/2000 mAh rechargeable lithium battery, detachable | 1 |

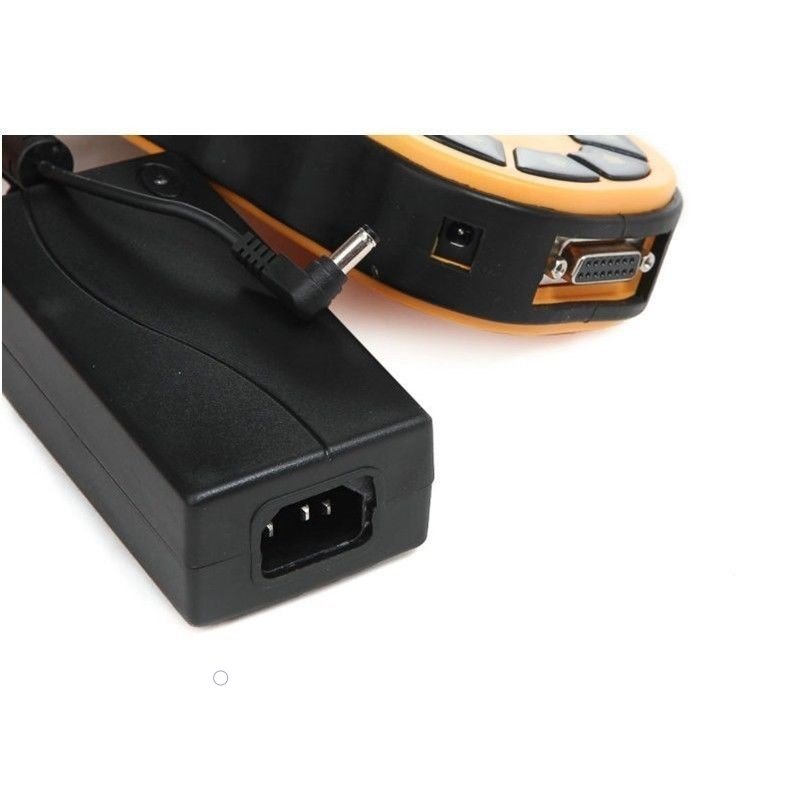

| AC/DC Power Adapter | 9V DC adapter for mains operation and battery charging | 1 |

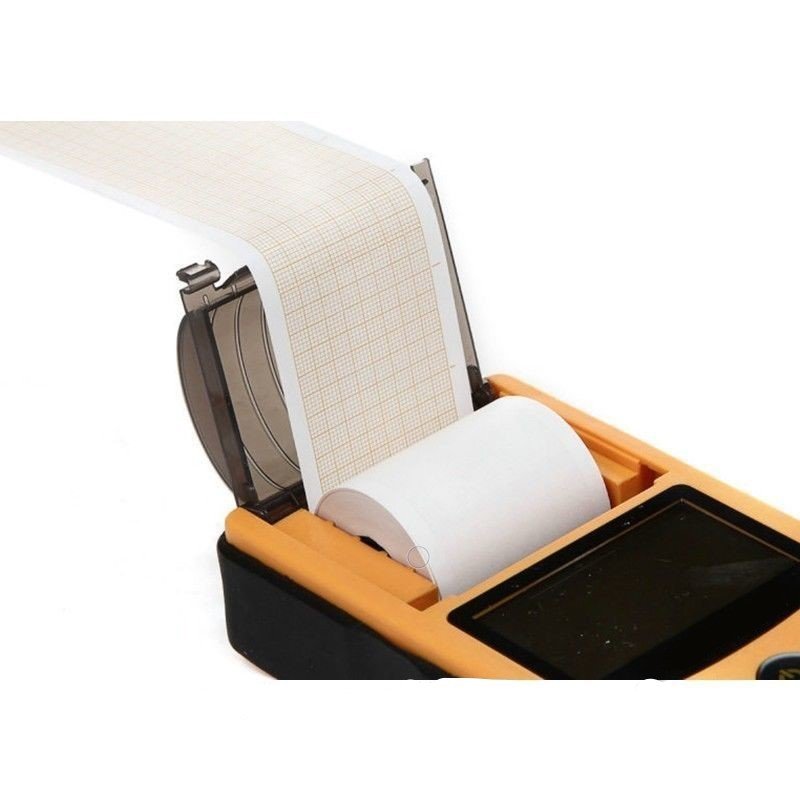

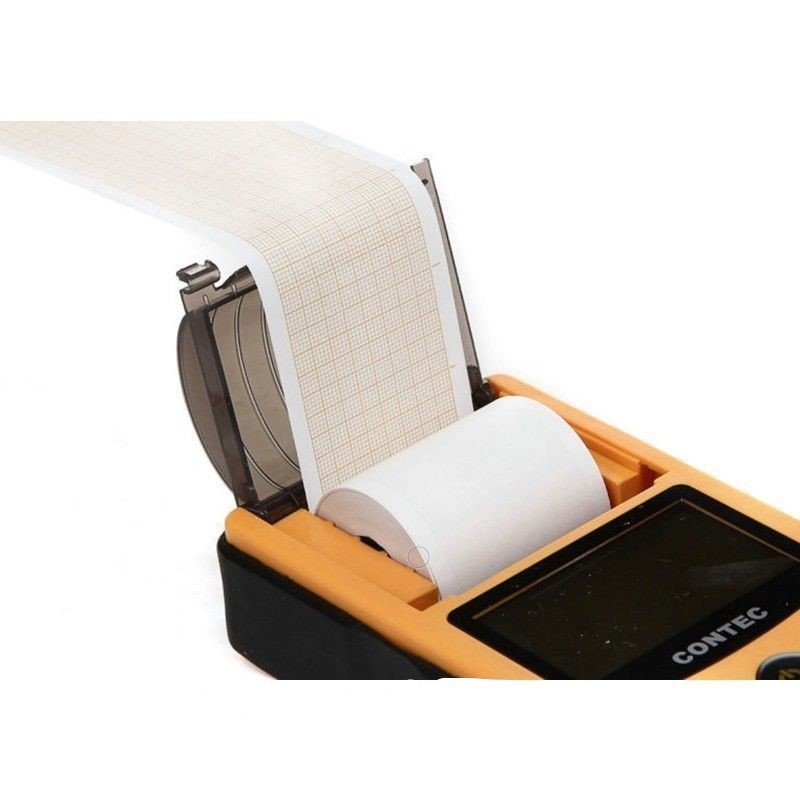

| Thermal Paper Roll | 50 mm (W) × 20 m (L) thermal recording paper | 1 |
| Patient Lead Set | Standard 12-lead ECG electrode cables with connectors | 1 |
| USB Cable | USB data export and connectivity cable | 1 |
| User Manual | Multi-language instruction guide (Chinese, English, French, Italian, German, Spanish, Turkish) | 1 |
| Carrying Case | Protective transport case for portable deployment | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss ECG80A specifications, bulk pricing, multi-language customisation, and delivery timelines. We support OEM partnerships and international distribution.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
Customer reviews
No reviews yet — be the first to share your experience.
Related products
See all →

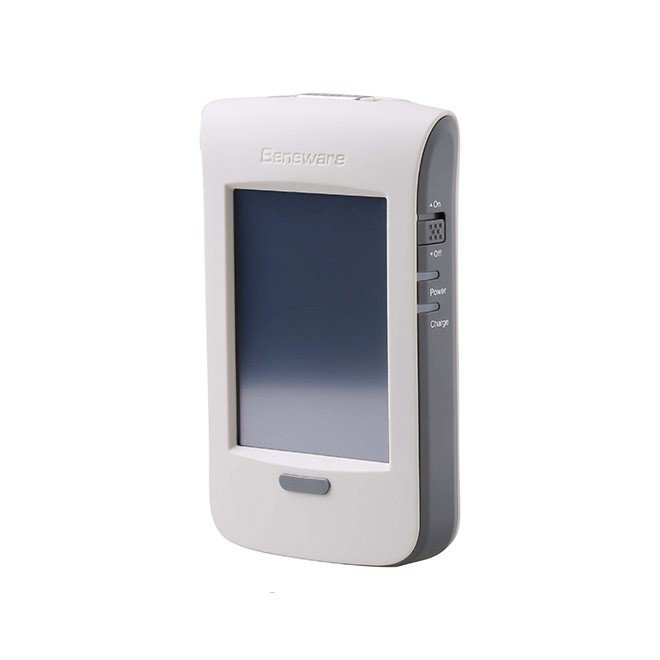

Portable PC Based ECG Machine NEUHT04
- Portable PC-based ECG machine with advanced features. - 3.5-inch color touch screen for easy navigation. - Wi-Fi, Bluetooth, and USB transmission for data sharing. - Built-in rechargeable battery supports up to 200 recordings. - High sample rate of 10,000Hz for precise detection of pacemaker signals. - Automatic interpretation for improved efficiency in readings. - Supports multiple print modes for versatile reporting. - Robust custom configuration functions tailored to user needs. - Real-time display of pacemaker signals for immediate analysis. - Compact design with dimensions of 126.5 x 75.8 x 24 mm and lightweight at 168g.

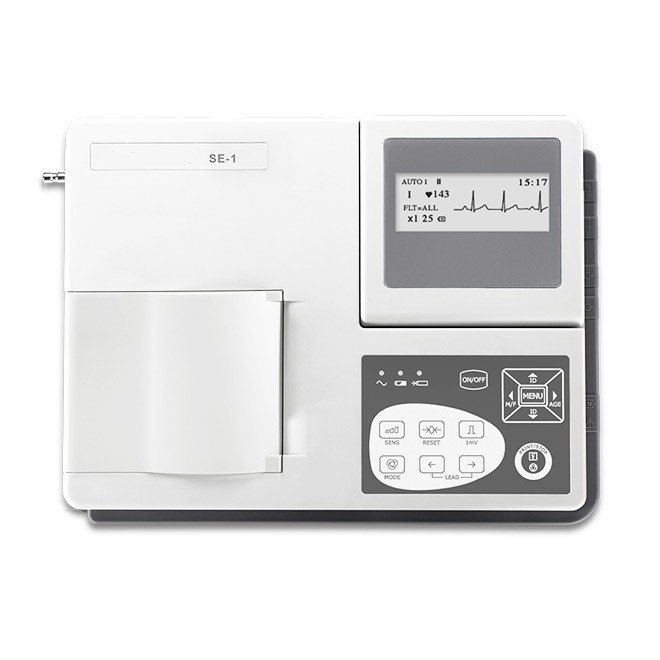

Single-Channel ECG Machine SE-1
- Vivid waveform displayed on a foldable LCD screen - High-resolution thermal printer built-in - Rechargeable Li-ion battery with AC/DC power supply - User-friendly membrane keyboard design - Digital filters to resist baseline drift and interference - Automatic baseline adjustment feature - Auto and manual work modes available - Lead-off detection with alarm system - Internal storage for up to 500 ECG records - PC connectivity via LAN, RS232, and USB for data transmission - Optional PC-based ECG data management software available

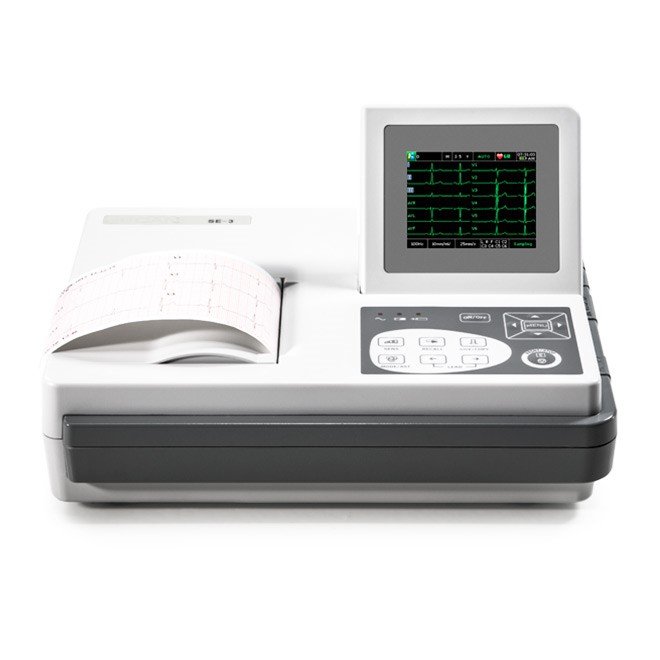

3-Channel ECG Machine SE-3
- User-friendly foldable LCD screen with vivid waveform display - Built-in rechargeable Li-ion battery for portability - Supports barcode scanner for easy patient info entry - One-button operation for streamlined use - Automatic baseline adjustment and lead-off detection alarms - 12-lead simultaneous ECG acquisition with advanced filters - Built-in high-resolution thermal printer for flexible printing - Internal storage for up to 500 ECGs, expandable via USB - Multiple data export formats including PDF and DICOM - Optional PC-based ECG data management software available

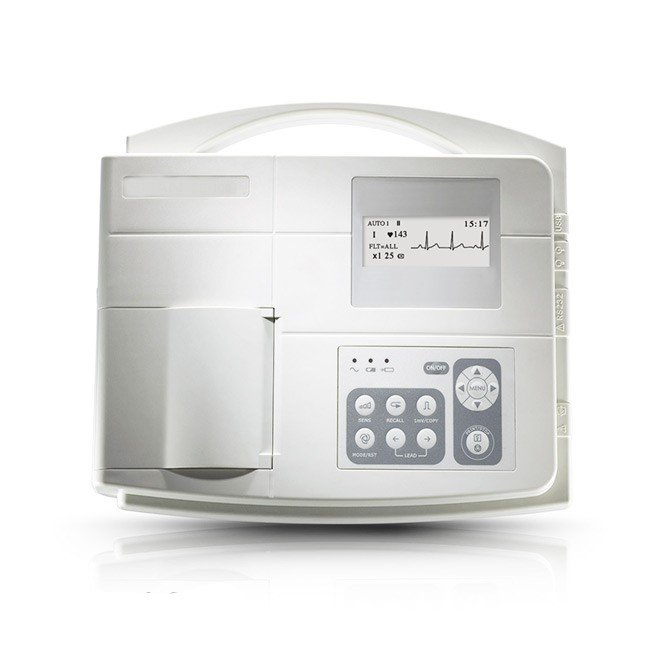

Medical ECG Machine SE-100
- 12-lead simultaneous acquisition with optional 24-bit A/D converter - Advanced anti-noise technology with high CMRR over 110dB (optional) - Automatic ECG measurements and interpretation using CSE/AHA/MIT databases - Full digital filters resistant to baseline drift and interference - Extended printing capabilities upon arrhythmia detection - Internal storage of up to 500 ECGs, expandable via USB flash disk - Multiple data transmission options: LAN, RS232, and USB - Supports PDF and optional SCP/FDA-XML/DICOM report formats - Optional PC-based ECG data management software - Built-in high-resolution thermal printer for clear ECG results

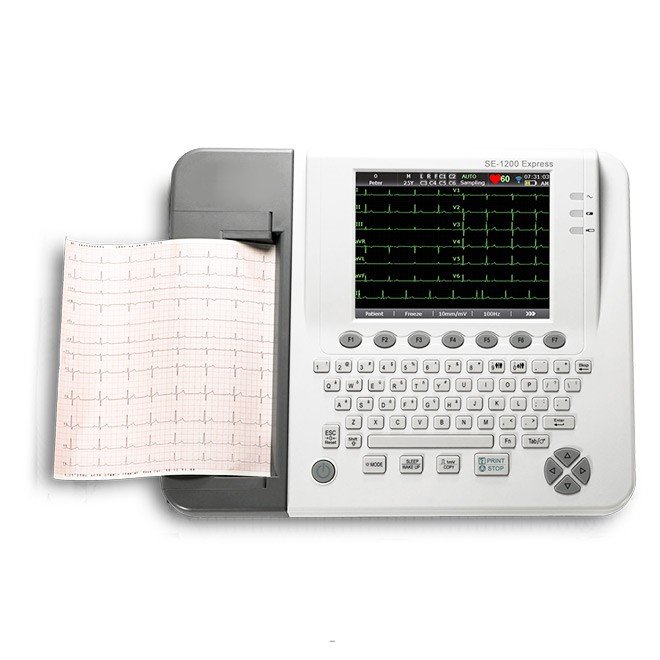

Real-time 12-Channel ECG Diagnosis SE-1200 Express
- Real-time 12-channel ECG diagnosis - Large high-resolution color touch screen - User-friendly alphanumeric keyboard - One-touch operation for ease of use - Enhanced weak signal detection for accurate readings - Advanced Glasgow algorithm for automatic measurements - Built-in high-resolution thermal printer - Extended printing capabilities - Optional LAN/Wi-Fi connections for data access - Supports bi-directional communication with SE-1515 Data Management System - Large internal memory with USB flash disk expansion

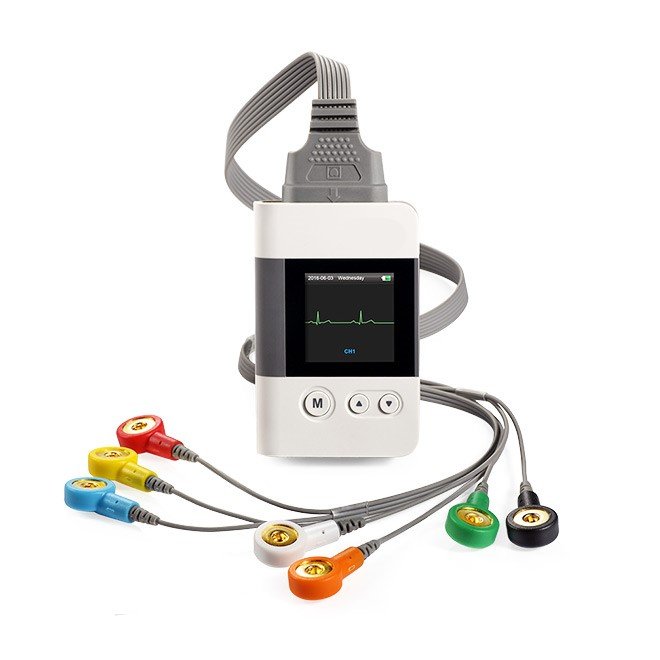

3-channel & 12-channel ECG Holter System SE-2003
- Lightweight and waterproof 3/12-channel ECG recorder - Real-time waveform display for immediate analysis - Up to 8 days of recording on a single AAA battery - Comprehensive software for data analysis and management - Download data easily via micro SD card or USB cable - Full disclosure of ECG waveforms for detailed evaluation - Advanced arrhythmia and ST segment analysis - Atrial fibrillation and obstructive sleep apnea syndrome evaluation - Heart rate variability analysis (HRT) - Ideal for continuous cardiac monitoring and patient assessment

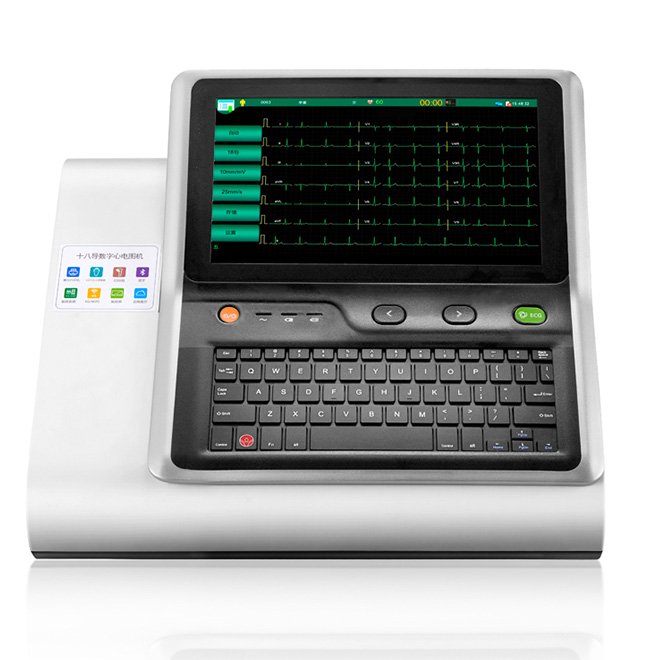

18 Channels Portable ECG Machine NEUEC45
