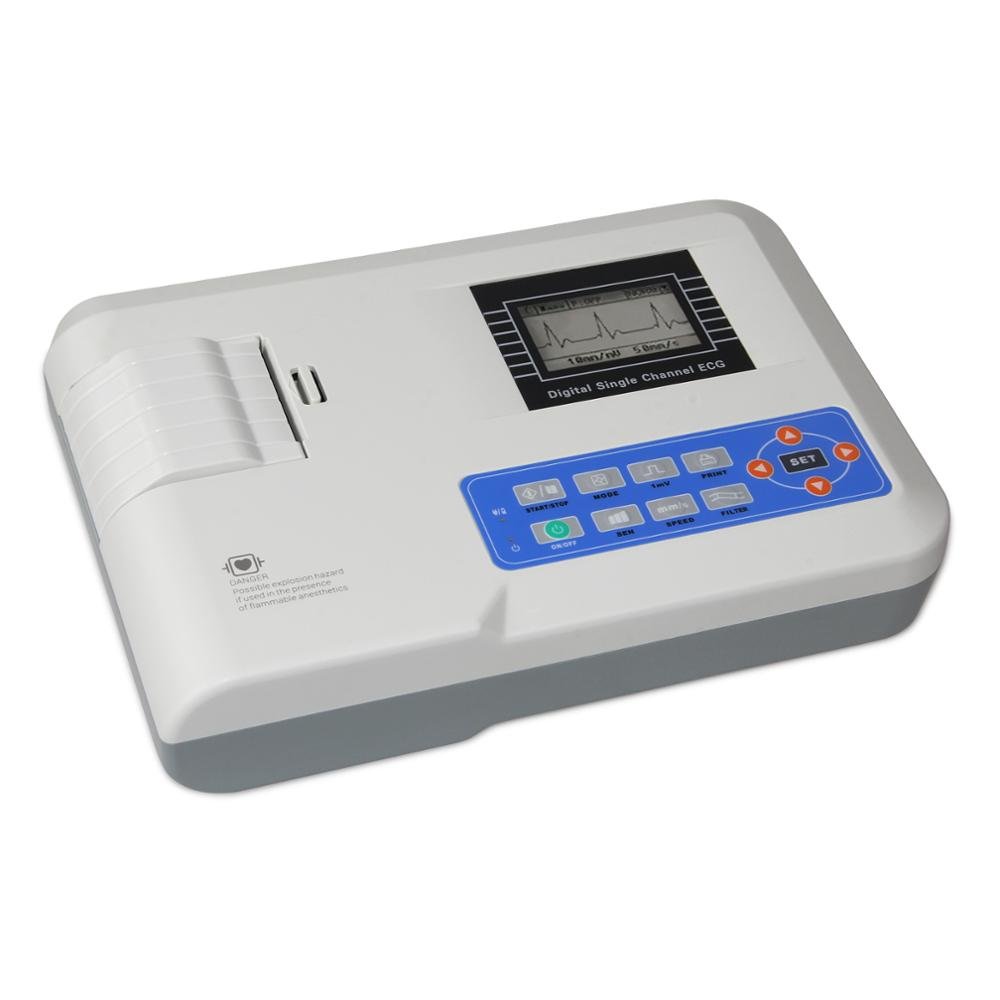

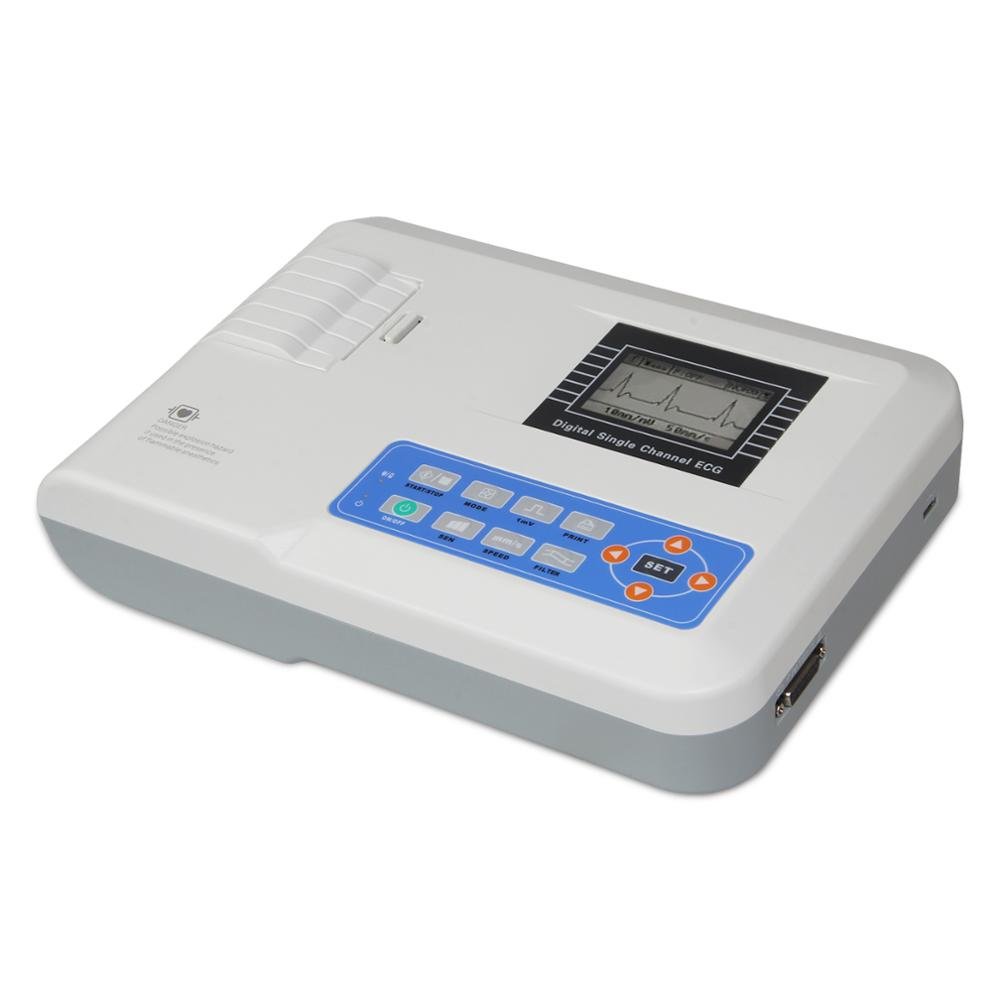

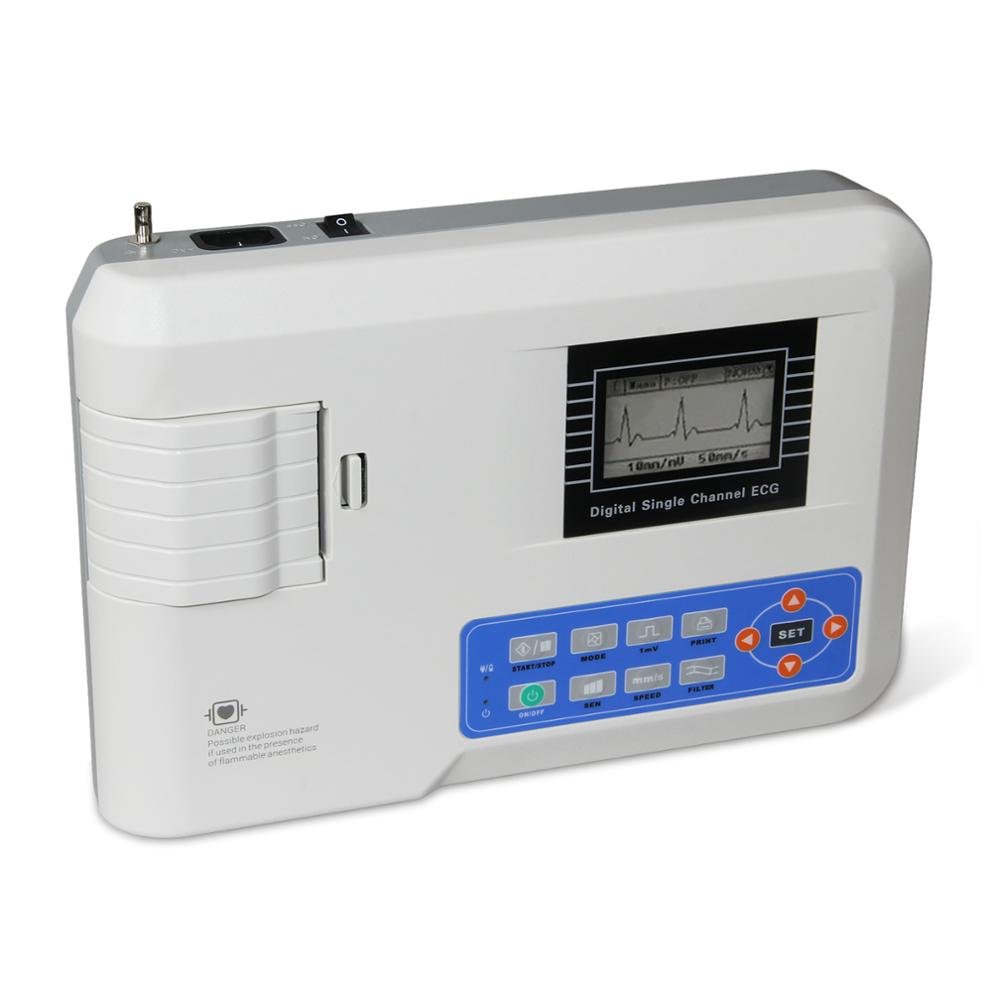

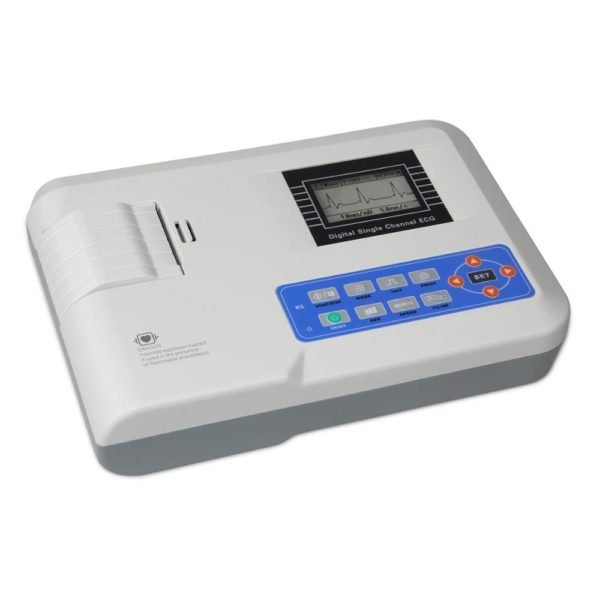

ECG100G Electrocardiograph
- Single channel electrocardiograph with thermal printing system
- High-quality ECG waveform through advanced digital signal processing
- High-resolution 8 dot/mm thermal printing without adjustments
- Real-time recording of clear ECG waveforms with detailed annotations
- One-button operation in AUTO mode for enhanced efficiency
- Multi-language support including Chinese, English, French, and more
- Long-lasting performance with up to 7-hour standby time
- Continuous print capability for up to 4 hours
- Records and stores up to 150 ECG waveforms
- SKU
- 4CC6654317E2
- Brand
- Contec
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
ECG100G Electrocardiograph
Single-channel electrocardiograph with advanced thermal printing system for high-quality ECG waveform capture. Features real-time recording, multi-language support, and extended battery performance for continuous clinical use.
Clinical overview
The ECG100G is a single-channel electrocardiograph engineered for reliable cardiac rhythm monitoring and waveform recording in clinical settings. Utilising advanced digital signal processing technology, the device delivers high-quality ECG waveforms through a high-resolution thermal printing system without requiring manual adjustments. The 8 dot/mm thermal printing resolution ensures clear, accurate documentation of cardiac activity with detailed annotations including lead identification, sensitivity settings, paper speed, and filter status.
Designed for clinician efficiency, the ECG100G operates in both AUTO and Manual modes, with one-button operation in AUTO mode to streamline workflow. Real-time recording capability captures clear and accurate ECG waveforms with continuous annotation, while extended battery performance provides up to 7 hours of standby time and 4 hours of continuous printing. The device stores up to 150 ECG waveforms and supports multi-language interfaces (Chinese, English, French, Italian, German, Spanish, and Turkish) for global clinical deployment.
Key features & surgeon benefits
Advanced Digital Filtering
- Power frequency filter for AC noise elimination
- Baseline filter for drift correction
- EMG filter for muscle artifact suppression
Simplified Operation
- One-button AUTO mode for rapid recording
- Real-time waveform display with annotations
- Lead-off and paper status prompts
Extended Battery & Storage
- Up to 7 hours standby time
- Continuous printing for 4 hours
- Stores up to 150 ECG waveforms
Multi-Language Support
- Seven language interfaces available
- Localised reporting and documentation
- Global clinical deployment ready
Technical specifications
| Indications | Cardiac rhythm monitoring and electrocardiographic recording |
|---|---|
| Channel Configuration | Single channel |
| Printing Resolution | 8 dot/mm thermal printing |
| Recording Frequency | Up to 150 Hz |
| Waveform Storage | Up to 150 ECG waveforms |
| Battery Standby Time | Up to 7 hours |
| Continuous Print Duration | Up to 4 hours |
| Language Support | Chinese, English, French, Italian, German, Spanish, Turkish |
| Sterilisation | As applicable |
| Warranty | 2 Year Manufacturer Warranty |

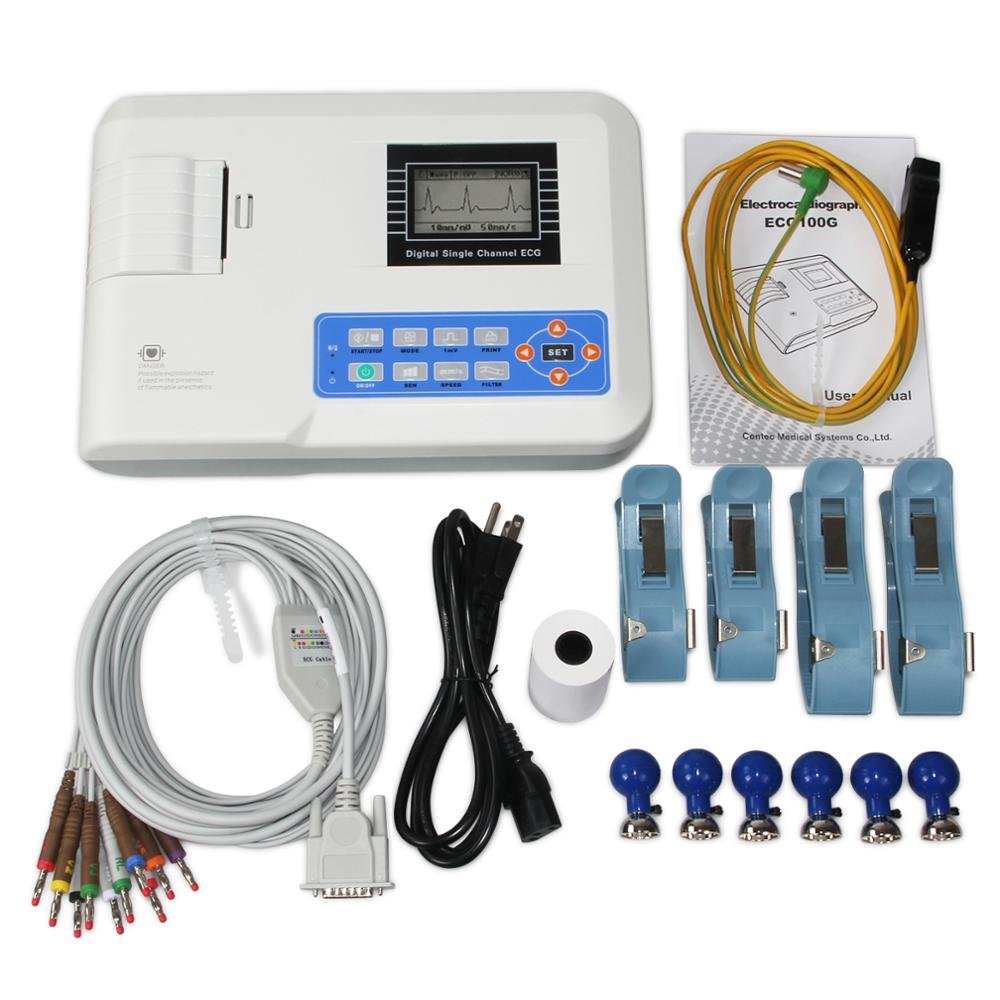

Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| ECG100G Main Unit | Single-channel electrocardiograph with thermal printer | 1 |
| Power Supply | AC adapter with battery charging capability | 1 |
| Thermal Paper Roll | Standard ECG recording paper | 1 |
| User Manual | Multi-language operation and maintenance guide | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss ECG100G specifications, pricing, and delivery timelines. We offer flexible ordering options and customisation for institutional and OEM requirements.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
