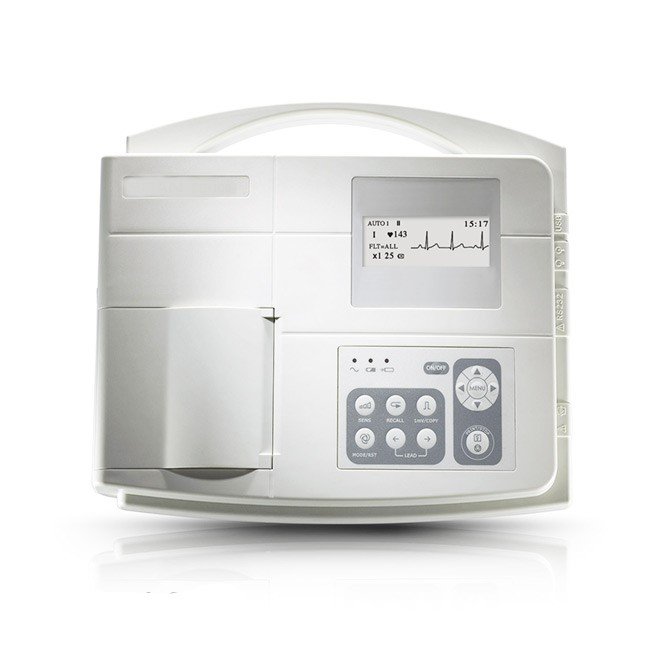

Medical ECG Machine SE-100
- 12-lead simultaneous acquisition with optional 24-bit A/D converter
- Advanced anti-noise technology with high CMRR over 110dB (optional)
- Automatic ECG measurements and interpretation using CSE/AHA/MIT databases
- Full digital filters resistant to baseline drift and interference
- Extended printing capabilities upon arrhythmia detection
- Internal storage of up to 500 ECGs, expandable via USB flash disk
- Multiple data transmission options: LAN, RS232, and USB
- Supports PDF and optional SCP/FDA-XML/DICOM report formats
- Optional PC-based ECG data management software
- Built-in high-resolution thermal printer for clear ECG results
- SKU
- SE-100
- Brand
- Neuvar
- Availability
- Out of stock
- ✓ Warranty included
- ✓ Worldwide shipping
Medical ECG Machine SE-100
A comprehensive 12-lead simultaneous ECG acquisition system with advanced anti-noise technology, automatic measurements, and integrated data management. Designed for clinical accuracy and workflow efficiency in cardiology and general practice settings.
Clinical overview
The SE-100 delivers accurate, simultaneous 12-lead ECG acquisition with optional 24-bit analog-to-digital conversion for enhanced signal fidelity. Advanced anti-noise technology with comprehensive digital filtering and high common-mode rejection ratio (CMRR >110dB optional) ensures reliable performance in demanding clinical environments, effectively rejecting baseline drift, AC interference, and EMG noise.
Automatic ECG measurements and interpretation are validated against CSE/AHA/MIT databases, providing clinicians with standardized, evidence-based analysis. Extended printing upon arrhythmia detection enables rapid clinical decision-making, while flexible data management—including internal storage of up to 500 ECGs, USB expansion, and multiple transmission protocols (LAN, RS232, USB)—supports seamless integration into existing hospital information systems.
Key features & surgeon benefits
Superior Noise Rejection
- 12-lead simultaneous acquisition eliminates timing artifacts
- CMRR >110dB (optional) for exceptional interference rejection
- Complete digital filtering resists baseline drift and AC/EMG noise
Rapid Clinical Reporting
- Automatic ECG measurements and interpretation validated against international databases
- Extended printing triggered by arrhythmia detection for immediate analysis
- Built-in high-resolution thermal printer for on-demand ECG output
Flexible Storage & Integration
- Internal storage of up to 500 ECGs with USB expansion capability
- Multiple transmission options: LAN, RS232, USB for seamless HIS integration
- Support for PDF and optional SCP/FDA-XML/DICOM export formats
Scalable Solutions
- Optional 24-bit A/D converter for enhanced resolution
- PC-based ECG data management software available
- Multiple report formats and printing configurations to suit departmental needs
Technical specifications
| Indications | Cardiac rhythm monitoring, arrhythmia detection, ECG interpretation and analysis |
|---|---|
| Acquisition | 12-lead simultaneous; optional 24-bit A/D converter |
| Anti-noise technology | Comprehensive digital filters; CMRR >110dB (optional) |
| Interpretation | Automatic ECG measurements and interpretation validated against CSE/AHA/MIT databases |
| Storage | Internal: up to 500 ECGs; expandable via USB flash disk |
| Data transmission | LAN, RS232, USB |
| Report formats | PDF; optional SCP/FDA-XML/DICOM |
| Printing | Built-in high-resolution thermal printer; optional external A4 printer support |
| Software | PC-based ECG data management software (optional) |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| ECG Machine | SE-100 12-lead simultaneous ECG acquisition unit with built-in thermal printer | 1 |
| Power supply | Medical-grade power adapter with safety certification | 1 |
| Patient cables | Standard 12-lead patient cable set with safety connectors | 1 |
| Thermal paper | High-resolution thermal paper roll for ECG printing | 2 |
| USB cable | USB connection cable for data transfer and external storage | 1 |
| User manual | Comprehensive operating and maintenance documentation | 1 |
Get in touch for pricing & availability
Contact our clinical sales team to discuss the SE-100's capabilities, optional upgrades, and integration with your facility's existing systems. We provide comprehensive support and flexible delivery options.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
