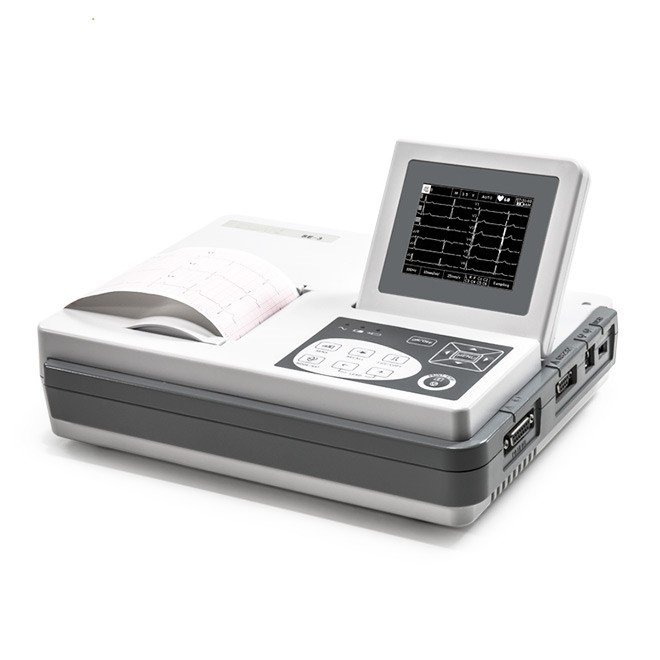

3-Channel ECG Machine SE-3
- User-friendly foldable LCD screen with vivid waveform display
- Built-in rechargeable Li-ion battery for portability
- Supports barcode scanner for easy patient info entry
- One-button operation for streamlined use
- Automatic baseline adjustment and lead-off detection alarms
- 12-lead simultaneous ECG acquisition with advanced filters
- Built-in high-resolution thermal printer for flexible printing
- Internal storage for up to 500 ECGs, expandable via USB
- Multiple data export formats including PDF and DICOM
- Optional PC-based ECG data management software available
- SKU
- SE-3
- Brand
- Neuvar
- Availability
- Out of stock
- ✓ Warranty included
- ✓ Worldwide shipping
3-Channel ECG Machine SE-3
A portable, user-friendly 12-lead simultaneous ECG system with advanced signal processing, built-in thermal printing, and comprehensive data management. Designed for rapid patient assessment in clinical, emergency, and point-of-care settings.
Clinical overview
The SE-3 is a compact, portable 12-lead simultaneous ECG machine engineered for rapid, accurate cardiac assessment across hospital, clinic, and emergency care environments. Its foldable LCD screen with vivid waveform display enables immediate visual interpretation, while advanced anti-noise filtering and automatic baseline adjustment ensure reliable signal quality even in challenging electromagnetic environments. The device supports barcode scanner integration for seamless patient identification and one-button operation to minimise training burden on clinical staff.
With built-in thermal printing, internal storage for up to 500 ECGs, and flexible data export (PDF, SCP, FDA-XML, DICOM), the SE-3 integrates easily into existing hospital information systems. The rechargeable Li-ion battery provides true portability for bedside, ambulance, and remote clinic use, while optional PC-based data management software enables centralised ECG archiving and trend analysis across your institution.
Key features & clinician benefits
Advanced Filtering & Noise Rejection
- 12-lead simultaneous acquisition with optional 24-bit A/D converter
- High CMRR >110 dB (optional) resists AC and EMG interference
- Complete digital filters eliminate baseline drift and powerline noise
- Automatic baseline adjustment and lead-off detection with alarm
Streamlined Operation & Integration
- One-button operation with Auto/Manual/Rhythm/Off modes
- Barcode scanner support for rapid patient data entry
- Foldable LCD screen with vivid waveform display for immediate interpretation
- Extended printing on arrhythmia detection for enhanced rhythm analysis
Battery-Powered & Flexible Printing
- Built-in rechargeable Li-ion battery with AC/DC power supply
- High-resolution thermal printer for grid printing on standard paper
- Optional external printer support for 12-lead A4 grid output
- Lightweight, compact design suitable for bedside and mobile use
Comprehensive Storage & Export
- Internal storage for up to 500 ECGs, expandable via USB flash disk
- LAN/RS232/USB connectivity to PC for seamless data transmission
- Multiple export formats: PDF, SCP, FDA-XML, DICOM
- Optional PC-based ECG management software for institutional archiving
Technical specifications
| Indications | Cardiac rhythm monitoring, arrhythmia detection, diagnostic electrocardiography, point-of-care ECG assessment |
|---|---|
| Acquisition | 12-lead simultaneous; optional 24-bit A/D converter |
| Display | Foldable LCD screen with vivid waveform display |
| Filtering | Complete digital filters; CMRR >110 dB (optional); anti-baseline drift, AC, and EMG interference |
| Measurements & Interpretation | Automatic ECG measurements and interpretation; validated against CSE/AHA/MIT databases |
| Printing | Built-in high-resolution thermal printer; grid printing on standard thermal paper; optional external printer for A4 output |
| Storage | Internal: up to 500 ECGs; expandable via USB flash disk |
| Connectivity | LAN, RS232, USB; data transmission to PC via serial port, LAN, or USB |
| Data Export | PDF, SCP, FDA-XML, DICOM formats |
| Power | Built-in rechargeable Li-ion battery; AC/DC power supply |
| Software | Optional PC-based ECG data management software |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| ECG Machine | 3-Channel SE-3 unit with foldable LCD display and thermal printer | 1 |
| Patient Cable | 12-lead patient cable with standard connectors | 1 |
| Electrodes | Disposable ECG electrodes (starter pack) | 1 pack |
| Power Supply | AC/DC adapter with rechargeable Li-ion battery | 1 |
| Thermal Paper | High-resolution thermal paper roll (starter roll) | 1 |
| USB Cable | USB connectivity cable for data transfer and charging | 1 |
| User Manual | Comprehensive operating and maintenance guide | 1 |
| Carrying Case | Protective carrying case for transport and storage | 1 |
