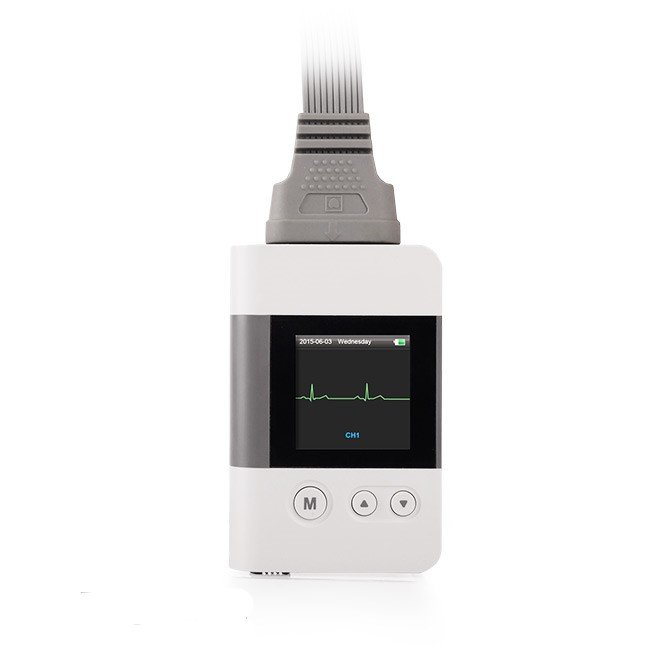

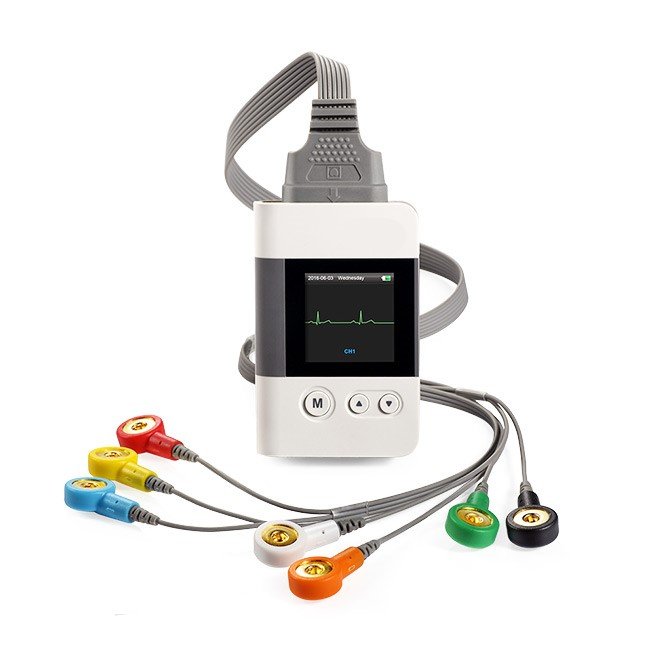

3-channel & 12-channel ECG Holter System SE-2003
- Lightweight and waterproof 3/12-channel ECG recorder
- Real-time waveform display for immediate analysis
- Up to 8 days of recording on a single AAA battery
- Comprehensive software for data analysis and management
- Download data easily via micro SD card or USB cable
- Full disclosure of ECG waveforms for detailed evaluation
- Advanced arrhythmia and ST segment analysis
- Atrial fibrillation and obstructive sleep apnea syndrome evaluation
- Heart rate variability analysis (HRT)
- Ideal for continuous cardiac monitoring and patient assessment
- SKU
- SE-2003
- Brand
- Neuvar
- Availability
- Out of stock
- ✓ Warranty included
- ✓ Worldwide shipping
3-channel & 12-channel ECG Holter System SE-2003
Lightweight, waterproof digital ECG recorder with real-time waveform display and up to 8 days of continuous recording on a single AAA battery. Comprehensive software suite enables advanced arrhythmia detection, ST segment analysis, atrial fibrillation evaluation, and heart rate variability assessment for complete cardiac assessment.
Clinical overview
The SE-2003 is a portable, lightweight ECG Holter system designed for extended cardiac monitoring in both clinical and ambulatory settings. Its waterproof construction and exceptional battery efficiency—delivering up to 8 days of continuous recording on a single AAA battery—make it ideal for patient compliance and real-world cardiac assessment. Real-time waveform display on the recorder itself enables immediate clinical feedback without requiring external equipment.
The integrated software platform provides comprehensive analysis capabilities including full ECG waveform disclosure, automatic arrhythmia detection, ST segment analysis for myocardial ischemia evaluation, atrial fibrillation screening, obstructive sleep apnea syndrome assessment, and heart rate variability (HRT) analysis. Data management is streamlined through micro SD card or USB cable download, supporting both automatic and manual editing of patient records for clinical accuracy.
Key features & surgeon benefits
Portable & Durable
- Lightweight construction for patient comfort
- Waterproof design for continuous wear
- Real-time waveform display on device
- Pacemaker detection capability
Extended Monitoring
- Up to 8 days recording on single AAA battery
- Data download via micro SD card or USB
- 3-channel and 12-channel options
- Digital recording with high fidelity
Comprehensive Diagnostics
- Full ECG waveform disclosure
- Automatic arrhythmia detection and analysis
- ST segment analysis for ischemia evaluation
- Atrial fibrillation and sleep apnea screening
Clinical Efficiency
- Automatic and manual patient data editing
- Graphics and trends display
- Heart rate variability (HRT) analysis
- Streamlined data management and reporting
Technical specifications
| Indications | Continuous cardiac monitoring, arrhythmia detection, myocardial ischemia evaluation, atrial fibrillation screening, obstructive sleep apnea syndrome assessment |
|---|---|
| Sizes / range | 3-channel and 12-channel digital recording configurations |
| Material | Medical-grade polymer, waterproof housing |
| Recording Duration | Up to 8 days on single AAA battery |
| Data Transfer | Micro SD card or USB cable download |
| Display | Real-time waveform display on recorder |
| Software Features | Full waveform disclosure, arrhythmia analysis, ST segment analysis, atrial fibrillation analysis, sleep apnea evaluation, HRT analysis, graphics and trends display |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| ECG Holter Recorder | 3-channel or 12-channel digital recorder with waterproof design and real-time display | 1 |
| Recording Electrodes | Pre-gelled adhesive electrodes for patient attachment | As applicable |
| Software Suite | Comprehensive analysis and management platform with automatic and manual editing capabilities | 1 |
| Data Transfer Cable | USB cable for direct computer connection | 1 |
| Micro SD Card | Data storage and transfer media | 1 |
| AAA Battery | Power source for extended recording duration | 1 |
| User Documentation | Clinical and technical reference materials | 1 |
Get in touch for pricing & availability
Contact our clinical sales team to discuss system configuration, volume pricing, and integration with your existing cardiac monitoring workflow. We provide comprehensive technical support and clinical training for all users.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
