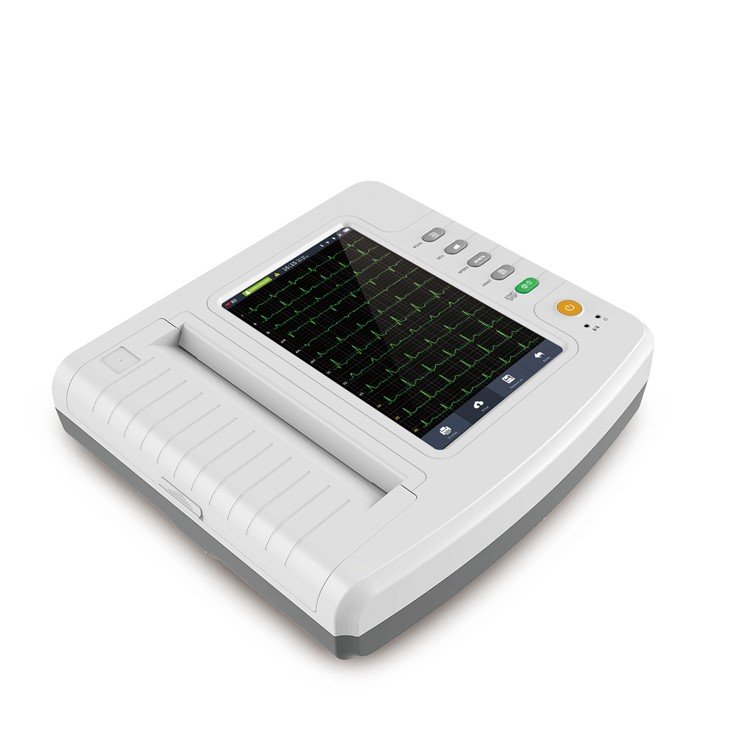

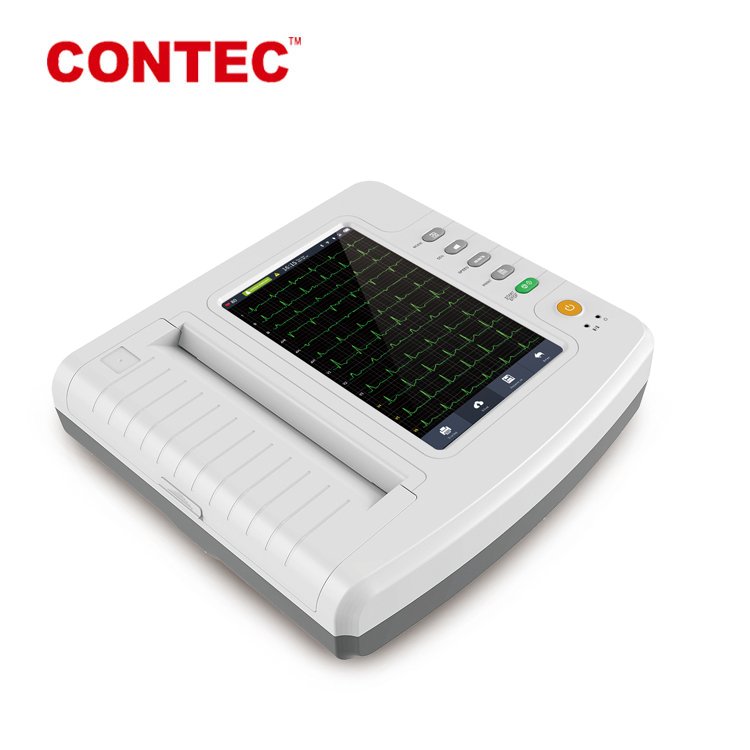

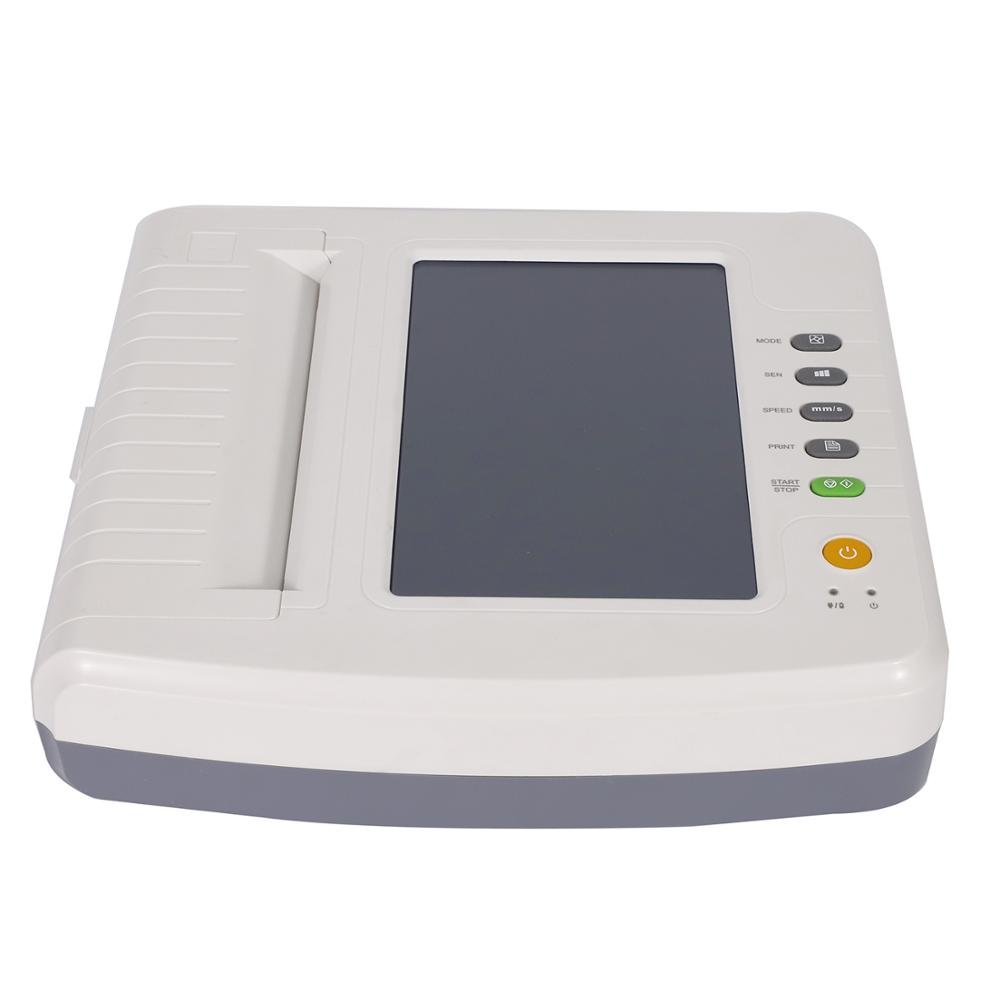

ECG1212G Electrocardiograph
- Collects 12-lead ECG signals simultaneously
- High-resolution 10.1'' color LCD with full-touch screen
- Built-in thermal printer with multiple printing modes
- Auto-measurement and interpretation of ECG parameters
- Long battery life: up to 10 hours standby, 3 hours continuous printing
- Stores up to 4000 cases for easy review and analysis
- Supports multiple external devices via USB
- Multi-language interface (Chinese/English) with virtual keyboard
- Power supply adaptable to AC/DC with protective circuits
- Compact design ideal for home visits and patient exams
- SKU
- C9727B6B827E
- Brand
- Contec
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
ECG1212G Electrocardiograph
A comprehensive 12-lead electrocardiograph system with high-resolution 10.1" color LCD touchscreen, integrated thermal printer, and advanced auto-measurement capabilities. Designed for clinical environments, home visits, and patient examinations with extended battery life and extensive case storage.
Clinical overview
The ECG1212G is a fully integrated electrocardiograph system capable of simultaneous 12-lead ECG signal collection with real-time waveform display and automated analysis. The device combines a high-resolution 10.1" color LCD touchscreen interface with a built-in thermal printer, enabling immediate ECG report generation in clinical and field settings. Advanced signal processing includes power frequency filtering (50/60 Hz), baseline correction, and EMG filtering (25/35 Hz) to ensure diagnostic-quality waveforms.
Equipped with auto-measurement and auto-interpretation functions, the ECG1212G automatically calculates routine cardiac parameters including heart rate, PR interval, P duration, QRS duration, QT/QTc interval, axis measurements, and amplitude indices. The device stores up to 4000 cases with full historical review, modification, and export capabilities (DAT, PDF, XML, BMP, JPEG formats). Dual-language interface (Chinese/English), extended battery life (10 hours standby, 3+ hours continuous printing), and USB connectivity for external peripherals make it ideal for hospital departments, clinics, and mobile health screening programs.
Key features & surgeon benefits
Simultaneous 12-Lead Collection
- Synchronous 12-lead ECG signal capture with zero phase lag
- Support for standard 12-lead and Cabrera-lead waveform display modes
- Flexible 3/6/12-lead display options for clinical workflow optimization
10.1" High-Resolution Touchscreen
- Full-touch color LCD with function buttons for intuitive operation
- Real-time display of HR, sensitivity, paper speed, filter state, and battery status
- Comprehensive on-screen prompts for lead-off, overload, and system status alerts

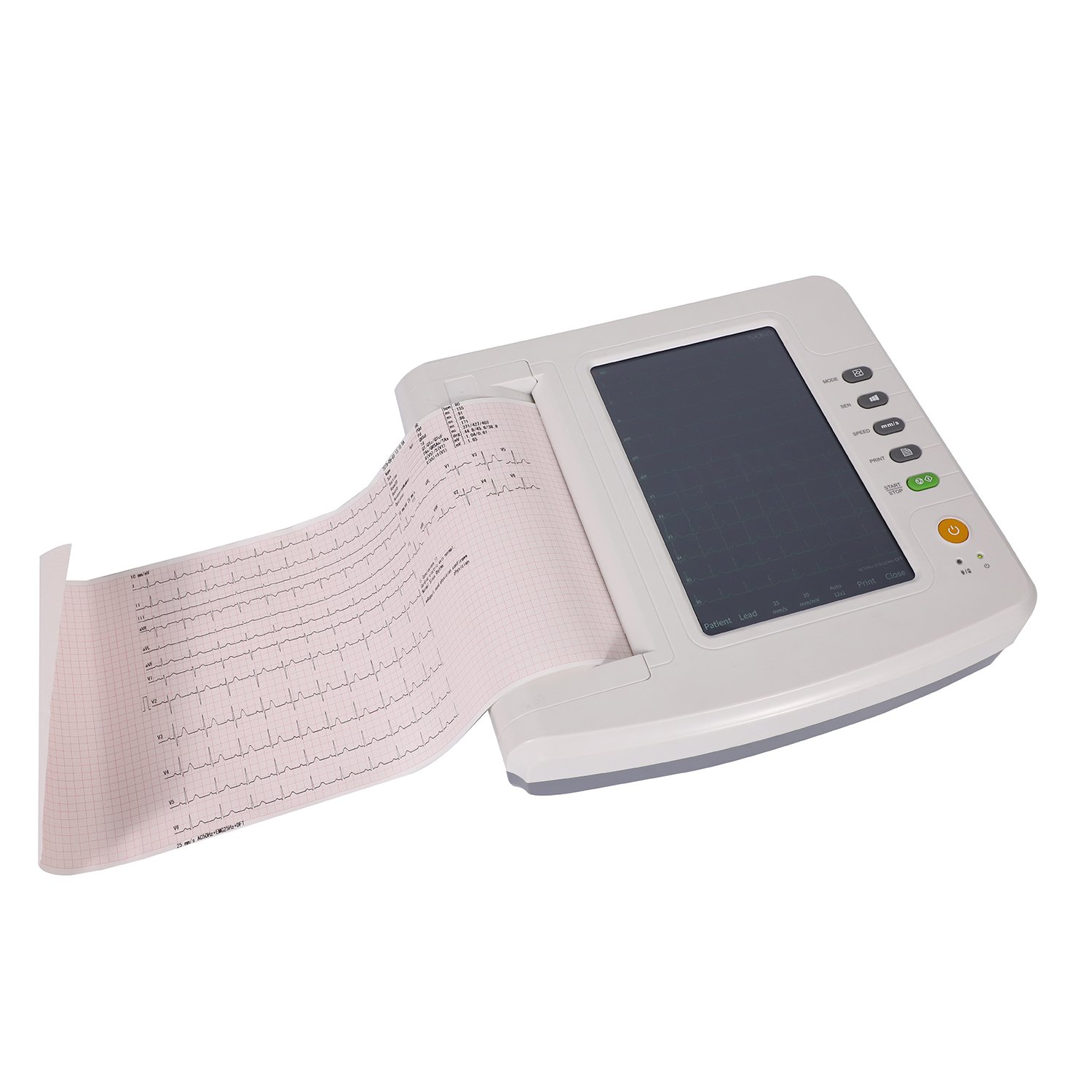

Integrated Thermal Printer
- Multiple printing modes: auto M×N, M×N+1, M×N+2, rhythm, and manual formats
- Automatic timing and arrhythmia-triggered printing for continuous monitoring
- Full customization of report content: waveforms, parameters, diagnosis, histograms, and trend charts
Auto-Measurement & Case Management
- Automatic measurement and interpretation of HR, intervals, axes, and amplitudes
- Built-in memory for 4000+ cases with 10-second data save intervals
- Historical case review, modification, transmission, and export to multiple formats
Technical specifications
| Indications | Cardiac rhythm monitoring, ECG signal collection, arrhythmia detection, diagnostic electrocardiography |
|---|---|
| Lead Configuration | 12-lead simultaneous collection; 3/6/12-lead display; Cabrera-lead support |
| Display | 10.1" high-resolution color LCD with full-touch interface and function buttons |
| Printer | Built-in thermal printer with multiple printing modes and formats |
| Signal Processing | Power frequency filter (50/60 Hz), baseline filter, EMG filter (25/35 Hz) |
| Auto-Measurement Parameters | HR, PR interval, P duration, QRS duration, QT/QTc interval, P/QRS/T axis, amplitude indices |
| Memory Capacity | 4000+ cases with 10-second data save intervals |
| Power Supply | AC/DC (50/60 Hz) with built-in rechargeable lithium battery; over-current and over-voltage protection |
| Battery Life | Up to 10 hours standby; 3+ hours continuous printing |

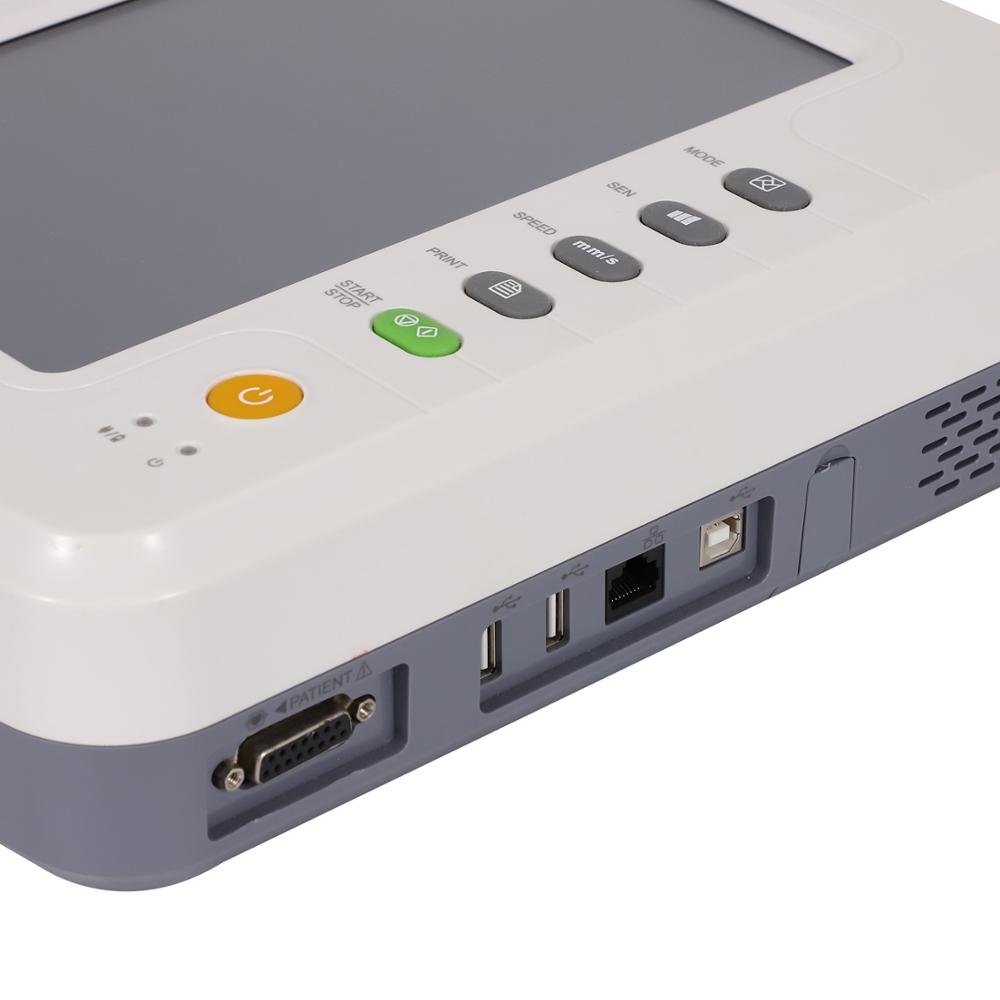

| Connectivity | USB support for external keyboard, mouse, scanner, and printer |
| Interface Languages | Chinese, English (with virtual keyboard support) |
| Export Formats | DAT, PDF, XML, BMP, JPEG |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Main Unit | ECG1212G Electrocardiograph with 10.1" touchscreen and integrated thermal printer | 1 |
| Patient Cable | 12-lead ECG patient cable with standard connectors | 1 |
| Electrodes | Disposable ECG electrodes (adhesive pads) | As applicable |
| Power Supply | AC adapter with protective circuits and charging cable | 1 |
| Thermal Paper | Thermal printing paper rolls for ECG output | As applicable |
| USB Cable | USB connectivity cable for external peripherals | 1 |
| User Manual | Comprehensive operating and maintenance documentation | 1 |
Get in touch for pricing & availability
Contact our sales team to request a detailed quote, schedule a product demonstration, or discuss customization options for your clinical facility or OEM integration needs.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
