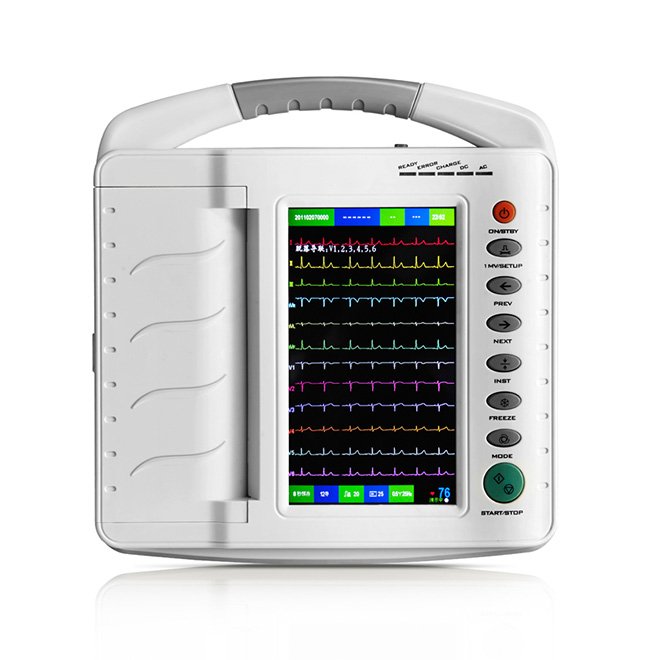

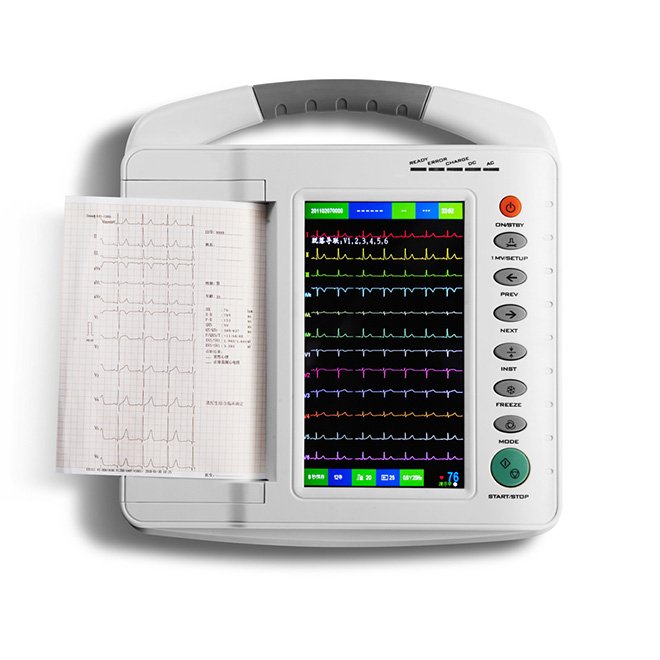

Portable 12 Channel ECG Monitor NEUEC46
- Portable 12 Channel ECG Monitor for convenient diagnostics
- 10.1-inch color LCD display with intuitive touch screen operation
- Simultaneous acquisition of 12 leads and display of ECG waveforms
- Manual & automatic printing options for versatile documentation
- Large capacity storage supporting SD memory card expansion
- Electrode fall-off alarm for enhanced operational safety
- Special physical examination modes for efficient large-scale testing
- High-precision digital filter to eliminate baseline drift
- Ability to store up to 250 ECG data files for comprehensive recordkeeping
- SKU
- NEUEC46
- Brand
- MedGroup
- Availability
- Out of stock
- ✓ Warranty included
- ✓ Worldwide shipping
Portable 12 Channel ECG Monitor NEUEC46
A compact, clinician-friendly 12-channel ECG system with intuitive touch-screen operation and simultaneous multi-lead acquisition. Ideal for point-of-care diagnostics, large-scale physical examinations, and comprehensive arrhythmia analysis with advanced digital filtering and extensive data storage.
Clinical overview
The NEUEC46 is a portable 12-channel ECG monitor engineered for rapid, accurate cardiac assessment in diverse clinical settings. Its simultaneous 12-lead acquisition capability enables comprehensive electrophysiological evaluation, while the intuitive 10.1-inch color LCD touch screen with graphic menu interface ensures efficient operator workflow and minimal training overhead. The device supports multiple printing formats—standard 12-channel, 3-channel with rhythm, 6-channel, and 6-channel with rhythm—plus dedicated 60-second arrhythmia analysis, making it suitable for both routine screening and detailed diagnostic investigation.
Advanced digital filtering technology eliminates baseline drift and environmental noise without distorting the ECG waveform, enhancing diagnostic confidence and facilitating rapid clinical interpretation. Special physical examination modes (V1, V3, V5 chest configurations) optimise the device for large-scale population screening programmes. With capacity to store 250 ECG data files and support for SD memory card expansion, the NEUEC46 provides comprehensive recordkeeping and seamless data management for institutional and mobile healthcare delivery.
Key features & surgeon benefits
Simultaneous 12-Lead Capture
- All 12 channels acquired synchronously for true multi-lead representation
- Simultaneous display and printing of all waveforms on single screen
- Eliminates timing artefacts inherent to sequential acquisition systems
Intuitive Touch-Screen Operation
- Color graphic menu interface minimises learning curve and operator error
- Quick manual and automatic printing options for flexible documentation
- Electrode fall-off alarm with visual indication of affected leads
High-Precision Digital Filtering
- Proprietary baseline drift elimination without waveform distortion
- Enhanced anti-noise capability for reliable interpretation in challenging environments
- Maintains diagnostic fidelity across all frequency ranges
Flexible Examination Modes & Storage
- V1, V3, V5 chest examination modes optimised for large-scale screening
- Stores 250 ECG data files with SD memory card expansion capability
- 60-second arrhythmia analysis for comprehensive rhythm assessment
Technical specifications
| Indications | Cardiac rhythm monitoring, arrhythmia detection, electrocardiographic screening, large-scale physical examination programmes |
|---|---|
| Display | 10.1-inch color LCD with touch screen operation; color graphic menu interface |
| Lead Configuration | 12 channels simultaneous acquisition; simultaneous display and printing of all 12 leads |
| Printing Options | Standard 12-channel, 3-channel + rhythm, 6-channel, 6-channel + rhythm; 60-second arrhythmia analysis |
| Data Storage | Capacity for 250 ECG data files; SD memory card expansion supported |
| Signal Processing | High-precision digital filter; baseline drift elimination; electrode fall-off detection and indication |
| Special Modes | V1, V3, V5 chest physical examination modes for large-scale screening |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Main Unit | Portable 12-channel ECG monitor with 10.1-inch color LCD touch screen | 1 |
| Electrode Set | Standard 12-lead ECG electrode configuration | 1 set |
| Power Supply | AC adapter and rechargeable battery | 1 |
| Thermal Paper | ECG recording paper roll | As applicable |
| Documentation | User manual, quick reference guide, technical specifications | 1 set |
