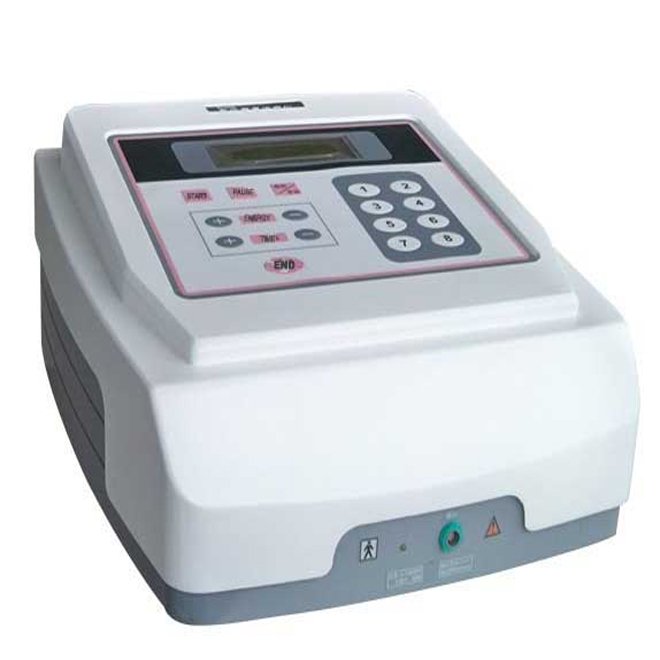

Bone Fracture Therapeutic Equipment NEUBF03
- One-channel output therapeutic equipment for bone fractures
- Adjustable intensity from 0 to 64 mA, catering to diverse treatment needs
- Treatment duration options: auto (max 30 mins) and manual (10-60 mins)
- Ideal for post-surgery recovery, including inflammation, swelling, and pain relief
- Effective for various fractures, delayed unions, and nonunions
- Supports soft tissue injuries, joint sprains, lumbar issues, and sciatica
- Includes main unit, 4 bandages, 4 electrodes (90x60 mm), and 20 self-adhesive electrodes (40x80 mm)
- Continuous working mode ensures consistent therapy delivery
- Stability of output current with minimal fluctuation (≤5%)
- Compact design for ease of use in clinical settings or at home
- SKU
- NEUBF03
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Bone Fracture Therapeutic Equipment NEUBF03
Single-channel electrotherapy device designed for accelerated bone fracture recovery, soft tissue healing, and pain management. Delivers adjustable therapeutic current with precision control for post-surgical rehabilitation, delayed unions, and chronic musculoskeletal conditions.
Clinical overview
The NEUBF03 is a single-channel electrotherapy device engineered to accelerate bone healing and manage post-fracture complications. Using endogenous current technology, it delivers precise therapeutic stimulation to promote osteogenic activity, reduce inflammation, and alleviate pain associated with fractures, delayed unions, and nonunions. The device is equally effective for soft tissue injuries, joint sprains, lumbar strain, and peripheral nerve disorders.
With adjustable intensity (0–64 mA) and flexible treatment duration (10–60 minutes manual or auto mode up to 30 minutes), clinicians can tailor therapy to individual patient needs. The continuous working mode ensures consistent, uninterrupted current delivery with minimal output fluctuation (≤5%), supporting reliable therapeutic outcomes in both clinical and home-based rehabilitation settings.
Key features & surgeon benefits
Comprehensive Fracture Management
- Proven anti-inflammatory and analgesic effects post-surgery
- Accelerates healing in delayed unions and nonunions
- Supports soft tissue recovery and joint rehabilitation
Flexible Treatment Protocols
- Adjustable intensity in 1 mA steps (0–64 mA range)
- Auto mode (max 30 min) or manual control (10–60 min)
- Continuous operation with stable output (≤5% fluctuation)
Cost-Effective Rehabilitation
- Reduces hospital stay and outpatient visits
- Portable design enables home-based therapy
- Low power consumption (≤100 VA)
Patient-Centric Design
- Compact, lightweight unit for clinical and home use
- Four reusable bandages and multiple electrode options
- Intuitive controls for patient independence
Technical specifications
| Indications | Bone fractures, delayed unions, nonunions, bone defects, post-surgical inflammation, soft tissue contusion, joint sprains, lumbar strain, sciatica, peripheral nerve disorders, avascular necrosis |
|---|---|
| Output Configuration | Single-channel output |
| Intensity Range | 0–64 mA (adjustable by step) |
| Output Current | 50 mA ±10% (500 Ω load) |
| Treatment Duration | Auto: max 30 minutes; Manual: 10–60 minutes (±60 seconds error) |
| Current Stability | Rate of change ≤5% |
| Frequency Change Period | 15–30 seconds |
| Treatment Model | Endogenous current model |
| Input Power | ≤100 VA |
| Working Mode | Continuous |
| Packaging | Main unit, 4 bandages, 4 electrodes (90×60 mm), 20 self-adhesive electrodes (40×80 mm) |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Main Unit | Single-channel electrotherapy device with control panel | 1 |
| Bandages | Reusable therapeutic bandages for electrode placement | 4 |
| Electrodes (Standard) | Non-adhesive electrodes, 90×60 mm | 4 |
| Self-Adhesive Electrodes | Pre-adhesive electrodes, 40×80 mm | 20 |
