Percutaneous Jaundice Tester NEUJM01
- Accurate light reflective measurement for jaundice detection
- Dual display of results in mg/dL and μmol/L
- LCD screen for clear and easy reading
- Store up to 200 measurement records
- Average calculation for consistent results from multiple tests
- Quick start feature with no preparation needed
- Low battery warning and automatic shutdown for efficiency
- Displays battery voltage and charging status
- Lithium battery allows for over 800 measurements per charge
- Automatic charging protection for battery longevity
- SKU
- NEUJM01
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping

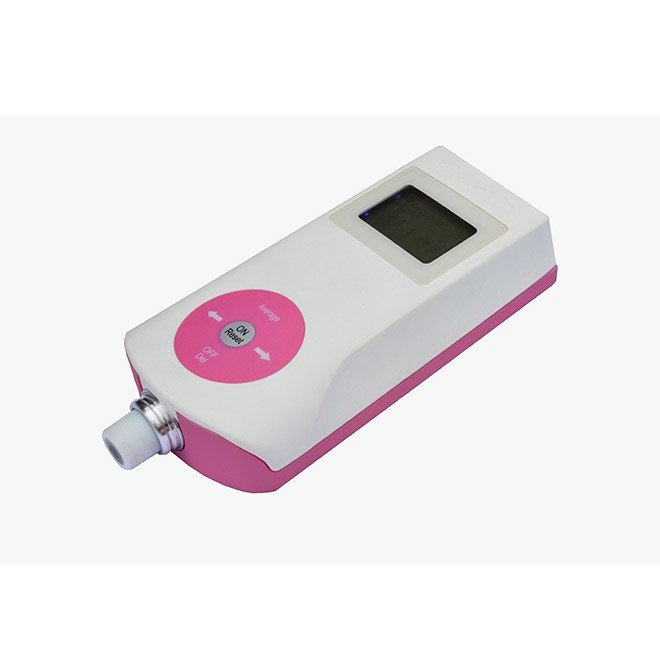

Percutaneous Jaundice Tester NEUJM01
Non-invasive light reflective measurement for rapid and accurate neonatal jaundice detection. Dual-unit display in mg/dL and μmol/L with data storage for up to 200 measurements. Lithium battery provides over 800 measurements per charge with automatic charging protection.
Clinical overview
The Percutaneous Jaundice Tester NEUJM01 provides rapid, non-invasive measurement of transcutaneous bilirubin levels using advanced light reflective technology. Designed for neonatal screening and monitoring, this device eliminates the need for blood sampling in initial jaundice assessment, reducing patient discomfort and enabling faster clinical decision-making in maternity and paediatric settings.
With dual-unit display capability (mg/dL and μmol/L), automatic averaging of multiple measurements, and storage of up to 200 records, the NEUJM01 supports consistent clinical protocols and facilitates longitudinal monitoring. The device's quick-start operation, low-battery warning, and automatic shutdown features ensure reliable performance in high-volume clinical environments.
Key features & surgeon benefits
Precise Light Reflective Detection
- Indication error ±1.0 mg/dL across 0–25 mg/dL range
- LED light source with calibrated white and yellow reference endpoints
- Eliminates subjective visual assessment
Rapid Non-Invasive Testing
- No preparation required; immediate measurement capability
- Automatic averaging function for 2–5 consecutive measurements
- Storage of 200 measurement records for trend analysis
Extended Battery Performance
- Over 800 measurements per full charge
- Low-battery warning and automatic shutdown after 10 minutes inactivity
- Automatic charging protection at 4.2V ±0.05V
Flexible Clinical Reporting
- Simultaneous display in mg/dL and μmol/L
- LCD screen with clear, easy-to-read output
- Battery voltage and charging status indicators
Technical specifications
| Measurement Method | Light reflective |
|---|---|
| Light Source | LED |
| Display Type | LCD |
| Measurement Range | 0–25 mg/dL |
| Indication Error | ±1.0 mg/dL |
| Power Supply | Lithium battery (DC3.6V, 1000mAh ±20%) |
| Measurements per Charge | Over 800 |
| Data Storage Capacity | 200 measurement records |
| Dual-Unit Display | mg/dL and μmol/L simultaneously |
| Auto-Shutdown | 10 minutes inactivity |
| Charging Protection | Automatic at 4.2V ±0.05V |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Percutaneous Jaundice Tester | NEUJM01 main device with LCD display and LED measurement head | 1 |
| Lithium Battery | DC3.6V, 1000mAh ±20% rechargeable battery | 1 |
| USB Charging Cable | Standard USB charging interface with automatic protection | 1 |
| Carrying Case | Protective case for transport and storage | 1 |
| User Manual | Multilingual operating and maintenance guide | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss pricing, volume discounts, and delivery timelines for the Percutaneous Jaundice Tester NEUJM01. We offer flexible configurations and OEM customisation for healthcare systems and distributors worldwide.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
