Cryostat Microtome Machine NEUK247
- Advanced Cryostat Microtome Machine NEUK247
- Adjustable section thickness: 5-100μm with fine increments
- Trimming thickness range adjustable up to 600μm
- Maximum specimen size: 55mm x 80mm
- Fast forward and back-forward speeds of 0.9mm/s and 45mm/s
- Chamber temperature adjustable from 0℃ to -60℃
- Minimum freezing shelf temperature: -55℃
- Peltier shelf temperature: as low as -60℃
- Equipped with double Danfoss compressor for efficient cooling
- Operational noise level: 47dB(A) for quiet performance
- SKU
- NEUK247
- Brand
- Neuvar
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping

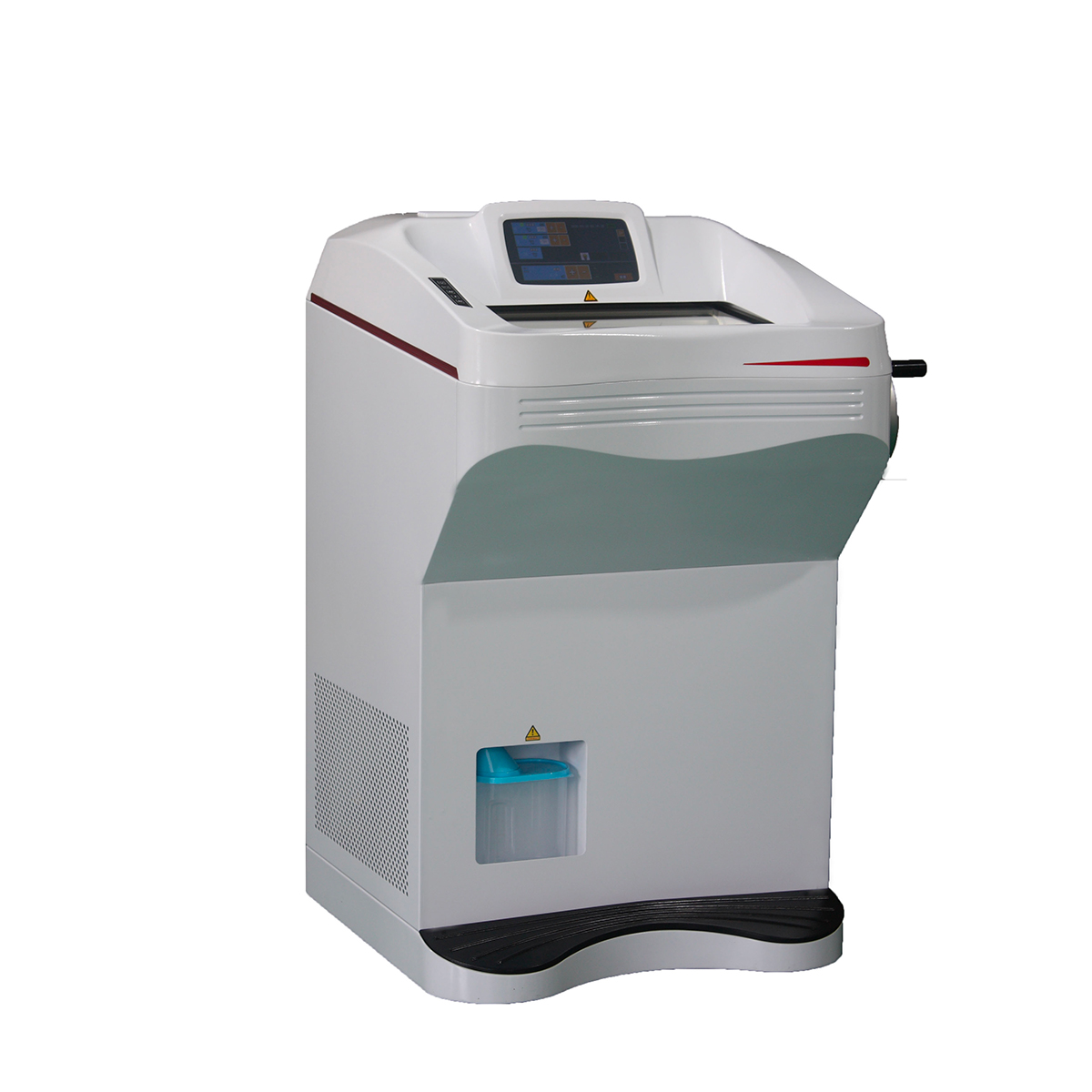

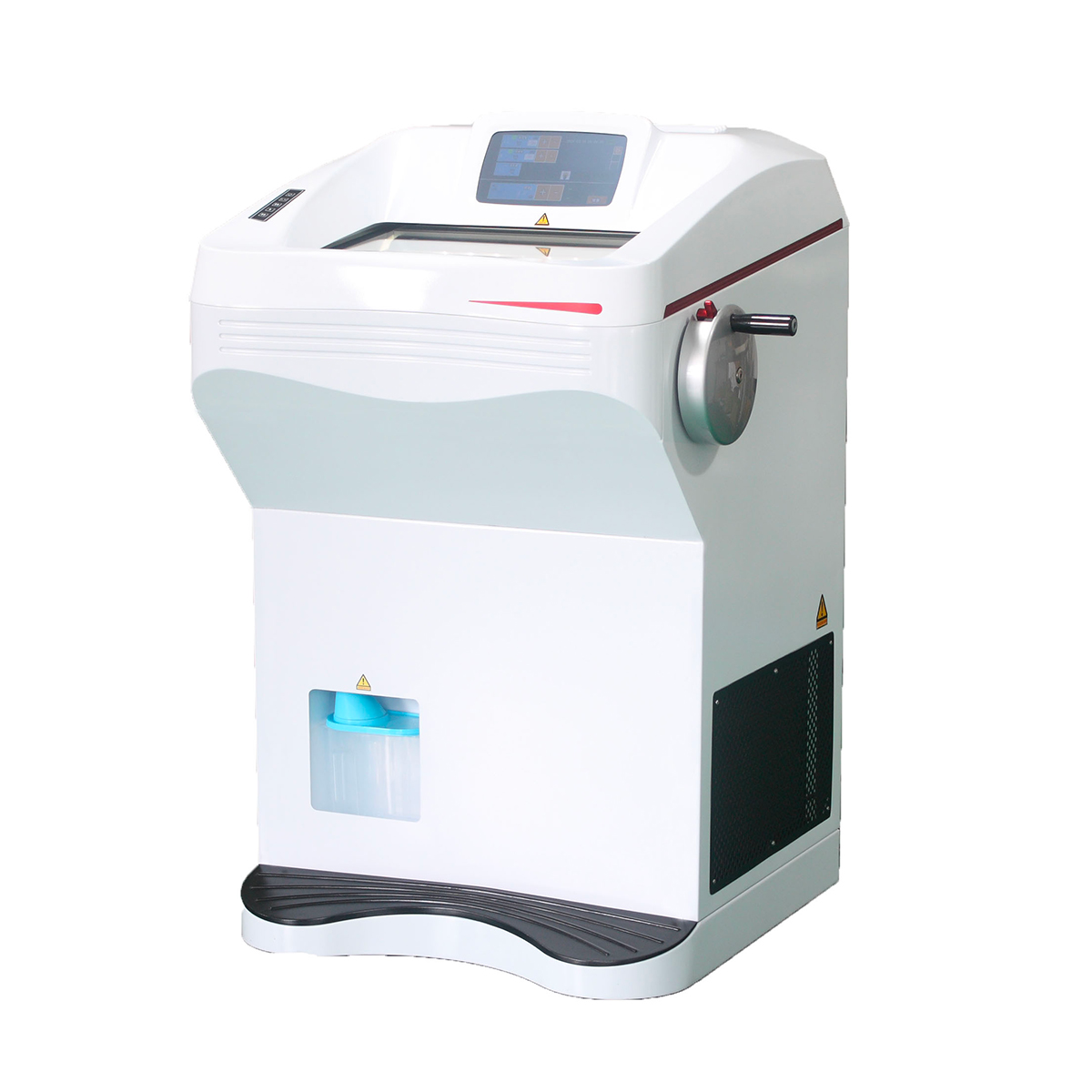

Cryostat Microtome Machine NEUK247
Advanced cryostat microtome system engineered for precision histological sectioning. Delivers adjustable section thickness from 5–100μm with fine incremental control, dual Danfoss compressor cooling to –60°C, and quiet operation at 47dB(A) for laboratory environments.
Clinical overview
The NEUK247 Cryostat Microtome is a precision instrument designed for rapid, high-quality histological sectioning in clinical and research laboratories. Equipped with dual Danfoss compressors, the system achieves rapid cooling to –60°C, enabling consistent specimen preparation across a wide range of tissue types. The adjustable section thickness range (5–100μm) with fine incremental control ensures reproducible results for diagnostic and research applications.
Engineered for laboratory efficiency, the NEUK247 combines compact design with robust cooling capacity, 24 freezing stations, and 6 Peltier units for flexible specimen management. Operational noise of 47dB(A) minimizes laboratory disruption, while intuitive controls and multiple temperature zones support high-throughput sectioning workflows.
Key features & surgeon benefits
Fine-Increment Sectioning
- Section thickness 5–100μm with increments as fine as 0.5μm
- Trimming range 0–600μm for optimal specimen preparation
- Specimen retraction 1–100μm for consistent positioning
Dual Compressor System
- Chamber and specimen head temperature control 0°C to –60°C
- Freezing shelf minimum –55°C with 24 stations
- Peltier shelf minimum –60°C (6 units) in 15 minutes
High-Throughput Capacity
- Fast-forward speed 45mm/s and back-forward 0.9mm/s
- Horizontal stroke 22mm; vertical stroke 65mm
- Maximum specimen size 55mm × 80mm for diverse tissue samples
Quiet, Reliable Operation
- Operating noise 47dB(A) for minimal lab disruption
- Power consumption 600W with dual Danfoss compressors
- Dual voltage options: AC220V 50Hz or AC110V 60Hz
Technical specifications
| Indications | Histopathology, cryosectioning, tissue analysis, diagnostic preparation |
|---|---|
| Section thickness range | 5–100μm adjustable (0.5–5μm: 0.5μm increment; 5–20μm: 1μm; 20–50μm: 2μm; 50–100μm: 5μm) |
| Trimming thickness range | 0–600μm adjustable (0–50μm: 5μm increment; 50–100μm: 10μm; 100–600μm: 50μm) |
| Specimen retraction | 1–100μm adjustable, 5μm increment |
| Maximum specimen size | 55mm × 80mm |
| Cutting speeds | Fast-forward 45mm/s; back-forward 0.9mm/s |
| Stroke dimensions | Horizontal 22mm; vertical 65mm |
| Chamber temperature | 0°C to –60°C adjustable |
| Specimen head temperature | 0°C to –60°C adjustable |
| Freezing shelf | Minimum –55°C; 24 stations |
| Peltier shelf | Minimum –60°C; 6 units; 15 min to reach –60°C |
| Voltage & frequency | AC220V±10% 50Hz (standard) or AC110V±10% 60Hz |
| Power consumption | 600W |
| Refrigerant | R404a, 300±10g |
| Compressor type | Double Danfoss Compressor |
| Operating noise | 47dB(A) |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Cryostat Microtome Unit | Complete NEUK247 system with dual compressor, chamber, and specimen head | 1 |
| Freezing Shelf | 24-station freezing shelf (–55°C minimum) | 1 |
| Peltier Shelf | 6-unit Peltier shelf (–60°C minimum) | 1 |
| Specimen Holder | Standard specimen chuck and retraction mechanism | 1 |
| Microtome Blade | Precision cutting blade assembly | 1 |
| Power Cable | AC220V 50Hz or AC110V 60Hz as specified | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss your cryostat microtome requirements, request a detailed quote, or arrange a product demonstration. We offer flexible delivery and comprehensive technical support.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
