- High resolution 1/4” colorful digital CCD camera (550 TV lines)
- Adjustable super cold LED light source for optimal brightness
- Multi-functional trolley with height-adjustable swing arm
- User-friendly foot switch for convenient image capture
- Control handle for easy adjustment of focal length and settings
- Integrated imaging, data management, and analysis capabilities
- Supports multiple languages including English, Spanish, and Russian
- Optional 2.5” LCD screen for real-time image observation
- Wireless transmission function available
- Capable of storing extensive image data for case reports and diagnosis
Advanced digital colposcopy system with integrated imaging, comprehensive data management, and multilingual support for cervical examination and early abnormality detection.
The NEUCE08 combines high-resolution 550 TV line CCD camera technology, adjustable super cold LED illumination, and sophisticated software analysis to deliver exceptional diagnostic capability. Featuring an ergonomic multi-functional trolley design with height-adjustable swing arm, convenient foot switch operation, and extensive image storage, this system provides a complete solution for modern gynecological practices worldwide.

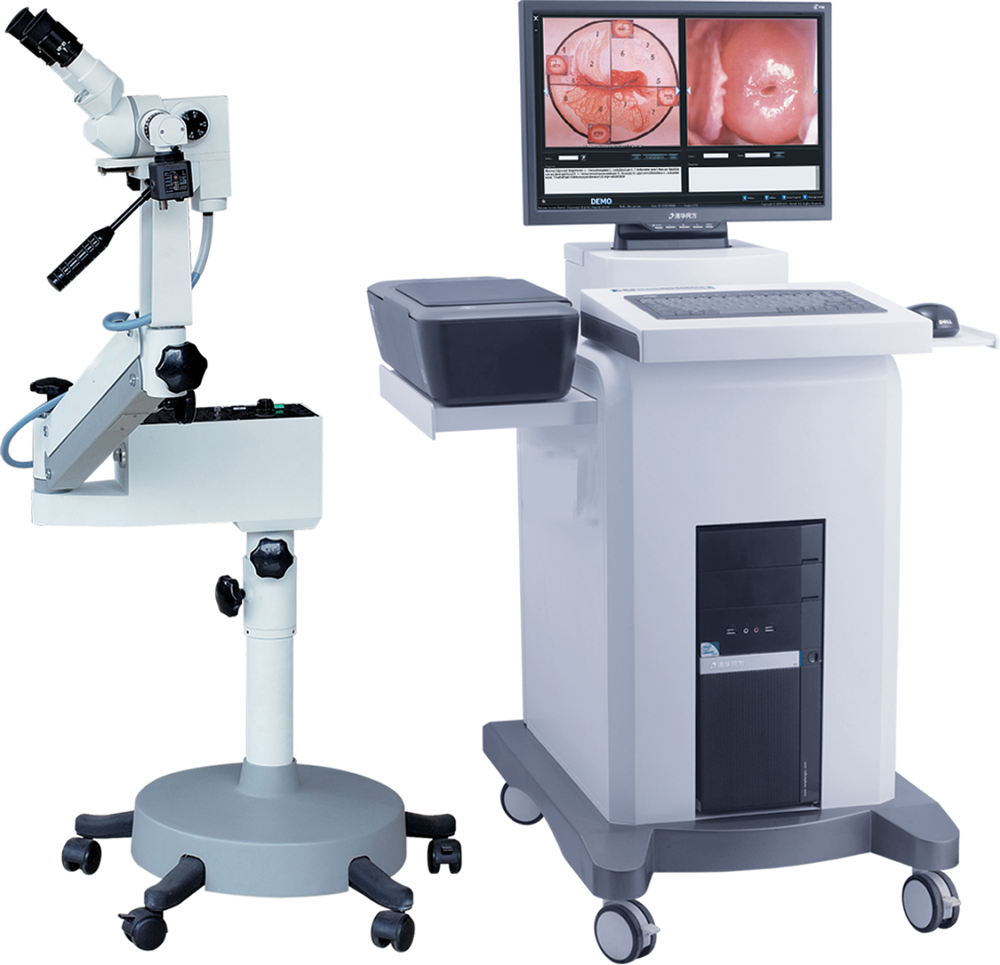

The NEUCE08 Multi-functional Trolley Colposcope Video Machine represents a comprehensive advancement in gynecological diagnostic imaging technology. This state-of-the-art system combines superior optical performance with advanced digital imaging capabilities, providing healthcare professionals with the tools necessary for accurate cervical examination, early detection of abnormalities, and comprehensive patient documentation. The integration of high-resolution 1/4" CCD camera technology with 550 TV lines, adjustable super cold LED illumination, and sophisticated software analysis creates a powerful diagnostic platform that enhances clinical decision-making and improves patient outcomes.
Designed with the modern medical practice in mind, the NEUCE08 offers unparalleled versatility through its multi-functional trolley design, intuitive control systems, and extensive data management capabilities. The system supports multiple languages including English, Spanish, Vietnamese, Russian, and Chinese, making it ideal for diverse clinical environments worldwide. With optional features such as wireless transmission, LCD screen viewing, and integrated scanner functionality, the NEUCE08 can be customized to meet the specific needs of any gynecological practice, from small clinics to large hospital departments.
| Indications | Cervical cancer screening, routine gynecological examination, acetic acid testing, Schiller's iodine test, abnormality detection, patient documentation, medical education, research applications |
|---|---|
| Camera Type | 1/4" High Resolution Colorful Digital CCD Camera |
| Resolution | 550 TV Lines |
| Working Distance | 200–400 mm |
| Light Source | Adjustable Super Cold LED with brightness control |
| Focus System | Fast auto-focus and manual focus control |
| White Balance | Auto-adjusted |
| Computer Processor | CPU ≥2.7 GHz |
| Memory (RAM) | ≥1 GB |
| Hard Disk Storage | ≥250 GB |
| LCD Display | 19" LCD 1024×768 (standard); optional 2.5" LCD screen |
| Printer | HP True Color Ink Jet Printer |
| Operating System | Windows XP / Windows 7 / Windows 8 compatible |
| Language Support | English, Spanish, Chinese, Vietnamese, Russian |
| Power Supply | AC 100–110V/240V, 50/60 Hz ±2% |
| Rated Power | ≤280 VA; Imaging system 20 VA |
| Operation Mode | Intermittent load, continuous operation |
| Safety Classification | Photographic Device Class II |
| Diagnostic Database | 175 reference pictures for diagnosis |
| Optional Features | Wireless transmission, integrated scanner for medical records |
| Warranty | 2 Year Manufacturer Warranty |
| Item | Description | Qty |
|---|---|---|
| Colposcope Head | 1/4" CCD camera with 550 TV lines, 200–400 mm working distance | 1 |
| Multi-functional Trolley | Height-adjustable swing arm with locking mechanism | 1 |
| LED Light Source | Adjustable super cold LED with brightness control | 1 |
| Control Handle | Integrated control for focal length, zoom, red light filter, white balance, image freeze, brightness | 1 |
| Foot Switch | Hands-free image capture control | 1 |
| Computer System | CPU ≥2.7 GHz, RAM ≥1 GB, HDD ≥250 GB | 1 |
| LCD Monitor | 19" LCD 1024×768 display | 1 |
| Printer | HP True Color Ink Jet Printer | 1 |
| Software Suite | Imaging, data management, analysis, report generation; multilingual interface | 1 |
| Diagnostic Reference Library | 175 reference images for clinical guidance | 1 |
| Video Output | Integrated video output function | 1 |
| Power Supply | AC 100–110V/240V, 50/60 Hz ±2% | 1 |
The NEUCE08 Multi-functional Trolley Colposcope represents a significant investment in diagnostic capability and clinical efficiency. Contact our sales team for detailed pricing, customisation options, and delivery timelines tailored to your practice requirements.
Available on request
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
