Portable Gynaecology Digital Colposcope System NEUCE07
- High-resolution 1/4” digital CCD camera with 550 TV lines.
- Features adjustable super cold LED light source for optimal imaging.
- Fast auto-focus and manual focus control for precise diagnostics.
- Includes a unique foot switch for convenient picture capture.
- Integrated computer imaging with data management and analysis.
- Supports multiple languages: Chinese, English, Vietnamese, Spanish, and Russian.
- Can store abundant image data with case report templates for easy editing.
- Optional 2.5” LCD screen for real-time image observation.
- Designed for ergonomic use with height-adjustable and lockable stand.
- Ideal for gynecological examinations and diagnostic procedures.
- SKU
- NEUCE07
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Portable Gynaecology Digital Colposcope System NEUCE07
Advanced digital colposcopy platform combining high-resolution 1/4" CCD imaging with integrated computer-based data management. Delivers 550 TV lines of horizontal resolution with adjustable super-cold LED illumination, fast auto-focus, and ergonomic foot-switch control for seamless clinical workflow in gynaecological examinations and diagnostic procedures.
Clinical overview
The NEUCE07 is a comprehensive digital colposcopy platform engineered for high-definition gynaecological imaging and diagnostic analysis. Combining a 1/4" high-resolution CCD camera with 550 TV lines of horizontal resolution, the system delivers true-colour image capture with fast auto-focus and manual focus control. The adjustable super-cold LED light source ensures uniform illumination (>1200 LUX) while maintaining safe surface temperatures (≤41°C), critical for patient comfort during extended examinations.
Integrated computer imaging with multi-language support (Chinese, English, Vietnamese, Spanish, Russian) enables real-time image management, case reporting, and diagnostic analysis. The system includes timing functions for acetic acid and iodine reaction tests, 175 diagnostic image templates, and searchable case report generation with colour printing. Ergonomic design features include a height-adjustable and lockable stand, intuitive control handle for focal length and zoom adjustment, and a unique foot switch for hands-free image capture—optimising workflow efficiency in busy clinical environments.
Key features & surgeon benefits

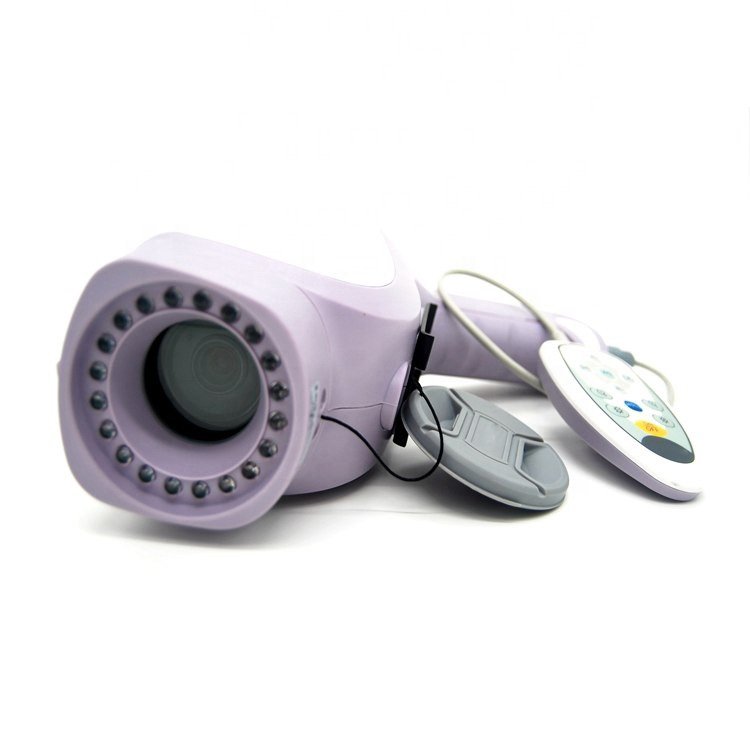

High-Resolution CCD Optics
- 1/4" digital CCD sensor with 550 TV lines horizontal resolution
- x352 magnification (optical x22, digital x16) for detailed tissue visualisation
- Auto and manual focus control with 0.2 Lux minimum illumination (colour)
- True-colour image output with auto white-balance adjustment
Ergonomic Control & Convenience
- Unique foot switch for hands-free picture capture during examination

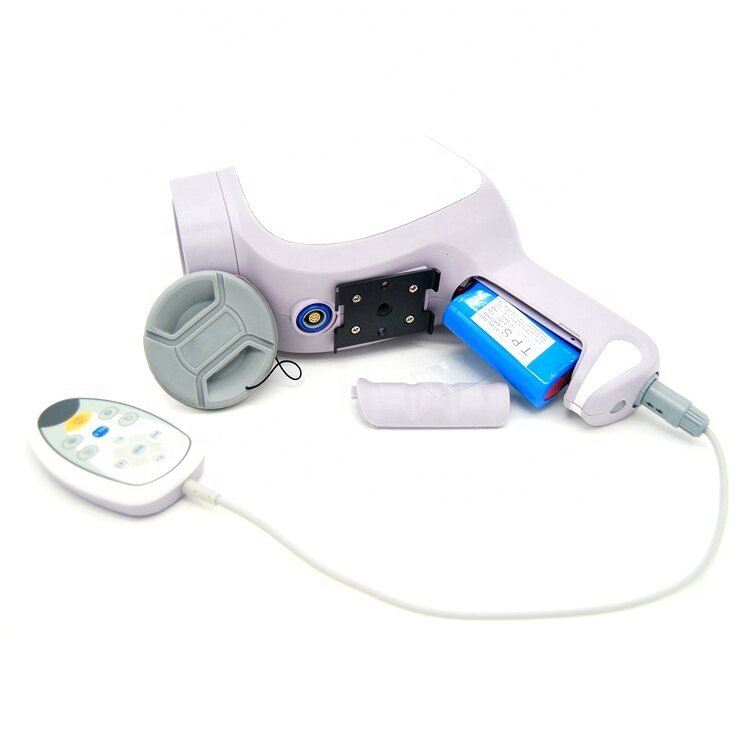

- Intuitive control handle for focal length, zoom, red light, white-balance, and brightness adjustment
- Height-adjustable and lockable stand for optimal positioning

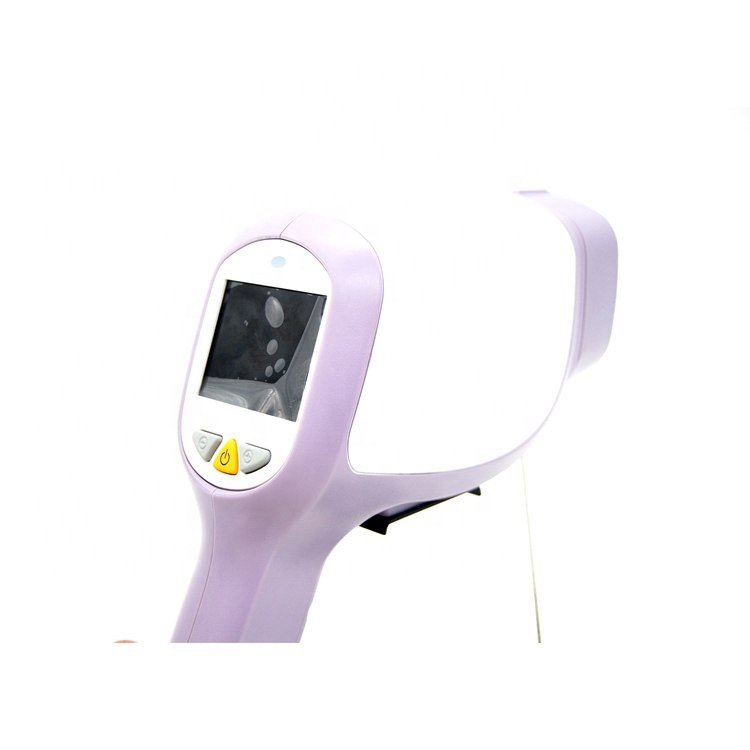

- Optional 2.5" LCD screen on camera back for real-time image observation
Integrated Computer Imaging & Analysis
- Multi-language software (Chinese, English, Vietnamese, Spanish, Russian)
- Timing functions for acetic acid and iodine reaction tests
- 175 diagnostic image templates for standardised reporting
- Abundant image storage with searchable case reports and backup functionality

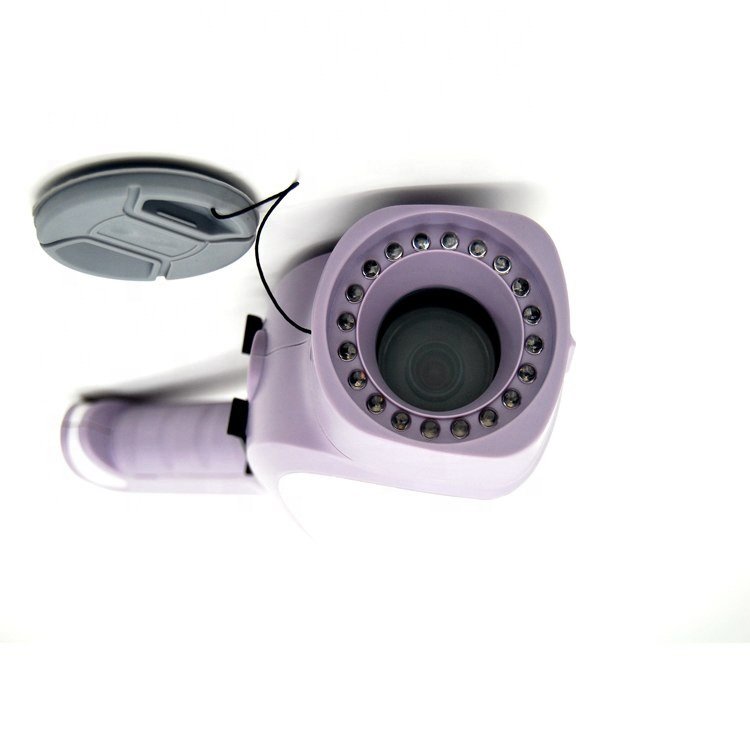

Advanced LED Light Source
- Adjustable super-cold LED with brightness control
- Ring fibre design ensures uniform light distribution
- Illumination >1200 LUX within working distance
- Safe surface temperature ≤41°C for patient comfort
Technical specifications
| Safety Classification | Photographic Device Class II |
|---|---|
| Operation Mode | Intermittent load, continuous operation |
| Power Supply (System) | AC 110V/220V ±10%, 50/60Hz ±2% |
| Rated Power | 200 VA |
| Working Environment Temperature | 5–40°C |
| Working Environment Humidity | ≤85% relative humidity |
| Working Environment Pressure | 700–1060 hPa |
| Imaging Sensor | 1/4" CCD |
| Horizontal Resolution | 550 TVL |
| Pixel Count (PAL) | 795(H) × 596(V) |
| Pixel Count (NTSC) | 811(H) × 508(V) |
| Magnification | x352 (optical x22, digital x16) |
| Focusing | Auto/Manual |
| Minimum Illumination | 0.2 Lux (colour) |
| White Balance | Auto-adjusted |
| LED Illumination | >1200 LUX (within working distance) |
| LED Surface Temperature | <41°C |
| Working Distance | 200–400 mm |
| Scanning System | PAL; NTSC (optional) |
| Video Output | Video, S-video, PAL |
| Computer Specifications | CPU ≥2.7 GHz; RAM ≥1 GB; Hard disk ≥250 GB |
| Display Screen | 19" LCD 1024×768 |
| Optional LCD Screen | 2.5" LCD on camera back |
| Printer | HP true-colour inkjet printer |
| Software Environment | Windows XP / Windows 7 / Windows 8 (32-bit, 64-bit) |
| Net Weight | 33 kg |
| Gross Weight | 55 kg |
| Warranty | 2 Year Manufacturer Warranty |

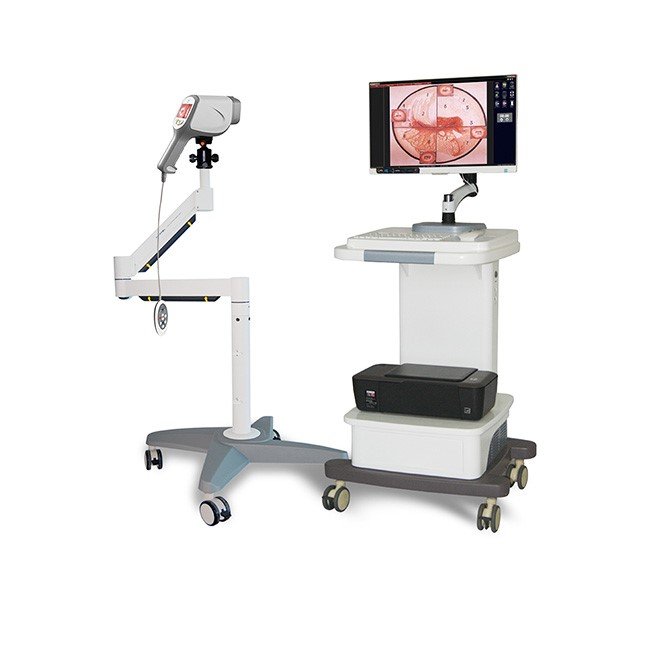

Standard instrument composition
| Item | Description | Qty |
|---|---|---|

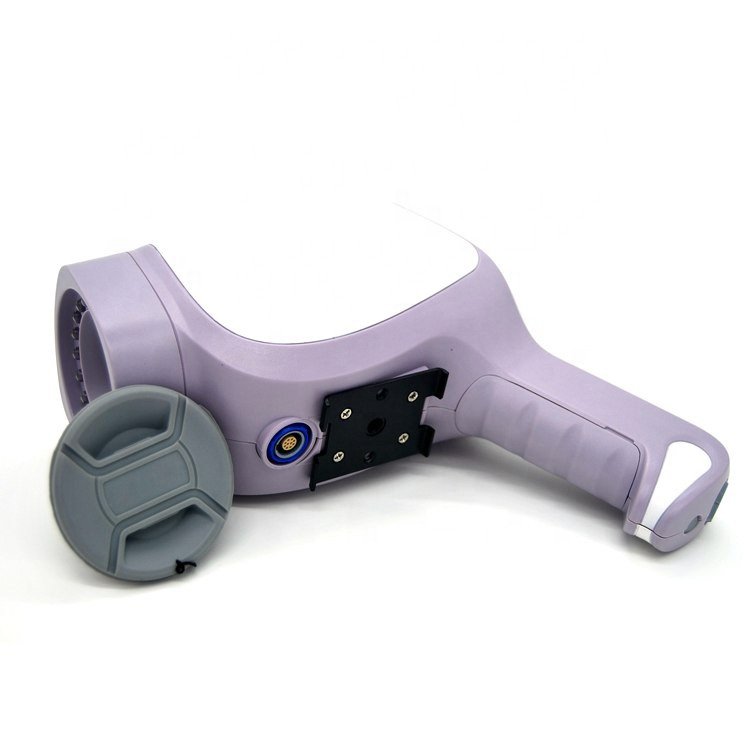

| Camera Head | 1/4" CCD digital camera with LED light source and control handle | 1 |
| Swing Arm Stand | Height-adjustable and lockable stand with trolley base | 1 |
| Foot Switch | Unique-designed foot switch for hands-free image capture | 1 |
| Host Computer | CPU ≥2.7 GHz, RAM ≥1 GB, Hard disk ≥250 GB with imaging software | 1 |
| LCD Monitor | 19" LCD 1024×768 display screen | 1 |
| Printer | HP true-colour inkjet printer for colour report printing | 1 |
| Optional LCD Screen | 2.5" LCD screen for camera back (real-time image observation) | Optional |
| Software | Multi-language imaging and case management software (Chinese, English, Vietnamese, Spanish, Russian) | 1 |
| Cables & Connectors | Video, S-video, power, and control cables | As applicable |
