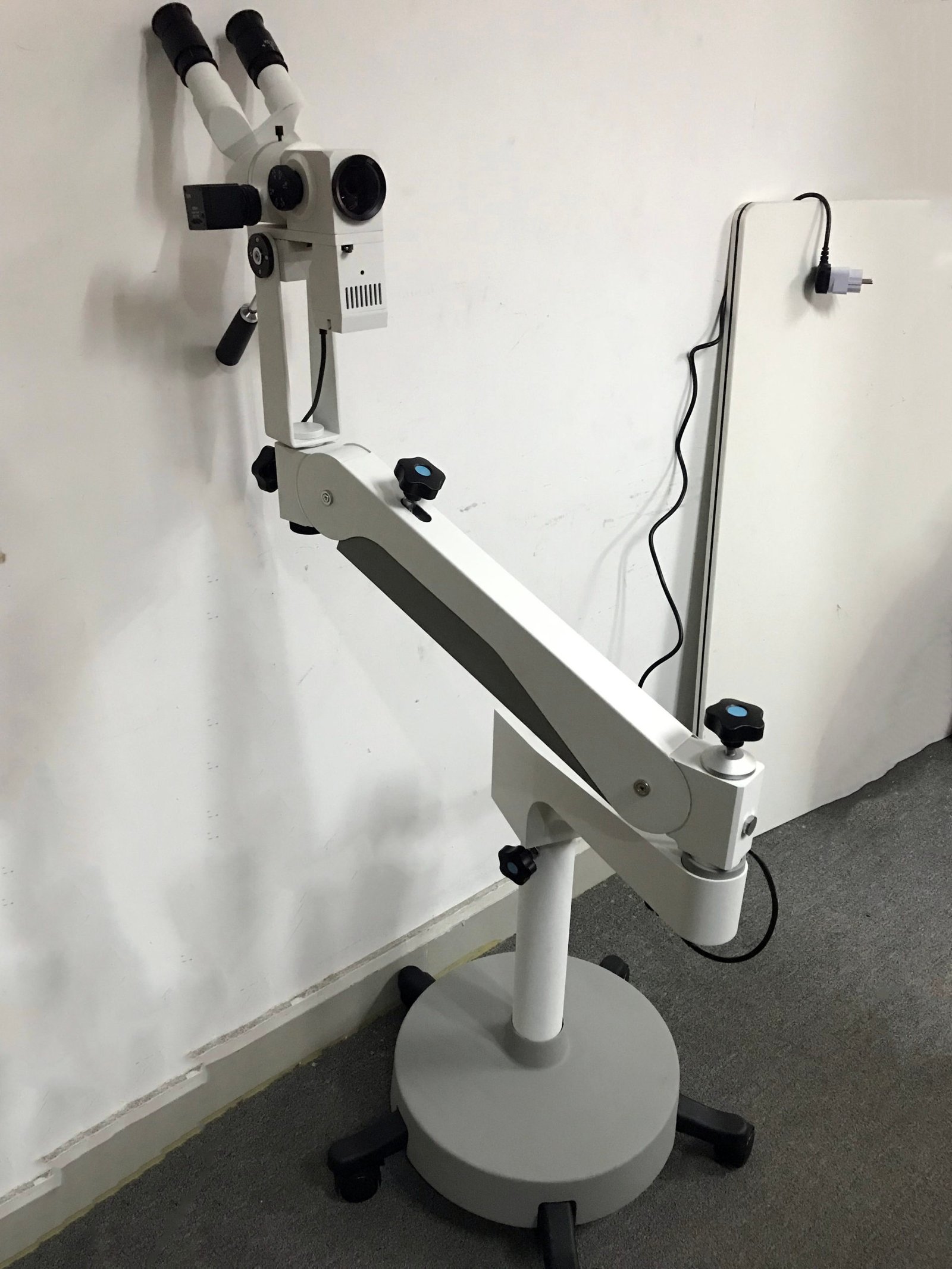

Digital Colposcope Video Machine NEUCE09
- High resolution digital colposcope with advanced optical and imaging systems
- Synchronous observation through optical scope and computer for enhanced clarity
- Built-in measurement scale for precise lesion size assessment
- Unique light source design with adjustable brightness for optimal lighting
- Multi-functional software for image processing, storage, and report generation
- Supports multiple languages including English, Spanish, Chinese, and Russian
- Features foot switch for easy photo capture during examinations
- Includes a comprehensive data management and analysis function
- Design allows for flexible adjustment with special swing arm for optimal positioning
- Ideal for gynecological examinations and accurate diagnosis of cervical lesions
- SKU
- NEUCE09
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping

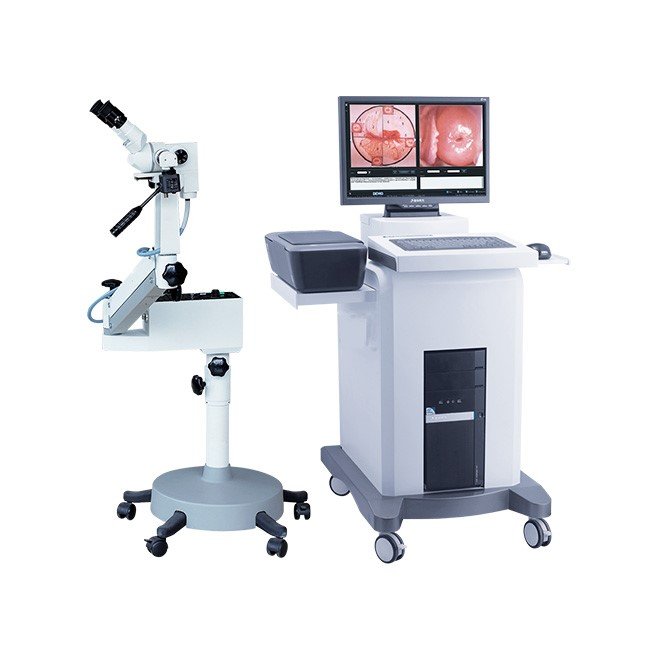

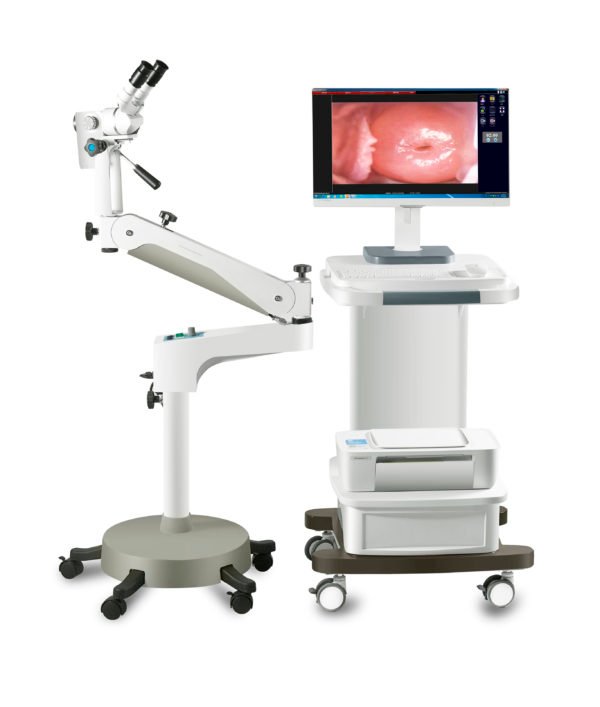

Digital Colposcope Video Machine NEUCE09
Advanced digital imaging system combining high-resolution optical and digital visualization for comprehensive cervical examination and early detection of precancerous lesions. Synchronous observation through optical scope and computer display with integrated measurement scales, multi-functional software, and complete data management capabilities.
Clinical overview
The Digital Colposcope Video Machine NEUCE09 represents a comprehensive diagnostic solution for modern gynecological practice, combining precision optical engineering with advanced digital imaging technology. This state-of-the-art system features a high-resolution 1/3" color CCD sensor delivering 540TVL horizontal resolution, enabling exceptional visualization of cervical tissue structures and subtle abnormalities. The unique synchronous observation capability allows simultaneous viewing through both the traditional optical eyepiece and computer display, providing flexibility for teaching scenarios, collaborative consultations, and enhanced diagnostic confidence. With five-speed optical amplification ranging from 2.8X to 17X magnification, integrated measurement scales for precise lesion assessment, and a powerful 150W halogen light source providing 60,000 Lux illumination, the NEUCE09 delivers the clinical precision required for accurate cervical cancer screening and early detection of precancerous lesions.
The system's comprehensive software platform transforms colposcopic examination into a fully documented diagnostic procedure, with capabilities including image capture and annotation, patient data management, standardized report generation, and automated backup functions. The flexible swing arm design with damping resistance allows effortless positioning with 270° rotation and 350mm vertical adjustment, while foot-switch operation enables hands-free image capture during examinations. Complete with integrated computer system, 19" LCD display, HP color printer, and mobile trolley, the NEUCE09 arrives ready for immediate clinical deployment. Multi-language support in English, Chinese, Spanish, and Russian enables global deployment, making this advanced diagnostic platform accessible to diverse clinical environments worldwide.
Key features & surgeon benefits
High-Resolution Digital Imaging
- 1/3" color CCD sensor with 540TVL horizontal resolution
- Exceptional image clarity with 50dB signal-to-noise ratio
- Five-speed optical amplification (2.8X to 17X magnification)
- Field of view from 80mm to 12.5mm for comprehensive visualization
Dual Observation System
- Simultaneous viewing through optical eyepiece and computer display
- Supports teaching, consultation, and collaborative examination
- Foot-switch operation for hands-free image capture

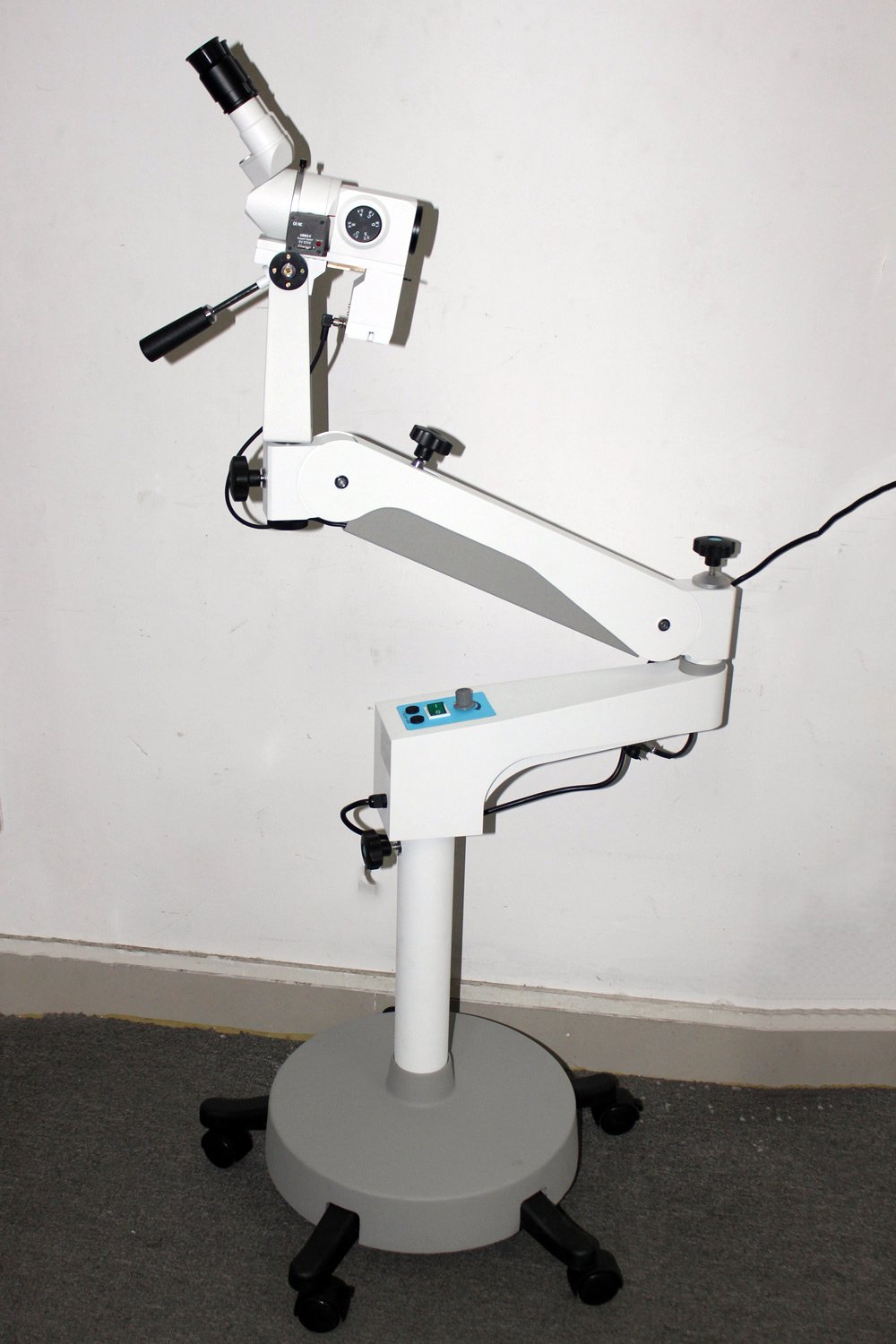

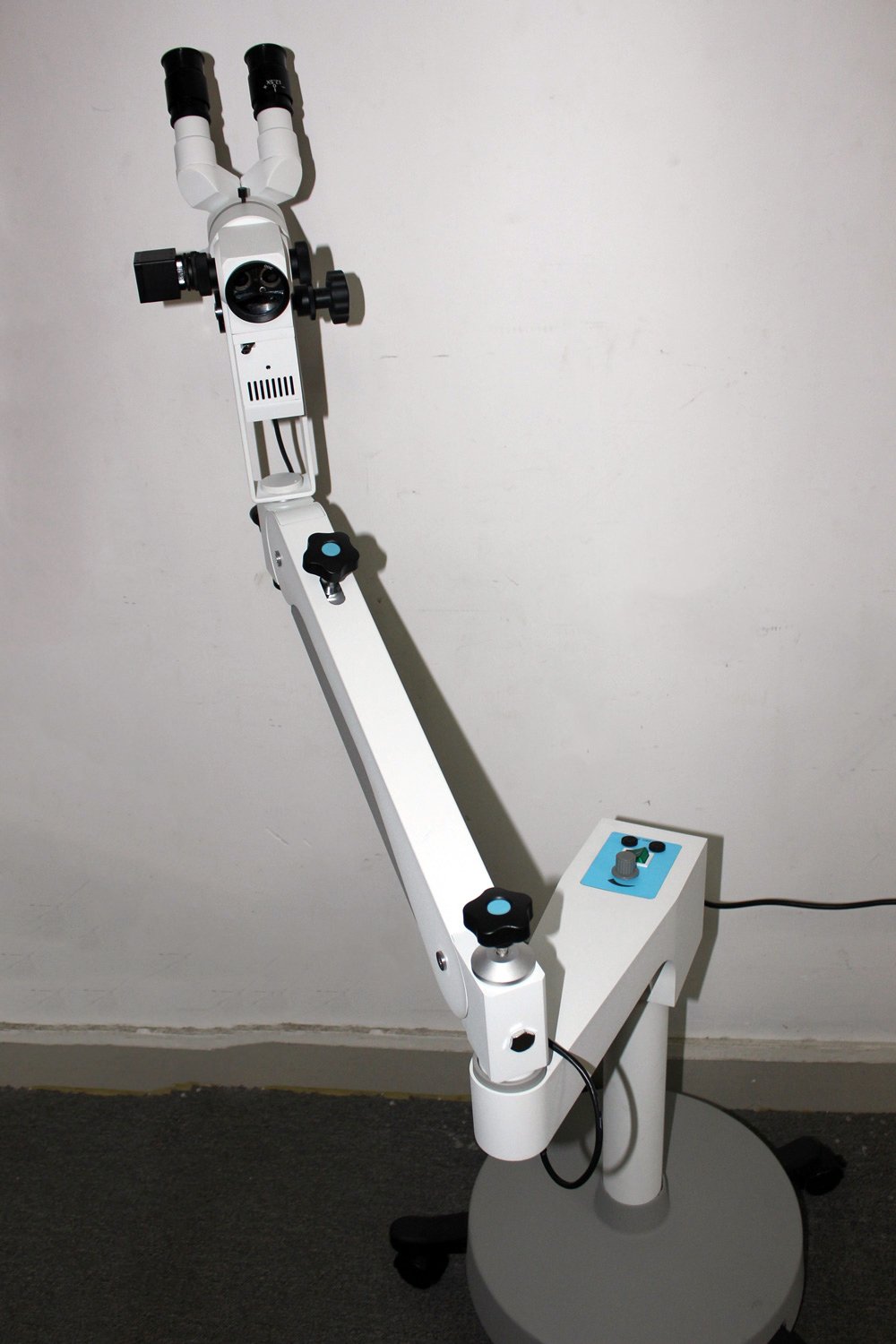

- Flexible swing arm with 270° rotation and 350mm adjustment
Comprehensive Measurement & Analysis
- Built-in measurement scale for precise lesion size assessment
- Green filter for enhanced vascular pattern visualization
- Automated timing for acetic acid and iodine testing
- RCI biopsy indication function for accurate tissue sampling
Complete Documentation Platform
- Sophisticated software with patient record management
- Standardized case report templates and image annotation
- Automated backup and unlimited patient storage capacity
- Multi-language support: English, Chinese, Spanish, Russian
Technical specifications
| Model | NEUCE09 Digital & Optical Colposcope System |
|---|---|
| Imaging Sensor | 1/3" High Resolution Color CCD |
| Horizontal Resolution | 540TVL (811 x 508 pixels) |
| Signal-to-Noise Ratio | 50dB |
| Optical Amplification | 5 Speeds: 0.4x, 0.66x, 1x, 1.5x, 2.5x |
| Total Magnification Range | 2.8X, 4X, 7X, 11.5X, 17X |
| Field of View | 80mm to 12.5mm |
| Working Distance | 300mm |
| Light Source | 15V 150W Halogen with Ring Fiber |
| Central Intensity | 60,000 Lux |
| Irradiated Surface Temperature | Lower than 41°C |
| Filters | Green Filter for Capillary Observation |
| Swing Arm Configuration | 330mm and 500mm lengths, 270° rotation |
| Height Adjustment Range | 1000mm to 1350mm |
| Vertical Adjustment | 350mm lifting height |
| System Weight | 45kg (Optical System); 75kg (Net); 108kg (Gross) |
| Computer Configuration | CPU ≥2.7GHz, RAM ≥1GB, Hard Disk ≥250GB |
| Display Screen | 19" LCD Screen, 1024x768 Resolution |
| Software Languages | English, Chinese, Spanish, Russian |
| Operating System | Windows XP / Windows 7 32-bit |
| Power Supply | AC 110V/220V±10%, 50/60Hz±2% |
| Rated Power | Total ≤420VA |
| Operating Environment | Temperature: 5-40°C, Humidity: ≤85%, Atmosphere: 700-1060hPa |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|

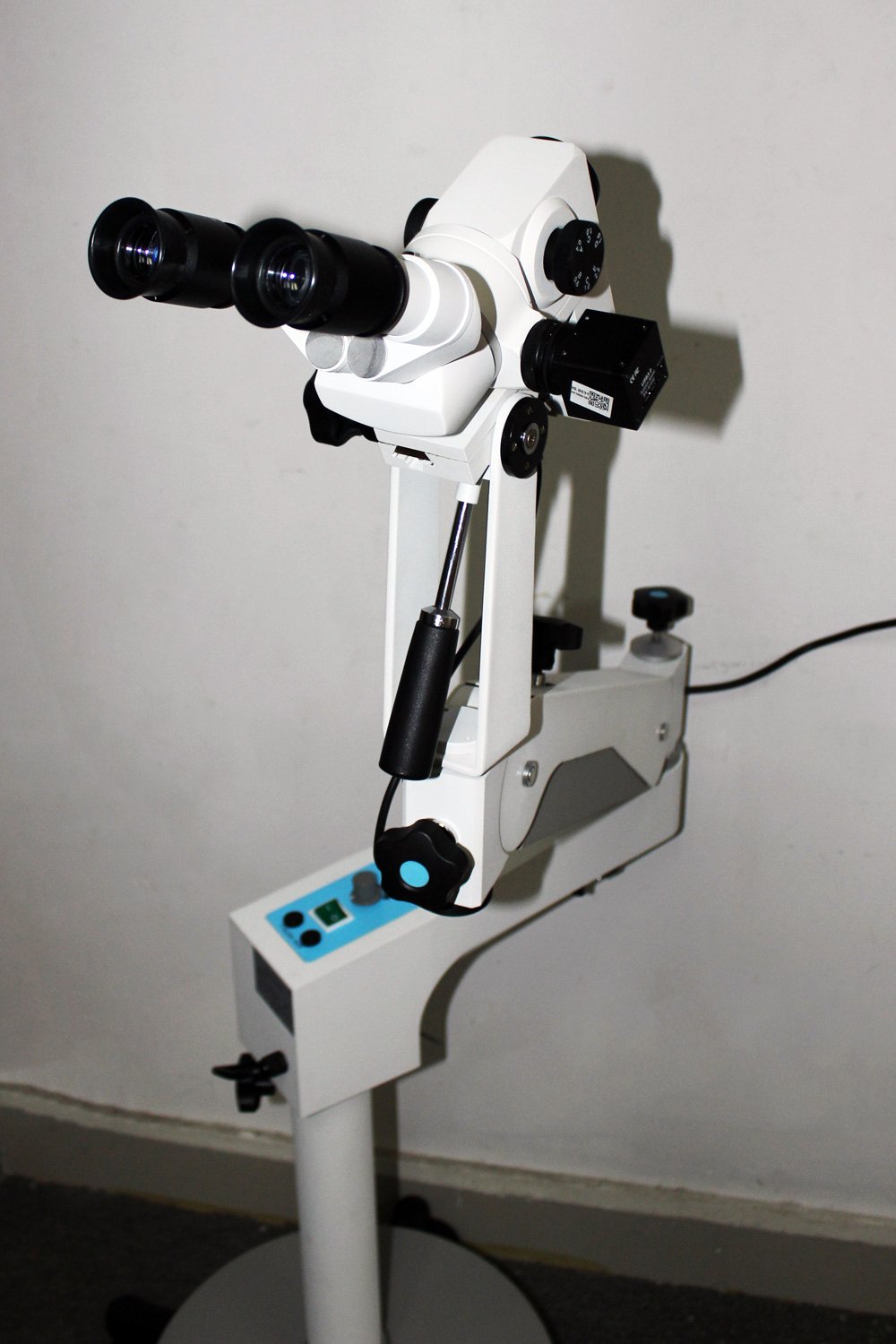

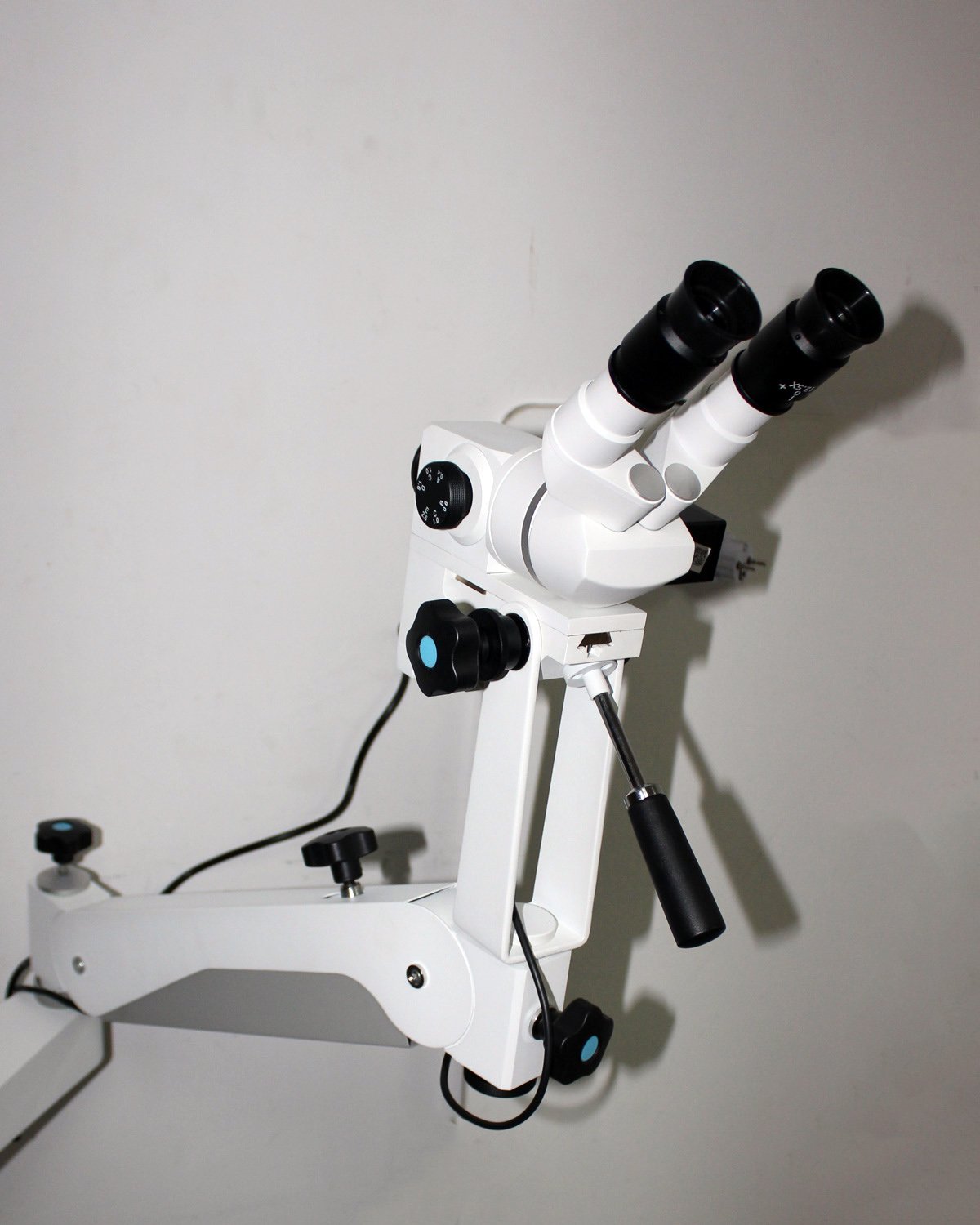

| Optical Colposcope Head | 1/3" CCD camera with 5-speed optical amplification and eyepiece | 1 |
| Halogen Light Source | 15V 150W with ring fiber delivery and brightness control | 1 |
| Swing Arm Assembly | 330mm and 500mm arms with damping resistance and 270° rotation | 1 set |
| Mobile Base | Height-adjustable stand (1000-1350mm) with locking wheels | 1 |
| Computer System | CPU ≥2.7GHz, RAM ≥1GB, Hard Disk ≥250GB | 1 |
| 19" LCD Display Monitor | 1024x768 resolution with video input | 1 |
| HP Color Inkjet Printer | True color printing for report generation | 1 |
| Imaging Software | Multi-language platform with data management, reporting, and analysis | 1 |
| Foot Switch | Hands-free image capture control | 1 |
| Green Filter | Specialized filter for vascular pattern visualization | 1 |
| Measurement Scale | Built-in scale for lesion size assessment | Integrated |
| Mobile Trolley | Complete system transport and organization | 1 |
