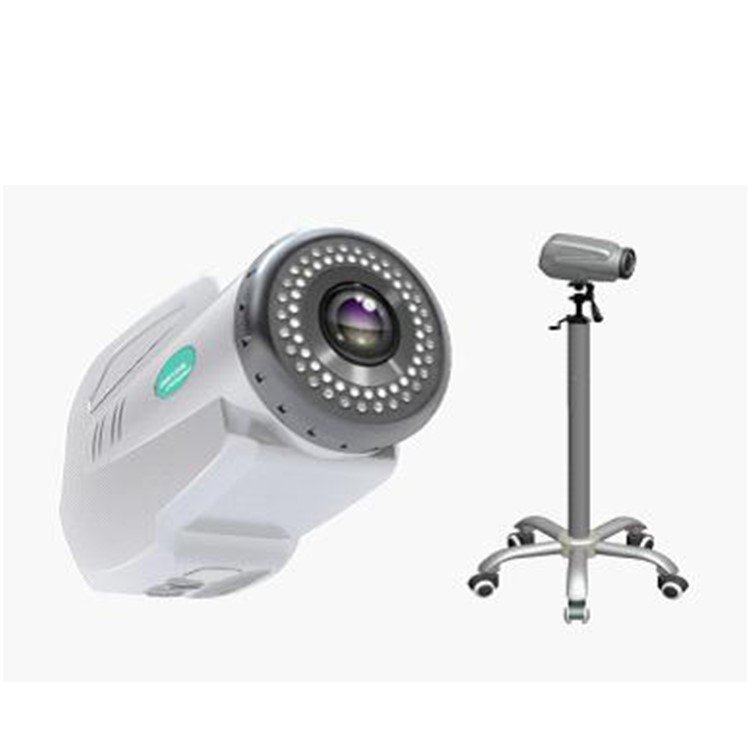

EC100 Electronic Colposcope
- High-resolution imaging with SONY CCD technology
- User-friendly interface with high-speed USB2.0 connectivity
- Automatic focusing and image quality adjustment
- Advanced backlight compensation and white balance control
- Real-time display for capturing, storing, and printing images
- Flexible operating environment with adjustable handles and brackets
- Comprehensive case management system for patient demographics
- Capability to compare new cases with existing database images
- Integrated clinical report generation with annotations and diagnoses
- Minimum illuminance of 0.1 Lux for low-light conditions
- SKU
- EC100
- Brand
- Contec
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping

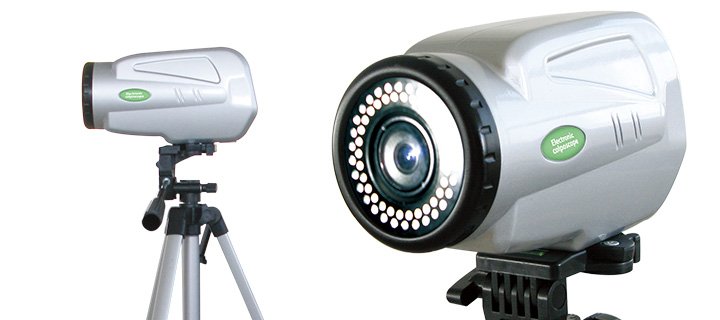

EC100 Electronic Colposcope
Advanced digital colposcopy system with SONY CCD imaging technology for high-resolution cervical visualization. Real-time capture, storage, and clinical reporting with integrated patient case management and database comparison capabilities.
Clinical overview
The EC100 Electronic Colposcope represents the latest advancement in digital colposcopy, combining professional SONY imaging hardware with sophisticated system software for gynecological examination and cervical screening. The system delivers clear, undistorted imaging with high magnification and large-screen display capability, enabling clinicians to identify subtle focal lesions with confidence. Real-time image processing, freezing, collection, storage, and comparison functions streamline clinical workflow and enhance diagnostic accuracy.
Integrated case management with patient demographics, image database comparison, and automated clinical report generation with annotations and diagnostic impressions provide comprehensive documentation and continuity of care. The flexible operating environment with adjustable handles and brackets accommodates diverse clinical settings and operator preferences, while high-speed USB 2.0 connectivity ensures seamless data transmission and system integration.
Key features & surgeon benefits
SONY CCD Technology
- 440,000-pixel resolution with 1/4″ super color CCD sensor
- High magnification (216×) with minimal distortion
- Automatic and manual focus modes for precise visualization
Real-Time Capture & Management
- Instant image freezing, capture, and storage on-screen
- Integrated case management with patient demographics
- Database comparison to review historical colposcopic images
Advanced Image Processing
- Powerful backlight compensation and gain control
- Auto/manual white balance adjustment
- Signal-to-noise ratio >50 dB for superior clarity
Clinical Reporting
- Integrated report generation with patient images and annotations
- Physician diagnosis and impression documentation
- Continuous acquisition of up to 300 sequential images
Technical specifications
| Indications | Cervical examination, colposcopic screening, gynecological diagnosis |
|---|---|
| Pixel Resolution | 440,000 pixels |
| Sensor | 1/4″ super color CCD |
| Magnification | 216× |
| Working Distance | 200–400 mm (standard); 400–1000 mm (extended) |
| Focusing | Auto/manual |
| Minimum Illuminance | 0.1 Lux |
| White Balance | Auto/manual |
| Signal-to-Noise Ratio | >50 dB |
| Continuous Acquisition | 1–300 images |
| Light Source | Multipoint surrounded high-brightness white cold light |
| Video Output | Video and S-Video |
| Connectivity | High-speed USB 2.0 |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| EC100 Colposcope Head | Main imaging unit with SONY CCD sensor, optics, and light source | 1 |
| Control Console | Computer system with Windows XP, image processing software, and case management database | 1 |
| USB 2.0 Cable | High-speed data and video transmission cable | 1 |
| Adjustable Bracket & Handle | Flexible mounting system for ergonomic positioning | 1 |
| Power Supply | Regulated power unit for system operation | 1 |
| Carrying Case | Protective transport and storage case | 1 |
