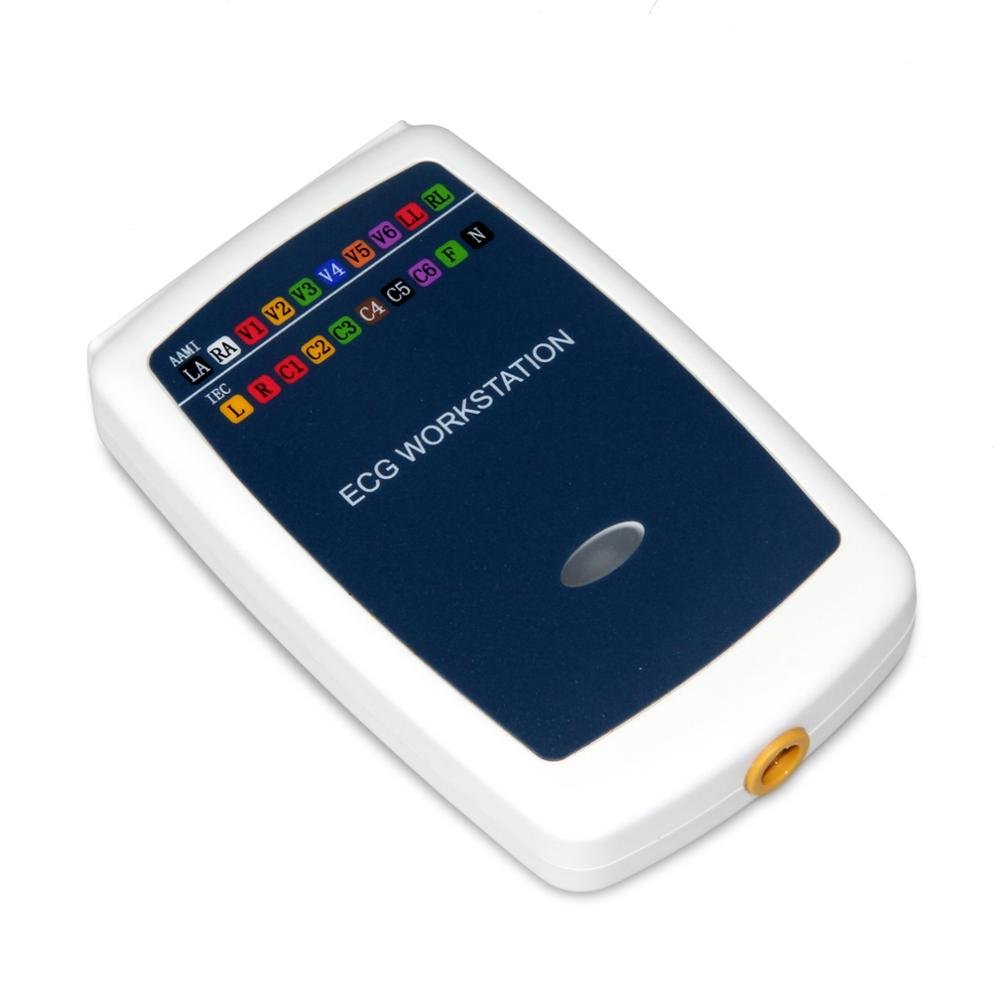

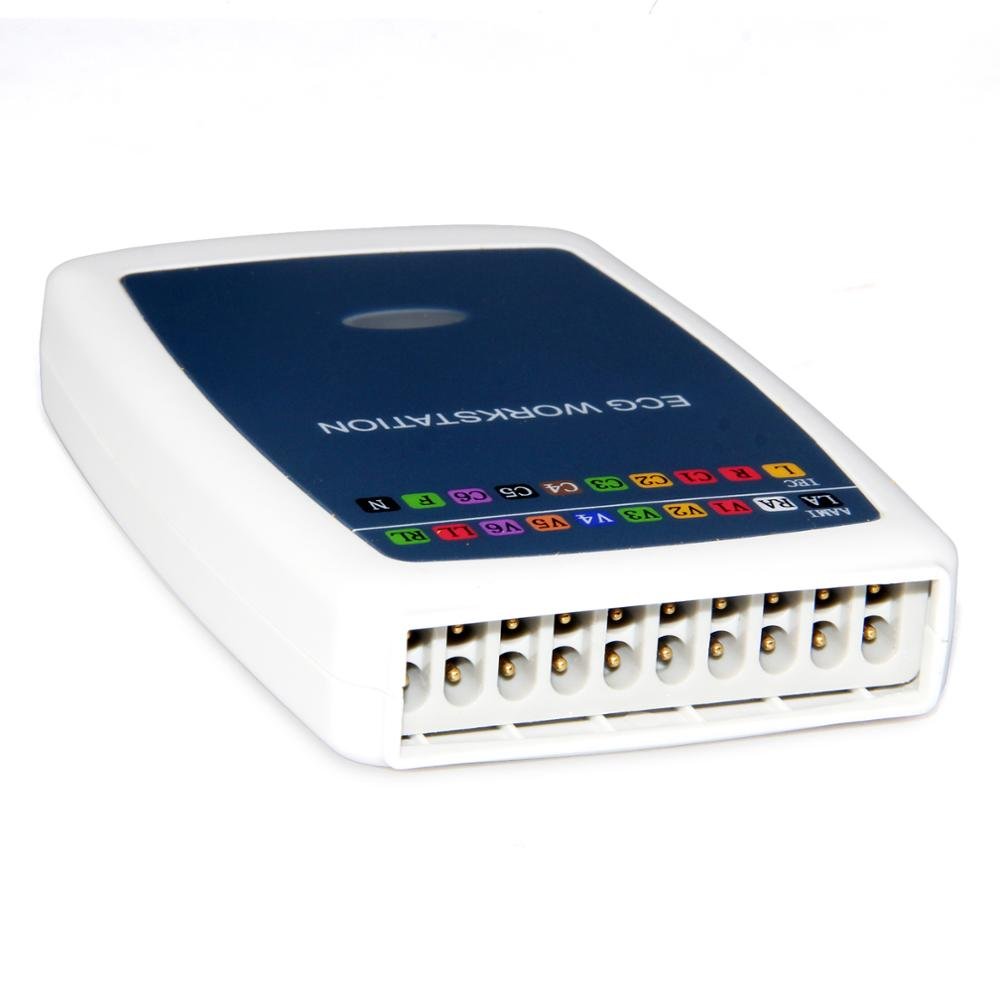

CONTEC8000G ECG Workstation
- Compact and portable ECG workstation suitable for various medical settings.
- Supports synchronous sampling of 12-lead and 3-lead vector ECG data.
- Real-time analysis capabilities, including QRS wave analysis and heart rate calculation.
- High sampling frequency (1000Hz) for accurate ECG waveform representation.
- Advanced analysis functions, including Frequency Cardiogram (FCG) and Heart Rate Variability (HRV).
- Anti-aliasing technology for clear and adjustable ECG waveform display.
- Convenient "shortcut print" function for comprehensive report generation.
- Multiple print and display modes, with support for various multimedia formats.
- Exports data in HL7 aECG standard format for easy integration with hospital systems.
- Enhanced diagnosis tools with automated arrhythmia recognition and customizable terminology database.
- SKU
- D50C220D64D7
- Brand
- Contec
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
CONTEC8000G ECG Workstation
Advanced 12-Lead ECG Analysis System with Real-Time Diagnostics and Comprehensive Cardiac Assessment Capabilities
The CONTEC8000G is a comprehensive ECG workstation that combines synchronous 12-lead and 3-lead vector ECG sampling with advanced analysis algorithms. Featuring high-resolution 1000Hz sampling, real-time arrhythmia detection, and multiple diagnostic functions including HRV, FCG, and SAECG analysis, this system delivers accurate cardiac assessment for medical institutions at all levels. With anti-aliasing display technology, HL7 integration, and versatile reporting capabilities, it provides clinicians with reliable diagnostic insights for optimal patient care.
Clinical Overview
The CONTEC8000G ECG Workstation represents a significant advancement in cardiac diagnostic technology, offering comprehensive electrocardiographic analysis capabilities in a compact, user-friendly platform. This integrated ECG analysis system synchronously acquires conventional 12-lead ECG data and 3-lead vector ECG data, providing clinicians with a complete picture of cardiac electrical activity. The device employs real-time sampling, display, and storage modes to ensure immediate and accurate reflection of heart movements, making it an essential diagnostic tool for medical and health institutions at all levels.
Designed with clinical efficiency in mind, the CONTEC8000G combines advanced ECG analysis algorithms with intuitive operation to deliver reliable diagnostic results. The system supports both Wilson and Frank lead systems, incorporates lead-off indicator lights for optimal electrode contact verification, and features high sampling frequency capabilities that ensure no distortion of ECG waveforms. With its extensive analysis functions ranging from conventional 12-lead ECG to specialized assessments including Heart Rate Variability, Signal-Averaged ECG, and Vector Cardiography, this workstation provides accurate and reliable diagnostic information that serves as a foundation for clinical decision-making.
Key Features & Surgeon Benefits
Comprehensive Multi-Parameter Analysis
- Synchronous 12-lead and 3-lead vector ECG acquisition
- Real-time QRS wave analysis and heart rate calculation
- Automated arrhythmia recognition with enhanced algorithms
- Advanced functions: HRV, FCG, SAECG, VCG, TVCG, HRT analysis
- ST-segment and myocardial ischemia evaluation
Streamlined Clinical Operations
- Shortcut print function with preview capability
- Multiple display modes (6x2, 3x4, 3x4+2, and dozens more)
- Real-time sampling, display, and storage
- Seamless HIS/PACS integration via HL7 aECG export
- Electronic report generation with automated notifications
Superior Signal Fidelity & Visualization
- High sampling frequency of 1000 Hz for zero waveform distortion
- Anti-aliasing display technology with adjustable lead positions
- Multiple filter methods for baseline drift and interference elimination
- Superposed waveform analysis and electronic scale tools
- Clear, intelligible ECG presentation in all clinical scenarios
Flexible System Architecture
- Editable terminology database for institutional protocols
- Multiple export formats (BMP, PNG, PDF, JPG, HL7)
- External procedure calling for patient information retrieval
- Compact, portable design suitable for all facility sizes
- OEM customisation and integration services available
Technical Specifications
| Indications | Routine cardiac screening, arrhythmia detection, pre-operative assessment, ischemia evaluation, inpatient monitoring, cardiology consultations, follow-up examinations, telemedicine diagnostics |
|---|---|
| Lead Systems | 12-lead conventional ECG, 3-lead vector ECG; supports Wilson and Frank lead systems |
| Sampling Frequency | 1000 Hz |
| Sampling Mode | Real-time synchronous sampling, display, and storage |
| Display Modes | 6x2, 3x4, 3x4+2, and dozens of synchronous and continuous modes |
| Analysis Functions | 12-lead ECG, FCG, High Frequency ECG, QT Dispersion, HRV, STLE, HRT, Pacing ECG, VCG, TVCG, SAECG |
| Waveform Display | Anti-aliasing technology with adjustable lead positions |
| Filter Methods | Multiple filtering options for baseline drift and interference reduction |
| Real-Time Analysis | QRS wave analysis, heart rate calculation, arrhythmia recognition |
| Export Formats | BMP, PNG, PDF, JPG, HL7 aECG standard format |
| System Integration | HIS, PACS, external procedure calling, electronic reporting |
| Print Functions | Shortcut print with preview, full analysis reports, multiple format support |
| Additional Tools | Superposed waveform analysis, electronic scale, editable terminology database |
| Indicators | Lead-off indicator lights |
| Design | Compact and portable workstation |
| Packaging | As applicable |
| Warranty | 2 Year Manufacturer Warranty |

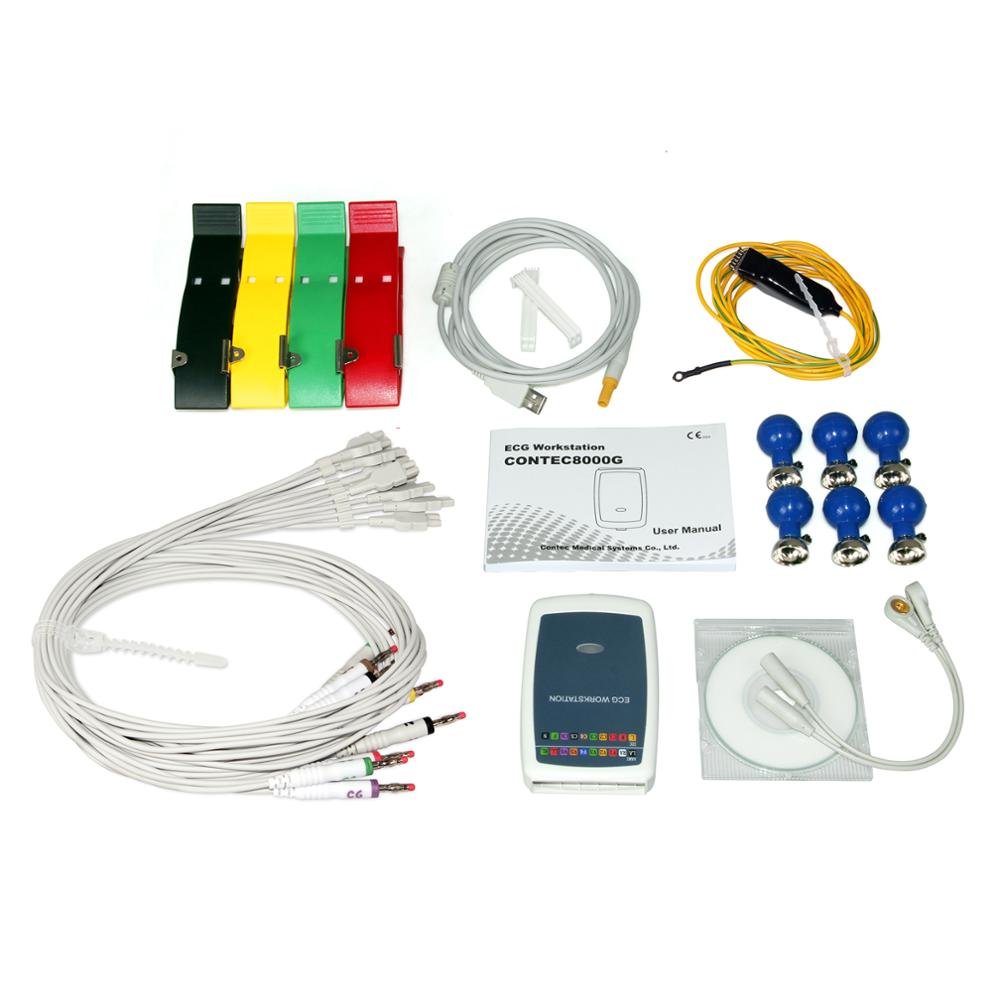

Standard Instrument Composition
| Item | Description | Qty |
|---|---|---|
| ECG Workstation Unit | CONTEC8000G main processor with display, keyboard, and printer interface | 1 |
| ECG Electrode Cables | 12-lead and 3-lead vector ECG cable sets with standard connectors | 1 set |
| Disposable Electrodes | Standard adhesive ECG electrodes (quantity as per institutional requirement) | As ordered |
| Thermal Paper | ECG recording paper for printer output | As ordered |
| Power Supply | Medical-grade power adapter with appropriate regional certification | 1 |
| User Manual | Comprehensive operating instructions and technical documentation | 1 |
| Software License | HL7 integration and analysis software with lifetime updates | 1 |
Get in Touch for Pricing & Availability
Contact our sales team to discuss the CONTEC8000G ECG Workstation, request detailed specifications, arrange a product demonstration, or obtain a customised quotation for your facility. We provide comprehensive support for system integration, staff training, and ongoing technical assistance.
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
