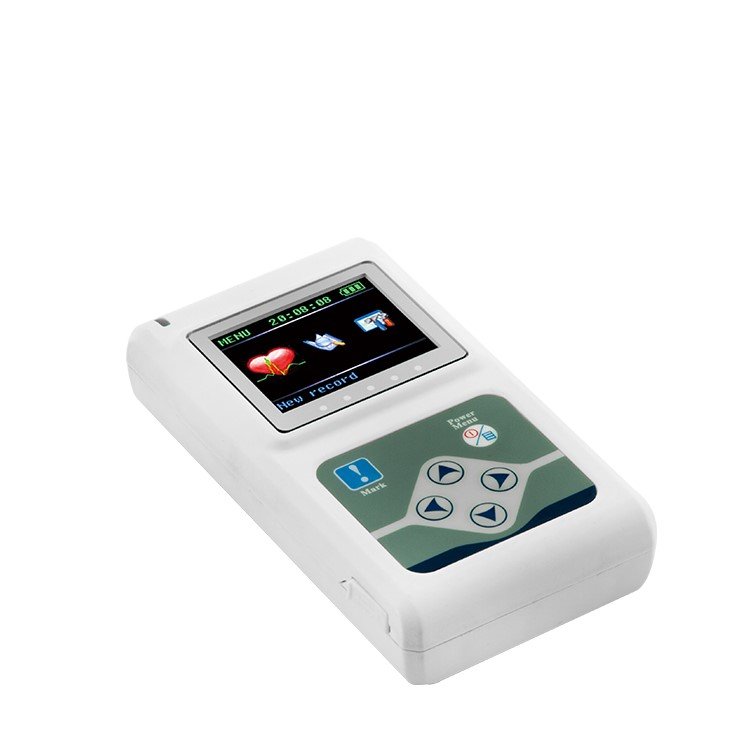

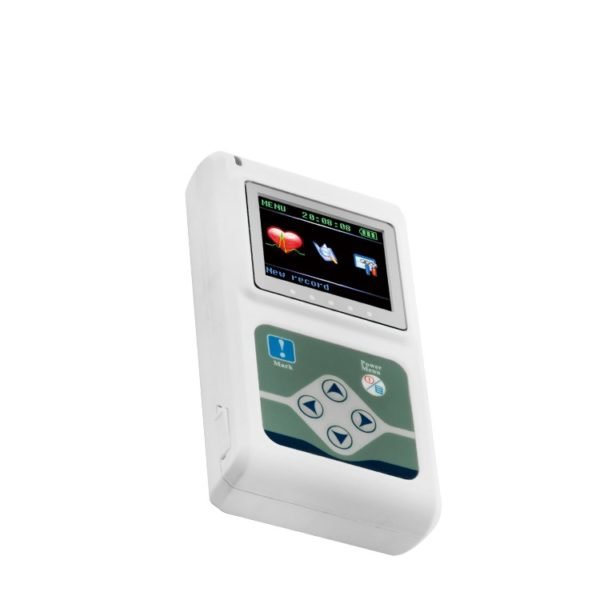

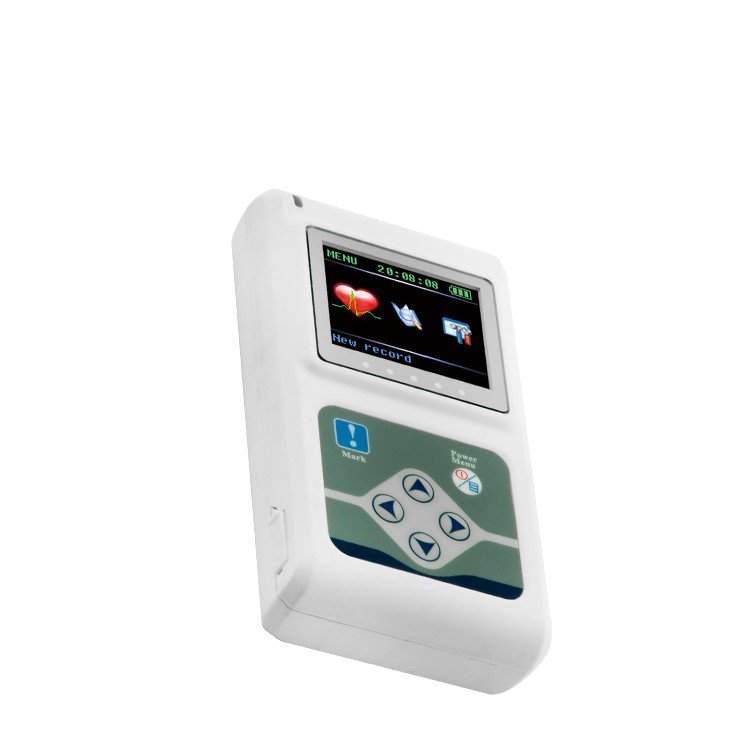

TLC9803 Dynamic ECG Systems
- Continuous 24-hour ECG waveform recording
- Real-time ECG data storage for instant access
- Advanced arrhythmia analysis reducing physician workload
- Over 10 pre-set templates for diverse pathologic waveform identification
- Flexible analysis channel selection for customized ECG assessments
- Comprehensive atrial fibrillation analysis using AUTO/manual options
- Powerful pacemaker analysis for various pacing modes
- Quick review of single or full-lead ECGs at any time
- Multi-time heart rate variability analysis (5-min, 1-hr, 24-hr)
- Convenient one-key report printing for efficient documentation
- SKU
- DF70E44C6529
- Brand
- Contec
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping

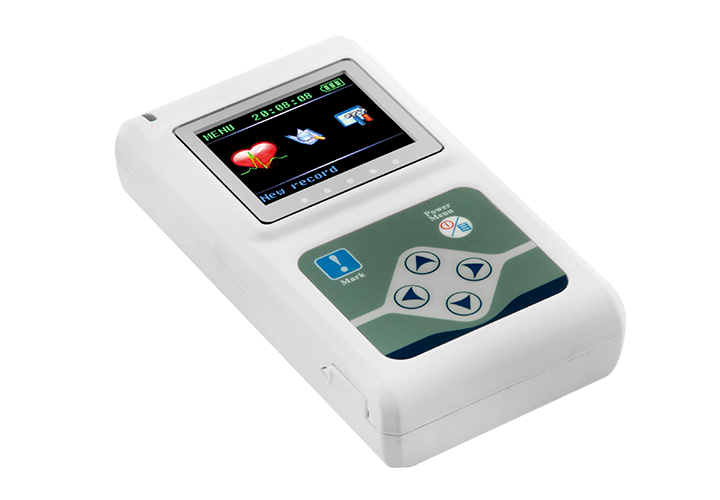

TLC9803 Dynamic ECG Systems
Advanced 24-hour continuous ECG waveform recording and analysis system designed for medical institutions and community healthcare settings. Combines real-time data storage with intelligent arrhythmia detection to streamline clinical workflow and reduce physician workload.
Clinical overview
The TLC9803 Dynamic ECG System is a comprehensive solution for continuous cardiac monitoring and analysis. Utilizing advanced 3-lead technology, the system records ECG waveforms continuously for 24 hours with real-time data storage, enabling instant access to patient cardiac data. The integrated PC software platform provides sophisticated analysis capabilities suitable for medical institutions and community healthcare environments.
Built on proprietary MCSSTM and TMCATM arrhythmia analysis algorithms, the system significantly reduces physician workload through automated detection and classification of cardiac events. With over 10 pre-configured templates for pathologic waveform identification and extensive user-defined analysis modules, clinicians can distinguish virtually any cardiac abnormality. The flexible analysis architecture supports customized channel selection, comprehensive atrial fibrillation assessment, and advanced pacemaker analysis across all major pacing modes.
Key features & surgeon benefits
Comprehensive Arrhythmia Detection
- Over 10 pre-set templates for pathologic waveform identification
- Atrial premature beat, ventricular premature beat, and long interval detection
- Advanced atrial fibrillation analysis with AUTO/manual segmented options
- Powerful pacemaker analysis for AAI, VVI, DDD and other modes
- Dual chamber, atrial, ventricular, and asynchronous pacing templates
Efficient Clinical Documentation
- Real-time ECG data storage for 24-hour continuous recording
- Fast review analysis for single or full-lead ECGs at any time
- One-key report printing for convenient and rapid documentation
- Perfect case management function for organized patient records
- Flexible analysis channel selection for customized assessments
Advanced Prognostic Analysis
- Multi-time heart rate variability analysis (5-minute, 1-hour, 24-hour)
- Sleep breath pause syndrome prediction for obstructive sleep apnea screening
- HRT analysis to predict mortality risk in myocardial infarction patients
- T-Wave alternation assessment for malignant arrhythmia and sudden cardiac death prediction
Flexible System Architecture
- User-defined analysis modules for institution-specific protocols
- Flexible atrial fibrillation analysis with whole or segmented AUTO/manual options
- Customizable pacing analysis templates for diverse patient populations
- Adaptable to medical institutions and community healthcare settings
Technical specifications
| Indications | Continuous cardiac monitoring, arrhythmia detection, pacemaker analysis, atrial fibrillation assessment, heart rate variability analysis, sleep apnea syndrome screening, myocardial infarction risk stratification |
|---|---|
| Configuration | 3-Lead ECG recording system |
| Recording Duration | 24-hour continuous waveform recording |
| Data Storage | Real-time ECG data storage with instant access |
| Analysis Algorithms | MCSSTM and TMCATM arrhythmia analysis with 10+ pre-set templates |
| Software Platform | PC-based analysis and reporting software included |
| Packaging | As applicable |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|

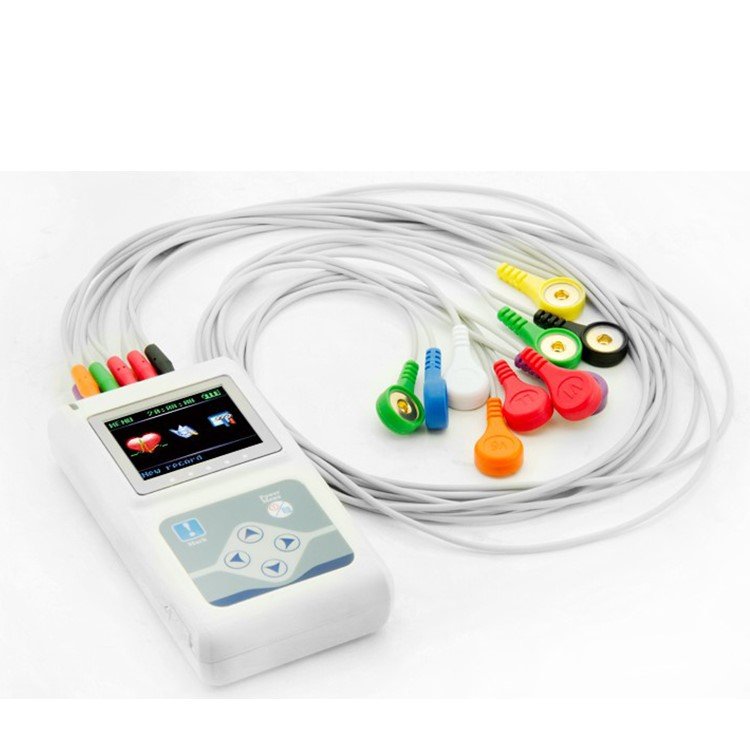

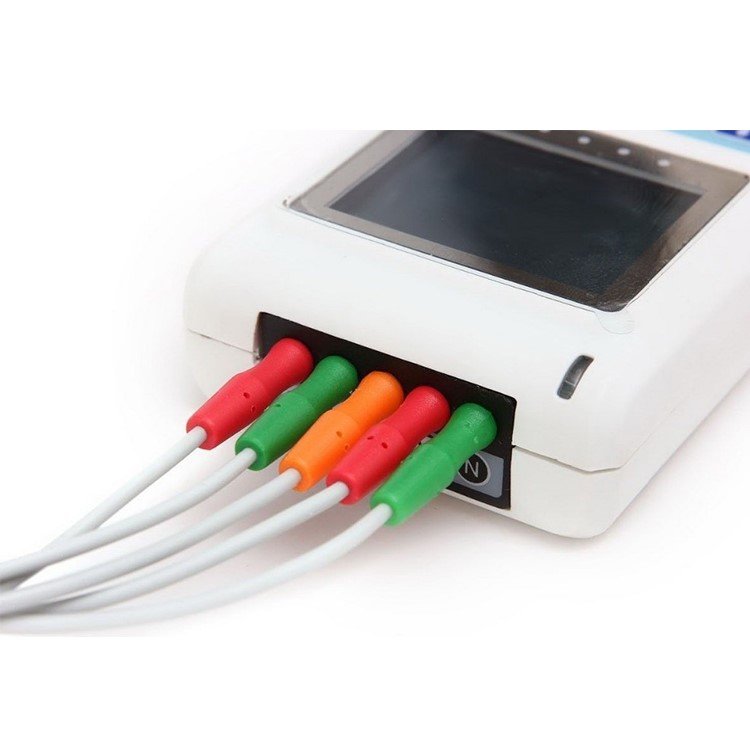

| ECG Recorder Unit | 3-lead dynamic ECG recorder with 24-hour recording capacity | 1 |
| PC Analysis Software | Comprehensive ECG analysis and reporting platform with MCSSTM and TMCATM algorithms | 1 |
| Recording Electrodes | 3-lead electrode set for patient attachment | As applicable |
| Data Cable | USB/serial connection cable for data transfer | 1 |
| User Documentation | Operating manual and software user guide | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss the TLC9803 Dynamic ECG System specifications, pricing, and delivery timelines. We provide comprehensive support for system implementation and staff training.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
Customer reviews
No reviews yet — be the first to share your experience.
