ECG300G Electrocardiograph
- High-quality 12-lead ECG signal collection and printing
- Digital signal processing for enhanced waveform clarity
- Auto/manual mode for flexible ECG recording
- Multi-language interface for global accessibility
- Auto-analysis and auto-diagnosis functions for key parameters
- Built-in memory for saving up to 1000 cases
- Multiple printing modes and customizable waveform length
- User-friendly display of ECG data and settings
- Alerts for "Lead off" and "Lack of paper"

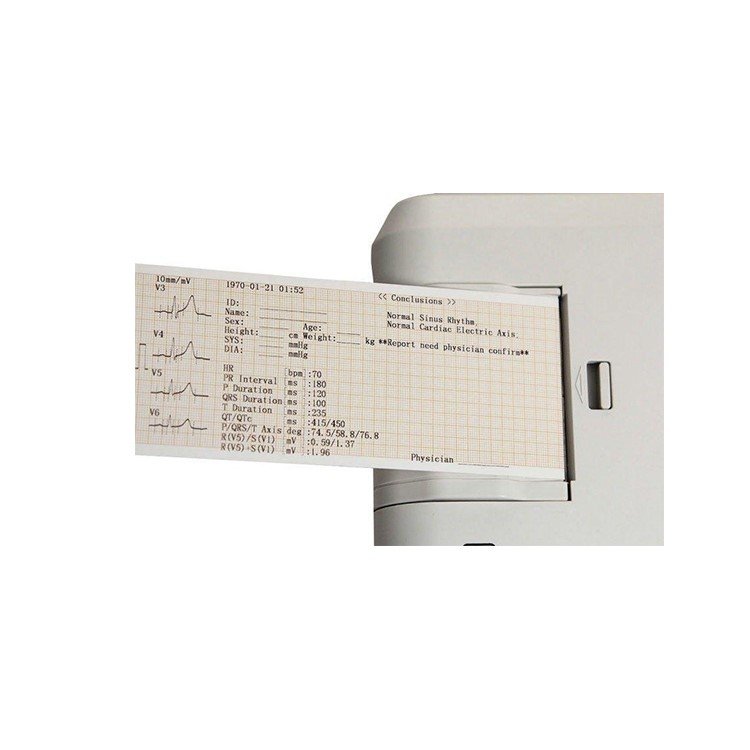

- Compact thermal printing system for instant results
- SKU
- 5C744C9FA7A2
- Brand
- Contec
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
ECG300G Electrocardiograph
High-quality 12-lead ECG signal collection with digital signal processing and thermal printing. Features auto/manual recording modes, multi-language interface, and built-in case database management for comprehensive cardiac assessment and diagnosis.
Clinical overview
The ECG300G is a comprehensive 12-lead electrocardiograph designed for high-quality signal collection and waveform printing via thermal printing technology. It combines synchronous 12-lead ECG acquisition with advanced digital signal processing, including power frequency filtering, baseline correction, and EMG noise reduction to deliver clinically accurate waveforms. The system supports both automatic and manual recording modes, enabling flexible workflow adaptation across diverse clinical settings.
With built-in auto-analysis and auto-diagnosis capabilities, the ECG300G automatically measures and interprets key cardiac parameters including heart rate, PR interval, P duration, QRS duration, T duration, QT interval, corrected QT, and axis measurements (P, QRS, T). The device stores up to 1000 cases in its internal database, facilitating case review, statistical analysis, and longitudinal patient monitoring. Multi-language interface support (14 languages including Chinese, English, Spanish, Turkish, Polish, Italian, French, German, Portuguese, Kazakh, Russian, Ukrainian, Serbian, and Slovenian) ensures accessibility in global clinical environments.
Key features & surgeon benefits
Advanced Digital Processing
- Synchronous 12-lead ECG collection for simultaneous cardiac assessment
- Multi-stage digital filtering (power frequency, baseline, EMG) for enhanced waveform clarity
- High-fidelity signal acquisition reducing diagnostic artifacts
Flexible Recording & Printing
- Auto/Manual mode selection for adaptive clinical protocols
- 13 printing formats (4×3, 3×4, 2×6, 1×12, rhythm modes) with adjustable waveform length
- Real-time display of 3/6/12-lead ECG with settings and filter status on single screen
Automated Analysis & Interpretation
- Auto-analysis of HR, intervals (PR, P, QRS, T, QT, QTc), and axis measurements
- Auto-diagnosis conclusions reduce clinician burden and standardise reporting
- Comprehensive parameter measurement for routine ECG assessment
Case Database & Accessibility
- Built-in memory stores up to 1000 cases for review and statistical analysis
- Multi-language interface (14 languages) for global clinical deployment
- Lead-off and paper-out alerts ensure data integrity and operational continuity
Technical specifications
| Indications | Cardiac rhythm monitoring, ECG waveform analysis, routine diagnostic electrocardiography |
|---|---|
| Lead configuration | 12-lead simultaneous ECG acquisition |
| Recording modes | Auto and Manual modes |
| Display modes | 3-lead, 6-lead, or 12-lead ECG display |
| Printing formats | 13 modes: 4×3, 3×4+1, 3×4, 2×6+1, 2×6, 3-2+1, 3-2, 1×12+1, 1×12, rhythm 4, rhythm 3, rhythm 2, plus adjustable waveform length |

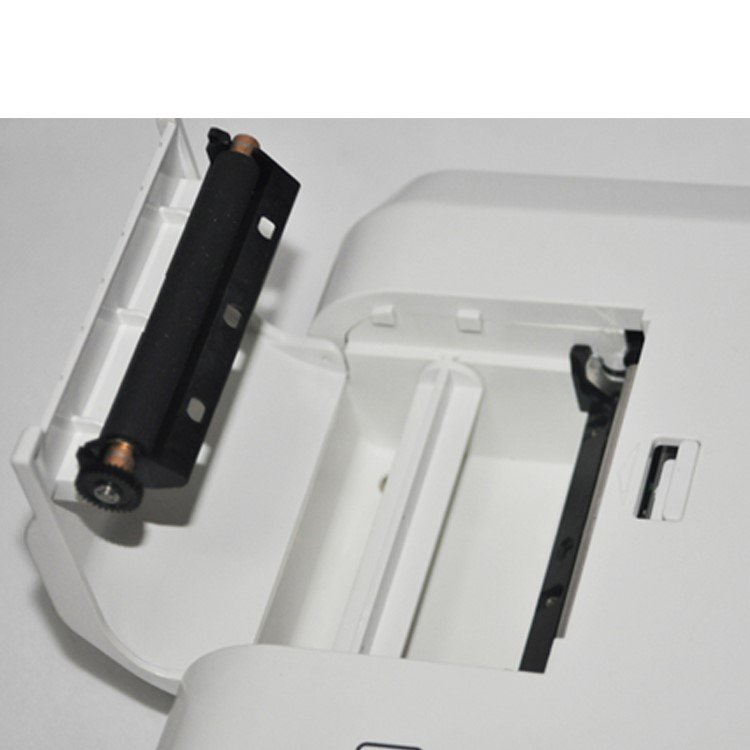

| Printing system | Thermal printing with instant results |
| Signal processing | Digital filtering: power frequency filter, baseline filter, EMG filter |
| Analysis functions | Auto-analysis and auto-diagnosis of HR, PR interval, P duration, QRS duration, T duration, QT interval, QTc, P axis, QRS axis, T axis, R(V5), S(V1), R(V5)+S(V1) |
| Data storage | Built-in memory for up to 1000 cases |
| Interface languages | 14 languages: Chinese, English, Spanish, Turkish, Polish, Italian, French, German, Portuguese, Kazakh, Russian, Ukrainian, Serbian, Slovenian |
| Power supply | AC/DC operation |
| Alerts | Lead off detection, paper shortage warning |
| Warranty | 2 Year Manufacturer Warranty |

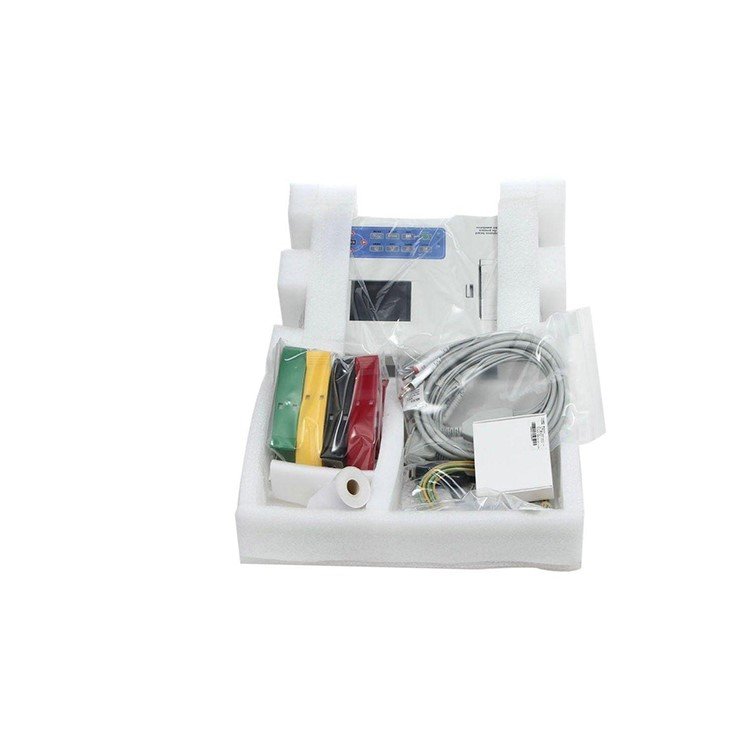

Standard instrument composition
| Item | Description | Qty |
|---|---|---|

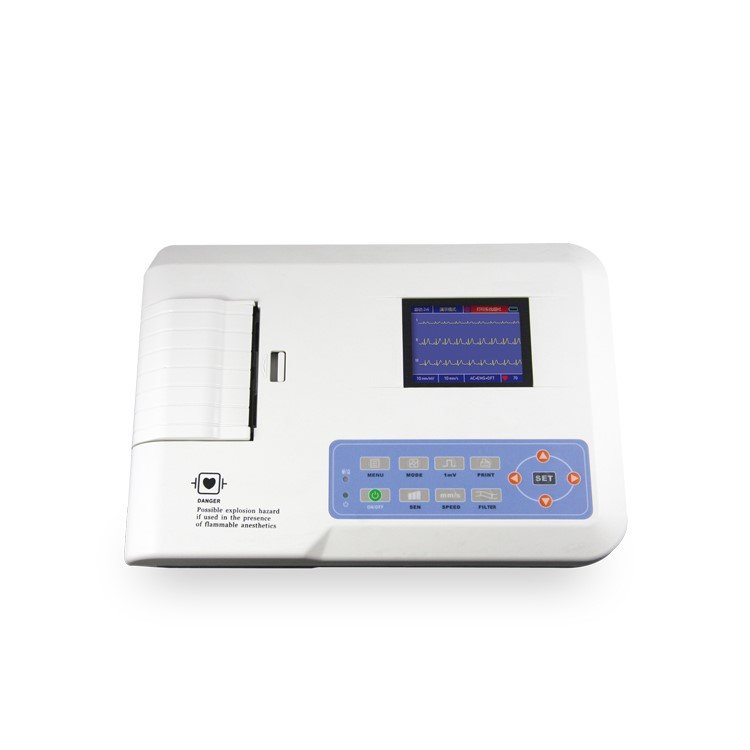

| ECG300G Main Unit | 12-lead electrocardiograph with thermal printer and digital display | 1 |
| Patient cable assembly | 12-lead ECG patient cable with standard connectors | 1 |

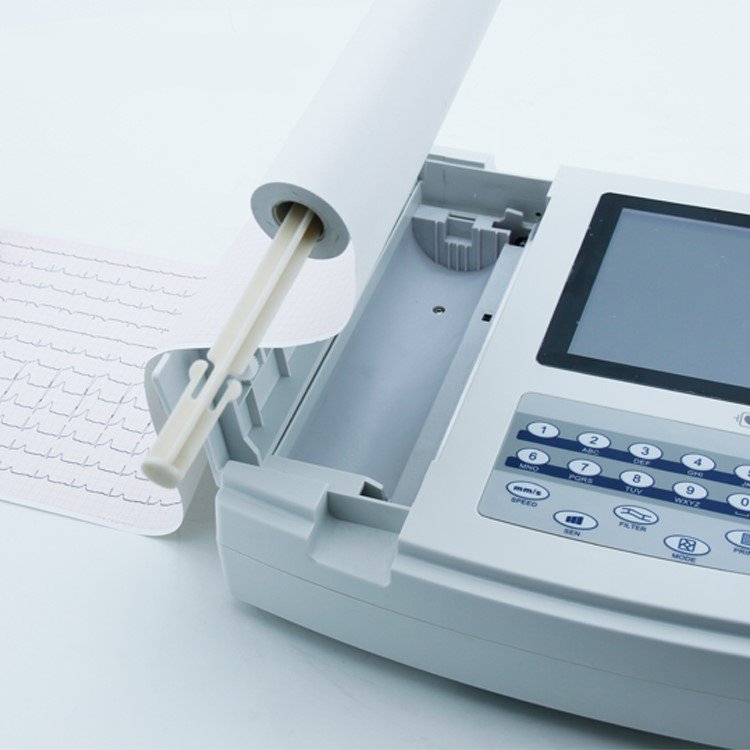

| Thermal paper roll | Standard thermal ECG paper for printing | 1 |
| Power supply | AC/DC power adapter | 1 |
| User manual | Operating instructions and technical documentation | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss ECG300G specifications, pricing, delivery timelines, and customisation options for your clinical facility. We provide comprehensive support and flexible ordering solutions.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
