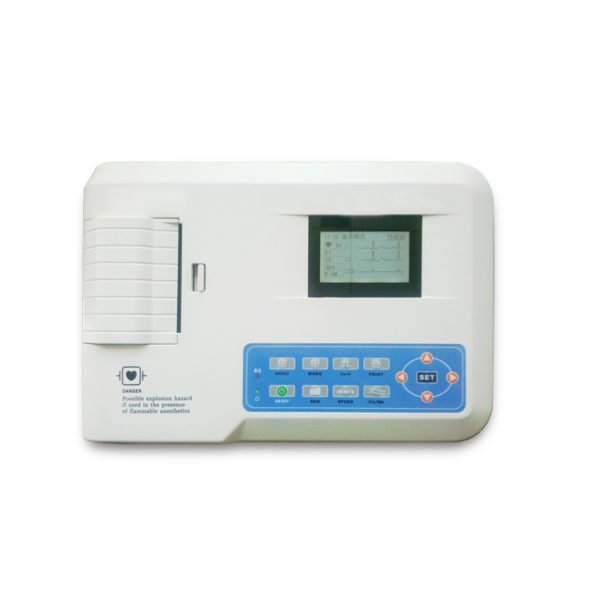

ECG300GA Portable 3 Channel Electrocardiograph ECG EKG Machine
- Portable 3-channel Electrocardiograph (ECG EKG Machine)
- Collects 12-lead ECG signals and prints waveforms
- Dual operation modes: AUTO and Manual
- Automatic ECG waveform analysis and diagnosis
- Built-in memory for up to 15 cases (expandable with SD card)
- Rechargeable lithium battery lasts up to 8 hours
- Features multiple printing modes and adjustable waveform length
- 2.7" LCD display for clear ECG waveform visualization
- Supports bilingual interface (Chinese and English)
- Includes essential accessories like lead cables and thermal recording paper
- SKU
- ECG300GA
- Brand
- Contec
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
ECG300GA Portable 3 Channel Electrocardiograph
Professional-grade portable ECG machine with 12-lead signal collection, automatic waveform analysis, and thermal printing. Ideal for clinical settings, home visits, and body examinations with up to 8 hours of battery runtime.
Clinical overview
The ECG300GA is a portable 3-channel electrocardiograph designed for rapid, accurate cardiac assessment in clinical and field settings. It collects synchronised 12-lead ECG signals and employs advanced digital signal processing—including AC filtering, baseline correction, and EMG noise rejection—to deliver high-quality waveforms suitable for diagnostic interpretation.
The device features automatic ECG parameter measurement and diagnostic analysis, reducing clinician workload and enabling consistent interpretation across multiple examinations. With built-in case memory (expandable via SD card), bilingual interface, and flexible printing modes, the ECG300GA supports diverse clinical workflows from routine screening to detailed rhythm analysis.
Key features & surgeon benefits
Clear ECG Waveform Rendering
- 2.7" LCD screen with real-time ECG waveform and device status display
- Simultaneous display of 1, 2, or 3 leads with sensitivity, paper speed, and filter state
- Economical paper usage through optimised screen preview
Flexible Recording & Analysis Modes
- AUTO mode with automatic lead switching, measurement, and diagnosis
- Manual mode for operator-controlled recording and lead selection
- Rhythm recording mode for extended arrhythmia assessment
- Multiple print formats (4×3, 3×4+1, 3×4, 2×6+1, 2×6) with adjustable waveform length
Automatic Parameter Measurement
- Measures HR, P-R interval, P duration, QRS duration, Q-T interval, Q-Tc, and axis angles
- Calculates R(V5), S(V1), and R(V5)+S(V1) for LVH assessment
- Provides auto-diagnosis conclusions to support clinical decision-making
Extended Runtime & Dual Power
- Rechargeable lithium battery: 8-hour continuous operation, 70-minute print time
- AC/DC dual power supply (100–110V/240V, 50/60Hz)
- Compact design suitable for home visits and mobile screening programmes
Technical specifications
| Indications | Cardiac assessment, arrhythmia detection, routine ECG screening, body examination |
|---|---|
| Sizes / range | 12-lead ECG; paper width 80mm × 20m length; adjustable paper speed 6.25, 12.5, 25, 50mm/s (±5%) |
| Material | ABS plastic housing; thermal printing system; stainless steel electrodes |
| Sterilisation | Not applicable (non-sterile diagnostic device; electrodes reusable or disposable) |
| Packaging | Standard carton with accessories; optional carrying bag available |
| Warranty | 2 Year Manufacturer Warranty |
Technical parameters
| Parameter | Specification |
|---|---|
| Frequency response | 0.05Hz–150Hz (−3dB to +0.4dB) |
| CMRR | >60dB; >100dB with filter |
| Time constant | ≥3.2s |
| Patient leak current | <10µA |
| Calibration voltage | 1mV |
| Sensitivity | 5, 10, 20 mm/mV (±5%); standard 10mm/mV (±2%) |
| Noise level | ≤15µVp-p |
| Input impedance | ≥50MΩ |
| Sampling accuracy | 12-bit; 1000Hz sampling frequency |
| EMG filter | 25Hz/35Hz (−3dB) |
| AC filter | 50/60Hz/60Hz (−20dB) |
| Safety classification | Class I, Type CF, defibrillation-proof applied part |
| Power supply | AC: 100–110V/240V (50/60Hz); DC: 7.4V/2000mAh rechargeable lithium battery |
| Operating environment | Temperature 5–40°C; humidity 25–80% (non-condensing); pressure 700–1060hPa |
| Storage environment | Temperature −40 to +55°C; humidity ≤95%; pressure 500–1060hPa |
| Memory | Built-in: up to 15 cases; optional SD card: up to 50 cases |
| Interface | Bilingual (Chinese/English); optional USB connectivity with ECG-Sync software |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Lead cable | 12-lead ECG cable assembly with standard connectors | 1 |
| Limb electrode | Reusable limb electrode set (RA, LA, LL, RL) | 1 |
| Chest electrode | Reusable chest electrode set (V1–V6) | 1 |
| Thermal recording paper | 80mm width thermal paper roll (20m) | 1 |
| Power cord | AC mains power cable with regional plug adapter | 1 |
| Earth wire | Safety grounding cable | 1 |
| User manual | Multilingual instruction guide and quick reference | 1 |
Optional accessories
| Accessory | Description |
|---|---|
| ECG-Sync software + USB cable | Data transfer and case management software for PC integration |
| Disposable ECG electrodes | Single-use adhesive electrodes (limb and chest) |
| Carrying bag | Protective transport case for portable use |
| Conductive gel | Electrode contact medium for improved signal quality |
| SD card | Memory expansion module (stores up to 50 additional cases) |
