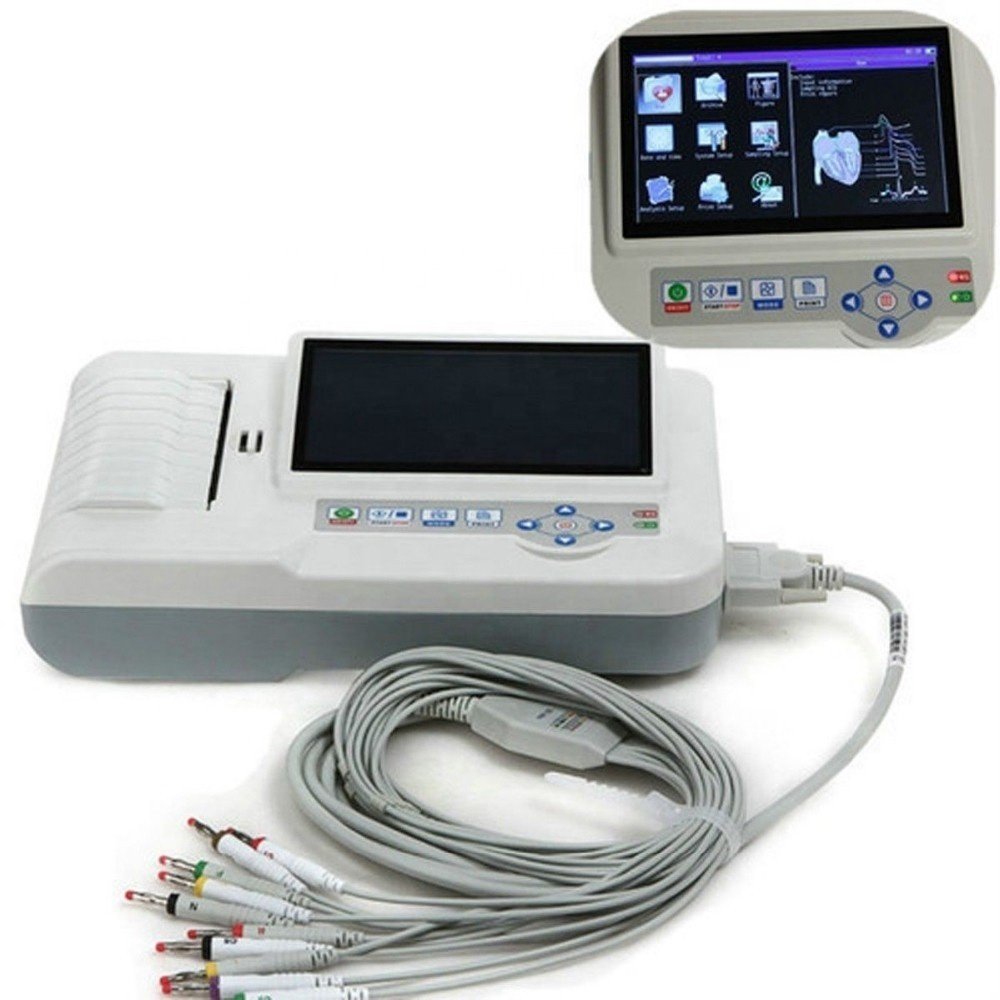

ECG600G Electrocardiograph
- Collects 12-lead ECG signals simultaneously
- High-resolution thermal printing system (8 dot/mm)
- Real-time and clear recording of ECG waveforms
- Auto-measurement and analysis of ECG parameters
- Multi-language interface for versatile usage
- Sync collection with various printing formats
- Built-in rechargeable lithium battery with auto-protection
- Stores over 1000 cases for easy retrieval and analysis
- Compact design with an optional demo mode
- Automatic adjustment of baseline and print settings
- SKU
- 7D701173A639
- Brand
- Contec
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
ECG600G Electrocardiograph
A comprehensive 12-lead electrocardiograph system with simultaneous signal collection, high-resolution thermal printing, and automated ECG analysis. Designed for rapid, accurate cardiac assessment in clinical and diagnostic settings with multi-language support and extensive case storage.
Clinical overview
The ECG600G is a fully automated 12-lead electrocardiograph engineered for rapid, accurate cardiac assessment in clinical, diagnostic, and point-of-care environments. It combines simultaneous multi-lead signal acquisition with high-resolution thermal printing (8 dot/mm) and intelligent digital signal processing to deliver clear, artifact-free waveforms with minimal operator intervention. The device features full-digital filtering architecture that actively suppresses baseline drift, AC interference, and EMG noise, ensuring diagnostic-quality recordings in challenging clinical settings.
With integrated auto-measurement, auto-analysis, and auto-diagnosis functions, the ECG600G reduces clinician workload while improving diagnostic consistency. The system supports 16 languages, stores over 1,000 patient cases for longitudinal analysis, and offers flexible printing formats and acquisition modes to accommodate diverse clinical workflows. Built-in rechargeable lithium battery technology with automatic power management enables portable operation, while AC/DC dual-power capability ensures continuous availability in fixed installations.
Key features & surgeon benefits
Simultaneous 12-Lead Collection
- Synchronous acquisition eliminates temporal misalignment artifacts
- Recording frequency up to 150 Hz for high-fidelity waveform capture
- Real-time 3/6/12-lead display with lead-off and paper-status monitoring
Automated Operation & Flexibility
- Single-button AUTO mode for rapid, hands-free recording
- Multiple print formats (2×6, 3×4, 4×3, 6×2, rhythm leads) for clinical preference
- Selectable print modes: print & save, print only, or save only
Intelligent Diagnostics
- Automatic ECG parameter measurement and interpretation
- Full-digital filtering with baseline drift and interference rejection
- Case database management with storage for 1,000+ patient records
Global & Portable
- 16-language interface and reporting (Chinese, English, French, Spanish, Turkish, Polish, Italian, German, Portuguese, Kazakh, Russian, Ukrainian, Vietnamese, Serbian, Slovenian, Slovak)
- Rechargeable lithium battery with auto-protection and auto-shutdown
- Compact design with optional DEMO mode for training
Technical specifications
| Indications | Cardiac assessment, arrhythmia detection, ECG monitoring and diagnosis |
|---|---|
| Lead Configuration | 12-lead simultaneous acquisition |
| Recording Frequency | Up to 150 Hz |
| Printing System | High-resolution thermal printer, 8 dot/mm |
| Print Formats | 2×6+1, 2×6, 3×4, 3×4+1, 4×3, 4×3+1, 6×2, 6×2+1, rhythm 2–7, channel record |
| Display | Real-time 3/6/12-lead ECG with lead-off and paper-status indicators |
| Signal Processing | Full-digital filtering; power frequency, baseline, and EMG filters |
| Analysis Functions | Auto-measurement, auto-analysis, auto-diagnosis of ECG parameters |
| Case Storage | Over 1,000 patient records with retrieval and statistical analysis |
| Power Supply | AC/DC; built-in rechargeable lithium battery with auto-protection |
| Languages | 16 languages (Chinese, English, French, Spanish, Turkish, Polish, Italian, German, Portuguese, Kazakh, Russian, Ukrainian, Vietnamese, Serbian, Slovenian, Slovak) |
| Operating Modes | AUTO (single-button), Manual, DEMO mode |
| Packaging | Standard medical device packaging |
| Warranty | 2 Year Manufacturer Warranty |

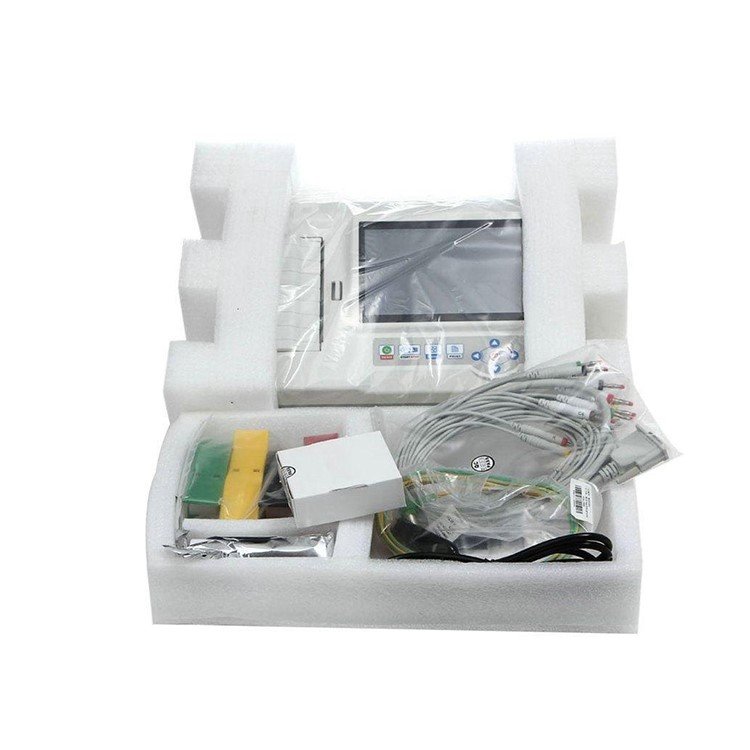

Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| ECG600G Main Unit | 12-lead electrocardiograph with integrated thermal printer and rechargeable battery | 1 |
| Patient Cable Assembly | 12-lead patient electrode cable with standard connectors | 1 |
| AC Power Adapter | Mains power supply with auto-protection circuitry | 1 |
| Thermal Paper Roll | High-quality thermal recording paper (8 dot/mm compatible) | 2 |
| User Manual | Comprehensive operating and maintenance guide (multi-language) | 1 |
| Quick Reference Guide | Clinical operation summary card | 1 |
Get in touch for pricing & availability
Contact our clinical sales team to discuss ECG600G specifications, pricing, delivery timelines, and customisation options for your facility. We provide comprehensive support, training, and after-sales service to ensure seamless integration into your diagnostic workflow.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
