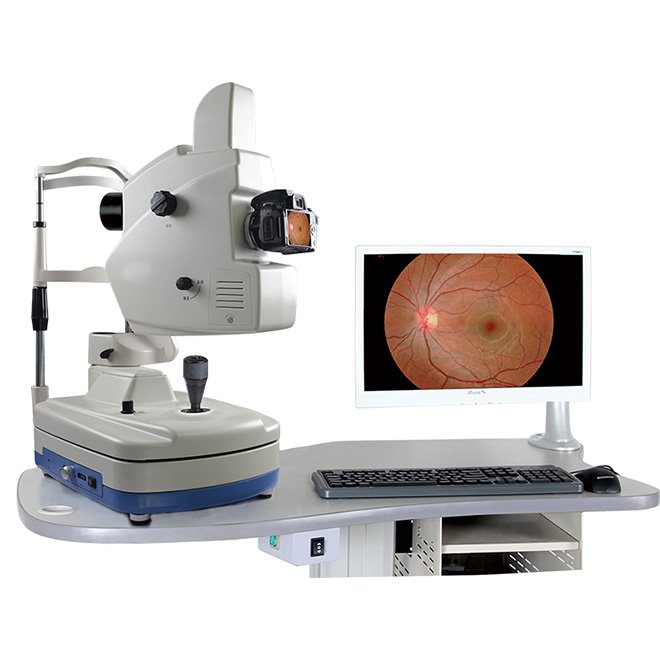

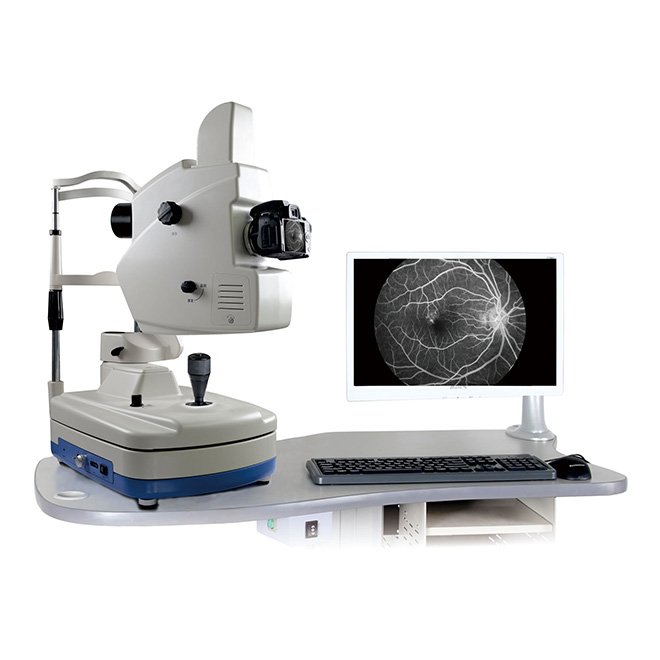

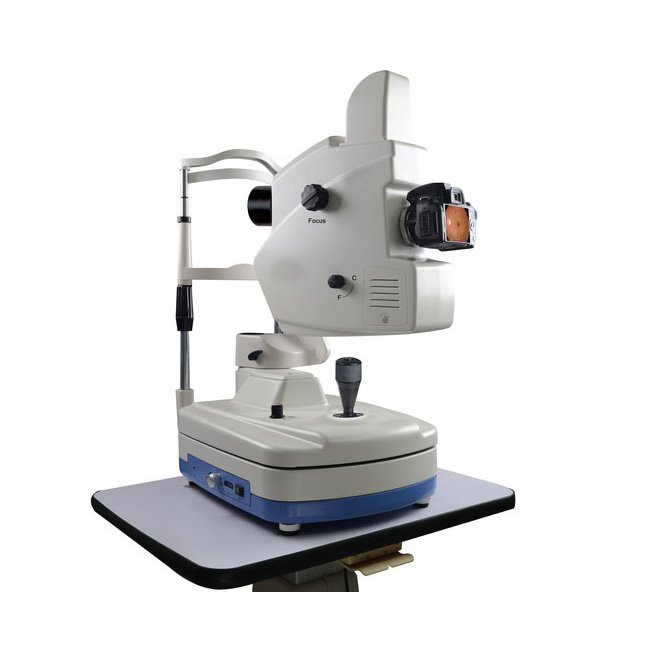

- Compact and portable digital eye fundus camera (Model: NEUAFC02)
- Non-mydriatic design for painless eye examinations
- Auto detection of eye position ensuring accurate imaging
- Wide field of vision with a 45° viewing angle
- Adjustable focus mode: auto and manual options available
- Infrared illumination source for optimal imaging conditions
- User-friendly interface with automatic flash intensity adjustment
- Versatile movement capabilities: 60mm back and forth, 120mm side to side, 30mm up and down
- Operating temperature range: -5℃ to 40℃
- Requires AV power supply (220V) with a maximum input power of 300W
Compact, non-mydriatic digital fundus camera with automatic eye position detection and 45° wide-field imaging. Delivers high-quality retinal photography without pupil dilation, enabling rapid screening and documentation in clinical and community settings.
The NEUAFC02 is a non-mydriatic portable digital fundus camera engineered for rapid, high-resolution retinal imaging without the need for pupil-dilating drops. Its compact form factor and automatic eye position detection make it ideal for screening programmes, primary care settings, and specialist ophthalmology clinics. The 45° wide field of view captures comprehensive retinal detail, while infrared illumination ensures patient comfort and optimal image contrast across diverse pupil sizes.
With auto-focus and manual adjustment options, clinicians maintain full control over image acquisition. Automatic flash and illumination intensity adjustment adapts in real-time to patient anatomy, reducing acquisition time and improving first-pass success rates. The device operates across a broad temperature range (-5°C to 40°C), making it suitable for mobile clinics and resource-limited environments.
| Indications | Retinal imaging, fundus examination, diabetic retinopathy screening, optic nerve assessment, retinal disease documentation |
|---|---|
| Field of Vision | 45° (outer ring φ7.4mm, inner ring φ4mm) |
| Working Distance | 40mm from cornea (±2mm error tolerance) |
| Alignment Range | Horizontal ±30°; Vertical ±12.5° |
| Depth of Field | ≥5mm contraction distance |
| Refractive Compensation | +15D |
| Minimum Pupil Size | 3mm (non-mydriatic) |
| Illumination Source | Infrared |
| Focus Modes | Auto and manual |
| Filters | Stimulating filter (red & blue) |
| Movement Range | Front/back 60mm; side-to-side 120mm; up/down 30mm |
| Operating Temperature | -5°C to 40°C |
| Relative Humidity | ≤85% |
| Atmospheric Pressure | 700–1060 hPa |
| Power Supply | AV 110V/220V ±22V, 50/60Hz ±1Hz |
| Input Power | ≤300W |
| Warranty | 2 Year Manufacturer Warranty |
| Item | Description | Qty |
|---|---|---|
| Main Unit | Auto Portable Digital Eye Fundus Camera (NEUAFC02) | 1 |
| Power Supply | AV 110V/220V mains adapter with cable | 1 |
| Eyepiece | Optical eyepiece assembly with reticle | 1 |
| Chin Rest | Adjustable patient positioning chin rest | 1 |
| Documentation | User manual, quick-start guide, warranty card | 1 set |
Contact our sales team to discuss pricing, delivery timelines, and customisation options for the NEUAFC02. We offer volume discounts and flexible payment terms for healthcare institutions and OEM partners.
Available on request
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
