Bone Fracture Therapeutic Equipment NEUBF01
- Effective bone fracture therapeutic equipment (NEUBF01)
- One-channel output with adjustable treatment intensity (0-64)
- Maximum output of 50mA±10% (500Ω load)
- Auto treatment time up to 30 minutes, manual adjustable from 10-60 minutes
- High stability with output current change rate ≤5%
- Suitable for post-surgery recovery: anti-inflammatory and analgesic effects
- Addresses various conditions: delayed union, nonunion, bone defects, and soft tissue contusions
- Enhances symptoms of Avascular Necrosis
- Includes main unit, bandages, and self-adhesive electrodes for comprehensive treatment
- Continuously working mode for effective therapy sessions
- SKU
- NEUBF01
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Bone Fracture Therapeutic Equipment NEUBF01
Advanced electrotherapy device for accelerated bone healing and post-surgical recovery. Delivers precisely controlled therapeutic currents with adjustable intensity and treatment duration to promote fracture union, reduce inflammation, and manage pain in orthopedic and soft tissue applications.
Clinical overview
The NEUBF01 is a clinically validated electrotherapy device designed to accelerate bone healing and facilitate post-surgical recovery. Using endogenous current technology, it delivers controlled therapeutic stimulation to promote fracture union, reduce inflammation, and provide analgesic relief. The device is indicated for a broad range of orthopedic and soft tissue conditions, including delayed union, nonunion, bone defects, joint sprains, lumbar strain, and peripheral nerve disorders. Its proven efficacy in enhancing symptoms of avascular necrosis makes it an essential tool in orthopedic rehabilitation and pain management protocols.
With adjustable intensity (0–64 steps) and flexible treatment duration (10–60 minutes manual, or up to 30 minutes auto), clinicians can tailor therapy to individual patient needs. The device maintains exceptional output stability (≤5% change rate) and delivers a maximum output of 50 mA ± 10% at 500 Ω load, ensuring consistent, safe, and effective treatment sessions. Continuous working mode supports extended therapy protocols without interruption.
Key features & surgeon benefits
Proven Healing Acceleration
- Accelerates fracture union and bone healing
- Reduces inflammation and post-surgical swelling
- Provides effective analgesia for pain management
- Addresses delayed union, nonunion, and bone defects
- Improves symptoms of avascular necrosis
Intuitive Treatment Control
- Simple step-by-step intensity adjustment (0–64)
- Flexible treatment timing: auto (up to 30 min) or manual (10–60 min)
- Continuous working mode for uninterrupted therapy
- Frequency modulation (15–30 second change period)
- Minimal setup time with pre-configured electrode placement
Stable & Consistent Output
- Output current stability ≤5% change rate
- Maximum output 50 mA ± 10% at 500 Ω load
- Low power consumption (≤100 VA)
- Durable construction for high-volume clinical use
- Endogenous current model for safe, physiological stimulation
Complete Treatment Solution

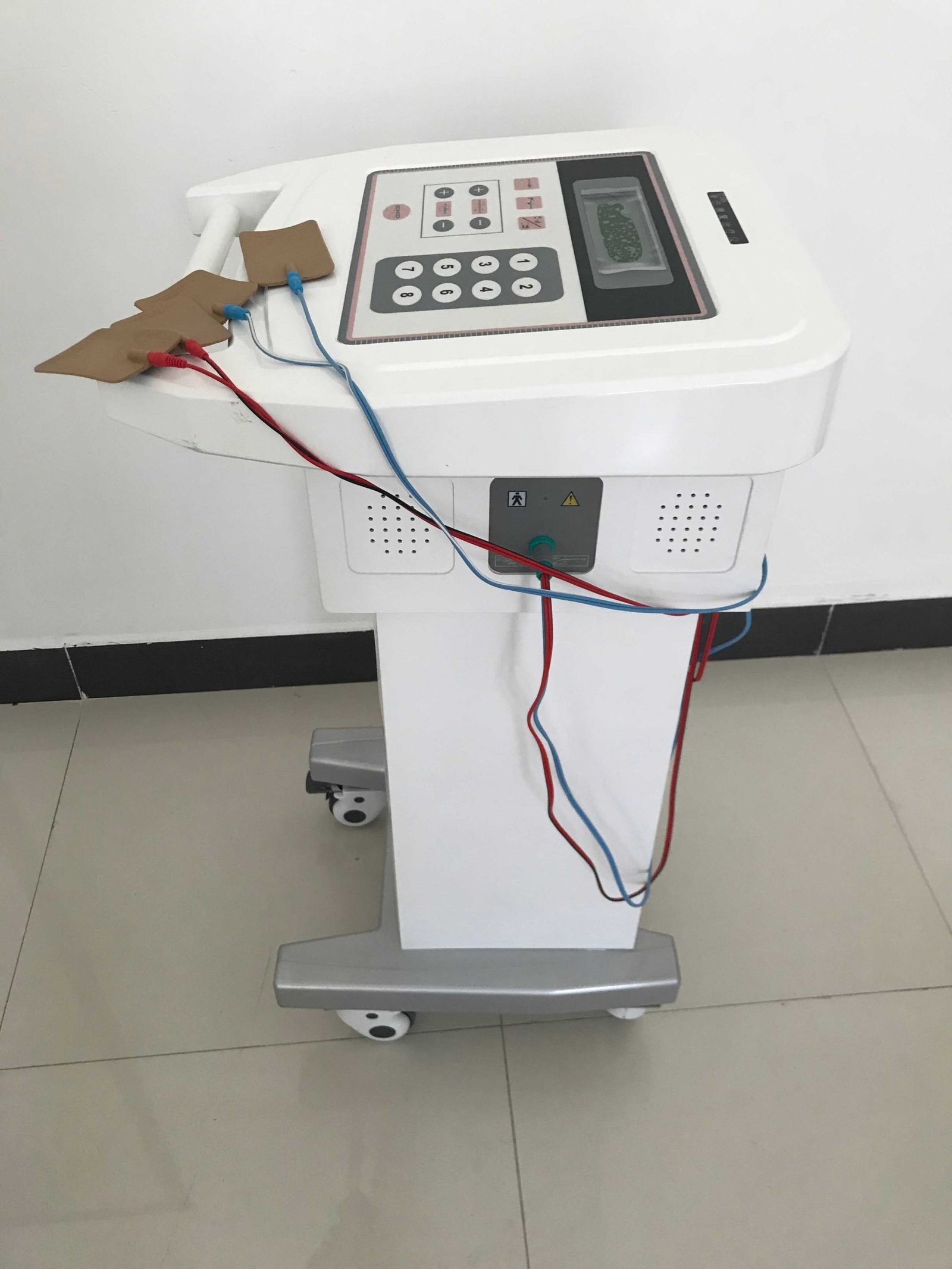

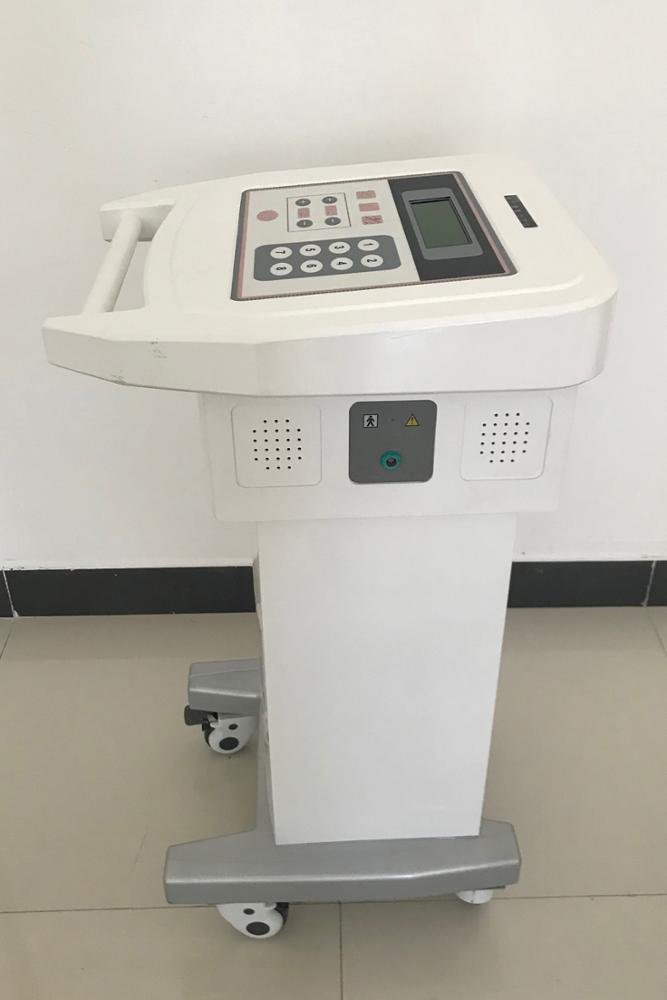

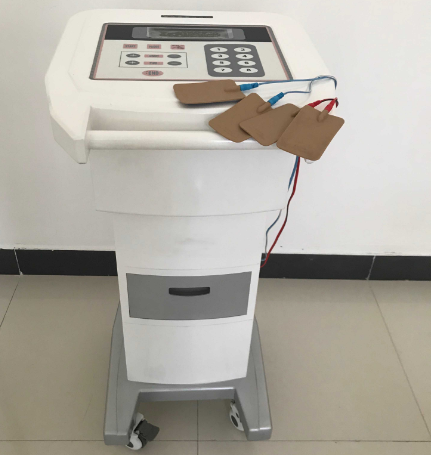

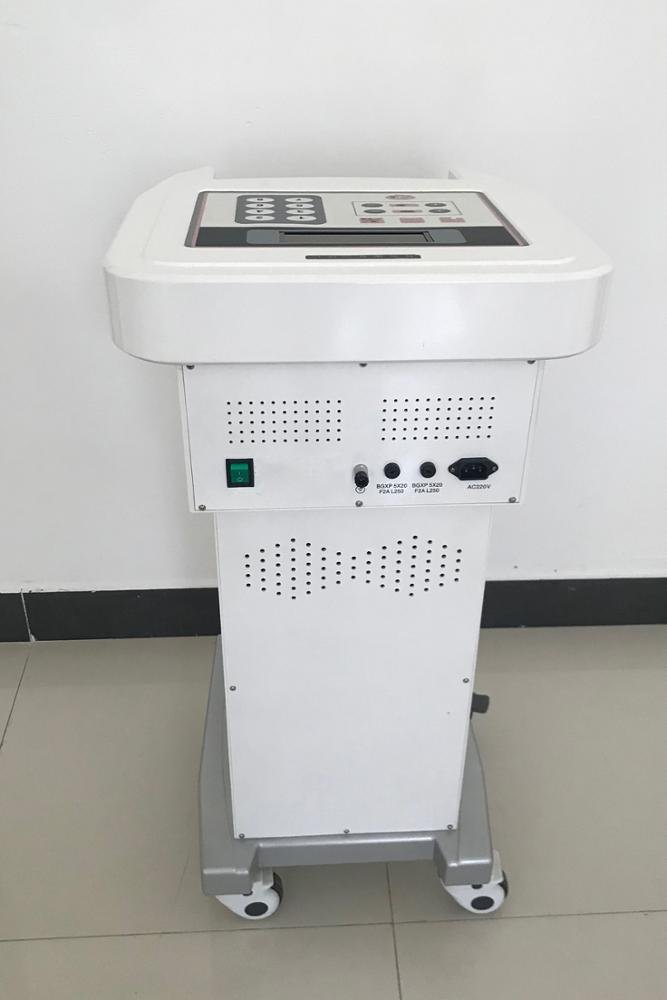

- Main unit with integrated control panel
- 4 × therapeutic bandages for flexible application

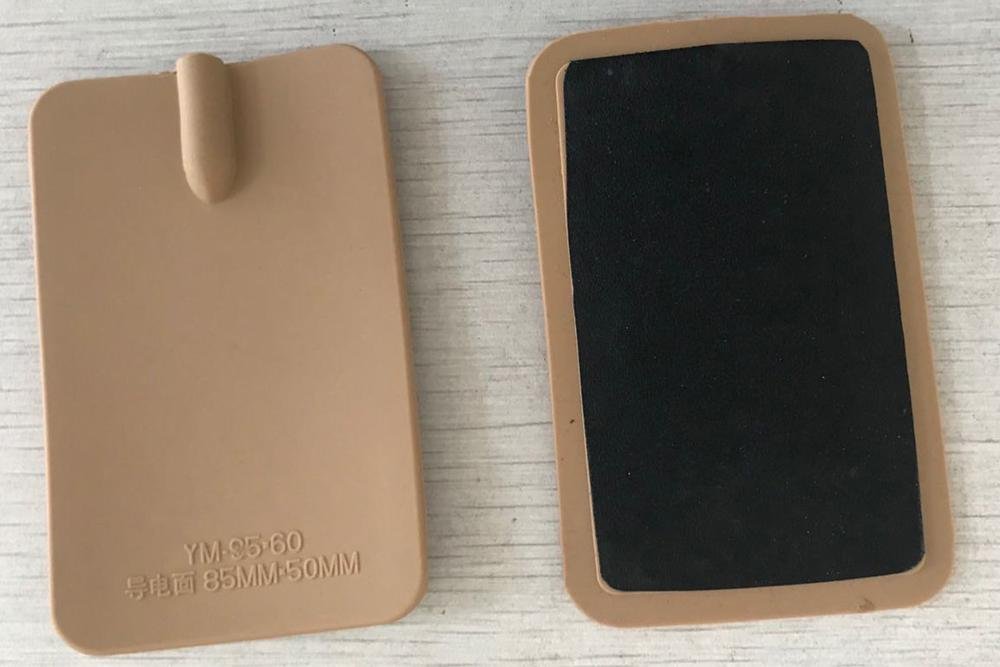

- 4 × standard electrodes (90 × 60 mm)
- 20 × self-adhesive electrodes (40 × 80 mm)
- Ready-to-use configuration for immediate deployment
Technical specifications
| Indications | Fracture healing (delayed union, nonunion, bone defects), post-surgical recovery, soft tissue contusions, joint sprains, lumbar strain, shoulder bursitis, sciatica, peripheral nerve disorders, avascular necrosis |
|---|---|
| Output configuration | Single-channel output |
| Intensity range | 0–64 (adjustable by step) |
| Maximum output | 50 mA ± 10% (500 Ω load) |
| Treatment time (auto) | Up to 30 minutes |
| Treatment time (manual) | 10–60 minutes, ±60 seconds accuracy |
| Output stability | Rate of change ≤5% |
| Frequency modulation | 15–30 second change period |
| Treatment model | Endogenous current model |
| Working mode | Continuous |
| Input power | ≤100 VA |
| Packaging | Main unit, 4 × bandages, 4 × electrodes (90×60 mm), 20 × self-adhesive electrodes (40×80 mm) |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Main Unit | Bone Fracture Therapeutic Equipment control module with integrated display and intensity/time controls | 1 |
| Therapeutic Bandages | Medical-grade bandages for secure electrode placement and patient comfort | 4 |
| Standard Electrodes | Reusable electrodes (90 × 60 mm) for conventional electrode placement | 4 |
| Self-Adhesive Electrodes | Single-use self-adhesive electrodes (40 × 80 mm) for flexible application and patient convenience | 20 |
Get in touch for pricing & availability
Contact our clinical sales team to discuss the NEUBF01 for your orthopedic and rehabilitation facility. We provide competitive pricing, volume discounts, and customisation options to meet your clinical and operational requirements.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
