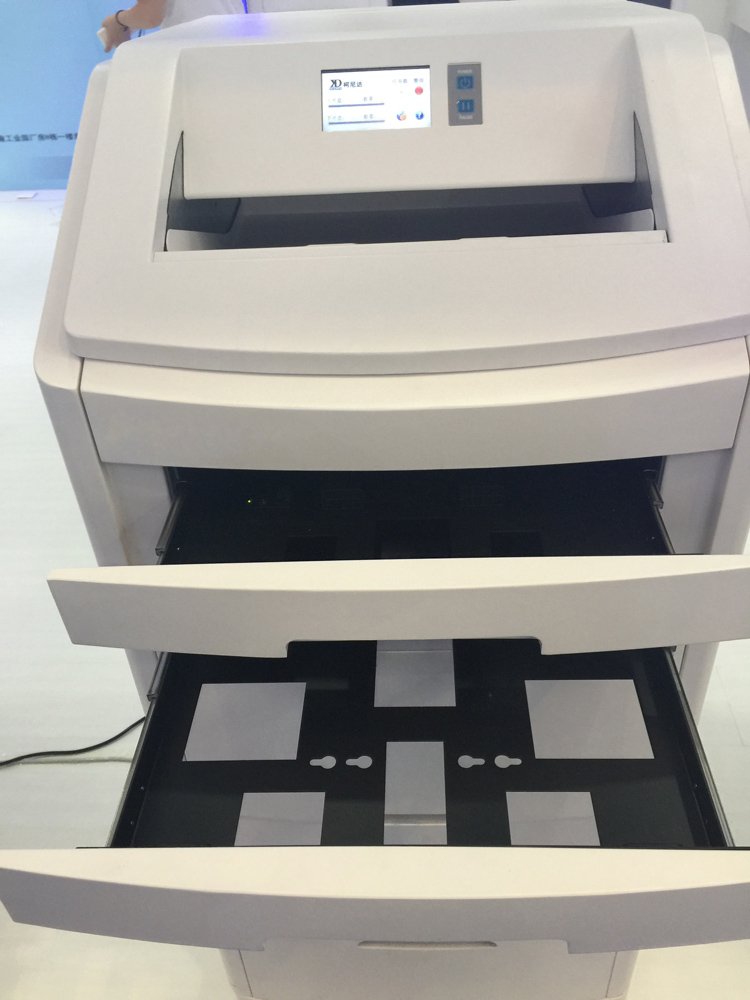

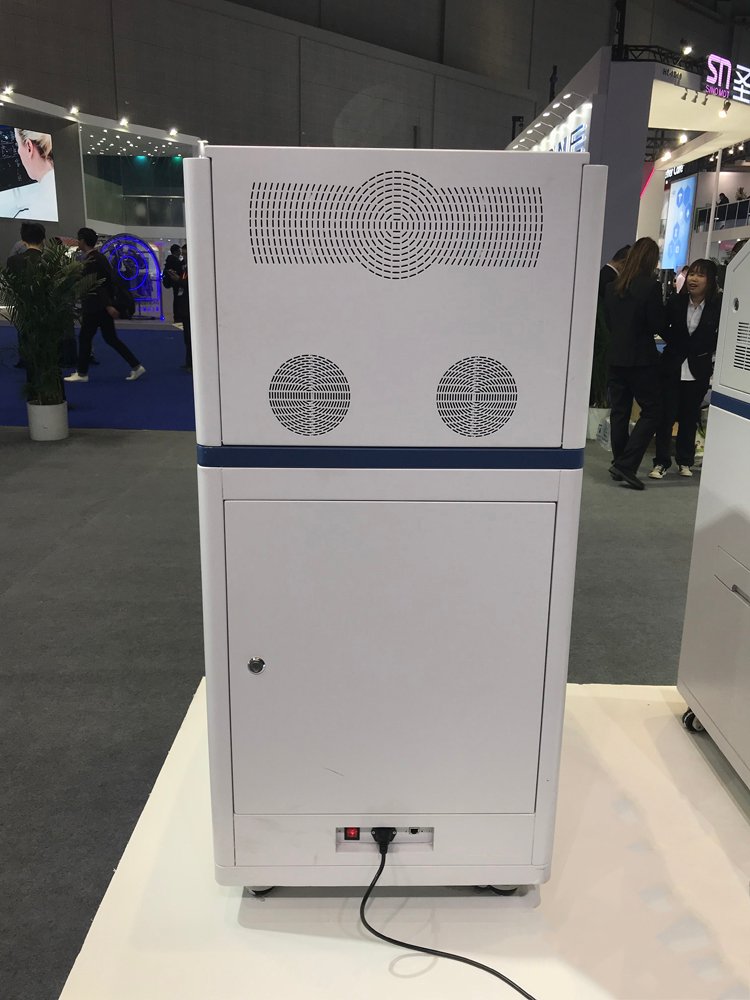

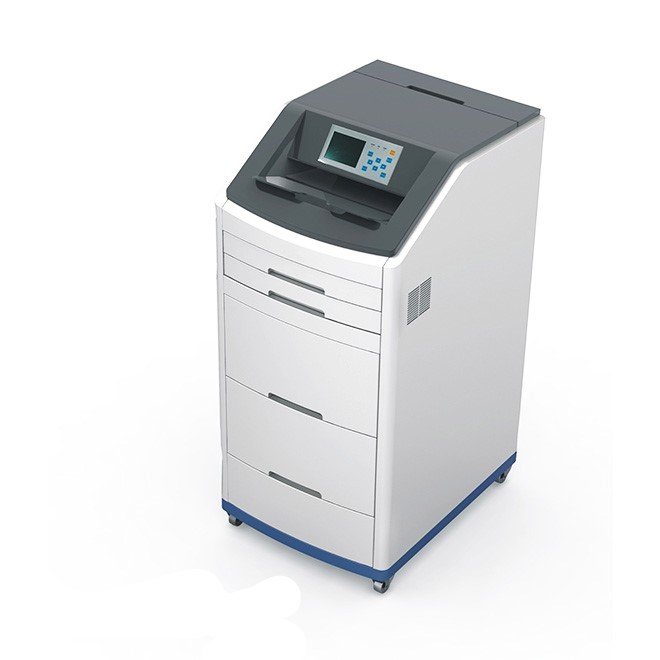

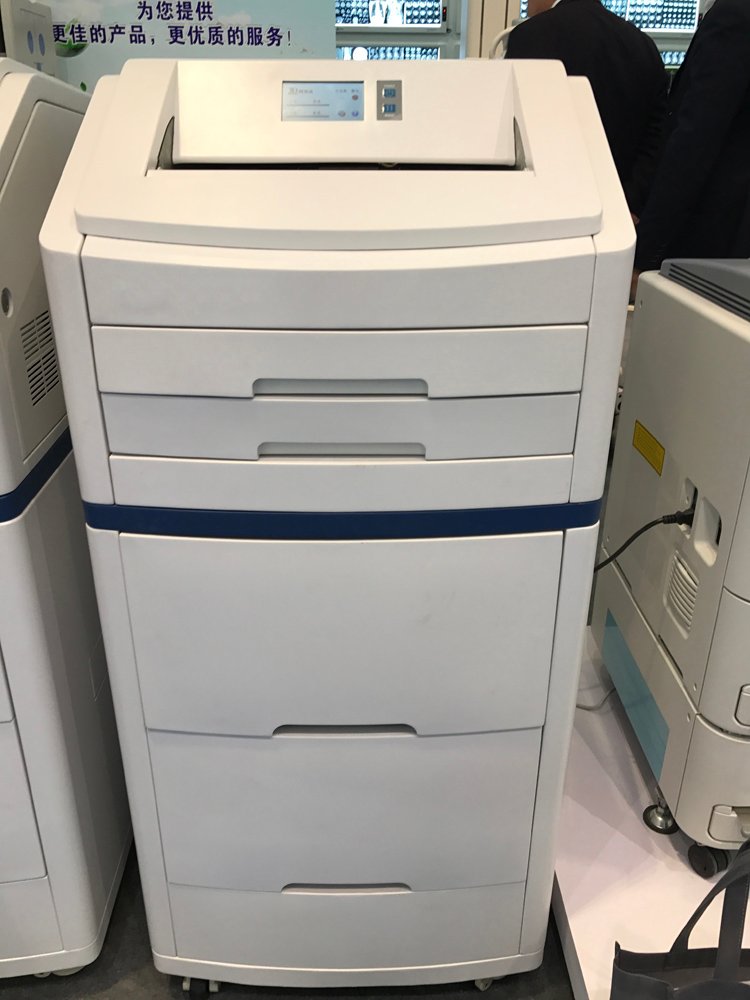

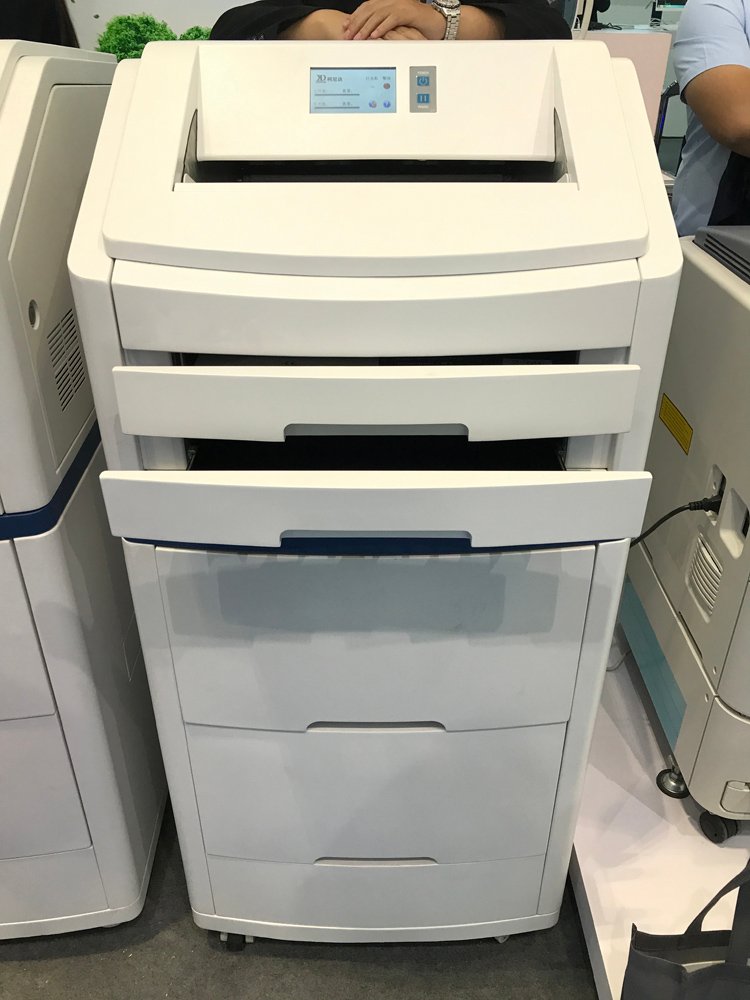

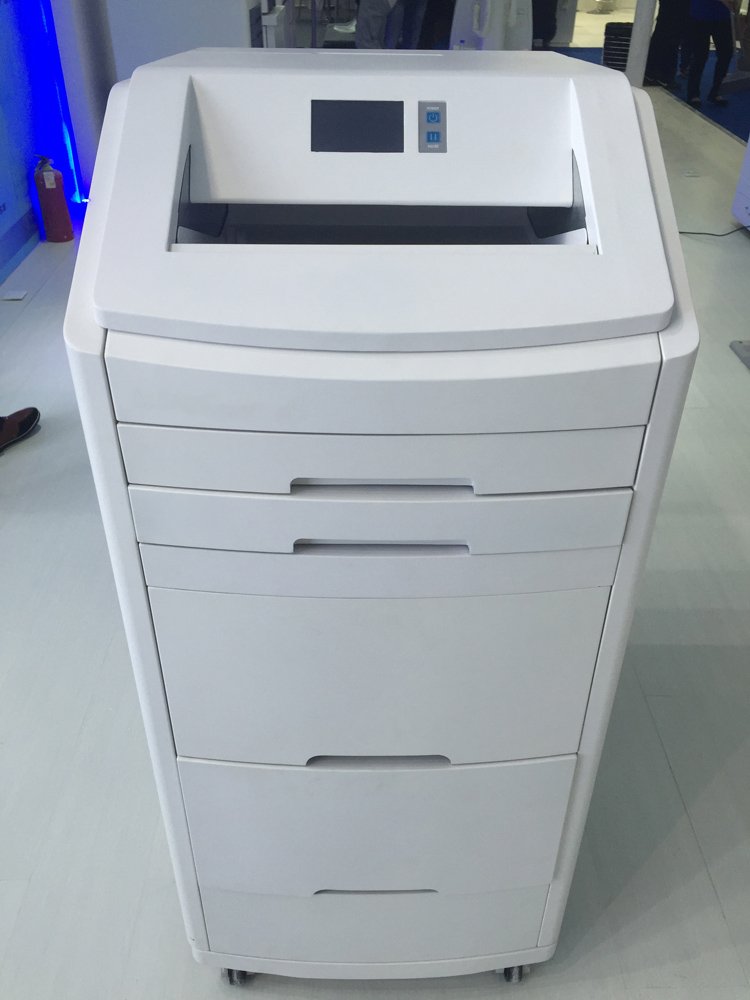

Digital Thermal Imaging Printer NEUDY01
- High-speed printing with a throughput of 80 sheets/hour (14x17) and 100 sheets/hour (8x10).
- Utilizes direct thermal imaging technology for easy daylight loading.
- Impressive 12-bit resolution offering 4096 gradation for enhanced image quality.
- Dual-film supply trays holding 100 sheets each, with an output tray capacity of 50 sheets.
- Compatible with various medical thermal film sizes: 8x10, 10x12, 11x14, and 14x17 inches.
- Ethernet connectivity (10/100 base-T) and TCP/IP interface for seamless integration.
- Supports DICOM3 image format and features automatic calibration for optimal image quality.
- Equipped with a user-friendly LCD control panel for easy operation and status monitoring.
- Power-efficient operation with auto-ranging voltage requirements and low standby power consumption.
- Compact and sturdy design with a weight of 87.1kg and dimensions of 556x770x1250 mm.
- SKU
- NEUDY01
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Digital Thermal Imaging Printer NEUDY01
High-speed direct thermal imaging printer delivering professional-grade medical imaging output. Engineered for radiology, cardiology, and diagnostic imaging departments requiring consistent, high-resolution thermal film production with seamless DICOM integration and intuitive operation.
Clinical overview
The NEUDY01 Digital Thermal Imaging Printer is a professional-grade diagnostic imaging device engineered to deliver consistent, high-resolution thermal film output for medical imaging departments. Utilising direct thermal imaging technology with easy daylight loading, the NEUDY01 eliminates the complexity of traditional wet-chemistry processing while maintaining superior image quality. The 12-bit resolution with 4096 gradation levels ensures diagnostic-grade clarity across all film sizes, supporting seamless integration with existing DICOM3 workflows.
With dual film supply trays (100 sheets each) and a 50-sheet output capacity, the NEUDY01 supports high-volume imaging environments. Automatic densitometer calibration guarantees optimal image quality without manual intervention, while the intuitive LCD control panel provides real-time status monitoring and fault alerts. Ethernet connectivity and TCP/IP interface enable rapid integration into networked imaging systems, making the NEUDY01 an ideal choice for radiology, cardiology, and multi-specialty diagnostic centres.
Key features & surgeon benefits
High-Speed Output
- 80 sheets/hour (14x17) and 100 sheets/hour (8x10)
- Supports four film sizes for flexible imaging workflows
- 320 dpi geometric resolution (12.3 pixels/mm)
Seamless Integration
- DICOM3 image format support for direct EHR compatibility
- 10/100 base-T Ethernet and TCP/IP interface
- Automatic calibration via built-in densitometer
Consistent Quality
- 12-bit resolution with 4096 gradation levels
- Factory-sealed input cassettes ensure film integrity
- Comprehensive image control (contrast, grayscale, rotation, saturation, scale)
User-Friendly Design
- Light-background LCD display with online status and fault alerts
- Direct thermal imaging—easy daylight loading, no chemical processing
- Auto-ranging 100–110V/240V power supply with low standby consumption (75W)
Technical specifications
| Indications | Medical imaging output, diagnostic imaging departments, radiology, cardiology, clinical imaging |
|---|---|
| Sizes / range | 8x10, 10x12, 11x14, 14x17 inches |
| Material | Medical thermal film (blue) |
| Printing technique | Direct thermal imaging (easy daylight loading) |
| Film throughput | 80 sheets/hour (14x17); 100 sheets/hour (8x10) |
| Resolution | 12-bit (4096 gradation); 320 dpi (12.3 pixels/mm) |
| Film supply tray | 2 supply trays, 100 sheets per tray |
| Film output tray | 1 output tray, 50 sheets capacity |
| Connectivity | 10/100 base-T Ethernet (RJ-45) |
| Interface | TCP/IP |
| Image format | DICOM3 |
| Image quality | Built-in densitometer automatic calibration |
| Image control | Contrast, grayscale, polar, rotate, saturation, scale |
| Control panel | Light-background LCD display (online, alarm, fault, state status) |
| Processor | Intel |
| Internal memory | 2 GB |
| Disk capacity | 320 GB |
| Power requirements | Auto-ranging 100–110V/240V, 50/60 Hz; printing 600W, standby 75W |
| Weight | 87.1 kg |
| Dimensions | 556 × 770 × 1250 mm (21.9" × 30.5" × 49.3") |
| Operating temperature | 15–30°C |
| Operating humidity | 10–70% |
| Optimum temperature | 22.2°C |
| Optimum humidity | 10–80% |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| NEUDY01 Printer Unit | Complete digital thermal imaging printer with dual-tray configuration, LCD control panel, and integrated densitometer | 1 |
| Power Cable | Auto-ranging 100–110V/240V power supply cable with regional plug adapters | 1 |
| Ethernet Cable | 10/100 base-T Ethernet (RJ-45) network cable | 1 |
| User Manual | Comprehensive operating and maintenance documentation | 1 |
| Quick Start Guide | Setup and basic operation reference | 1 |
| Sample Film Cassette | Factory-sealed input cassette (film type and size as ordered) | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss your imaging department's requirements, request a detailed quote, or arrange a product demonstration. We offer flexible delivery options and comprehensive support for all NEUDY01 installations.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
