Medical Freezing Microtome Machine NEUK237
- High precision section thickness range: 0-60μm with adjustable increments
- Ideal for routine histology, biological, and industrial applications
- Universal cassette clamp and standard specimen clamp included
- Smooth operating hand wheel with dual fail-safe control system
- Import precision components for enhanced stability and reproducibility
- Compact dimensions: 300mm (L) x 570mm (W) x 270mm (H)
- Fast and efficient freezing system with advanced semiconductor refrigeration
- LCD display for simultaneous temperature monitoring of Cryo-scalpel and Cryo-console
- Comprehensive standard accessory kit included for convenience
- Optional accessories available for enhanced functionality
- SKU
- NEUK237
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping

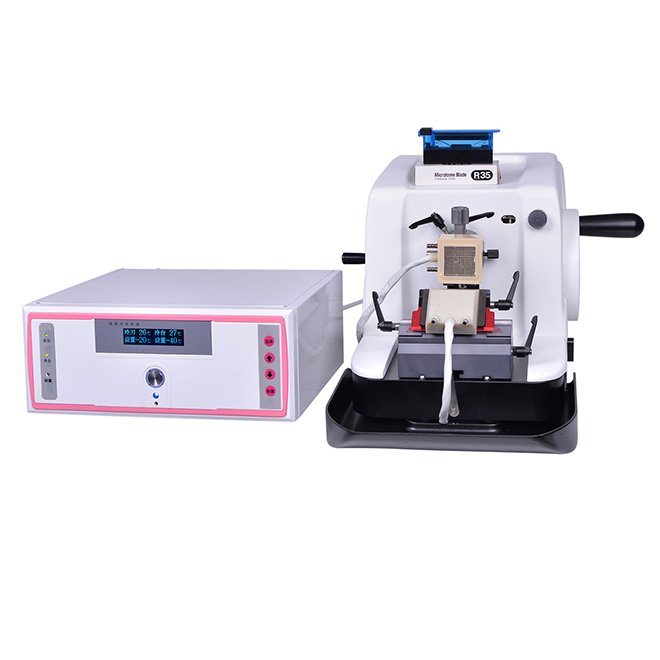

Medical Freezing Microtome Machine NEUK237
Precision cryogenic sectioning system designed for routine histology, biological research, and industrial applications. Features advanced semiconductor refrigeration, high-precision specimen feed with 0–60 μm adjustable thickness range, and integrated LCD temperature monitoring for reproducible section quality.
Clinical overview
The NEUK237 is a high-precision freezing microtome system extensively used in hospitals, research institutions, and diagnostic laboratories. It combines advanced semiconductor refrigeration technology with precision mechanical engineering to deliver consistent, reproducible frozen and paraffin sections. The integrated Cryo-Scalpel and Cryo-Console operate at a 45° angle, facilitating easy tissue attachment and rapid freezing cycles.
Key components including guide rails, screw mandrels, and ratchet rods are imported from Japan, ensuring superior stability and durability. The system is ideal for routine histology, biological research, and industrial applications requiring sections from 0–60 μm with precision error within ±5%.
Key features & surgeon benefits
High-Resolution Sectioning
- 0–60 μm thickness range with granular increments (0.5–5 μm steps)
- Precision error within ±5% for reproducible results
- 360° rotatable specimen orientation with 8° X-Y adjustment
Intuitive Operation & Safety
- Smooth hand wheel with dual fail-safe control system
- Hand wheel lockable at any position for safe operation
- Universal cassette clamp and standard specimen clamp included
Advanced Refrigeration System
- Computerized third-generation semiconductor refrigeration
- LCD display for simultaneous temperature monitoring of Cryo-Scalpel and Cryo-Console
- Fast, even freezing with minimal noise and vibration
Flexible Configuration
- Optional blade carriers for disposable blades or steel knives
- Comprehensive standard accessory kit included
- OEM customisation available for institutional requirements
Technical specifications
| Section thickness range | 0–60 μm |
|---|---|
| Minimum setting value | 1 μm |
| Setting increments | 0–2 μm (0.5 μm steps); 2–10 μm (1 μm steps); 10–20 μm (2 μm steps); 20–60 μm (5 μm steps) |
| Horizontal specimen stroke | 28 mm |
| Vertical specimen stroke | 60 mm |
| Precision error | ±5% |
| Maximum section size | 50 × 45 mm |
| Sample orientation | 8° along X-Y axis; 360° rotatable |
| Dimensions (L × W × H) | 300 × 570 × 270 mm |
| Net weight | 34 kg |
| Material | Precision steel with imported Japanese components |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Freezing System | Cryo-Scalpel & Cryo-Console with semiconductor refrigeration | 1 |
| Specimen Clamps | Universal cassette clamp & standard specimen clamp | 2 types |
| Blade Carrier | For disposable blade use | 1 |
| Waste Tray | Integrated section waste collection | 1 |
| Tissue Molds | Standard embedding molds | 4 pcs |
| Cassettes | Specimen cassettes for tissue handling | 50 pcs |
| Fuses | Replacement fuses | 2 pcs |
