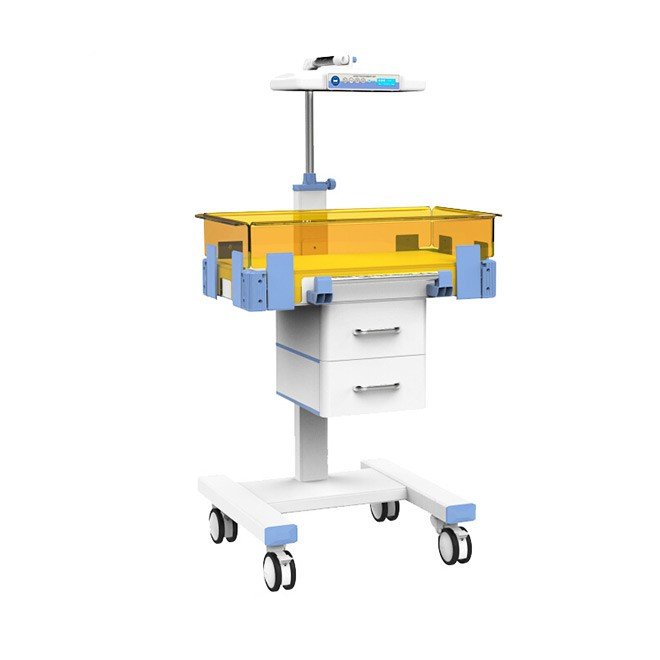

Neonatal Jaundice Tester NEUHD03
- Effective neonate jaundice treatment through dual-side phototherapy.
- Adjustable irradiation levels: Low, Medium, and High.
- LCD display for therapy time management with timer and countdown.
- Features blue LED bulbs for efficient, long-lasting treatment.
- 360° horizontal and 180° vertical adjustability for light head.
- Easy mobility with lockable castors and drawers for storage.
- Adjustable height range from 1300mm to 1600mm for optimal positioning.
- Automatic recording of total therapy time for tracking purposes.
- Constructed with anti-rust aluminum alloy for durability.
- SKU
- NEUHD03
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Neonatal Jaundice Tester NEUHD03
Dual-side phototherapy system for effective neonatal jaundice treatment. Features adjustable irradiation levels, LCD display with timer management, and 360° horizontal and 180° vertical light head adjustability. Constructed with durable anti-rust aluminum alloy and equipped with lockable castors for easy mobility.
Clinical overview
Neonatal jaundice (hyperbilirubinemia) is a common condition in newborns requiring effective phototherapy treatment. The NEUHD03 employs blue-green light phototherapy to induce actinic isomerization of bilirubin, converting indirect bilirubin into water-soluble products that are readily excreted via the liver and biliary system. This evidence-based approach is recognized as a simple and effective clinical method for managing pathological jaundice in neonatal departments.
The dual-side phototherapy configuration—combining upside and downside irradiation—delivers superior coverage and treatment efficacy. Independent control of upper and lower light sources allows clinicians to optimize therapy intensity based on individual patient requirements and bilirubin levels, reducing treatment duration while maintaining safety and comfort for the neonate.
Key features & surgeon benefits
Dual-Side Phototherapy
- Upside and downside phototherapy units operate independently or simultaneously
- Uniform, efficient light distribution across treatment area
- Highest total irradiance: 1500 μW/cm² on effective area
Intuitive Operation & Positioning
- LCD display with timer and countdown for therapy time management
- 360° horizontal and 180° vertical light head adjustability
- Adjustable height range 1300–1600 mm for optimal patient positioning
Long-Life LED Technology
- Blue LED bulbs with ≥20,000-hour lifespan reduce replacement costs
- Low power consumption: 45 VA input
- Automatic therapy time recording for clinical documentation and billing
Clinical Convenience
- Lockable castors for secure positioning and easy mobility
- Two integrated drawers for storage of accessories and supplies
- Foldable protective boards for safe clinical use and patient comfort
Technical specifications
| Indications | Neonatal pathological jaundice, hyperbilirubinemia in newborns |
|---|---|
| Phototherapy type | Dual-side (upside and downside) blue light phototherapy |
| Light wavelength | 440–480 nm (blue spectrum) |
| Irradiance (downside) | Highest total: 1500 μW/cm² on effective area |
| Irradiation levels | Low, Medium, High (adjustable) |
| LED lifespan | ≥20,000 hours |
| Height adjustable range | 1300–1600 mm (light head to floor) |
| Light head adjustability | 360° horizontal, 180° vertical |
| Power supply | AC 100–110V/240V ±22 V, 50/60 Hz ±1 Hz |
| Power input | 45 VA |
| Material | Anti-rust aluminum alloy base and frame |
| Infant bed | Integrated with foldable protective boards |
| Mobility | Lockable castors; stand column adjustable ±360° |
| Storage | Two integrated drawers |
| Operating temperature | −10 °C to +55 °C |
| Operating humidity | ≤95% relative humidity |
| Atmospheric pressure | 700–1060 hPa |
| Packaging dimensions | 80 × 79 × 134.5 cm |
| Net weight | 40 kg |
| Gross weight | 65 kg |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Main body | LED radiant source, control system, upside phototherapy unit, downside blue LED phototherapy unit, infant bed, bracket | 1 |
| Mattress | Comfortable, washable mattress for infant bed | 1 |
| Transparent foldable protector | Protective boards for clinical use and patient safety | 1 |
| Castors | Lockable wheels for mobility and positioning | 4 |
| Storage drawers | Integrated drawers for accessory and supply storage | 2 |
Get in touch for pricing & availability
Contact our sales team to discuss the NEUHD03 neonatal phototherapy system, pricing, delivery timelines, and customisation options for your clinical facility.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
Customer reviews
No reviews yet — be the first to share your experience.
Related products
See all →

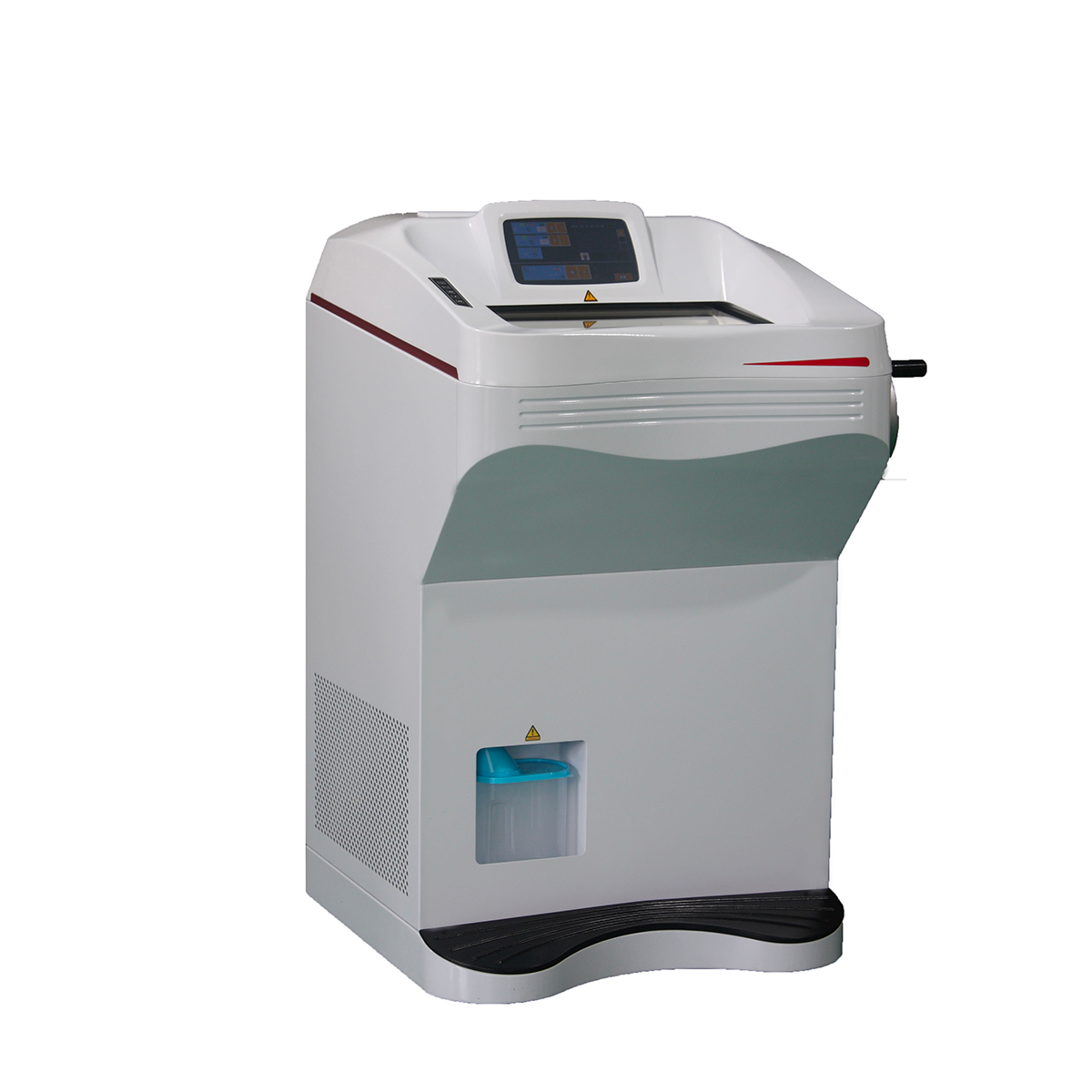

Cryostat Microtome Machine NEUK247
- Advanced Cryostat Microtome Machine NEUK247 - Adjustable section thickness: 5-100μm with fine increments - Trimming thickness range adjustable up to 600μm - Maximum specimen size: 55mm x 80mm - Fast forward and back-forward speeds of 0.9mm/s and 45mm/s - Chamber temperature adjustable from 0℃ to -60℃ - Minimum freezing shelf temperature: -55℃ - Peltier shelf temperature: as low as -60℃ - Equipped with double Danfoss compressor for efficient cooling - Operational noise level: 47dB(A) for quiet performance

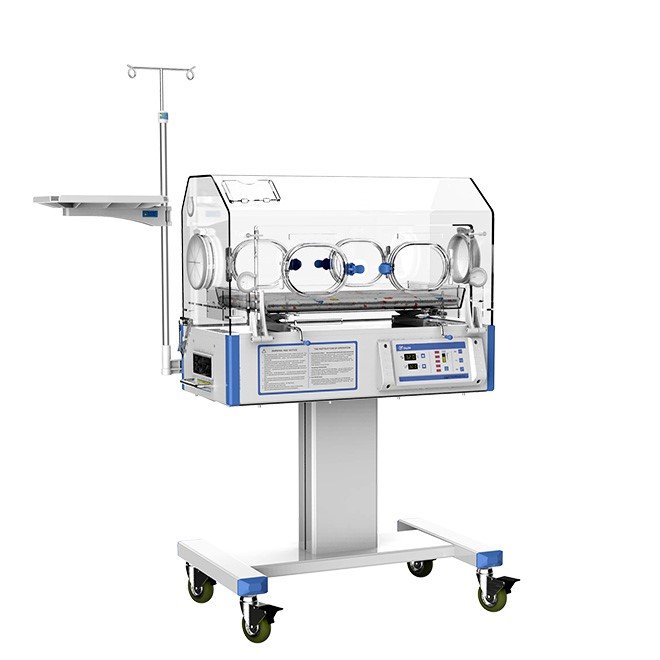

Baby Incubator For Hospital Use NEUBI01
- Advanced Baby Incubator for hospital use (Model NEUBI01) - Microprocessor-based servo-controlled temperature system - LED display for temperature and heating power - Multiple alarm functions: power failure, over temperature, sensor failure, and more - Adjustable humidity and infant bed inclination angles - Keypad lock to prevent unintentional setting changes - Second thermal cut-out for enhanced safety - Quick warm-up time of ≤45 minutes - Compact design with a mattress size of 65cm x 37cm - 2-year warranty and online technical support available

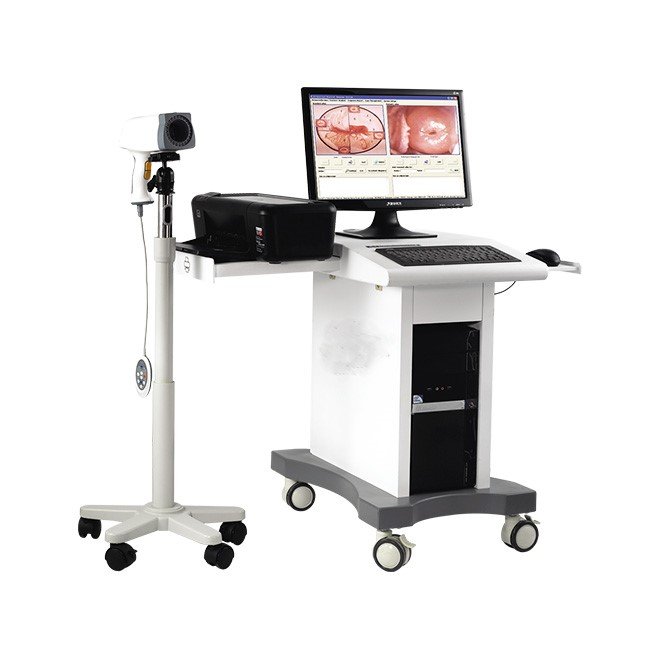

Colposcope Video Machine for Gynaecology NEUCE06
- High-resolution CCD camera with 550 TV lines for clear imaging. - Fast auto-focus and manual focus control for optimal precision. - Adjustable LED light source with customizable brightness settings. - Integrated computer imaging for data management and analysis. - Supports multiple languages including English, Spanish, and Russian. - Unique foot switch for easy picture capturing during examinations. - Adjustable vertical stand for convenient height settings. - Real-time dynamic images observable on an optional 2.5” LCD screen. - Includes a standard case report template for easy editing and printing. - Stores abundant image data for enhanced diagnostic capabilities.

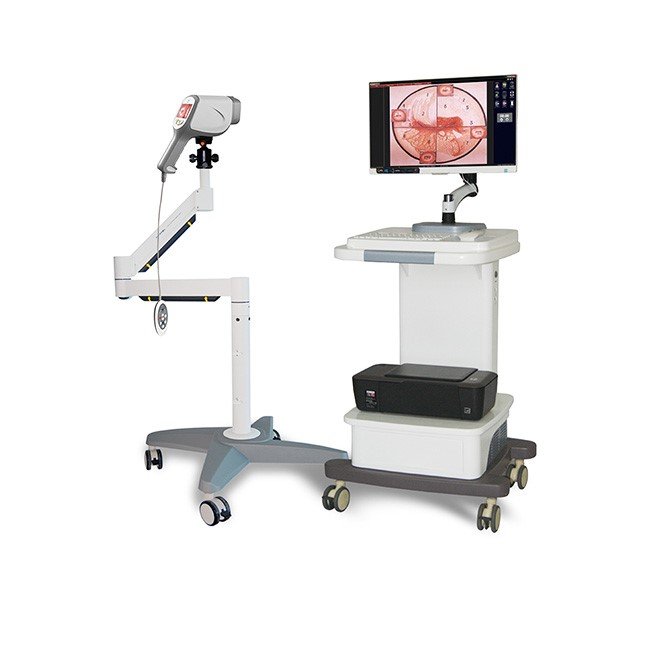

Portable Gynaecology Digital Colposcope System NEUCE07
- High-resolution 1/4” digital CCD camera with 550 TV lines. - Features adjustable super cold LED light source for optimal imaging. - Fast auto-focus and manual focus control for precise diagnostics. - Includes a unique foot switch for convenient picture capture. - Integrated computer imaging with data management and analysis. - Supports multiple languages: Chinese, English, Vietnamese, Spanish, and Russian. - Can store abundant image data with case report templates for easy editing. - Optional 2.5” LCD screen for real-time image observation. - Designed for ergonomic use with height-adjustable and lockable stand. - Ideal for gynecological examinations and diagnostic procedures.

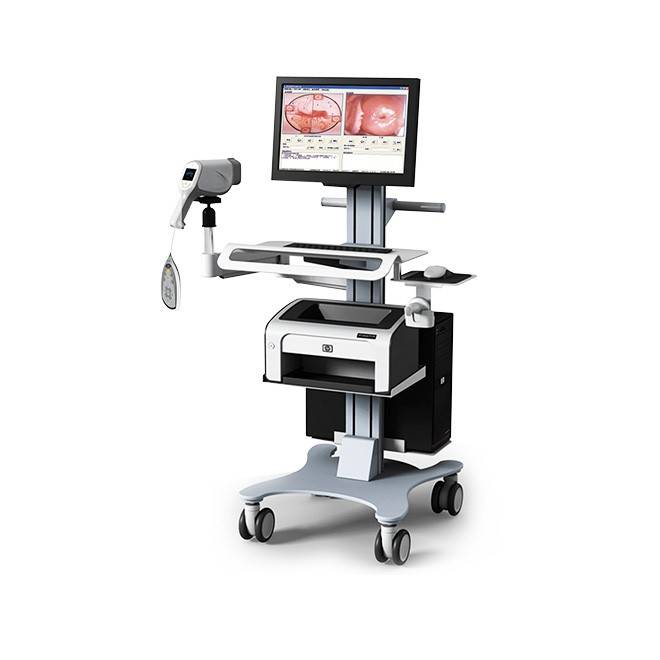

Multi-functional Trolley Colposcope Video Machine NEUCE08
- High resolution 1/4” colorful digital CCD camera (550 TV lines) - Adjustable super cold LED light source for optimal brightness - Multi-functional trolley with height-adjustable swing arm - User-friendly foot switch for convenient image capture - Control handle for easy adjustment of focal length and settings - Integrated imaging, data management, and analysis capabilities - Supports multiple languages including English, Spanish, and Russian - Optional 2.5” LCD screen for real-time image observation - Wireless transmission function available - Capable of storing extensive image data for case reports and diagnosis

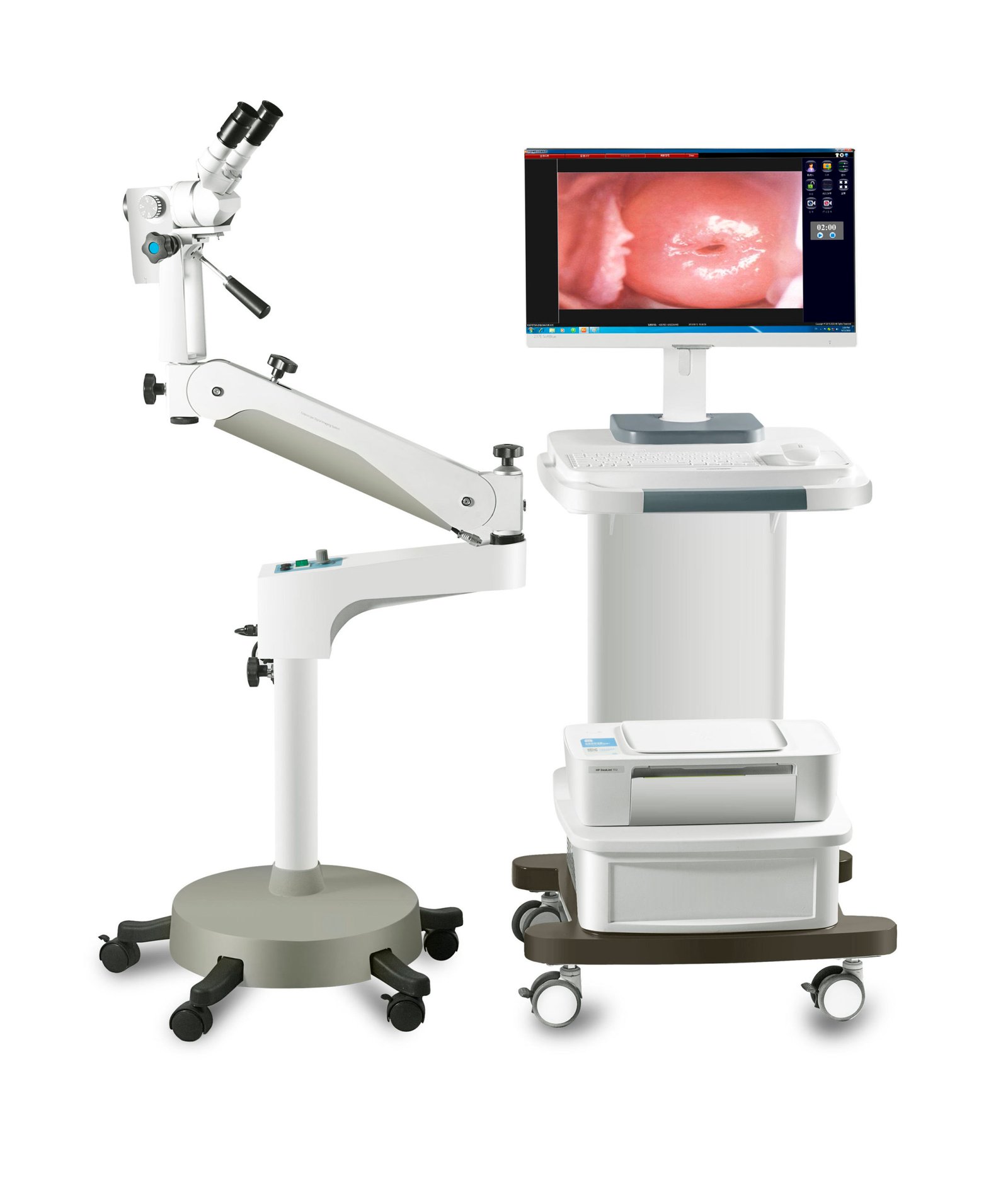

Digital Colposcope Video Machine NEUCE09
- High resolution digital colposcope with advanced optical and imaging systems - Synchronous observation through optical scope and computer for enhanced clarity - Built-in measurement scale for precise lesion size assessment - Unique light source design with adjustable brightness for optimal lighting - Multi-functional software for image processing, storage, and report generation - Supports multiple languages including English, Spanish, Chinese, and Russian - Features foot switch for easy photo capture during examinations - Includes a comprehensive data management and analysis function - Design allows for flexible adjustment with special swing arm for optimal positioning - Ideal for gynecological examinations and accurate diagnosis of cervical lesions

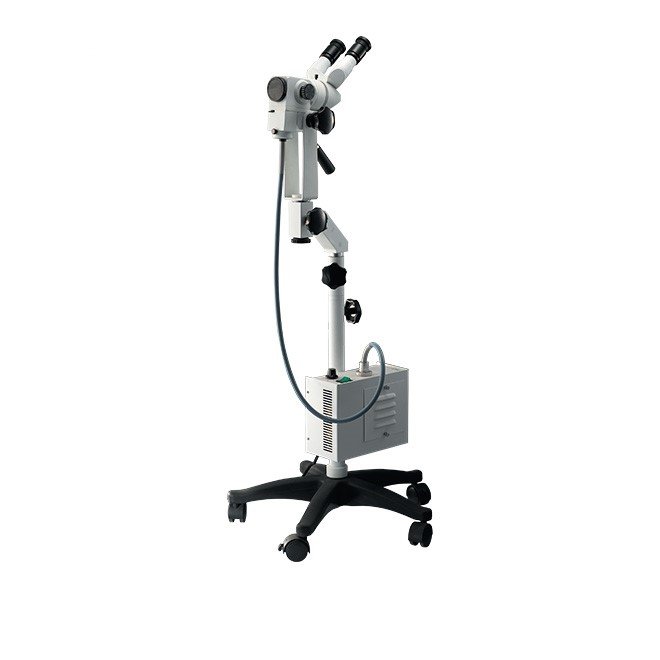

Portable Full Digital Optical Colposcope NEUCE10
