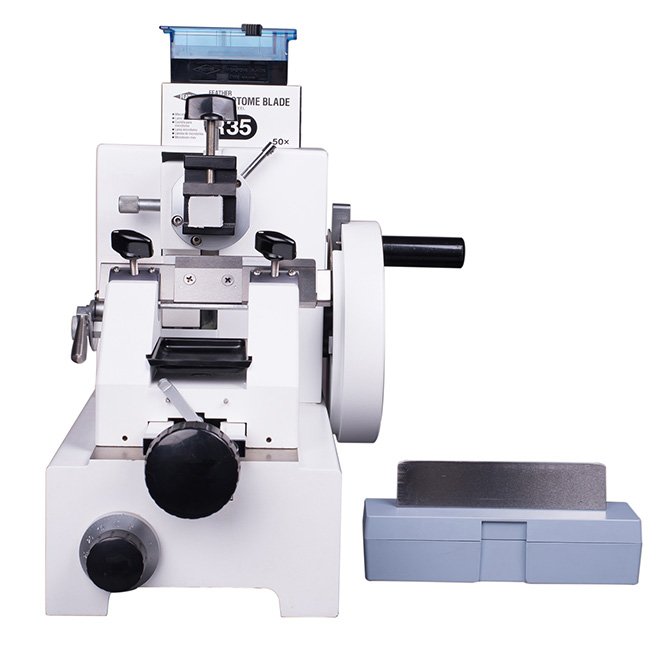

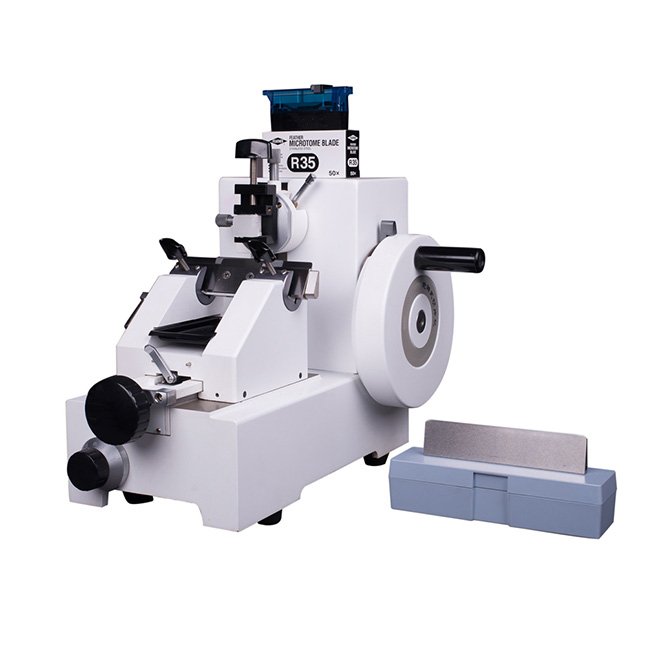

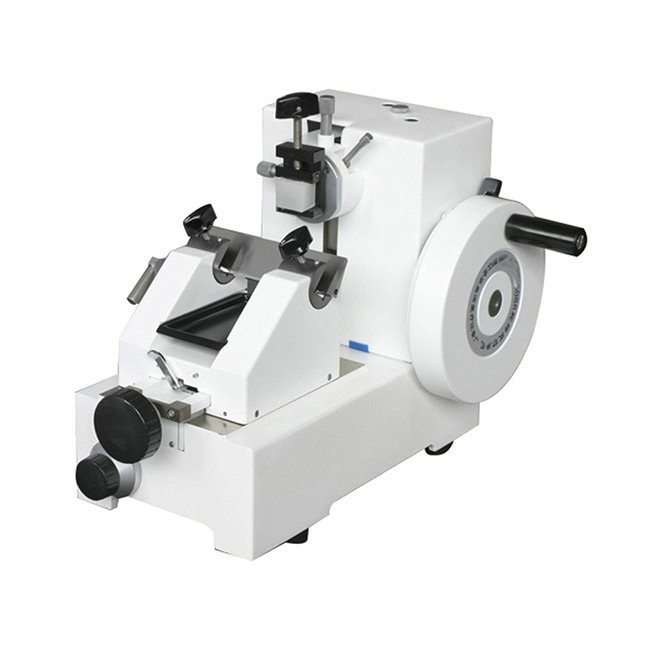

Pathological Diagnosis Automatic Freezing Laboratory Rotary Microtome NEUK242
- Advanced Pathological Diagnosis Automatic Freezing Laboratory Rotary Microtome NEUK242
- Section thickness range: 1-30 μm with a minimum setting value of 1μm
- Precision error of ± 5% for accurate slicing
- Maximum section size of 50×30mm, suitable for various tissue types
- Equipped with a computerized thermostatic power semiconductor refrigeration system
- LCD display showing real-time temperature of Cryo-scalpel and Cryo-console
- Fast and efficient freezing and slicing capabilities
- Ideal for research institutions, laboratories, and medical pathology applications
- Standard accessories include a clamp, blade carrier, 50 cassettes, and a steel knife
- Optional accessories available for enhanced functionality
- SKU
- NEUK242
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Pathological Diagnosis Automatic Freezing Laboratory Rotary Microtome NEUK242
Advanced precision rotary microtome engineered for rapid frozen-section diagnosis and paraffin slicing. Features computerized thermostatic refrigeration, LCD temperature monitoring, and precision sectioning from 1–30 μm. Ideal for pathology labs, research institutions, and medical diagnostic centres requiring fast, accurate tissue preparation.
Clinical overview
The NEUK242 is an advanced rotary microtome engineered for rapid frozen-section diagnosis and routine paraffin sectioning in pathology laboratories. Built on precision roller cross-guide technology with strength alloy steel construction, it delivers consistent, high-quality tissue sections for soft tissues, hard tissues (bone, plastic, fibre, plant material), and hair samples. The system is extensively used in hospitals, epidemic prevention centres, agricultural research, and forestry institutions.
The integrated computerized thermostatic power semiconductor refrigeration system combines a Cryo-Scalpel and Cryo-Console with advanced nanometer-material construction for quiet, efficient operation. The 45° angle between console and scalpel ensures tissue adheres easily to the slice. Real-time LCD temperature monitoring of both components enables precise control, while automatic defrost recovery and rapid re-cooling (4–8 minutes to set temperature) minimize workflow interruption.
Key features & surgeon benefits
Ultra-Fine Sectioning
- Section thickness range 1–30 μm with 1 μm minimum setting
- Precision error ±5% for consistent, reliable results
- Maximum section size 50×30 mm accommodates diverse tissue types
Fast Freezing & Easy Operation
- Rapid freezing and slicing for quick turnaround on frozen sections
- Dual-mode capability: frozen-section and paraffin slicing
- Automatic defrost and recovery; 4–8 minute re-cooling cycle
Advanced Cryo-System
- Computerized thermostatic power semiconductor refrigeration
- LCD display shows real-time temperature of Cryo-Scalpel and Cryo-Console
- Maximum freezing temperature −20°C; temperature differential ≥60°C (stage), ≥50°C (knife)
Robust Design & Accessories
- Precision alloy steel construction with proven MSLK242 heritage
- Standard kit includes clamp, blade carrier, 50 cassettes, and steel knife
- Optional accessories: blade holder, disposable blades, cassette clamp
Technical specifications
| Section Thickness Range | 1–30 μm |
|---|---|
| Minimum Setting Value | 1 μm |
| Precision Error | ±5% |
| Maximum Section Size | 50×30 mm |
| Maximum Cold Storage Area | 40×32 μm |
| Maximum Freezing Temperature | −20°C |
| Temperature Differential (Stage) | ≥60°C |
| Temperature Differential (Cooling Knife) | ≥50°C |
| Defrost Recovery Time | 4–8 minutes to set temperature |
| Cryo-Console / Cryo-Scalpel Angle | 45° |
| Display | LCD showing real-time temperature of both components |
| Construction | Precision alloy steel with roller cross-guide |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Clamp | Tissue specimen clamp | 1 |
| Blade Carrier | For steel knife or blade holder attachment | 1 |
| Cassettes | Tissue storage and processing cassettes | 50 |
| Steel Knife | Precision cutting blade | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss the NEUK242 system, pricing, delivery timelines, and optional accessories. We provide comprehensive support and customisation for your laboratory requirements.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
