Portable Postpartum Rehabilitation Instrument NEUPR03
- Portable Postpartum Rehabilitation Instrument NEUPR03
- Three-channel output with adjustable pulse waves (trapezoid, triangle, bell)
- Frequency range: 0.5-20Hz, basic frequency at 800Hz
- Ideal for treating lactation issues, chronic pelvic inflammation, and diastasis recti
- Aids in uterus recovery and pelvic floor muscle repair
- Timed treatments ranging from 15 to 65 minutes
- User-friendly with automatic computer chip control
- Output peak value up to 500Vp-p and power output range of 0-260
- Ensures safety against open and short circuits
- Compact design for ease of use and transportation
- SKU
- NEUPR03
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Portable Postpartum Rehabilitation Instrument NEUPR03
Advanced low-frequency electrotherapy device designed for postpartum recovery and pelvic floor rehabilitation. Three-channel output with adjustable pulse waves enables targeted treatment of lactation issues, uterine recovery, diastasis recti, and chronic pelvic inflammation with computer-controlled precision and safety.
Clinical overview
The NEUPR03 is an obstetrics and gynaecology treatment device based on low-frequency electrical therapy principles. It employs computer-controlled low-frequency pulse current stimulation to target specific anatomical regions, producing therapeutic physical effects that promote tissue healing and functional recovery. The device is engineered to clear breast ducts, promote milk secretion, accelerate uterine involution, facilitate postpartum urination, reduce postpartum pain, and support overall postpartum recovery.
With three independent channels and adjustable waveform options (trapezoid, triangle, bell), the NEUPR03 delivers customised treatment protocols for diverse postpartum conditions. Automatic computer chip control ensures consistent, safe delivery of therapeutic current while built-in protection against open and short circuits safeguards both patient and operator. The portable, compact design facilitates ease of use and transportation across clinical settings.
Key features & surgeon benefits
Broad therapeutic scope
- Treats lactation insufficiency and breast engorgement
- Addresses diastasis recti and pelvic floor dysfunction
- Manages chronic pelvic inflammation and postoperative pain
Intuitive operation
- Automatic computer chip control eliminates manual adjustment complexity
- Timed treatments from 15 to 65 minutes with 1-minute accuracy
- Three independent channels enable simultaneous multi-site therapy
Cost-effective recovery
- Reduces postpartum complications and secondary interventions
- Accelerates patient discharge and functional independence
- Portable design minimises infrastructure requirements
Flexible treatment protocols
- Adjustable frequency range (0.5–20 Hz) and waveform selection
- Output power range 0–260 with progressive increment control
- Programmable treatment duration and intensity profiles
Technical specifications
| Indications | Lactation insufficiency, breast engorgement, mammitis, uterine recovery, diastasis recti abdominis, chronic pelvic inflammation, vaginal relaxation, urinary retention, postoperative analgesia, pelvic floor muscle repair |
|---|---|
| Output channels | Three independent channels |
| Basic pulse frequency | 800 Hz ± 8% |
| Adjustable frequency range | Trapezoid wave: 0.5–10 Hz; Triangle wave: 1–20 Hz; Bell wave: 0.5–10 Hz |
| Output pulse width | 0.4 ms ± 10% |
| Single pulse energy | > 7 μC |
| Single pulse power | ≤ 300 mJ |
| Open-circuit output peak value | ≤ 500 Vp-p |
| Maximum output range value | ≤ 40 V |
| Power output range | 0–260 (progressive increment, minimum output 2%) |
| Treatment time | 15–65 minutes (± 1 minute accuracy) |
| Working mode | Continuous |
| Input power | ≤ 100 VA |
| Safety features | Protection against open and short circuits; no output degradation under fault conditions |
| Packaging | Portable unit with accessories |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Main unit | Portable postpartum rehabilitation instrument with three-channel output and computer control | 1 |

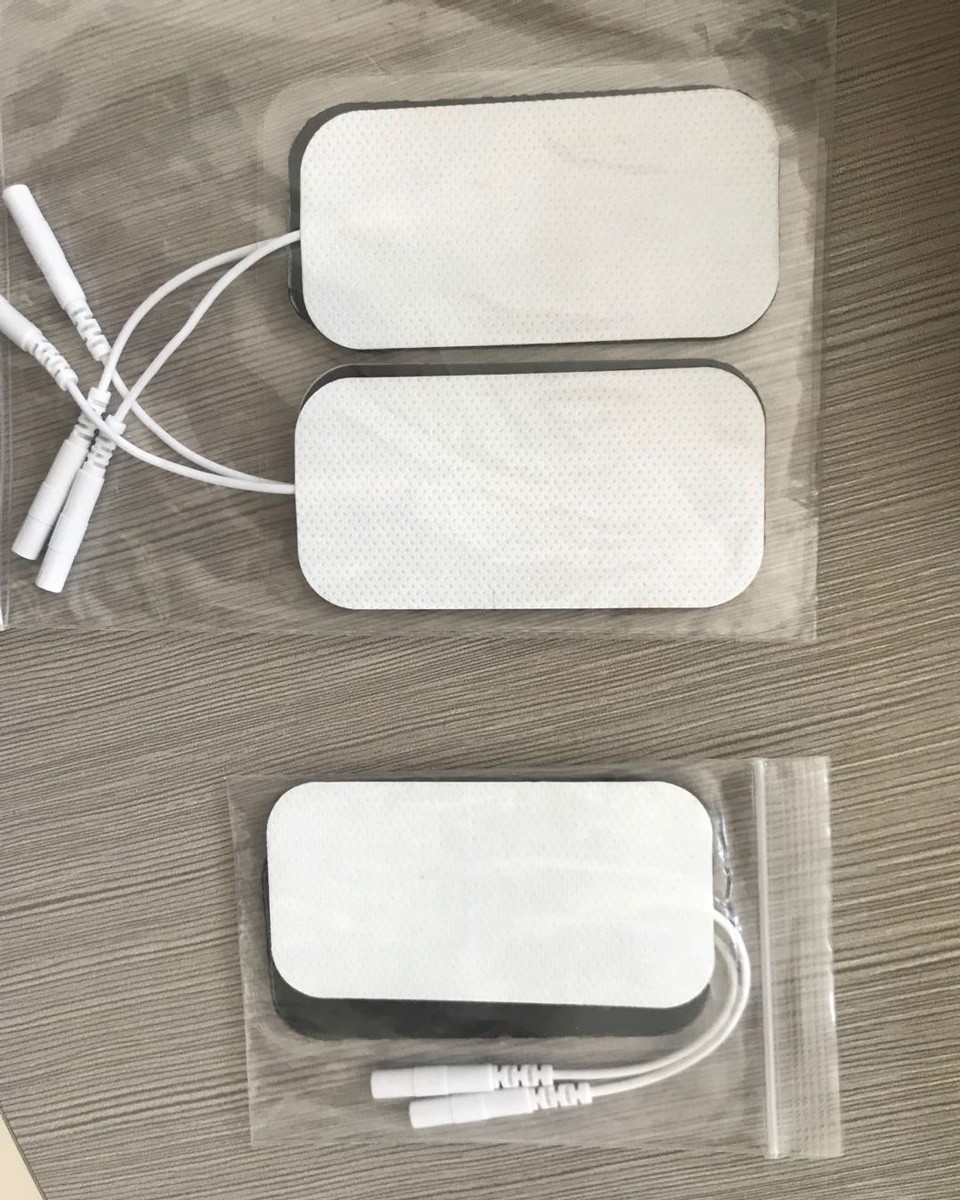

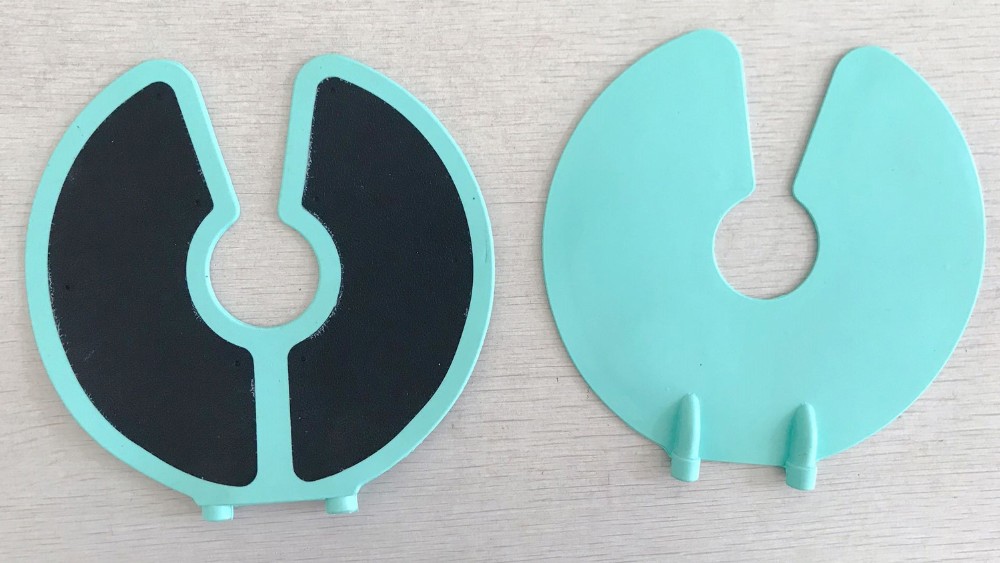

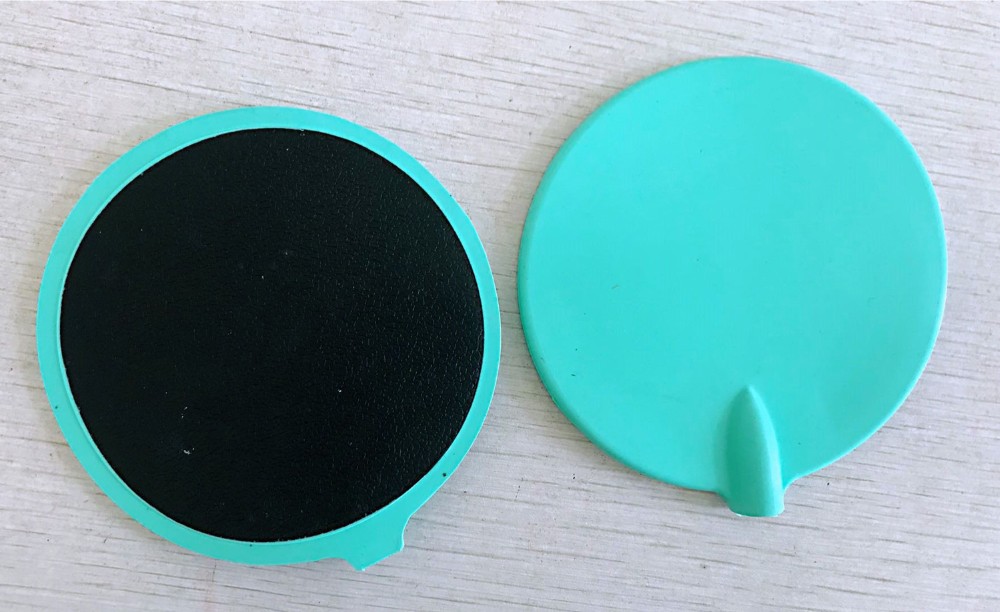

| Treatment electrodes | Conductive pads for therapeutic application | As applicable |
| Power cable | Mains connection with safety certification | 1 |
| User manual | Multilingual operating and safety instructions | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss clinical requirements, bulk pricing, and delivery timelines for the NEUPR03. We provide comprehensive technical support and customisation options for healthcare facilities worldwide.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
Customer reviews
No reviews yet — be the first to share your experience.
Related products
See all →

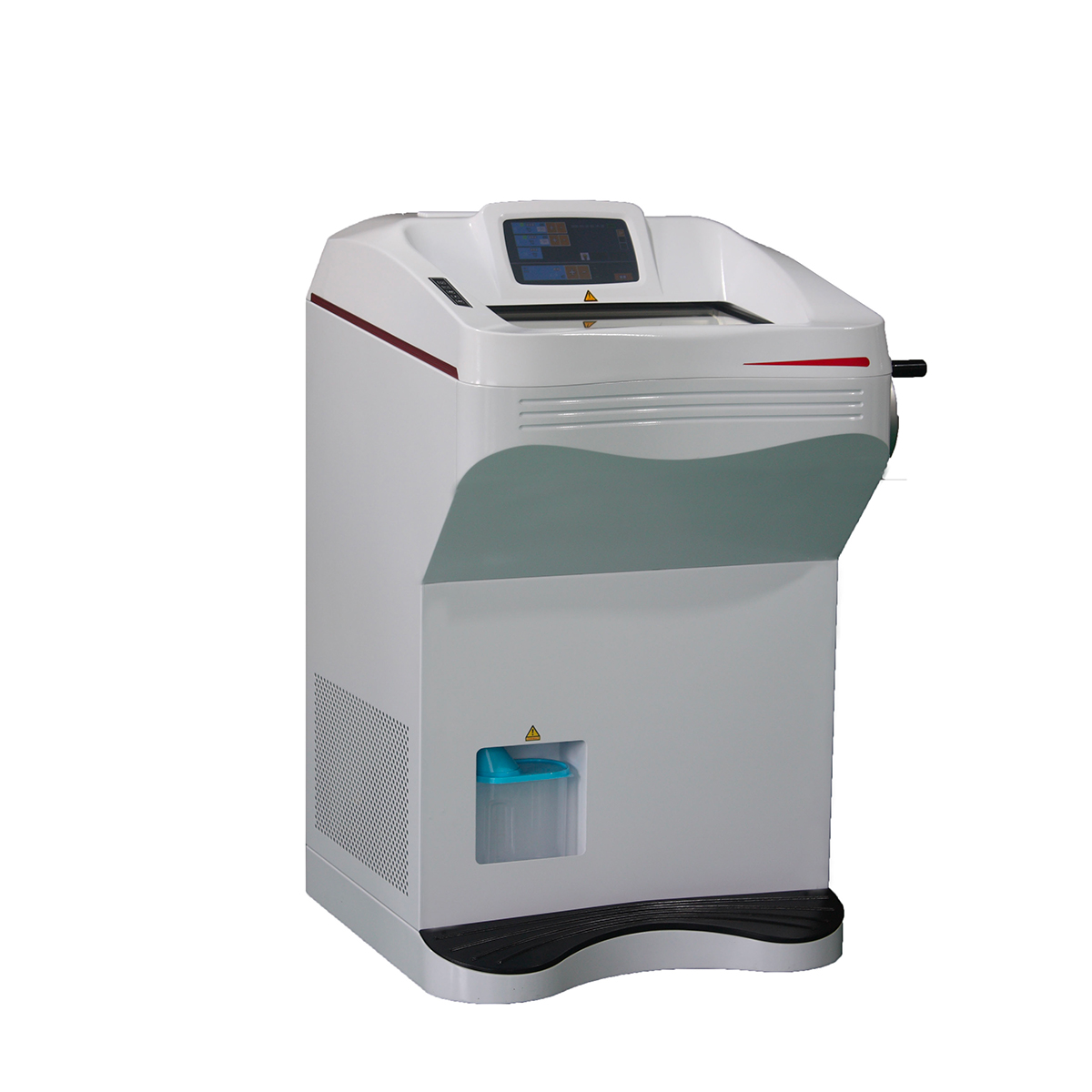

Cryostat Microtome Machine NEUK247
