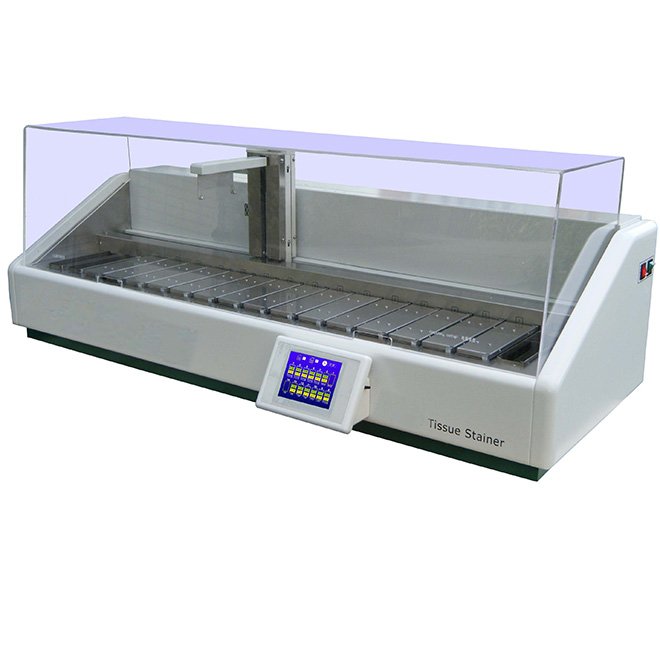

Professional Cylinders Automatic Slide Tissue Stainer Machine NEUTR01
- Professional Cylinders Automatic Slide Tissue Stainer Machine NEUTR01
- Features 18 cylinders including one cleaning and one drying cylinder
- Capacity to process 1000ml with single basket accommodating 47 slides
- Continuous operation for multiple baskets with batch dyeing capability
- Flexible time settings from 1 second to 99 minutes and 59 seconds
- Adjustable temperature range from 0°C to 99°C
- Stores up to 6 programmable settings for convenience
- Basket movement allows for 0-10 rising and trembling actions
- Compact dimensions of 140×50×55cm for easy placement in labs
- SKU
- NEUTR01
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Professional Cylinders Automatic Slide Tissue Stainer Machine NEUTR01
High-capacity automated tissue staining system with 18 processing cylinders, programmable temperature and time controls, and continuous batch processing capability. Designed for high-throughput histopathology laboratories requiring consistent, reproducible staining results across large slide volumes.
Clinical overview
The NEUTR01 is a professional-grade automatic slide tissue stainer designed for high-volume histopathology laboratories. With 18 processing cylinders (including dedicated cleaning and drying stations), this system enables continuous, unattended operation for multiple baskets with batch dyeing capability. The machine accommodates up to 47 slides per basket with a total fluid capacity of 1000ml, making it ideal for centralised laboratory environments processing hundreds of slides daily.
Flexible programming allows operators to store up to 6 customisable staining protocols with independent time and temperature settings for each cylinder. The basket movement control (0–10 rising and trembling actions) ensures thorough reagent penetration and uniform staining across all tissue sections. Compact footprint (140×50×55cm) facilitates integration into existing laboratory workflows without requiring extensive space reconfiguration.
Key features & surgeon benefits
High-Volume Processing
- 18 processing cylinders for continuous multi-basket operation
- Single basket holds 47 slides; 1000ml total capacity
- Batch dyeing capability for unattended overnight runs
Programmable Automation
- 6 storable protocols for rapid protocol switching
- Independent time (1 sec–99 min 59 sec) and temperature (0–99°C) per cylinder
- Adjustable basket movement (0–10 rising/trembling actions)
Reproducible Results
- Dedicated cleaning and drying cylinders ensure reagent purity
- Precise temperature control for optimal stain development
- Uniform basket movement promotes even reagent distribution
Laboratory-Ready Design
- Compact dimensions (140×50×55cm) fit standard benchtop layouts
- Stainless steel construction for durability and easy cleaning
- OEM customisation available for specialised protocols
Technical specifications
| Indications | Automated tissue slide staining for histopathology and clinical laboratory applications |
|---|---|
| Number of cylinders | 18 (including 1 cleaning cylinder and 1 drying cylinder) |
| Capacity | 1000ml total; single basket: 47 slides |
| Operation mode | Continuous multi-basket operation with batch dyeing capability |
| Time per cylinder | 1 second to 99 minutes 59 seconds (programmable) |
| Temperature range | 0°C to 99°C (adjustable per cylinder) |
| Programmable settings | 6 storable protocols |
| Basket movement | 0–10 rising and trembling actions |
| Dimensions | 140cm (L) × 50cm (W) × 55cm (H) |
| Material | Stainless steel |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Processing cylinders | Standard staining cylinders | 16 |
| Cleaning cylinder | Dedicated cleaning station | 1 |
| Drying cylinder | Dedicated drying station | 1 |
| Slide basket | Capacity 47 slides per basket | 1 |
| Control unit | Programmable temperature and time controller | 1 |
