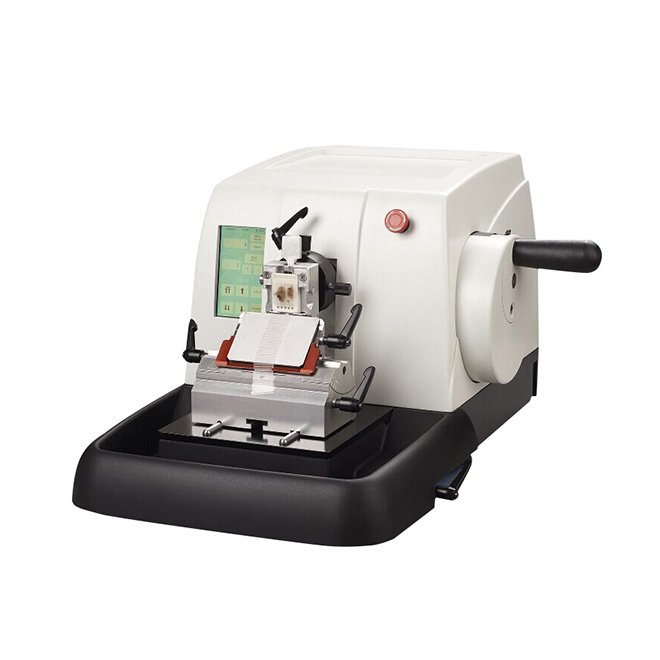

Rotary Fully Automatic Microtome Machine NEUK225
- Advanced rotary fully automatic microtome machine
- Section thickness range: 1 to 100μm for precise slicing
- Adjustable section thickness settings for customization
- Trimming thickness up to 600μm for versatile applications
- Max specimen size with cassette clamp: 40mm x 28mm
- Max specimen size with C clamp: 55mm x 40mm
- Compact dimensions: 560mm x 470mm x 300mm
- Weighs 35kg for stable operation
- Ideal for laboratory and research purposes
- Enhanced specimen retraction control (0 to 95μm)
- SKU
- NEUK225
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Rotary Fully Automatic Microtome Machine NEUK225
Advanced rotary fully automatic microtome for precision tissue sectioning. Delivers section thickness from 1 to 100μm with adjustable increments, trimming capability up to 600μm, and enhanced specimen retraction control for consistent, high-quality histological slides in research and clinical laboratories.
Clinical overview
The NEUK225 is a state-of-the-art rotary fully automatic microtome designed for high-precision tissue sectioning in histopathology, research, and clinical laboratory environments. Its advanced automation reduces manual handling, improves reproducibility, and enables consistent section quality across large sample batches. The machine accommodates diverse specimen sizes and offers granular control over section thickness, making it suitable for routine diagnostic work and specialised research applications.
With enhanced specimen retraction control and flexible trimming capabilities, the NEUK225 optimises workflow efficiency while maintaining the precision required for accurate histological analysis. Its compact, stable design and intuitive operation make it an ideal choice for laboratories seeking to standardise tissue preparation and improve throughput without compromising quality.
Key features & surgeon benefits
Fine-tuned sectioning
- Section thickness range 1–100μm with incremental settings
- 1μm increments for 1–20μm range; 5μm for 20–60μm; 10μm for 60–100μm
- Enhanced specimen retraction (0–95μm) for optimal ribbon formation
Fully automatic operation
- Rotary mechanism reduces manual intervention and operator fatigue
- Consistent, repeatable section quality across large batches
- Flexible specimen positioning with cassette clamp and C-clamp options
Comprehensive trimming capability
- Trimming thickness up to 600μm for diverse tissue types
- Specimen vertical stroke 70mm; horizontal stroke 25mm
- Accommodates specimens up to 55×40mm (C-clamp) or 40×28mm (cassette)
Compact, stable design
- Dimensions 560×470×300mm; weight 35kg for stable bench operation
- Ideal for routine diagnostic and research applications
- OEM customisation available for specialised workflows
Technical specifications
| Section thickness range | 1–100μm |
|---|---|
| Section thickness settings | 1–20μm (1μm increments); 20–60μm (5μm increments); 60–100μm (10μm increments) |
| Trimming thickness | 1–600μm |
| Trimming settings | 1–20μm (1μm increments); 10–20μm (2μm increments); 20–50μm (5μm increments); 50–100μm (10μm increments); 100–600μm (50μm increments) |
| Specimen retraction | 0–95μm in 5μm increments |
| Specimen vertical stroke | 70mm |
| Specimen horizontal stroke | 25mm |
| Max specimen size (cassette clamp) | 40mm × 28mm (H × W) |
| Max specimen size (C-clamp) | 55mm × 40mm (H × W) |
| Dimensions | 560mm × 470mm × 300mm (W × D × H) |
| Weight | 35kg |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Rotary Microtome Unit | Fully automatic rotary mechanism with precision drive system | 1 |
| Cassette Clamp Assembly | Standard specimen holder for cassette-mounted tissues (40×28mm capacity) | 1 |
| C-Clamp Assembly | Alternative specimen holder for larger specimens (55×40mm capacity) | 1 |
| Blade Holder | Precision-engineered blade mounting system | 1 |
| Control Panel | Intuitive interface for thickness and retraction settings | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss your laboratory requirements, request a detailed quote, or arrange a product demonstration of the NEUK225 microtome system.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
Customer reviews
No reviews yet — be the first to share your experience.
Related products
See all →

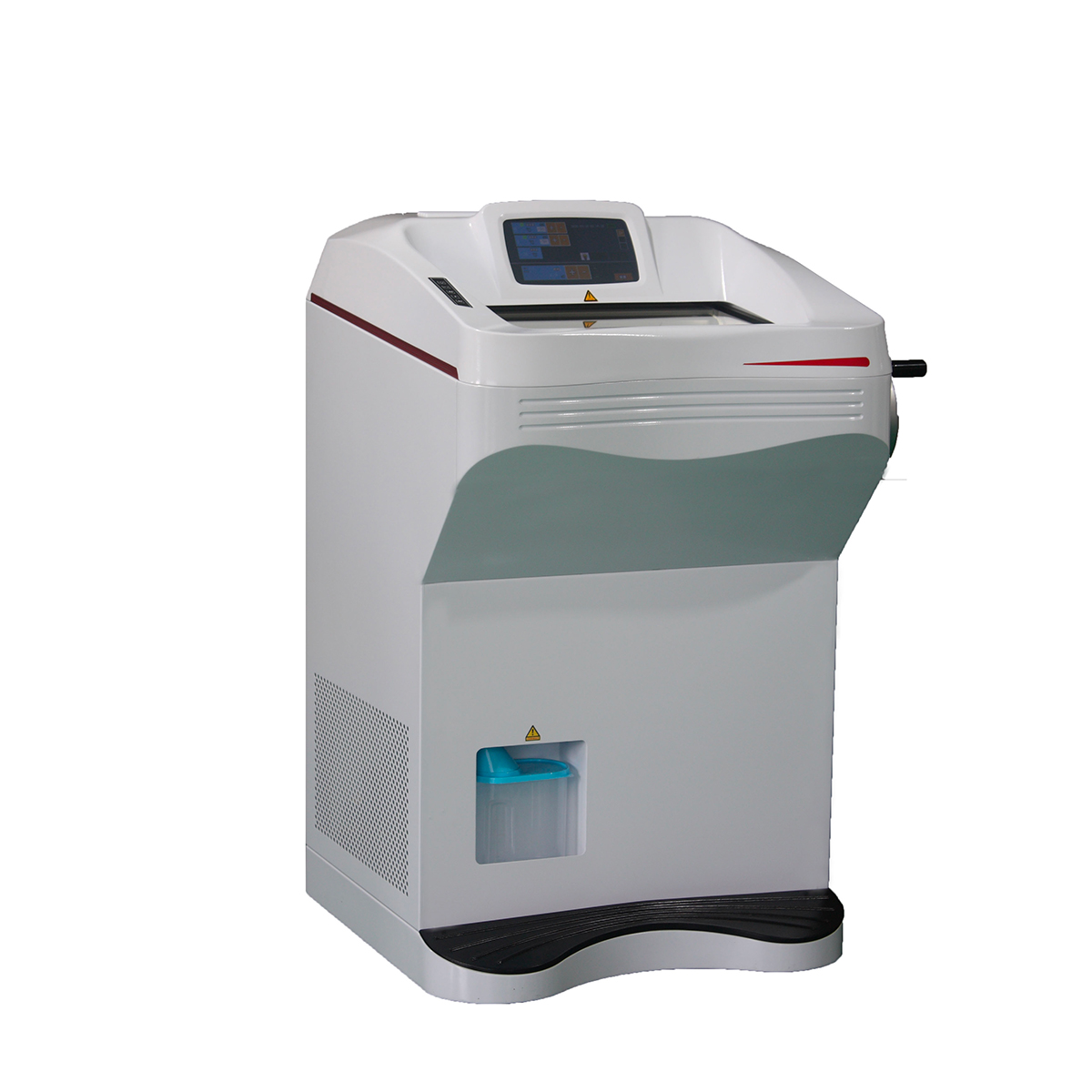

Cryostat Microtome Machine NEUK247
