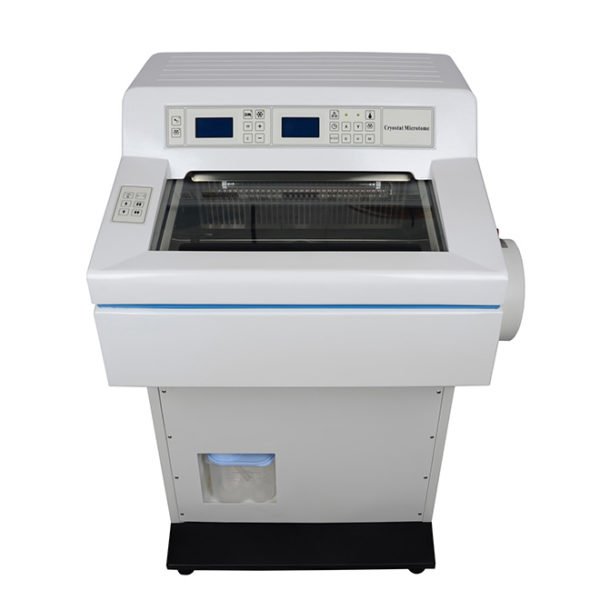

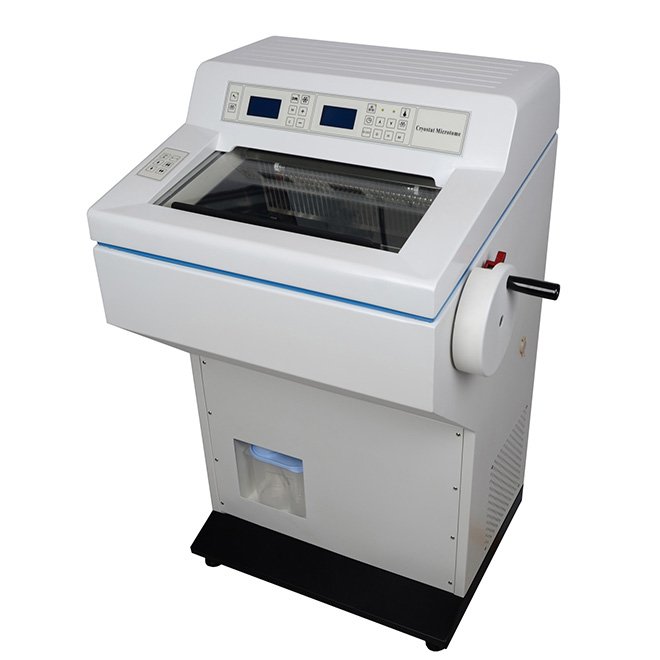

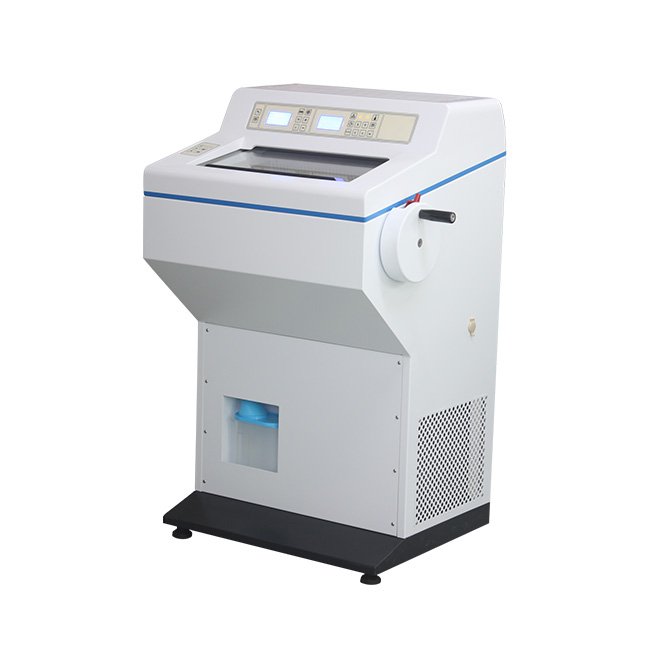

Semi-automatic Tissue Cryostat Microtome Machine NEUK232
- Semi-automatic Tissue Cryostat Microtome Machine NEUK232
- Voltage: AC 220V±22V; Frequency: 50Hz±1Hz; Power: 600W
- Features a double Danfoss compressor with efficient cooling capabilities
- Adjustable section thickness range from 1-100μm and trimming thickness from 10-400μm
- Operates at low working noise of 52dB(A) for a quieter workspace
- Chamber temperature adjustable from -10℃ to -40℃, with a minimum freezing shelf temperature of -45℃
- Maximum specimen size: 45mm x 50mm, with 20mm horizontal and 60mm vertical strokes
- Ideal for pathological diagnosis and research in medical and legal fields
- Quick cooling time to -60℃ in just 15 minutes with dual Peltier units
- Compact dimensions: 660mm x 640mm x 1150mm, weighs 135kgs
- SKU
- NEUK232
- Brand
- MedGroup
- Availability
- Out of stock
- ✓ Warranty included
- ✓ Worldwide shipping
Semi-automatic Tissue Cryostat Microtome Machine NEUK232
Precision rapid-freezing microtome for pathological tissue sectioning. Features dual Danfoss compressor cooling, adjustable section thickness from 1–100μm, and ultra-quiet operation at 52dB(A). Ideal for diagnostic pathology, research, and forensic applications in hospitals, medical institutions, and laboratories.
Clinical overview
The NEUK232 is a rapid pathological section instrument designed for human and animal tissue analysis. It combines semi-automatic operation with precision cooling technology, making it suitable for hospitals, medical colleges, research institutes, and forensic laboratories. The instrument integrates a computer-controlled panel, constant low-temperature chamber, mechanical transmission system, and dual-compressor cooling unit into a compact, clinician-friendly design.
With adjustable section thickness ranging from 1–100μm and trimming thickness from 10–400μm, the NEUK232 delivers consistent, high-quality tissue sections for diagnostic and research applications. Its dual Peltier units achieve −60°C in just 15 minutes, enabling rapid specimen preparation without compromising tissue integrity or morphology.
Key features & surgeon benefits
Dual Danfoss Compressor System
- Double Danfoss compressor with R404a refrigerant for efficient, reliable cooling
- Dual Peltier units reach −60°C in just 15 minutes
- Chamber temperature adjustable from −10°C to −40°C; freezing shelf minimum −45°C
Adjustable Sectioning Control
- Section thickness range 1–100μm with fine increments (1μm, 2μm, or 5μm)
- Trimming thickness 10–400μm for efficient specimen preparation
- Specimen retraction 0–80μm adjustable; 26 freezing stations for batch processing
Quiet, Low-Noise Operation
- Working noise just 52dB(A) for a quieter laboratory environment
- Compact footprint: 660mm × 640mm × 1150mm; 135kg total weight
- 600W power consumption; 45A maximum startup current
Large Specimen Support
- Maximum specimen size 45mm × 50mm accommodates diverse tissue types
- 20mm horizontal and 60mm vertical strokes for flexible positioning
- Semi-automatic operation reduces manual handling and improves consistency
Technical specifications
| Indications | Pathological diagnosis, tissue analysis, and research in medical, veterinary, and legal medicine applications |
|---|---|
| Sizes / range | Section thickness 1–100μm; trimming thickness 10–400μm; specimen size up to 45mm × 50mm |
| Material | Stainless steel chamber, precision optics, compressor-grade components |
| Sterilisation | As applicable; device operates in controlled low-temperature environment |
| Packaging | Standard protective packaging; custom shipping available |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Control Panel Assembly | Computer-controlled digital display with temperature and status monitoring | 1 |
| Cooling Chamber | Constant low-temperature chamber with adjustable temperature control | 1 |
| Specimen Head | Precision-machined specimen holder with retraction adjustment | 1 |
| Microtome Blade | High-precision cutting blade for tissue sectioning | 1 |
| Freezing Shelf | Multi-station freezing platform (26 stations) | 1 |
| Dual Danfoss Compressor Unit | Double compressor with R404a refrigerant and EMKARATE RL-22S oil | 1 |
| Dual Peltier Cooling Units | Rapid cooling elements for −60°C capability | 2 |
| Motor & Drive System | Mechanical transmission and motor assembly | 1 |
Get in touch for pricing & availability
Contact our sales team to request a detailed quote, arrange a product demonstration, or discuss customisation options for your laboratory or clinical facility.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
