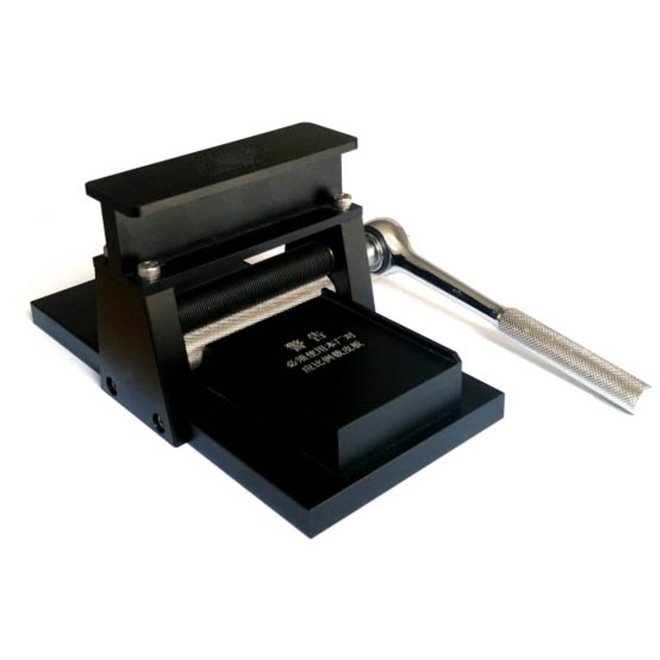

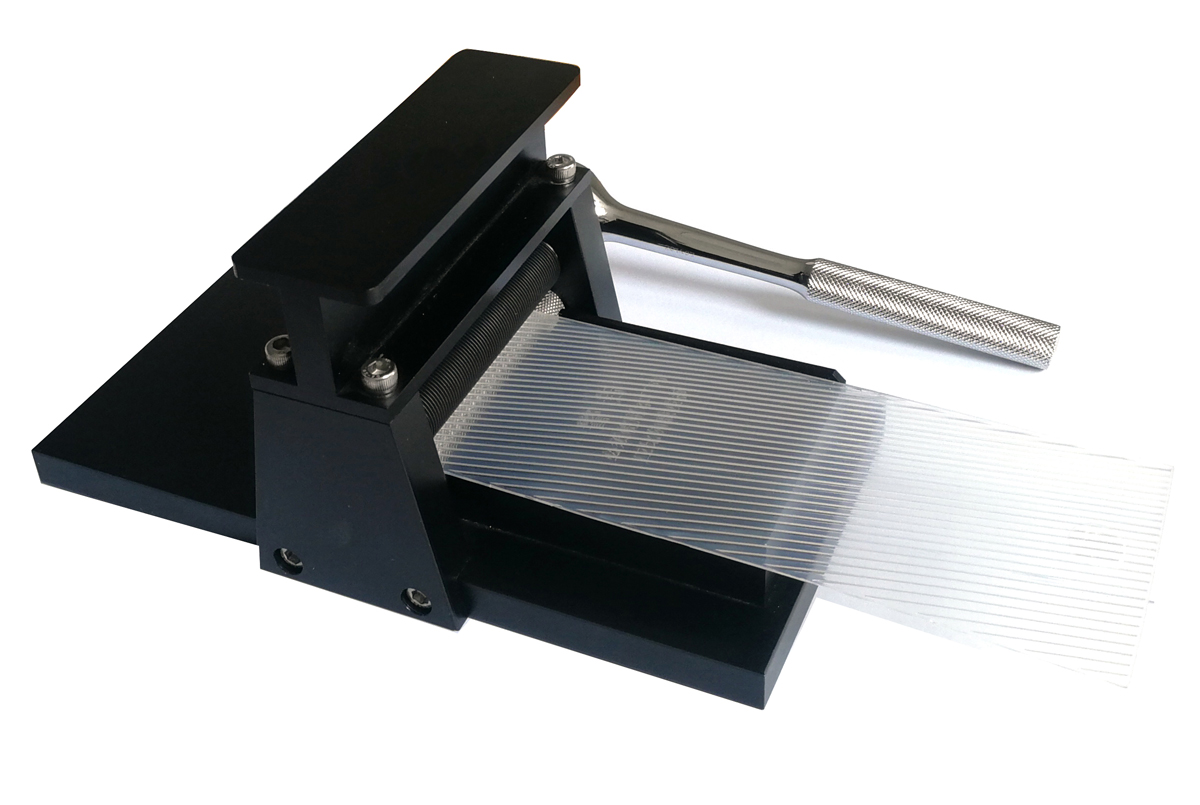

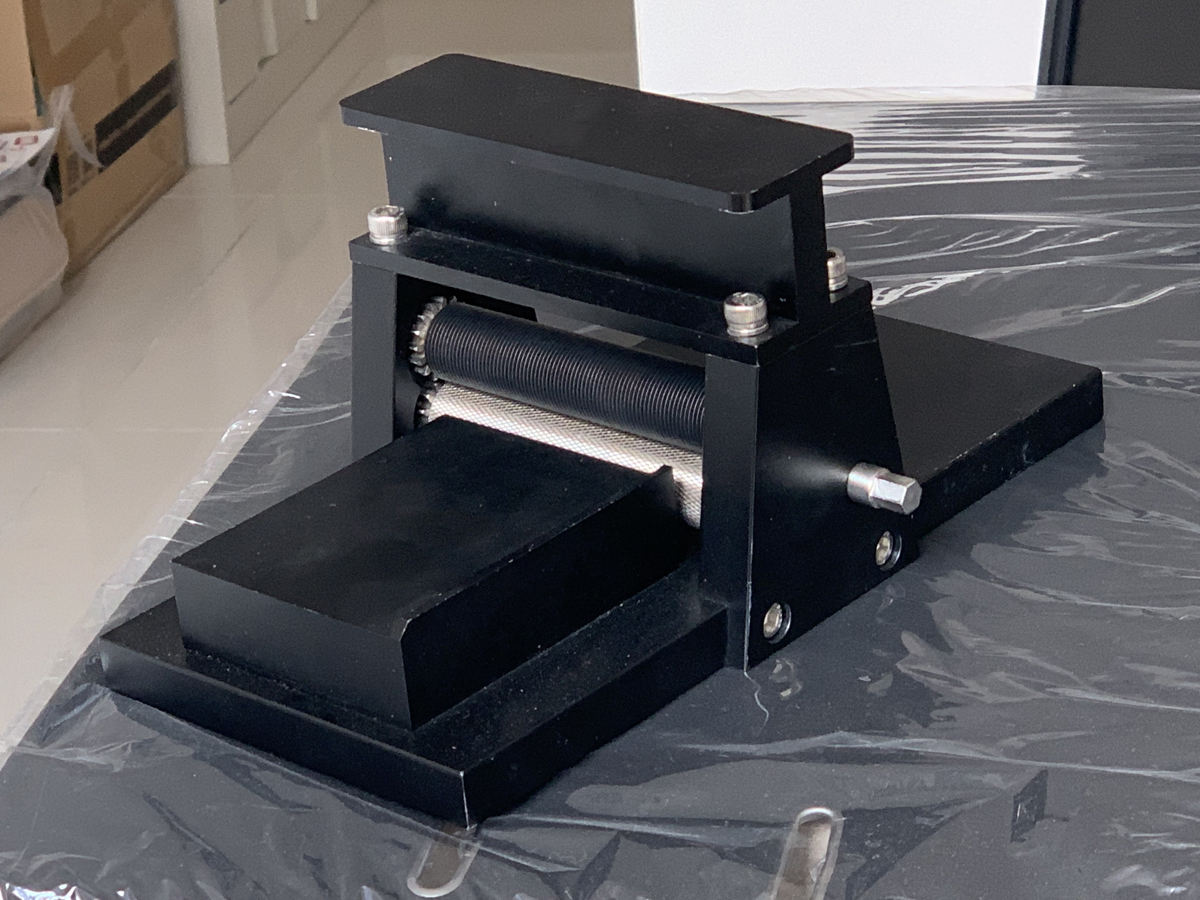

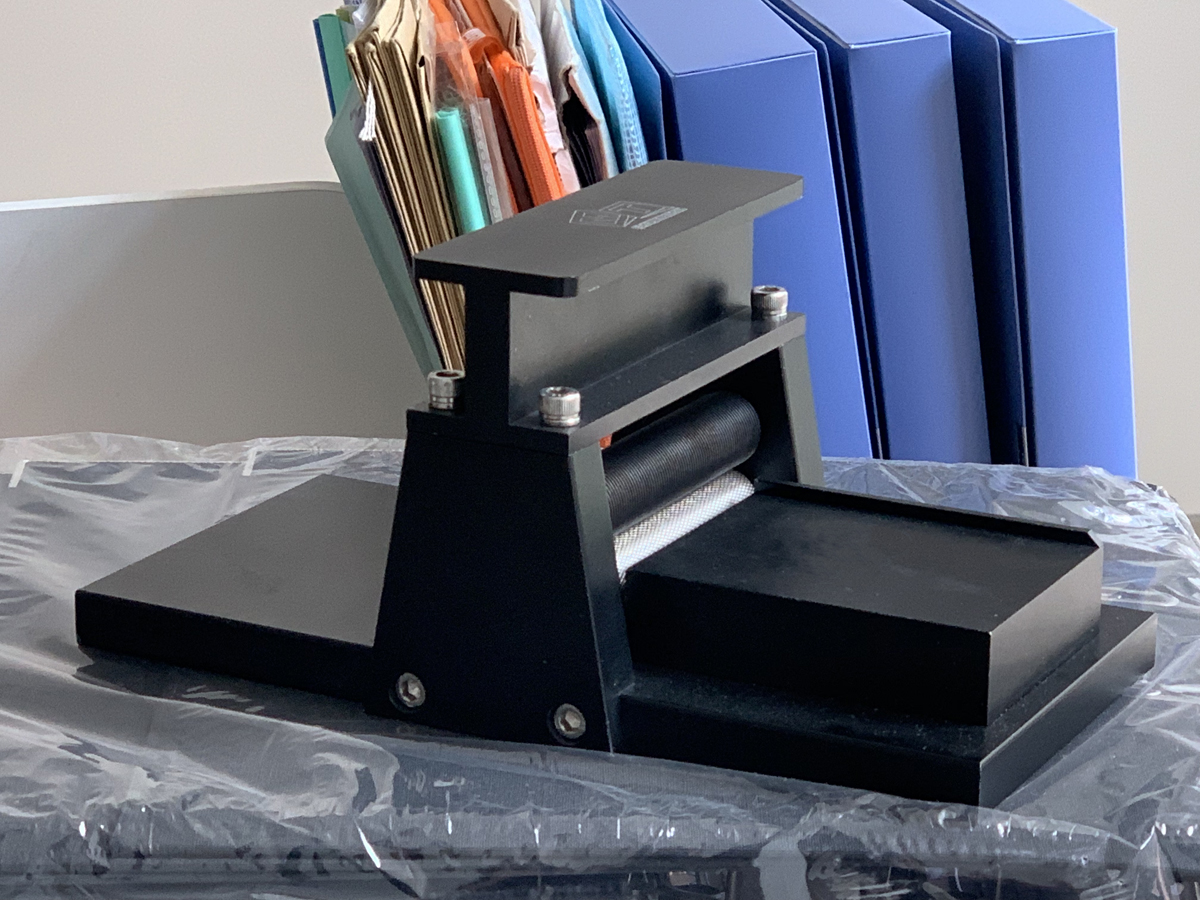

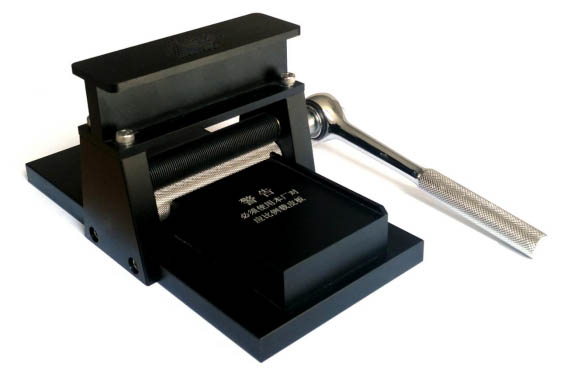

Surgical Burns Skin Graft Mesher Machine NEUSGM01
- High-efficiency surgical burns skin graft mesher machine (NEUSGM01)
- Produces various mesh sizes without tool changes
- Maximum skin width: 80 mm with unlimited length
- Sterilizable at high temperature, no lubrication needed
- Capable of creating 1.5:1, 3:1, 4.5:1, and 6:1 mesh ratios
- Durable, rust-free, and corrosion-resistant materials
- Manual operation with easy-to-use design
- Includes ten skin carrier boards for versatile applications
- Reduces medical costs significantly
- SKU
- NEUSGM01
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Surgical Burns Skin Graft Mesher Machine NEUSGM01
High-efficiency manual skin graft mesher for burn and wound care applications. Produces multiple mesh ratios without tool changes, handles skin up to 80 mm width with unlimited length, and requires no lubrication or maintenance. Fully sterilizable at high temperature with durable, corrosion-resistant construction.
Clinical overview
The NEUSGM01 is a precision manual skin graft mesher designed for burn care and reconstructive surgery. The machine produces mesh-patterned skin grafts using interchangeable skin carrier boards, eliminating the need for tool changes between different mesh ratios. This design significantly reduces operative time and medical costs while maintaining consistent graft quality across all mesh configurations.
The device accommodates skin specimens up to 80 mm in width with practically unlimited length, making it suitable for large-area burn coverage. Its durable, rust-free construction and high-temperature sterilization capability ensure reliable performance in demanding surgical environments without requiring lubrication or routine maintenance.
Key features & surgeon benefits
Versatile Mesh Ratios
- Four mesh expansion ratios: 1.5:1, 3:1, 4.5:1, and 6:1
- Skin width capacity up to 80 mm with unlimited length
- Accommodates variable skin thickness without adjustment
Tool-Free Operation
- No tool changes required between mesh ratios
- Simple carrier board selection system
- Intuitive manual operation for rapid graft preparation
Cost Reduction
- Significantly reduces medical and operational costs
- Eliminates expensive tool changeover procedures
- Durable construction minimizes replacement frequency
Sterilization & Durability
- High-temperature steam sterilization compatible
- Rust-free and corrosion-resistant materials
- Maintenance-free operation with no lubrication required
Technical specifications
| Machine Name | Skin Graft Mesher |
|---|---|
| Model | NEUSGM01 (MSLSGM01 type) |
| Function | Mesh skin graft production |
| Mesh Ratios | 1.5:1, 3:1, 4.5:1, 6:1 |
| Skin Specifications | Width 80 mm; length unlimited; thickness unlimited |
| Operation Mode | Manual |
| Material | Durable, rust-free, corrosion-resistant stainless steel |
| Sterilisation | High temperature and high pressure steam sterilization |
| Maintenance | No lubrication or routine maintenance required |
| Included Components | Ten skin carrier boards for versatile mesh configurations |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Mesher Body | Main housing with integrated skin roller and cutting tool | 1 |
| Handle | Manual operation handle for graft processing | 1 |

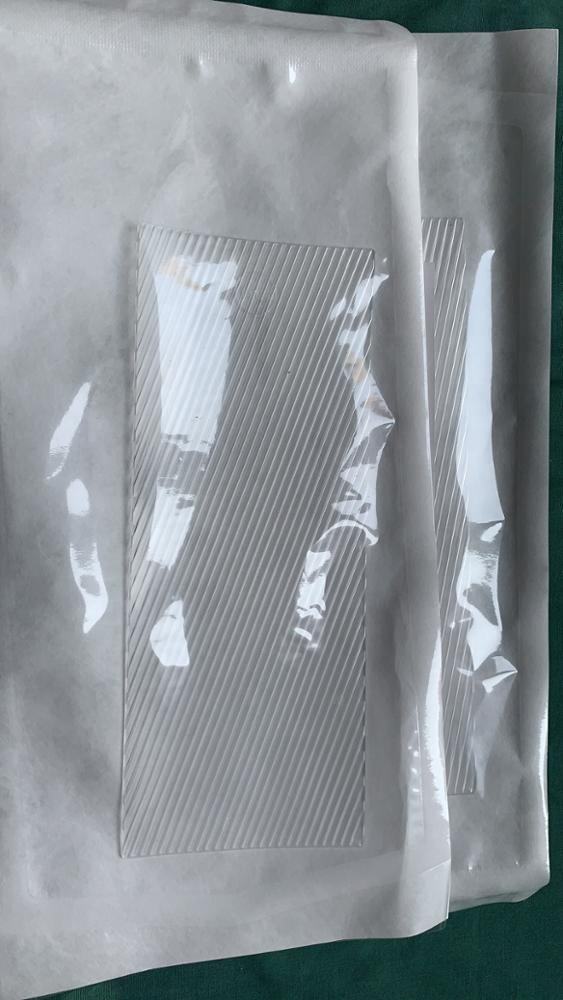

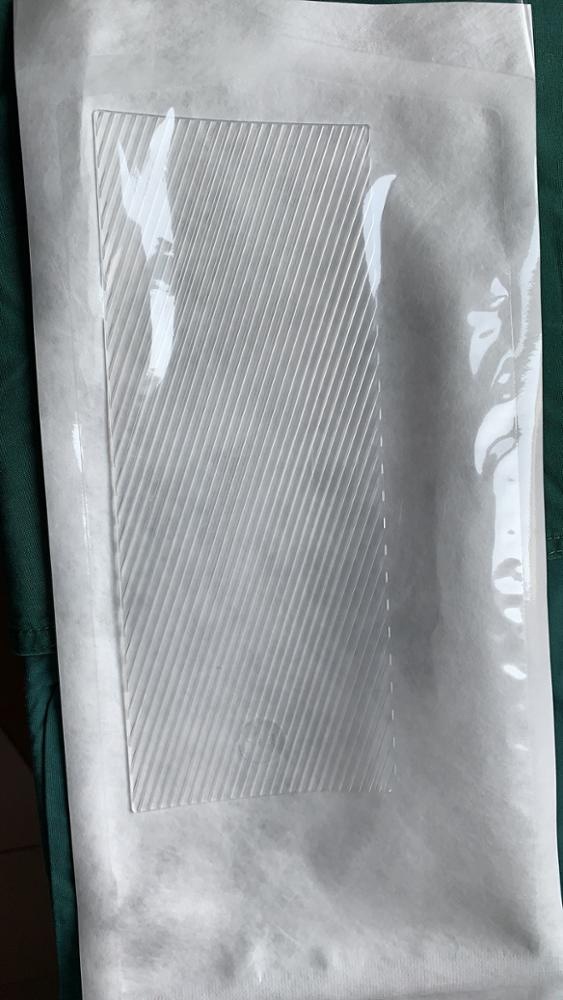

| Skin Carrier Boards | Interchangeable boards for 1.5:1, 3:1, 4.5:1, and 6:1 mesh ratios | 10 |
Get in touch for pricing & availability
Contact our surgical device specialists to discuss the NEUSGM01 mesher system, pricing, and delivery timelines for your facility. We provide comprehensive support and customization options for burn care and reconstructive surgery programs.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
