Tissue Embedding Center Machine Pathology Lab Equipment Biological NEUTE04
- SKU
- NEUTE04
- Brand
- MedGroup
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping

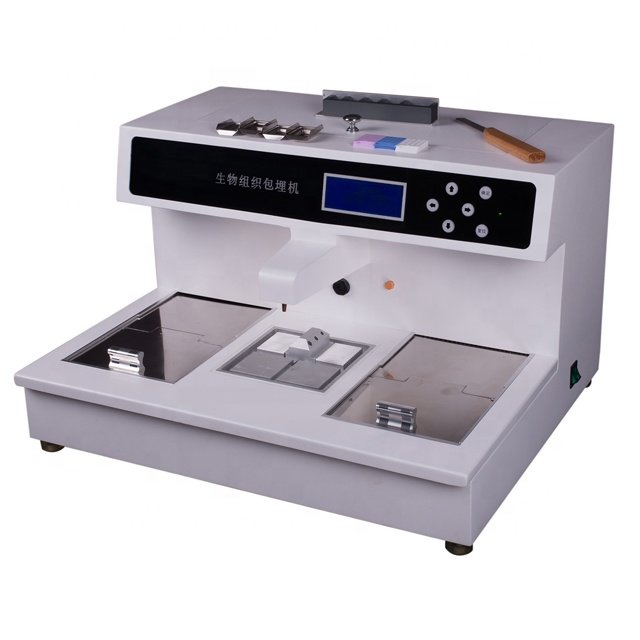

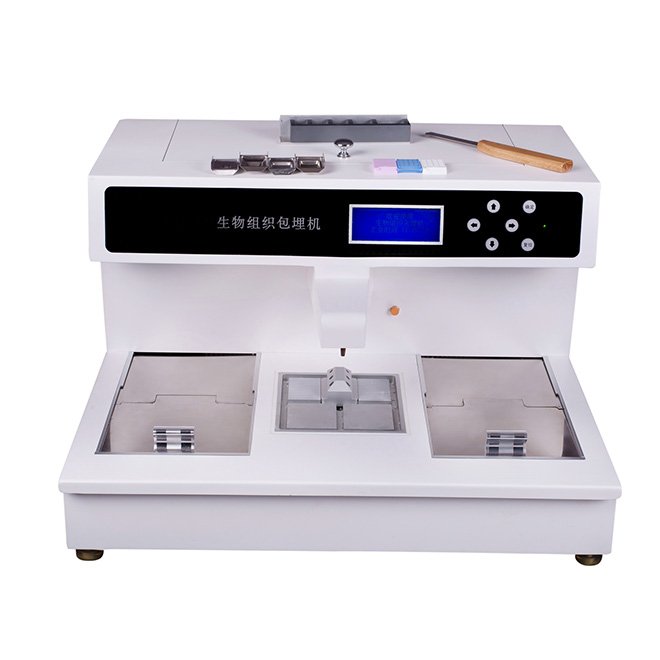

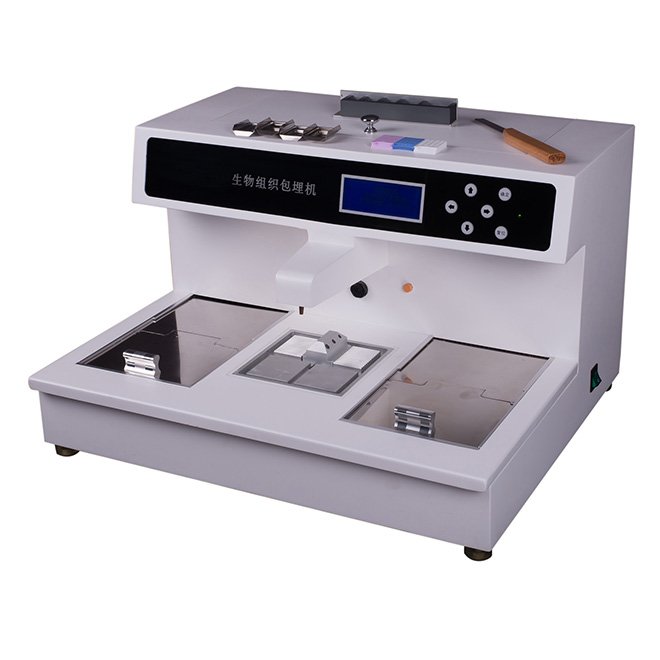

Tissue Embedding Center Machine
Advanced tissue embedding system designed for efficient pathology laboratory workflows. Features a 6000 ml wax bath capacity, programmable temperature control from 0–99°C, and dual operation modes for optimal specimen preparation and processing.
Clinical overview
The Tissue Embedding Center Machine is a precision laboratory instrument engineered for high-volume tissue specimen preparation in pathology departments. With a generous 6000 ml wax bath capacity and precise temperature control spanning 0–99°C, this system accommodates diverse embedding protocols and specimen types. The machine supports both automatic and foot-switch operation modes, enabling flexible workflow integration and reducing operator fatigue during extended processing sessions.
Designed for global laboratory environments, the system operates on AC 110V–220V (±10%) at both 50 Hz and 60 Hz frequencies, ensuring compatibility across international installations. Programmable 24-hour timer functionality allows unattended overnight processing cycles, while the compact footprint (1180×660×470 mm) and energy-efficient design (less than 1 kVA consumption) make it an economical choice for space-constrained facilities.
Key features & surgeon benefits
Large Wax Bath Volume
- 6000 ml capacity for high-volume specimen processing
- Accommodates multiple tissue blocks per cycle
- Reduces processing time and labour costs
Dual Operation Modes
- Automatic and foot-switch control options
- Programmable 24-hour timer for unattended cycles
- Precise temperature regulation 0–99°C
Energy & Space Efficient
- Consumes less than 1 kVA—minimal electricity costs
- Compact 1180×660×470 mm footprint
- Lightweight options: 68 kg or 92 kg configurations
Global Installation Ready
- AC 110V–220V (±10%) voltage compatibility
- Supports 50 Hz and 60 Hz frequencies
- Operates in ambient temperatures 0–40°C
Technical specifications
| Indications | Tissue embedding and preparation for histopathology |
|---|---|
| Wax Bath Capacity | 6000 ml |
| Temperature Range | 0–99°C (melting paraffin prefabricate) |
| Power Consumption | Less than 1 kVA |
| Control Mode | Automatic and foot-switch operation |
| Operating Environment | 0–40°C ambient temperature |
| Timer Function | Programmable opening and closing times within 24-hour period |
| Nominal Voltage | AC 110V–220V (±10%) |
| Rated Frequency | 50 Hz / 60 Hz |
| Dimensions | 1180 × 660 × 470 mm |
| Weight | 68 kg (MSLTE04) or 92 kg (MSLTE05) |
| Warranty | 2 Year Manufacturer Warranty |

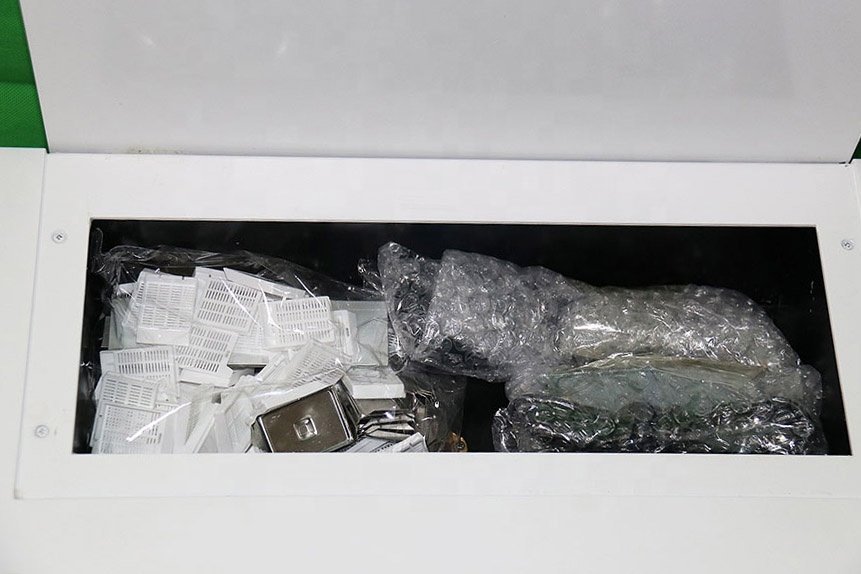

Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Tissue Embedding Center Machine | Complete unit with wax bath, heating element, control panel, and dual operation modes | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss your laboratory's tissue embedding requirements, request a detailed quote, or arrange a product demonstration. We offer flexible delivery and customisation options to meet your facility's specifications.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
